7-50 — FRONT SEAT (#150800) — 129 parça

175 176 188 16 126 403 188 403 179 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1> THA	1-75418-062-1	01	1	1410-	●
16	ADJUSTER ASM; RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	1-75418-062-1	01	1	1410-		●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1410-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1410-		●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1410-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> (A) THA	8-98063-218-0	01	1	1410-		●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> THA	8-97925-314-0	01	1	1410-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> THA	8-97925-308-0	01	1	1410-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> THA	8-97924-453-0	01	1	1410-	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> THA	8-97924-451-0	01	1	1410-	●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X20 THA	8-97924-820-0	04	1	1410-	●
188	BOLT; BACK TO CUSHION DELUXE SEAT<PQ8> CENTER SEAT<SA1> M10X20 THA	8-97924-820-0	04	1	1410-		●
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE THA	0-91180-108-0	04	1	1410-	●	●

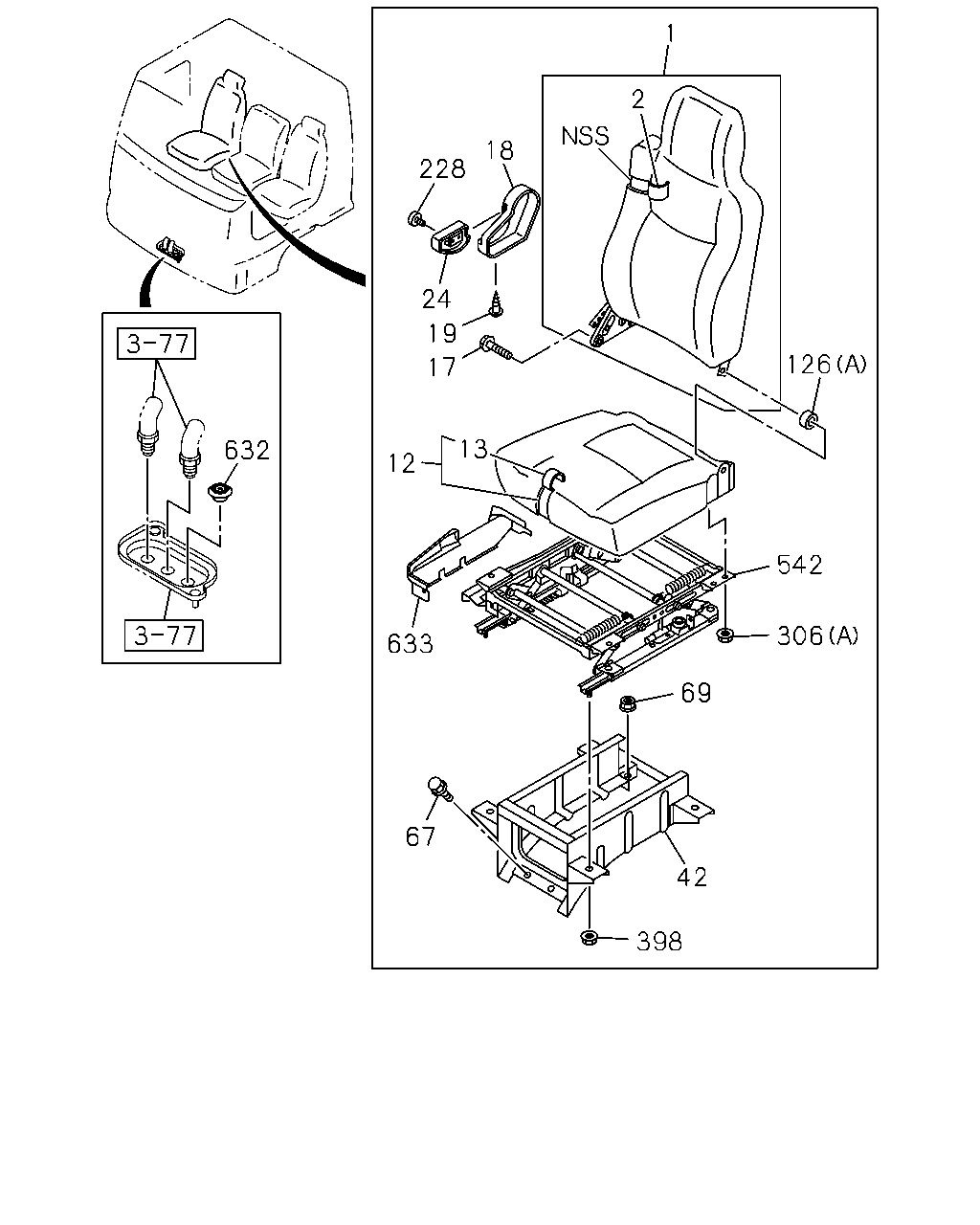

1 2 18 228 24 19 17 126 13 12 633 542 306 69 67 42 398 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1410-	●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-323-0	01	1	1410-		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1410-	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-326-0	01	1	1410-		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1410-	●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-332-0	01	1	1410-		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1410-	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-329-0	01	1	1410-		●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1410-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> DRIVER M10X20 THA	8-98062-661-0	04	1	1410-		●
17	BOLT; RECLINING PASSENGER THA	8-98092-334-0	04	1	1410-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> PASSENGER THA	8-98092-334-0	04	1	1410-		●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1410-	●
18	COVER; RECLINING DELUXE SEAT<PQ8> GRAY THA	8-97409-332-0	01	1	1410-		●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1410-	●
19	SCREW; COVER DELUXE SEAT<PQ8> M5 THA	8-98062-663-0	01	1	1410-		●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1410-	●
24	KNOB; RECLINING,FRT,SEAT DELUXE SEAT<PQ8> GRAY THA	8-97409-333-0	01	1	1410-		●
42	STAND; DRIVER SEAT THA	1-75558-604-2	01	1	1410-	●
42	STAND; DRIVER SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	1-75558-604-2	01	1	1410-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	1410-	●	●
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	1410-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1410-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1410-		●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1410-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> (A) THA	8-98063-218-0	01	1	1410-		●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1410-	●
228	SCREW; KNOB DELUXE SEAT<PQ8> M4 THA	8-98062-662-0	01	1	1410-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1410-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1410-	●	●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	1410-		●
398	NUT; STAND M8 FLANGE THA	1-75538-207-0	04	1	1410-	●
398	NUT; STAND DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	1410-		●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1410-	●
632	GROMMET OD=24 THA	8-94119-796-0	01	1	1410-	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24 THA	8-94119-796-0	01	1	1410-		●
633	COVER; ADJ,TILT DELUXE SEAT<PQ8> GRAY THA	8-97409-956-0	01	1	1410-		●

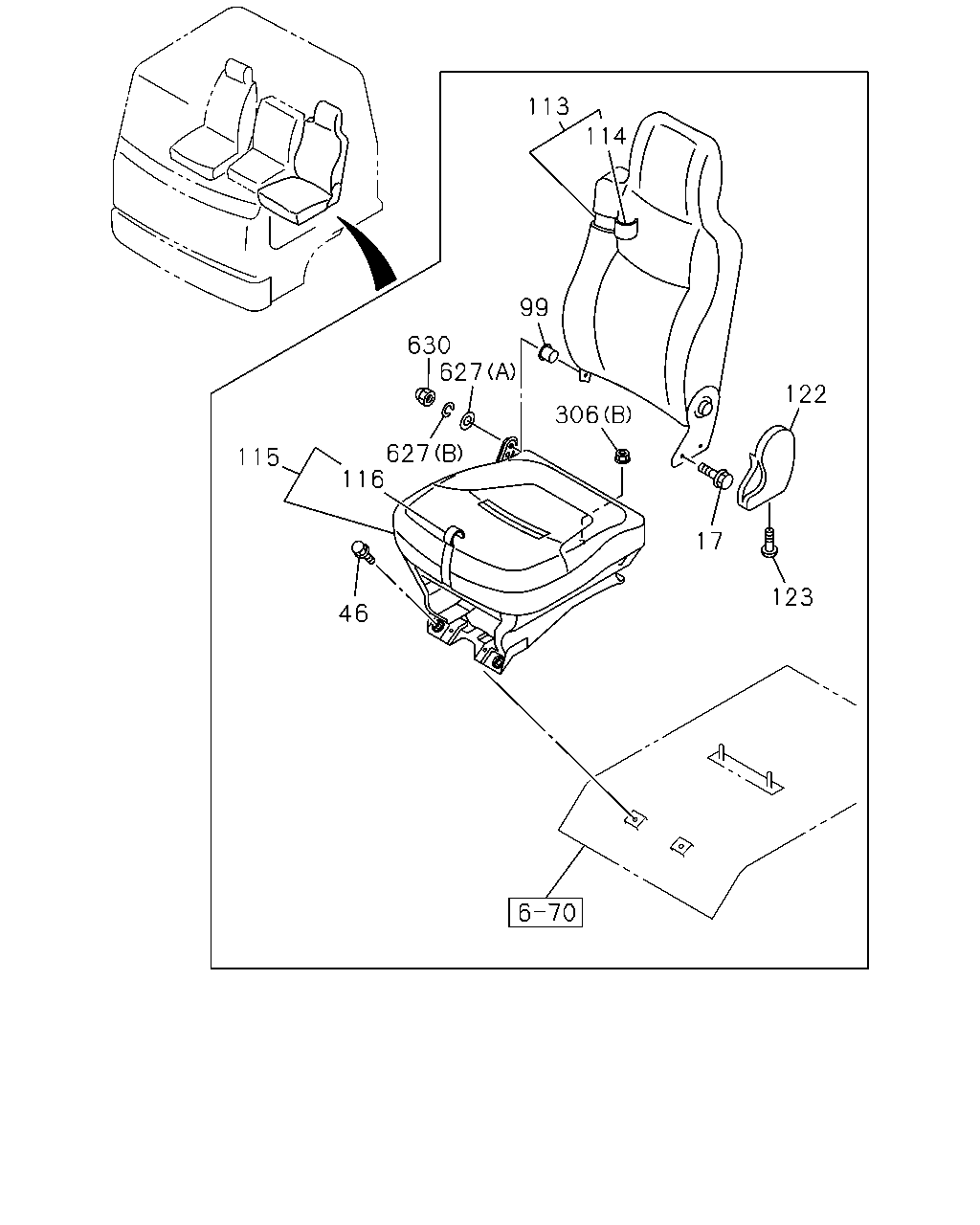

113 114 99 122 630 627 306 627 115 116 46 17 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1410-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> DRIVER M10X20 THA	8-98062-661-0	04	1	1410-		●
17	BOLT; RECLINING PASSENGER THA	8-98092-334-0	04	1	1410-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> PASSENGER THA	8-98092-334-0	04	1	1410-		●
46	BOLT; STAND TO FLOOR M10X20 FLANGE THA	0-28451-020-0	02	1	1410-	●	●
99	BUSHING; SEAT BACK THA	8-98063-219-0	01	1	1410-	●
99	BUSHING; SEAT BACK DELUXE SEAT<PQ8> THA	8-98063-219-0	01	1	1410-		●
113	BACK ASM; SEAT THA	8-97924-737-0	01	1	1410-	●
113	BACK ASM; SEAT DELUXE SEAT<PQ8> THA	8-97925-324-0	01	1	1410-		●
114	COVER; TRIM,PASSENGER SEAT,BACK THA	8-97924-761-0	01	1	1410-	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8> THA	8-97925-327-0	01	1	1410-		●
115	CUSHION ASM; PASSENGER SEAT THA	8-97924-759-0	01	1	1410-	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8> THA	8-97925-333-0	01	1	1410-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION THA	8-97924-760-0	01	1	1410-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8> THA	8-97925-330-0	01	1	1410-		●
122	COVER; ADJ,RECLINING GRAY THA	8-97409-967-0	01	1	1410-	●
122	COVER; ADJ,RECLINING DELUXE SEAT<PQ8> GRAY THA	8-97409-967-0	01	1	1410-		●
123	SCREW; COVER,RECLINING THA	8-98070-026-0	01	1	1410-	●
123	SCREW; COVER,RECLINING DELUXE SEAT<PQ8> THA	8-98070-026-0	01	1	1410-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1410-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1410-	●	●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	1410-		●
627	WASHER; FRT SEAT (A) THA	8-98063-223-0	01	1	1410-	●
627	WASHER; FRT SEAT DELUXE SEAT<PQ8> (A) THA	8-98063-223-0	01	1	1410-		●
627	WASHER; FRT SEAT (B) THA	8-98063-224-0	01	1	1410-	●
627	WASHER; FRT SEAT DELUXE SEAT<PQ8> (B) THA	8-98063-224-0	01	1	1410-		●
630	NUT; CAP M8 THA	8-98063-225-0	01	1	1410-	●
630	NUT; CAP DELUXE SEAT<PQ8> M8 THA	8-98063-225-0	01	1	1410-		●

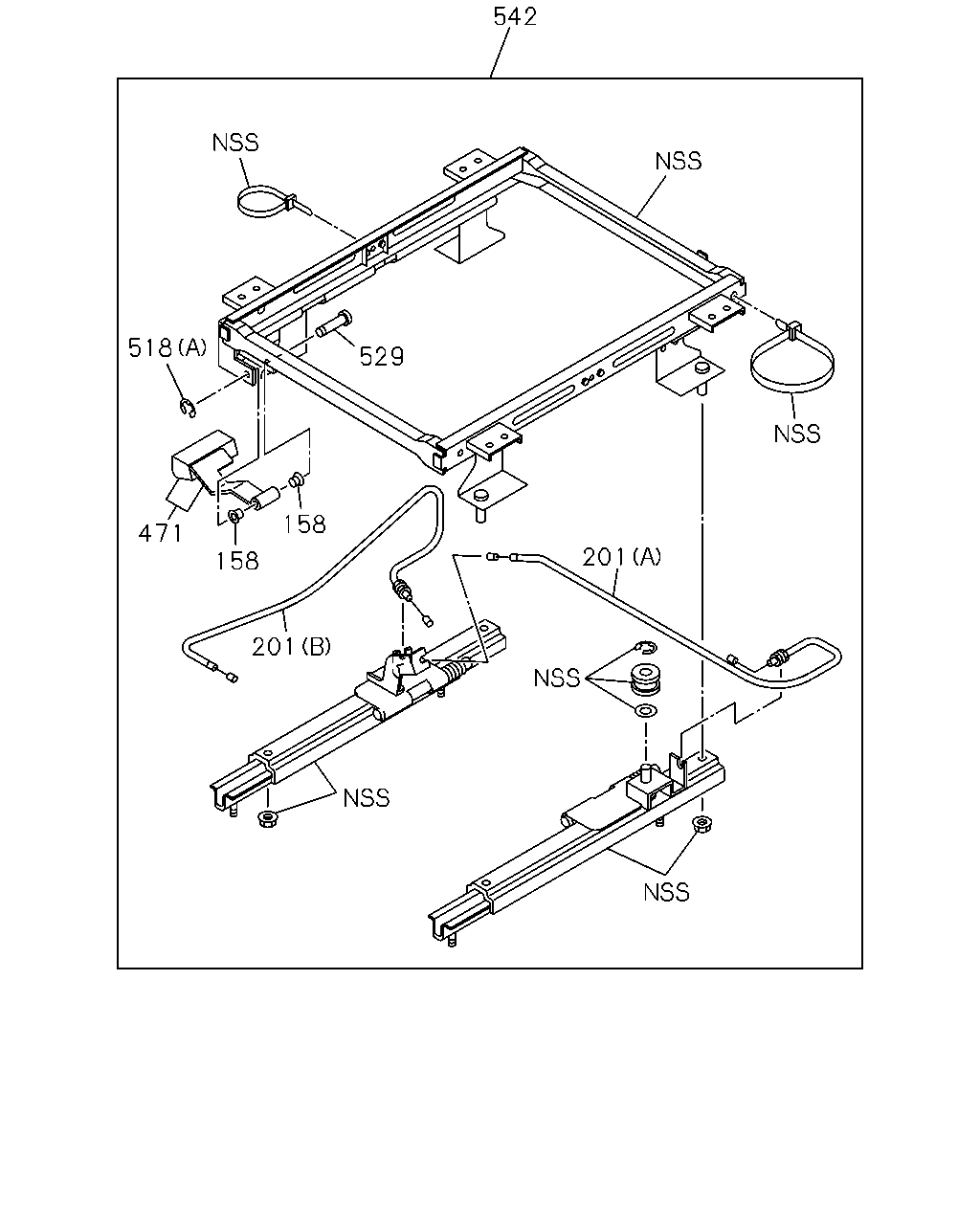

542 518 529 471 158 158 201 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1410-	●
158	BUSHING; LINK ARM DELUXE SEAT<PQ8> THA	1-75518-209-0	02	1	1410-		●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1410-	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (A) L=667 THA	1-75518-288-0	01	1	1410-		●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1410-	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (B) L=605 THA	1-75518-289-1	01	1	1410-		●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1410-	●
471	LEVER; SEAT ADJ DELUXE SEAT<PQ8> THA	8-98107-869-0	01	1	1410-		●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1410-	●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (A) THA	1-75518-263-0	01	1	1410-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (B) THA	1-75518-264-0	04	1	1410-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (E) M8 FLANGE THA	1-75538-207-0	04	1	1410-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1410-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (C) M8 FLANGE THA	8-94152-886-0	04	1	1410-		●
529	PIN; LINK THA	1-75518-262-0	01	1	1410-	●
529	PIN; LINK DELUXE SEAT<PQ8> THA	1-75518-262-0	01	1	1410-		●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1410-	●

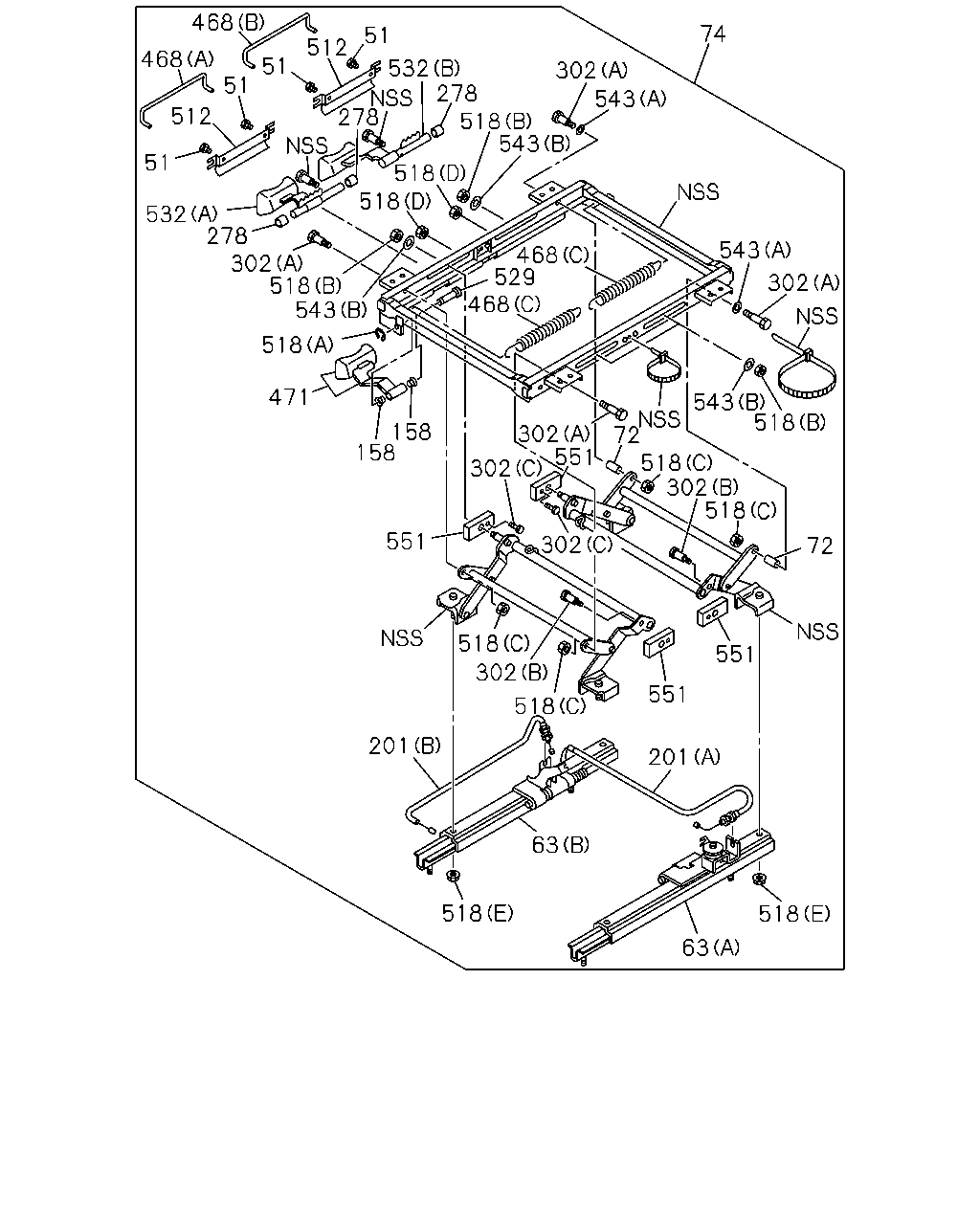

468 468 51 512 51 51 512 51 532 278 532 278 518 518 518 302 278 518 543 543 302 543 518 468 529 468 471 158 158 543 302 543 72 302 302 551 518 302 302 551 518 302 518 201 551 551 63 518 201 63 518 72 518 518 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER DELUXE SEAT<PQ8> THA	1-75518-325-1	04	1	1410-		●
63	ADJUSTER; SEAT SLIDE DELUXE SEAT<PQ8> (A) THA	1-75518-199-1	01	1	1410-		●
63	ADJUSTER; SEAT SLIDE DELUXE SEAT<PQ8> (B) THA	1-75518-323-0	01	1	1410-		●
72	SPACER; SEAT ADJ DELUXE SEAT<PQ8> THA	1-75518-334-1	02	1	1410-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT<PQ8> THA	8-98003-678-0	01	1	1410-		●
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1410-	●
158	BUSHING; LINK ARM DELUXE SEAT<PQ8> THA	1-75518-209-0	02	1	1410-		●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1410-	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (A) L=667 THA	1-75518-288-0	01	1	1410-		●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1410-	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (B) L=605 THA	1-75518-289-1	01	1	1410-		●
278	COLLAR; FRT SEAT DELUXE SEAT<PQ8> THA	1-75518-244-0	03	1	1410-		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (B) THA	1-75518-266-2	02	1	1410-		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (A) THA	1-75518-270-1	04	1	1410-		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (C) THA	1-75518-336-1	02	1	1410-		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (A) THA	1-75518-206-0	01	1	1410-		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (B) THA	1-75518-207-0	01	1	1410-		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (C) THA	1-75518-208-0	02	1	1410-		●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1410-	●
471	LEVER; SEAT ADJ DELUXE SEAT<PQ8> THA	8-98107-869-0	01	1	1410-		●
512	COVER; LEVER DELUXE SEAT<PQ8> THA	1-75518-243-1	02	1	1410-		●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1410-	●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (A) THA	1-75518-263-0	01	1	1410-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (B) THA	1-75518-264-0	04	1	1410-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (E) M8 FLANGE THA	1-75538-207-0	04	1	1410-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1410-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (C) M8 FLANGE THA	8-94152-886-0	04	1	1410-		●
529	PIN; LINK THA	1-75518-262-0	01	1	1410-	●
529	PIN; LINK DELUXE SEAT<PQ8> THA	1-75518-262-0	01	1	1410-		●
532	LEVER ASM; TILT DELUXE SEAT<PQ8> (A) THA	1-75518-203-0	01	1	1410-		●
532	LEVER ASM; TILT DELUXE SEAT<PQ8> (B) THA	1-75518-204-1	01	1	1410-		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (A) THA	1-75518-335-0	02	1	1410-		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (B) ID=8.4 THA	9-09160-508-0	04	1	1410-		●
551	SLIDER; HEIGHT ADJ DELUXE SEAT<PQ8> THA	1-75518-265-0	04	1	1410-		●
