1-40 — FUEL TANK (#15080) — 83 parça

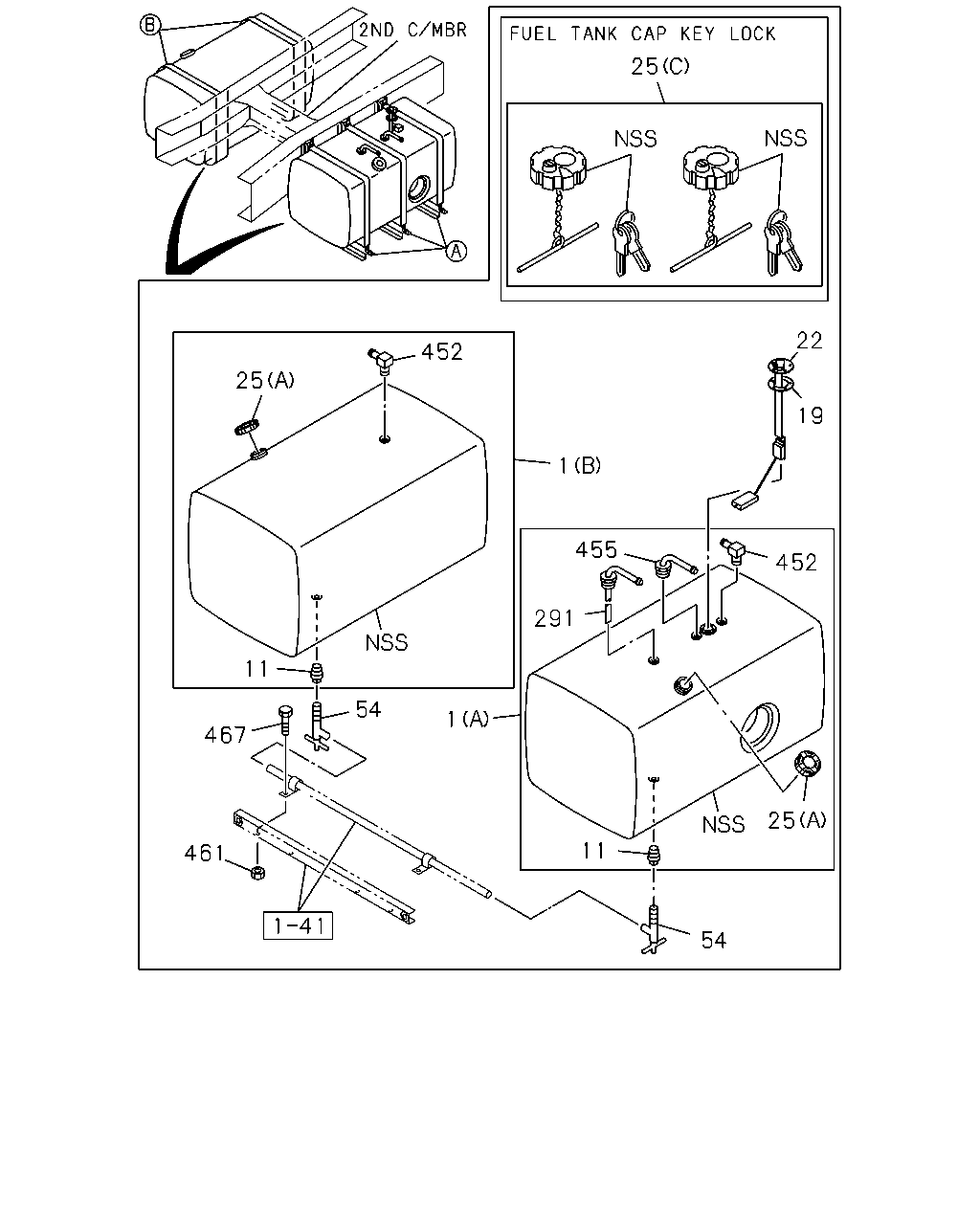

25 22 452 25 19 1 455 452 291 11 54 1 467 25 11 461 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A) 1250X700X700 550L	8-98063-226-2	01	1	0804-
1	TANK; FUEL FUEL TANK 550L+450L<EDQ> (B) 1050X700X700 450L	8-98093-781-0	01	1	0804-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0804-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0804-
19	GASKET; FUEL TANK UNIT ID=45 OD=67	1-83149-003-0	01	1	0804-
22	UNIT; FUEL TANK	1-83141-150-1	01	1	0804-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP> FUEL TANK CAP KEY LOCK<N05> (B)	8-98096-700-0	01	1	0804-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> FUEL TANK CAP KEY LOCK<N05> (C)	8-98117-149-0	01	1	0804-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0804-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0804-
54	COCK ASM; FUEL TANK FUEL TANK 550L+450L<EDQ>	1-09680-097-0	02	1	0804-
291	PIPE; FUEL,SUCTION FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	8-98098-902-0	01	1	0804-
452	BREATHER; FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0804-
452	BREATHER; FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0804-
455	PIPE; FUEL,RETURN FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-016-0	01	1	0804-
461	NUT; CLIP,FUEL PIPE FUEL TANK 550L+450L<EDQ> M8 FLANGE	0-91180-108-0	04	1	0804-
467	BOLT FUEL TANK 550L+450L<EDQ> M8X20 FLANGE	0-28650-820-0	04	1	0804-

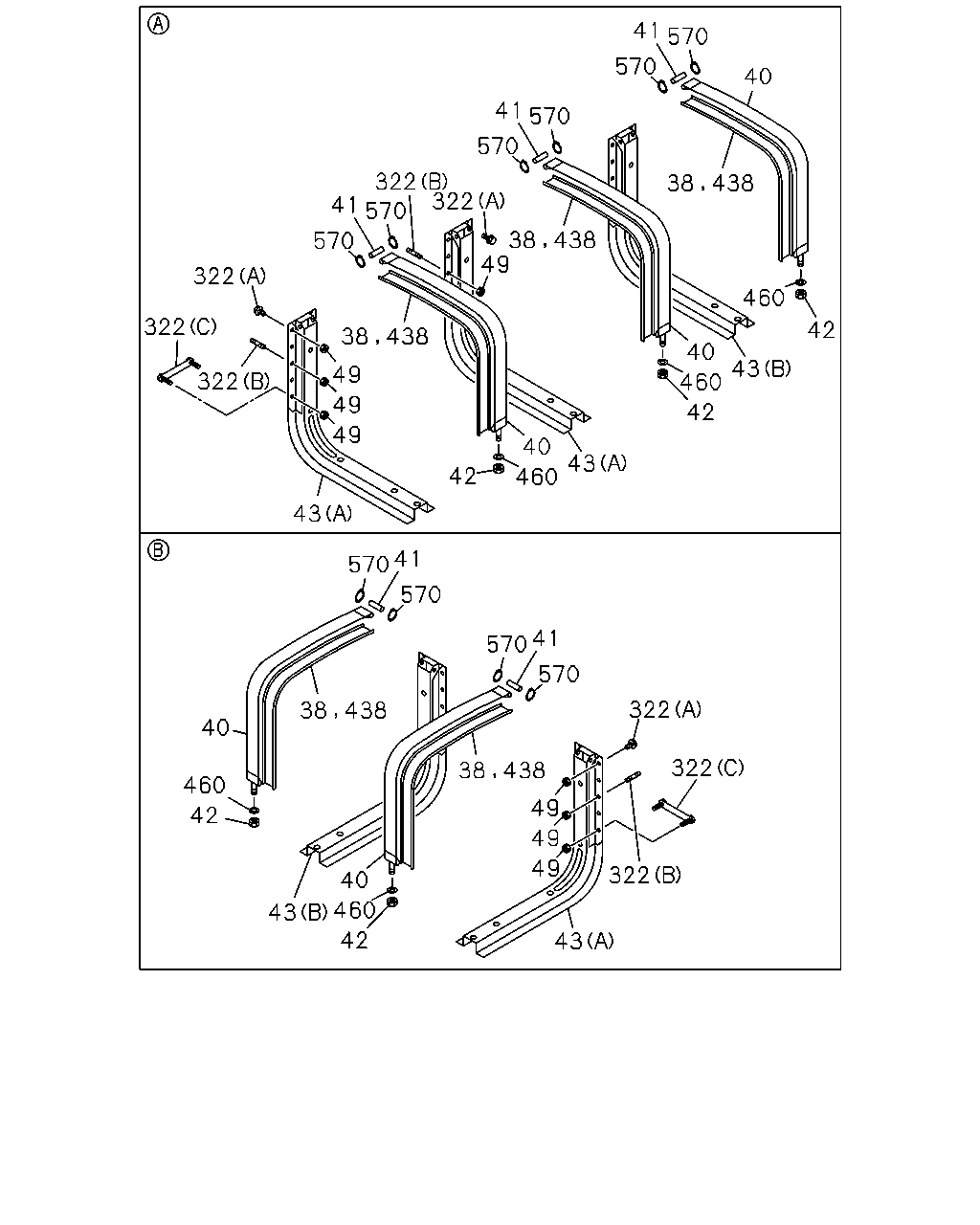

41 570 570 40 41 570 570 322 322 41 570 49 570 322 460 322 42 40 43 460 49 322 49 42 49 40 43 460 42 43 41 570 570 41 570 570 322 40 322 460 49 42 49 49 322 40 43 460 42 43 38 438 38 438 38 438 38 438 38 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	INSULATION; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0806-
38	INSULATION; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0806-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L<EDP>	8-98048-517-0	03	1	0804-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98048-517-0	05	1	0804-
41	PIN; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-491-0	03	1	0804-
41	PIN; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-491-0	05	1	0804-
42	NUT; SUPPORT BELT FUEL TANK 550L<EDP>	1-22559-027-0	03	1	0804-
42	NUT; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	1-22559-027-0	05	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (A)	8-98093-785-0	02	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (B)	8-98093-786-0	01	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	8-98093-785-0	03	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ> (B)	8-98093-786-0	02	1	0804-
49	NUT; BRKT FUEL TANK 550L<EDP> M12	0-91110-512-0	06	1	0804-
49	NUT; BRKT FUEL TANK 550L+450L<EDQ> M12	0-91110-512-0	14	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (A) M12X45 FLANGE	0-28051-245-0	12	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (B) M12X50 L=66	1-09300-124-0	04	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (C)	8-98093-605-0	01	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (A) M12X45 FLANGE	0-28051-245-0	16	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (B) M12X50 L=66	1-09300-124-0	08	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (C)	8-98093-605-0	03	1	0804-
438	LINER; RUBBER FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0804-0805
438	LINER; RUBBER FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0804-0805
460	WASHER; PL,BRKT FUEL TANK 550L<EDP> ID=17 OD=32	9-09160-616-0	03	1	0804-
460	WASHER; PL,BRKT FUEL TANK 550L+450L<EDQ> ID=17 OD=32	9-09160-616-0	05	1	0804-
570	CLIP; PIN FUEL TANK 550L<EDP>	1-22559-024-0	06	1	0804-
570	CLIP; PIN FUEL TANK 550L+450L<EDQ>	1-22559-024-0	10	1	0804-

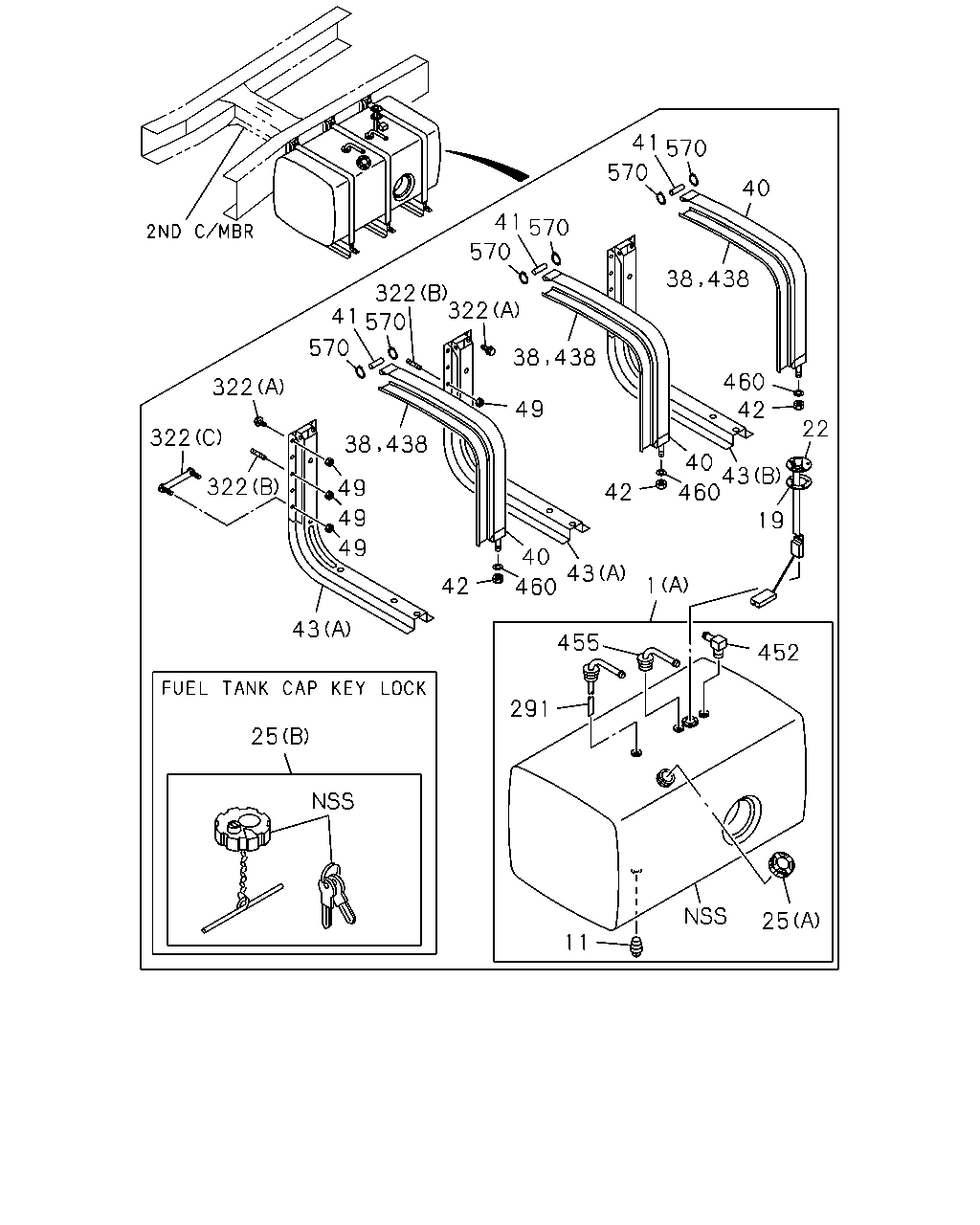

41 570 570 40 41 570 570 438 322 322 41 570 570 438 460 42 322 49 22 322 40 43 460 322 49 42 49 19 49 40 43 460 1 42 43 455 452 291 25 25 11 38 438 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A) 1250X700X700 550L	8-98063-226-2	01	1	0804-
1	TANK; FUEL FUEL TANK 550L+450L<EDQ> (B) 1050X700X700 450L	8-98093-781-0	01	1	0804-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0804-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0804-
19	GASKET; FUEL TANK UNIT ID=45 OD=67	1-83149-003-0	01	1	0804-
22	UNIT; FUEL TANK	1-83141-150-1	01	1	0804-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP> FUEL TANK CAP KEY LOCK<N05> (B)	8-98096-700-0	01	1	0804-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> FUEL TANK CAP KEY LOCK<N05> (C)	8-98117-149-0	01	1	0804-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0804-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0804-
38	INSULATION; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0806-
38	INSULATION; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0806-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L<EDP>	8-98048-517-0	03	1	0804-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98048-517-0	05	1	0804-
41	PIN; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-491-0	03	1	0804-
41	PIN; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-491-0	05	1	0804-
42	NUT; SUPPORT BELT FUEL TANK 550L<EDP>	1-22559-027-0	03	1	0804-
42	NUT; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	1-22559-027-0	05	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (A)	8-98093-785-0	02	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (B)	8-98093-786-0	01	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	8-98093-785-0	03	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ> (B)	8-98093-786-0	02	1	0804-
49	NUT; BRKT FUEL TANK 550L<EDP> M12	0-91110-512-0	06	1	0804-
49	NUT; BRKT FUEL TANK 550L+450L<EDQ> M12	0-91110-512-0	14	1	0804-
291	PIPE; FUEL,SUCTION FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	8-98098-902-0	01	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (A) M12X45 FLANGE	0-28051-245-0	12	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (B) M12X50 L=66	1-09300-124-0	04	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (C)	8-98093-605-0	01	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (A) M12X45 FLANGE	0-28051-245-0	16	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (B) M12X50 L=66	1-09300-124-0	08	1	0804-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (C)	8-98093-605-0	03	1	0804-
438	LINER; RUBBER FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0804-0805
438	LINER; RUBBER FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0804-0805
452	BREATHER; FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0804-
452	BREATHER; FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0804-
455	PIPE; FUEL,RETURN FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-016-0	01	1	0804-
460	WASHER; PL,BRKT FUEL TANK 550L<EDP> ID=17 OD=32	9-09160-616-0	03	1	0804-
460	WASHER; PL,BRKT FUEL TANK 550L+450L<EDQ> ID=17 OD=32	9-09160-616-0	05	1	0804-
570	CLIP; PIN FUEL TANK 550L<EDP>	1-22559-024-0	06	1	0804-
570	CLIP; PIN FUEL TANK 550L+450L<EDQ>	1-22559-024-0	10	1	0804-
