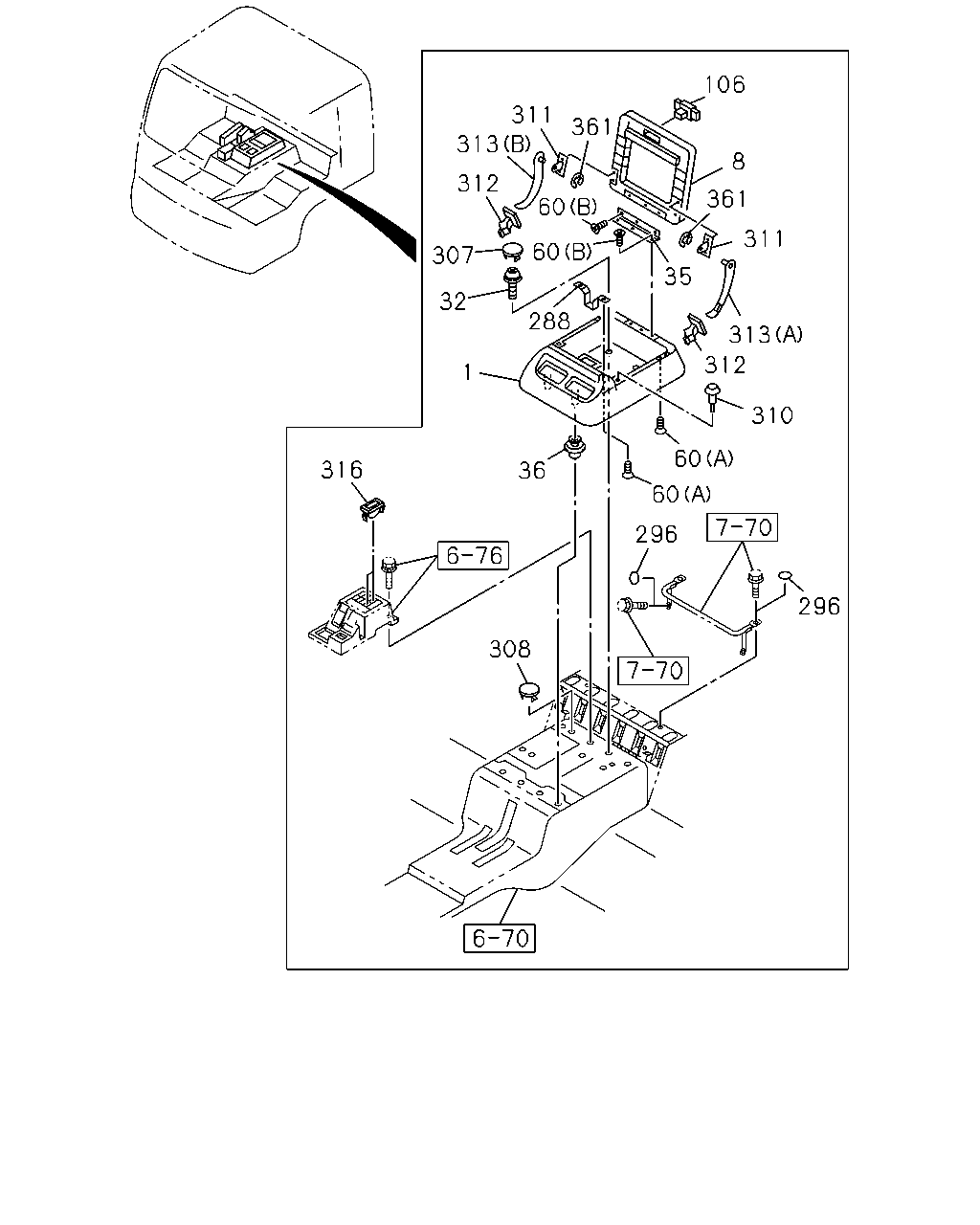

7-45 — CONSOLE BOX (#150799) — 19 parça

316 308 296 296 60 60 36 1 32 307 288 310 312 313 35 311 361 8 106 60 60 312 313 311 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOX; PARCEL CENTER SEAT DELETE<SP9> GRAY THA	8-97408-710-0	01	1	1410-	●	●
8	LID; CENTER CONSOLE CENTER SEAT DELETE<SP9> GRAY THA	8-97408-712-0	01	1	1410-	●	●
32	SCREW; PARCEL BOX CENTER SEAT DELETE<SP9> M6X16 THA	0-38050-616-0	02	1	1410-	●	●
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE<SP9> THA	1-72538-182-1	01	1	1410-	●	●
36	FASTENER; CENTER CONSOLE CENTER SEAT DELETE<SP9> THA	1-09984-190-0	02	1	1410-	●	●
60	SCREW; BOX CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD THA	0-70040-514-0	06	1	1410-	●	●
60	SCREW; BOX CENTER SEAT DELETE<SP9> (B) M5X14 THA	8-94279-325-0	04	1	1410-	●	●
106	LOCK; CONSOLE LID CENTER SEAT DELETE<SP9> THA	1-72538-312-0	01	1	1410-	●	●
288	STOPPER; LID,CONSOLE CENTER SEAT DELETE<SP9> THA	1-72538-190-0	01	1	1410-	●	●
296	SEAL OD=25 BLACK THA	1-76798-019-0	04	1	1410-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE<SP9> GRAY THA	8-97407-951-0	02	1	1410-	●	●
308	GROMMET OD=35 THA	8-94122-971-0	01	1	1410-	●	●
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE<SP9> THA	1-72538-187-0	02	1	1410-	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE<SP9> THA	1-72538-188-2	02	1	1410-	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE<SP9> THA	1-72538-186-1	02	1	1410-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE<SP9> (A) THA	1-72538-184-3	01	1	1410-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE<SP9> (B) THA	1-72538-185-3	01	1	1410-	●	●
316	BOX; COIN THA	8-94482-280-2	02	1	1410-	●
361	RING; SNAP CENTER SEAT DELETE<SP9> ID=5 THA	9-09185-405-0	02	1	1410-	●	●
