◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#150795) — 11 parça

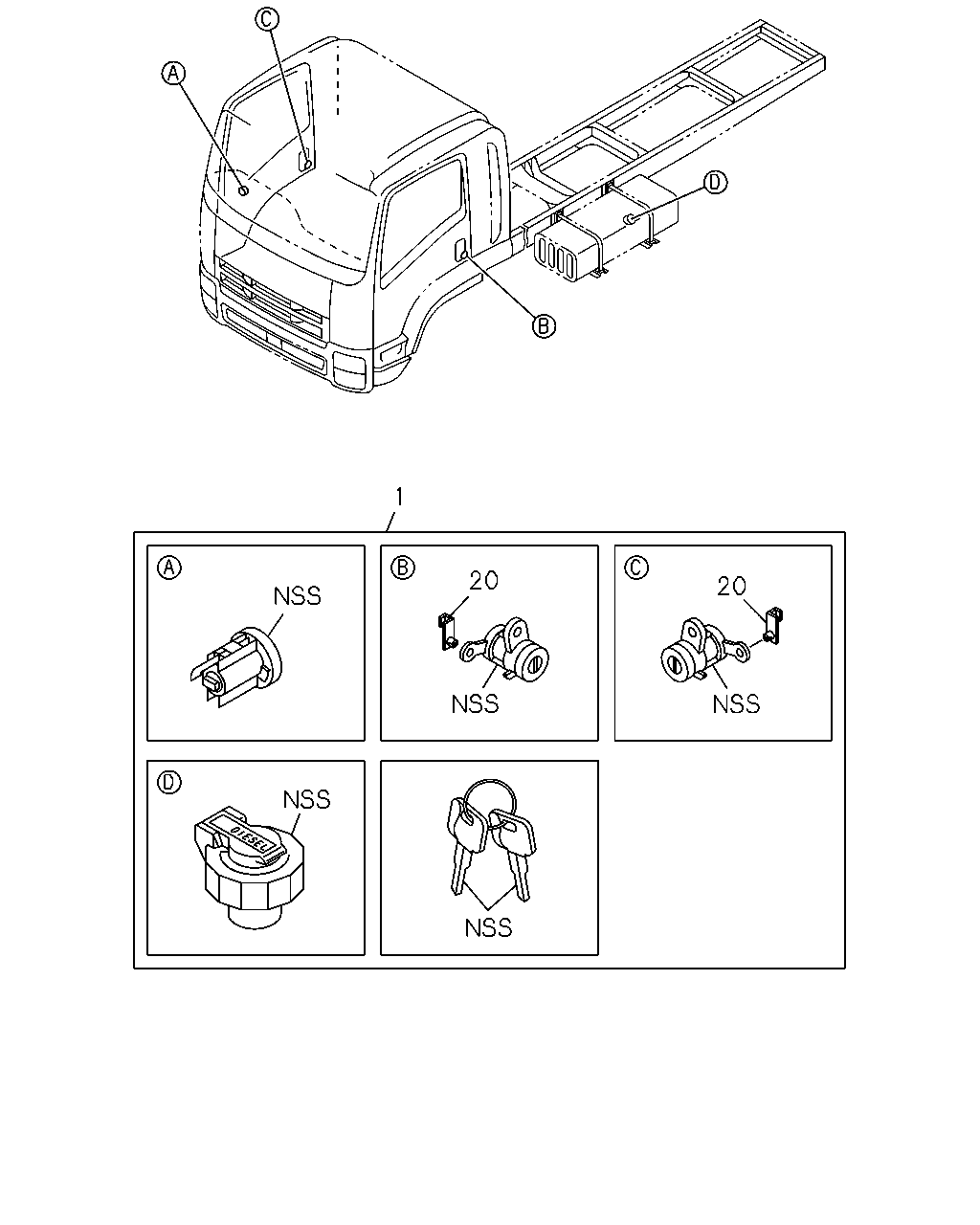

çizim 449382
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> THA 		8-97925-261-0 01 1 1410- ● ●
20 SNAP; DOOR LOCK CYL
THA 		8-98055-181-0 01 1 1410- ● ●
20 SNAP; DOOR LOCK CYL
THA 		8-98055-182-0 01 1 1410- ● ●

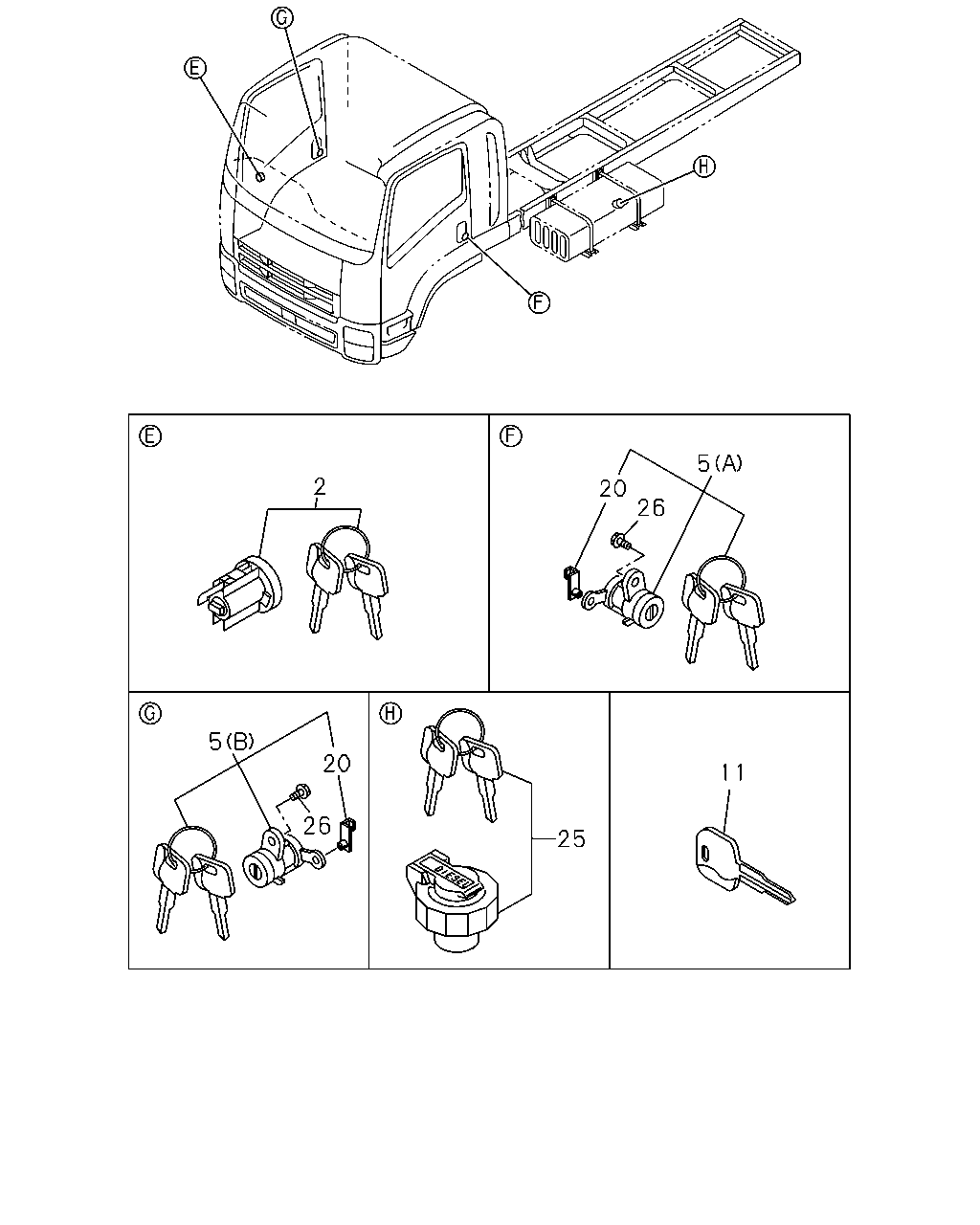

çizim 451107
2 20 26 5 5 20 26 25 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-98201-342-0 01 1 1410- ● ●
5 CYLINDER ASM; DOOR LOCK
(B) THA 		8-98055-149-0 01 1 1410- ● ●
5 CYLINDER ASM; DOOR LOCK
(A) THA 		8-98055-150-0 01 1 1410- ● ●
11 KEY; BLANK
THA 		8-98055-170-0 AR 1 1410- ● ●
20 SNAP; DOOR LOCK CYL
THA 		8-98055-181-0 01 1 1410- ● ●
20 SNAP; DOOR LOCK CYL
THA 		8-98055-182-0 01 1 1410- ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> THA 		8-98146-010-0 01 1 1410- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE THA 		8-98031-839-0 02 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
