◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#150794) — 99 parça

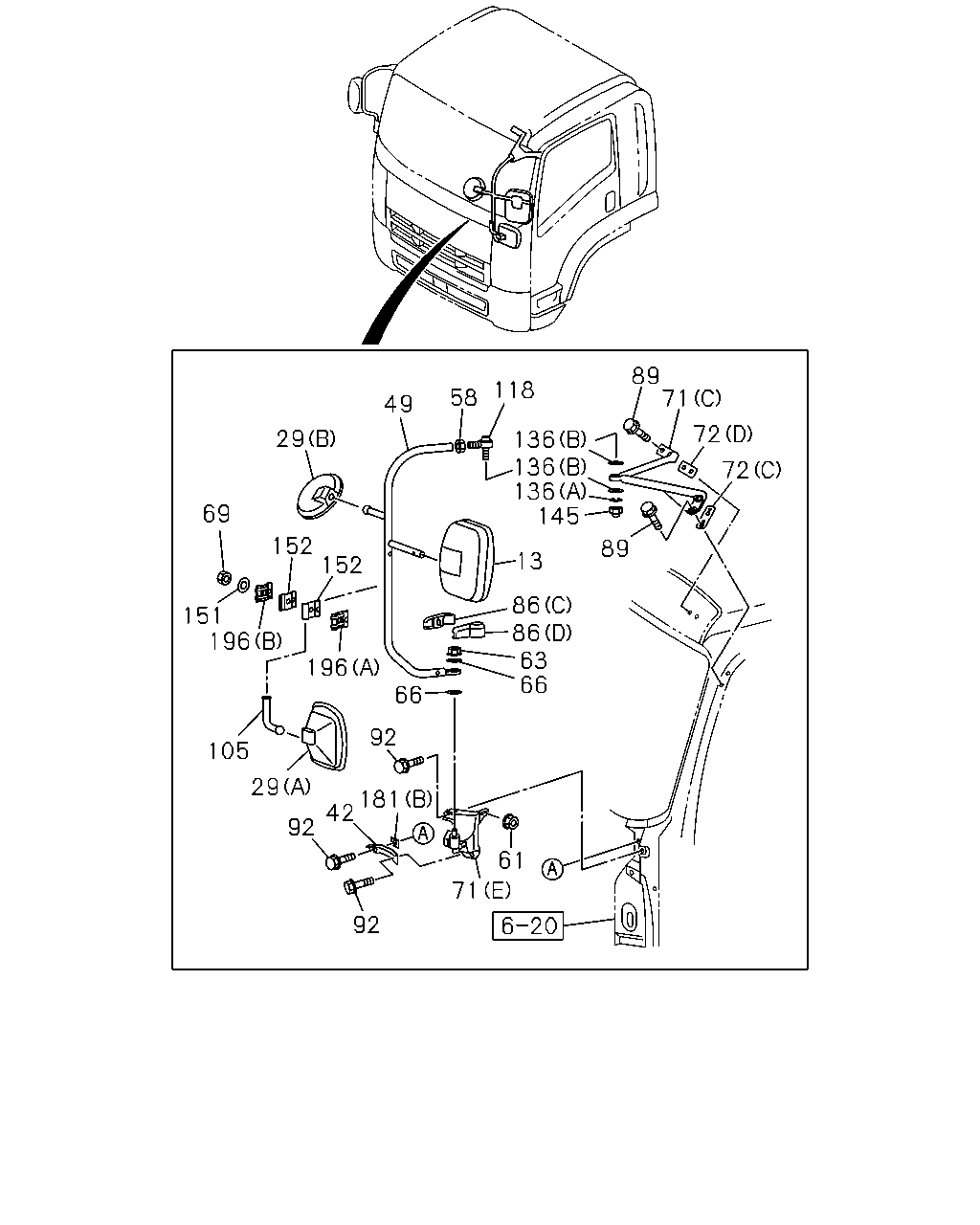

çizim 449196
29 49 58 118 89 72 71 72 136 69 152 151 136 145 152 196 196 66 92 181 29 105 92 92 61 71 66 86 86 63 13 89 42 136
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98028-332-0 01 1 1410- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98104-068-0 01 1 1410- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		1-71798-421-1 01 1 1410- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		1-71798-422-0 01 1 1410- ● ●
42 ATTACHMENT; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98070-643-0 01 1 1410- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98085-113-1 01 1 1410- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98091-477-0 01 1 1410- ● ●
58 NUT; MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98061-883-0 01 1 1410- ● ●
61 NUT; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
63 NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE THA 		8-98174-339-0 01 1 1410- ● ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER THA 		0-91610-614-0 01 1 1410- ● ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER THA 		8-98201-756-0 01 1 1410- ● ●
69 NUT; CAP
M10 CAP NUT THA 		1-09984-134-0 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		1-71707-224-0 04 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		8-98040-021-0 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA 		8-98040-022-1 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA 		8-98040-543-1 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA 		8-98201-957-0 01 1 1410- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		8-98040-351-0 01 1 1410- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		8-98040-353-1 01 1 1410- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA 		8-98040-535-0 01 1 1410- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA 		8-98040-537-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK THA 		1-71737-649-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK THA 		1-71737-652-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA 		8-98040-541-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA 		8-98040-545-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA 		8-98040-546-1 01 1 1410- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER THA 		8-98067-249-2 10 1 1410- ● ●
92 BOLT; STAY BRKT,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA 		8-97948-261-0 04 1 1410- ● ●
105 STAY; SUB UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98041-571-2 01 1 1410- ● ●
118 JOINT ASM; BALL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		1-71798-356-2 01 1 1410- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 THA 		1-09985-180-0 01 1 1410- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 THA 		1-09985-184-0 02 1 1410- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 THA 		1-09985-204-0 04 1 1410- ● ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT THA 		1-09984-134-0 03 1 1410- ● ●
151 WASHER; PL,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 T=2.0 THA 		1-09985-183-0 01 1 1410- ● ●
152 SHEET; MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		1-71798-445-1 02 1 1410- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK THA 		1-76798-019-0 01 1 1410- ● ●
181 SEAL; BRKT
(B) 25X25 THA 		8-94272-533-0 01 1 1410- ● ●
196 HOLDER; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		1-71798-442-2 01 1 1410- ● ●
196 HOLDER; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		1-71798-444-2 01 1 1410- ● ●
çizim 450945
13 53 53 71 26 14 25
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98028-332-0 01 1 1410- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98104-068-0 01 1 1410- ● ●
14 MIRROR ASM; OUTSIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98045-690-0 01 1 1410- ● ●
14 MIRROR ASM; OUTSIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98108-511-0 01 1 1410- ● ●
25 SCREW; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6X40 THA 		1-71707-223-0 04 1 1410- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		1-71707-221-0 01 1 1410- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		1-71707-222-0 01 1 1410- ● ●
53 PIVOT; SIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2 THA 		1-71736-489-2 04 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		1-71707-224-0 04 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		8-98040-021-0 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA 		8-98040-022-1 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA 		8-98040-543-1 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA 		8-98201-957-0 01 1 1410- ● ●

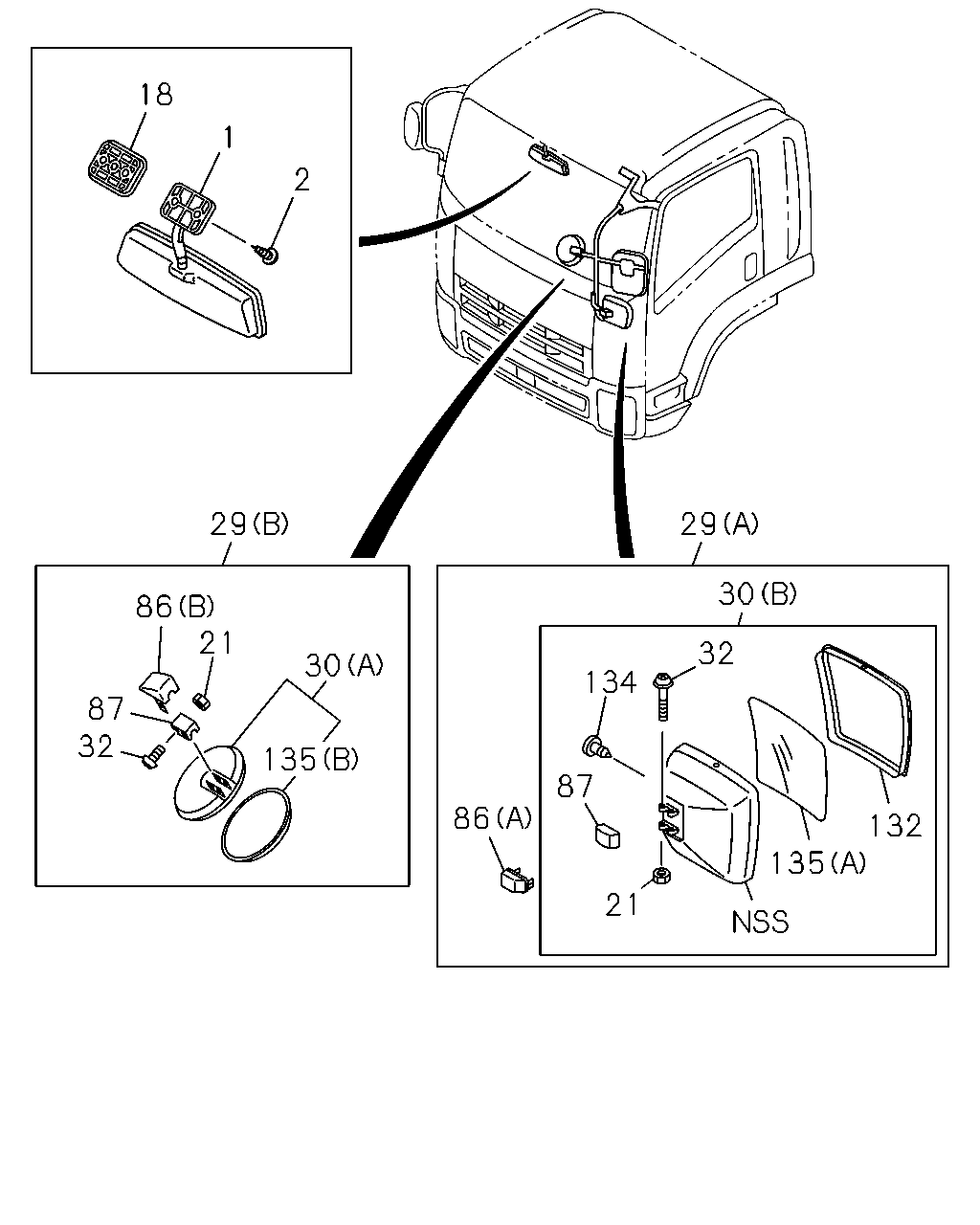

çizim 450983
18 2 1 29 86 87 32 21 30 135 134 87 86 21 135 32 29 30 132
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 1410- ● ●
2 SCREW; MIRROR TO BODY
M6X26 THA 		8-98033-674-0 02 1 1410- ● ●
18 CLIP; MIRROR
DARK GRAY THA 		8-97408-241-0 01 1 1410- ● ●
21 NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5 THA 		1-09984-124-0 04 1 1410- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		1-71798-421-1 01 1 1410- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		1-71798-422-0 01 1 1410- ● ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		1-71798-591-1 01 1 1410- ● ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		1-71798-592-1 01 1 1410- ● ●
32 SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER THA 		1-71737-797-0 04 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK THA 		1-71737-649-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK THA 		1-71737-652-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA 		8-98040-541-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA 		8-98040-545-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA 		8-98040-546-1 01 1 1410- ● ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		1-71737-646-2 02 1 1410- ● ●
132 RING; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		1-71737-935-0 01 1 1410- ● ●
134 CLIP; MIRROR LENS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		1-71737-936-0 01 1 1410- ● ●
135 LENS; MIRROR,SIDE UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		1-71737-929-0 01 1 1410- ● ●
135 LENS; MIRROR,SIDE UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		1-71798-838-0 01 1 1410- ● ●

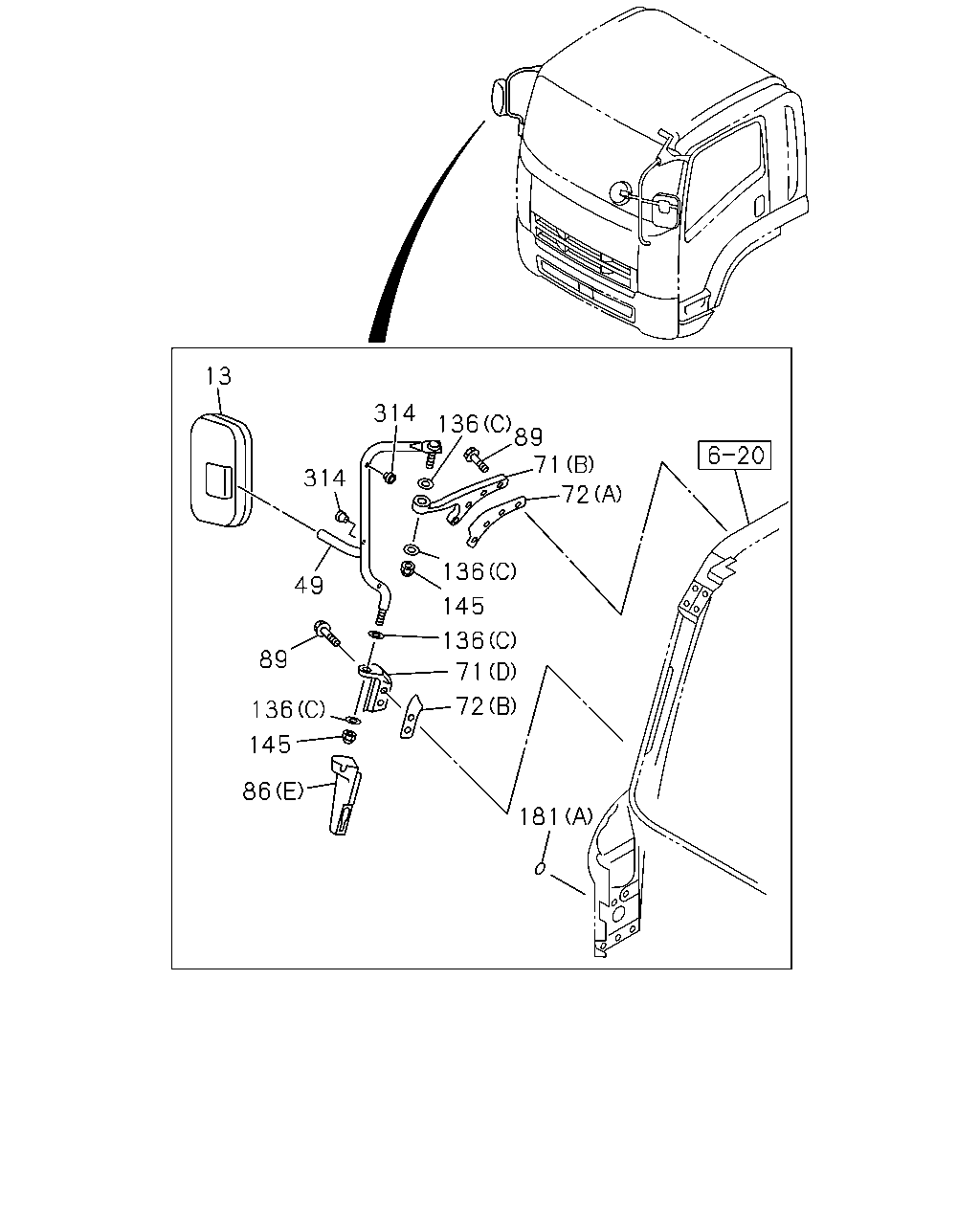

çizim 451280
13 86 145 136 89 49 314 314 136 89 71 72 136 145 136 71 72 181
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98028-332-0 01 1 1410- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98104-068-0 01 1 1410- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98085-113-1 01 1 1410- ● ●
49 STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98091-477-0 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		1-71707-224-0 04 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		8-98040-021-0 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA 		8-98040-022-1 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA 		8-98040-543-1 01 1 1410- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA 		8-98201-957-0 01 1 1410- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		8-98040-351-0 01 1 1410- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		8-98040-353-1 01 1 1410- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA 		8-98040-535-0 01 1 1410- ● ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA 		8-98040-537-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK THA 		1-71737-649-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK THA 		1-71737-652-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA 		8-98040-541-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA 		8-98040-545-1 01 1 1410- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA 		8-98040-546-1 01 1 1410- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER THA 		8-98067-249-2 10 1 1410- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 THA 		1-09985-180-0 01 1 1410- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 THA 		1-09985-184-0 02 1 1410- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 THA 		1-09985-204-0 04 1 1410- ● ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT THA 		1-09984-134-0 03 1 1410- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK THA 		1-76798-019-0 01 1 1410- ● ●
181 SEAL; BRKT
(B) 25X25 THA 		8-94272-533-0 01 1 1410- ● ●
314 BUFFER; STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-94314-317-0 02 1 1410- ● ●
