7-10 — CAUTION PLATE AND LABEL (#150793) — 13 parça

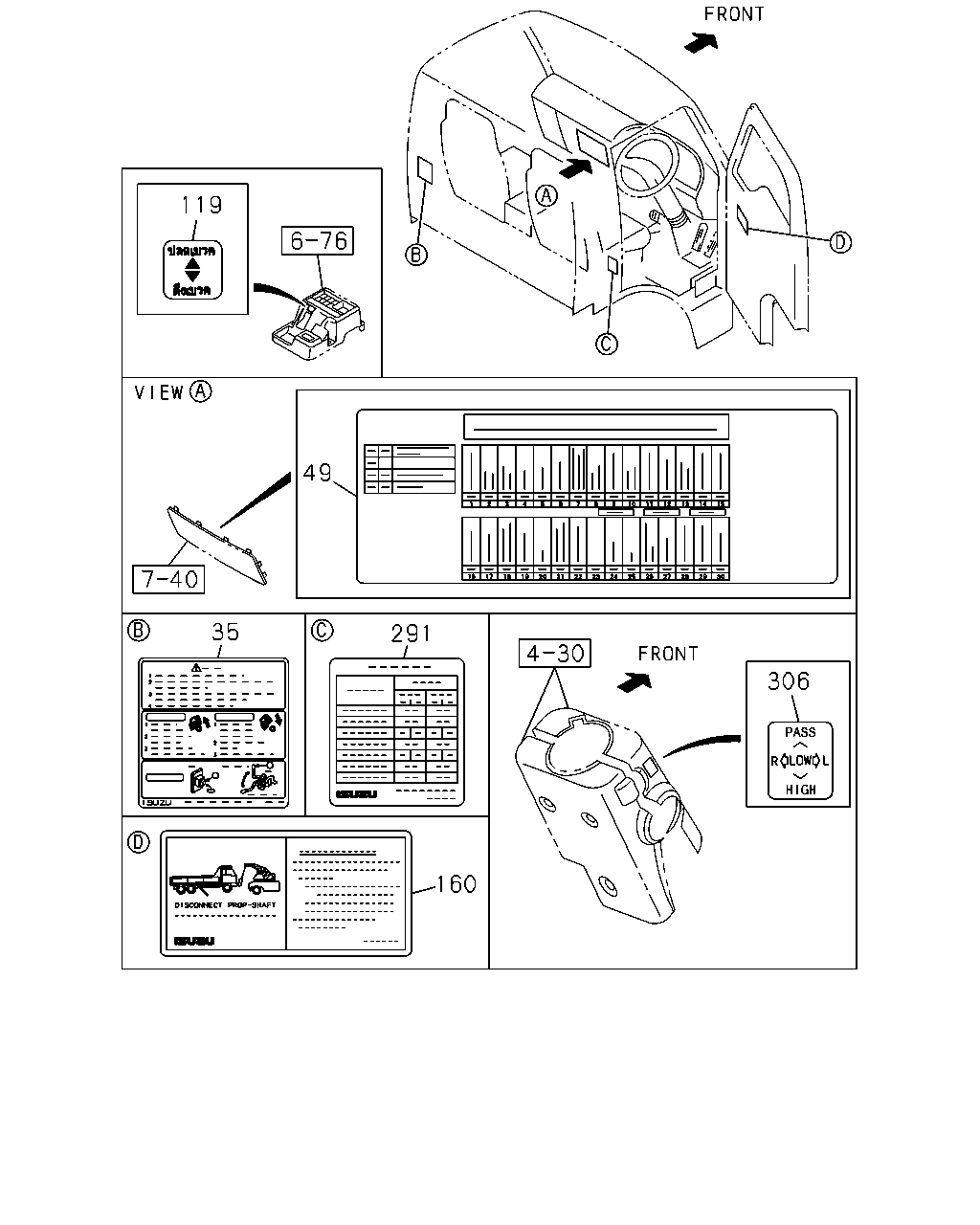

çizim 449295

119 49 35 291 306 160

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	35	PLATE; CAUTION,CAB THA	8-97923-976-1	01	1	1410-	●	●
	49	PLATE; CAUTION,FUSE BOX THA	8-97923-962-1	01	1	1410-	●
	49	PLATE; CAUTION,FUSE BOX EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-97923-962-1	01	1	1410-		●
	49	PLATE; CAUTION,FUSE BOX ANTILOCK BRAKE SYSTEM<BFA> THA	8-97924-890-0	01	1	1410-		●
	119	PLATE; CAUTION,HAND BRK LEVER THA	8-97924-257-1	01	1	1410-	●	●
	160	PLATE; CAUTION,TOWING ZF9S1310 M/T<Y5K> THA	8-97918-791-1	01	1	1410-	●	●
	291	PLATE; CAUTION,TIRE AIR PRESS THA	8-97924-660-1	01	1	1410-	●	●
	306	LABEL; BEAM & PASS THA	8-97948-259-0	01	1	1410-	●	●

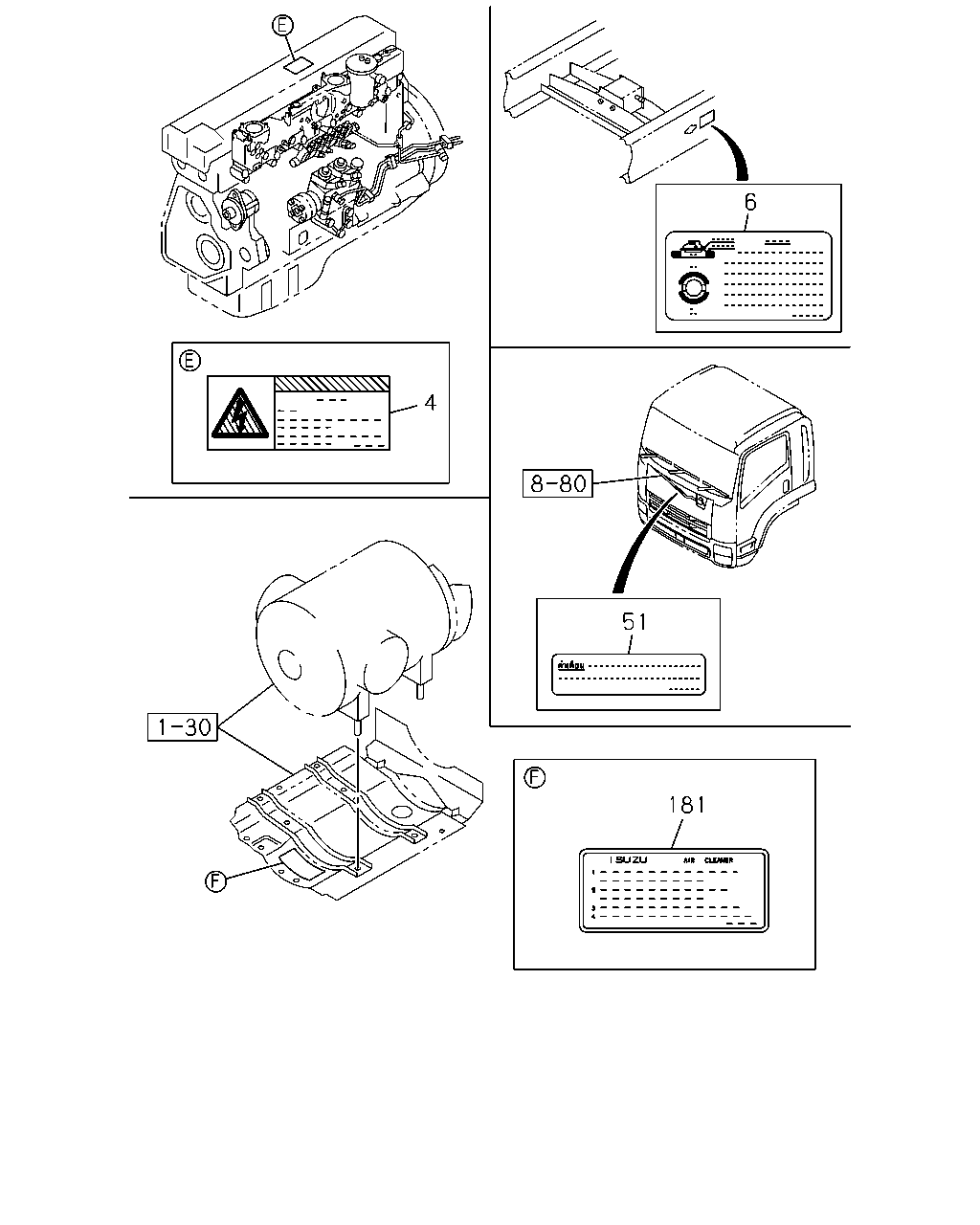

çizim 451143

4 6 51 181

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	LABEL; ENG MAINTENANCE THA	8-97924-468-0	01	1	1410-	●	●
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> THA	8-97918-788-0	01	1	1410-	●
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> THA	8-97918-788-0	01	1	1410-		●
	51	PLATE; CAUTION,WARNING THA	8-97924-894-1	01	1	1410-	●	●
	181	PLATE; CAUTION,AIR CLEANER THA	8-97923-977-1	01	1	1410-	●	●
