◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#150787) — 15 parça

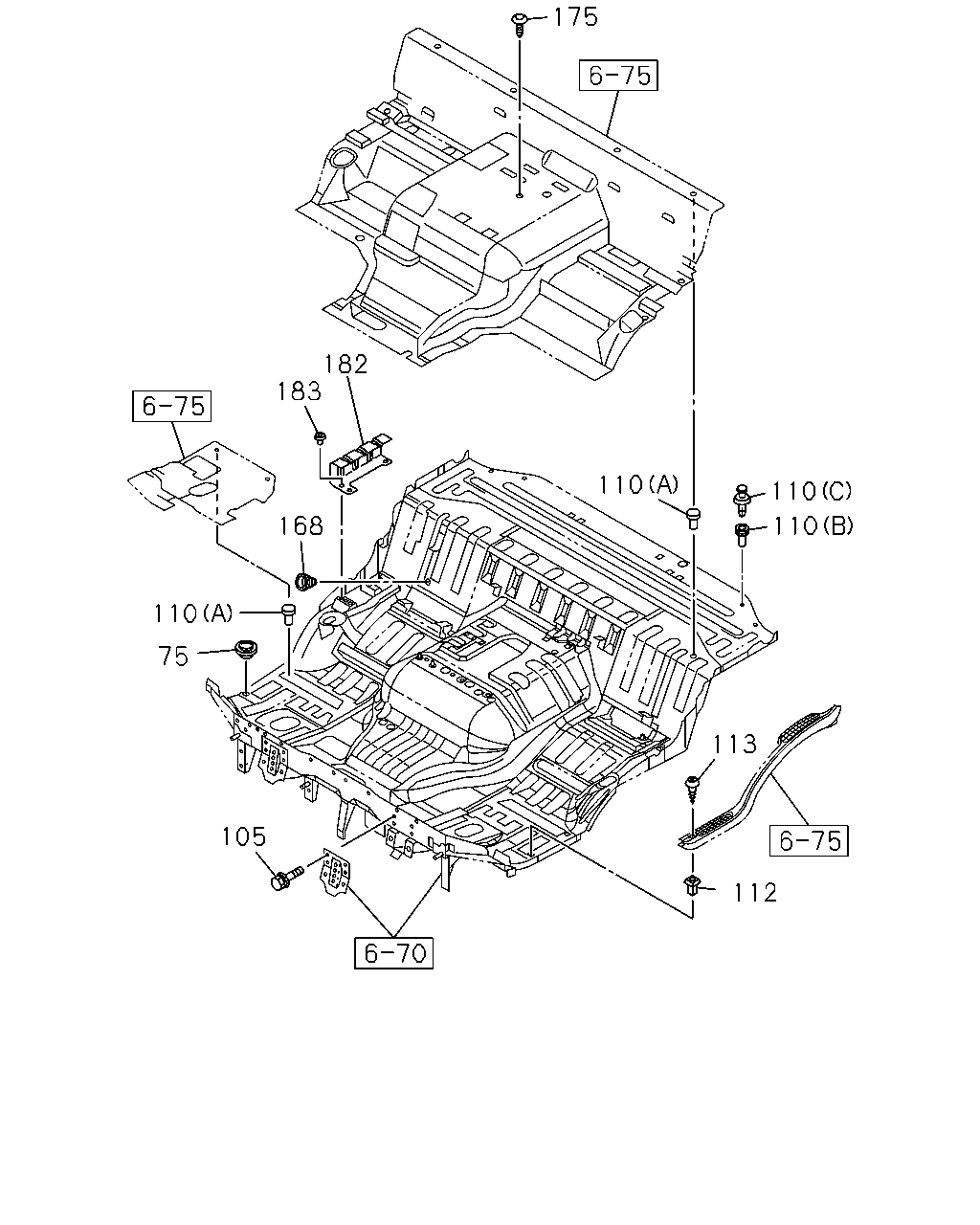

çizim 449113
175 110 110 110 182 183 113 112 105 75 110 168
BalonParca AdiParca NoAdetTipApplied Date A B
75 PLUG; RUBBER,FLOOR
OD=23.5 THA 		1-09983-101-0 04 1 1410- ● ●
105 BOLT; FLOOR
M10X30 FLANGE THA 		0-28661-030-0 16 1 1410- ● ●
110 FASTENER; FLOOR MAT
(A) BLACK THA 		8-94279-089-0 08 1 1410- ● ●
110 FASTENER; FLOOR MAT
(B) THA 		8-97319-495-0 04 1 1410- ● ●
110 FASTENER; FLOOR MAT
(C) GRAY THA 		8-97405-247-0 04 1 1410- ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL THA 		8-94279-043-0 08 1 1410- ● ●
113 SCREW; TRIM COVER
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 08 1 1410- ● ●
168 COVER; HOLE,ANNTENA CABLE
THA 		1-79998-891-1 01 1 1410- ● ●
175 CLIP; FLOOR
D6X23 BLACK THA 		1-09987-114-0 01 1 1410- ● ●
182 REINFORCEMENT; SILL SIDE
THA 		8-98056-072-1 01 1 1410- ● ●
182 REINFORCEMENT; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4> THA 		8-98056-071-1 01 1 1410- ●
182 REINFORCEMENT; SILL SIDE
THA 		8-98056-071-1 01 1 1410- ●
183 SCREW; SILL SIDE
DUMP CONTROL LEVER<RC4> T40 M8X16.5 HEXALOBULAR THA 		8-98066-813-0 03 1 1410- ●
183 SCREW; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4> T40 M8X16.5 HEXALOBULAR THA 		8-98066-813-0 06 1 1410- ●
183 SCREW; SILL SIDE
T40 M8X16.5 HEXALOBULAR THA 		8-98066-813-0 06 1 1410- ●
