◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#150786) — 16 parça
çizim 449713
370 370 370
BalonParca AdiParca NoAdetTipApplied Date A B
370 SEAL; LOCATION HOLE
OD=30 T=0.8 THA 		8-98230-420-0 08 1 1410- ● ●

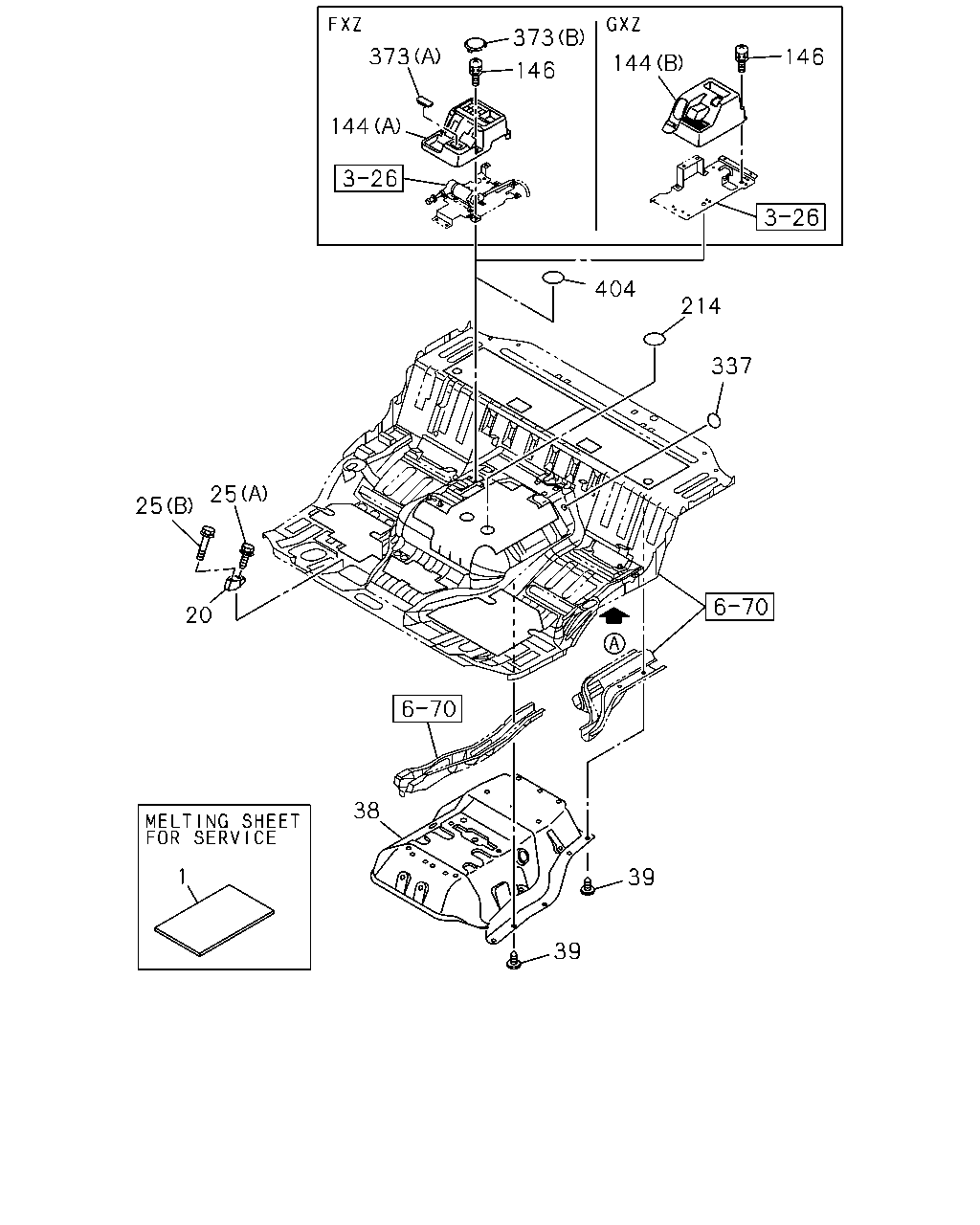

çizim 451099
373 373 146 144 144 146 404 214 337 25 25 20 38 39 39 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY THA 		8-94262-093-0 AR 1 1410- ● ●
20 REST; FOOT
THA 		8-98058-150-0 01 1 1410- ● ●
25 SCREW; FOOT REST
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 01 1 1410- ● ●
25 SCREW; FOOT REST
(B) M6X47 THA 		8-94407-876-1 01 1 1410- ● ●
38 INSULATOR; ENG COVER
THA 		8-98285-270-0 01 1 1410- ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 THA 		8-97808-623-0 26 1 1410- ● ●
144 COVER; HAND BRK VLV
(A) GRAY THA 		8-97414-752-0 01 1 1410- ●
144 COVER; HAND BRK VLV
(B) THA 		8-97925-580-1 01 1 1410- ●
146 BOLT; COVER BRKT
M6X16 THA 		0-38050-616-0 04 1 1410- ●
146 BOLT; COVER BRKT
M6X16 THA 		0-38050-616-0 03 1 1410- ●
214 SEAL; HOLE COVER
OD=25 BLACK THA 		1-76798-019-0 02 1 1410- ● ●
337 SEAL; CLIP HOLE
OD=25 BLACK THA 		1-76798-019-0 06 1 1410- ● ●
373 COVER; HOLE
(B) GRAY THA 		8-97407-951-0 04 1 1410- ●
373 COVER; HOLE
(A) GRAY THA 		8-97409-339-0 01 1 1410- ●
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK THA 		1-76798-019-0 02 1 1410- ● ●
