◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#150784) — 61 parça

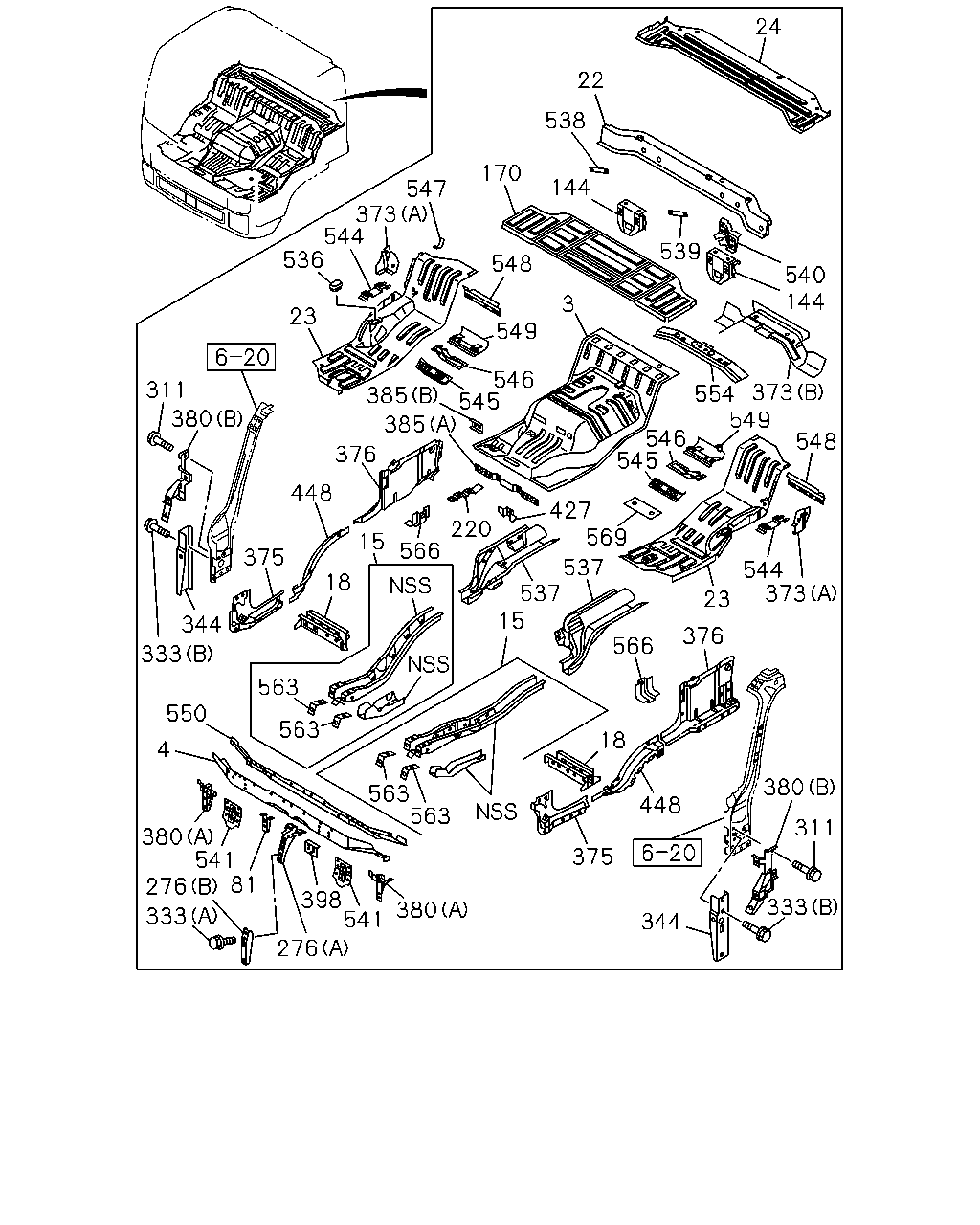

çizim 449637
22 380 24 538 170 547 373 544 536 23 311 144 539 540 554 144 373 549 546 548 545 548 549 546 545 385 376 385 448 375 344 333 550 18 220 15 3 427 537 537 544 23 376 373 566 15 563 563 4 380 541 276 333 563 18 563 448 380 311 333 344 375 380 541 276 81 398 569 566
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
THA 		8-98046-585-7 01 1 1410- ● ●
4 FRAME; FLOOR,FRT
THA 		8-98079-820-1 01 1 1410- ● ●
15 FRAME; UNDER
THA 		8-98055-645-2 01 1 1410- ● ●
15 FRAME; UNDER
THA 		8-98055-646-2 01 1 1410- ● ●
18 FRAME; FLOOR,CENTER SIDE
THA 		8-98067-904-1 01 1 1410- ● ●
18 FRAME; FLOOR,CENTER SIDE
THA 		8-98072-101-2 01 1 1410- ● ●
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 1410- ● ●
23 PANEL; FLOOR,SIDE
THA 		8-98073-690-1 01 1 1410- ● ●
23 PANEL; FLOOR,SIDE
THA 		8-97584-371-7 01 1 1410- ● ●
24 PANEL; BED PAN
THA 		8-97584-378-6 01 1 1410- ● ●
81 BRACKET; HARNESS SUPPORT
THA 		8-98041-333-3 01 1 1410- ● ●
144 BRACKET; MTG,RR
THA 		8-97584-432-6 01 1 1410- ● ●
144 BRACKET; MTG,RR
THA 		8-97589-666-6 01 1 1410- ● ●
170 EXTENSION; RR FLOOR
THA 		8-97589-207-4 01 1 1410- ● ●
220 PATCH
THA 		8-98053-088-0 01 1 1410- ● ●
276 BRACKET; RAD GRILLE
(B) THA 		8-98059-816-2 01 1 1410- ● ●
276 BRACKET; RAD GRILLE
(A) THA 		8-98076-126-0 01 1 1410- ● ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1410- ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 1410- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 04 1 1410- ● ●
344 BRACKET; FRT PNL SIDE,LWR
THA 		8-98059-819-1 01 1 1410- ● ●
344 BRACKET; FRT PNL SIDE,LWR
THA 		8-98059-821-1 01 1 1410- ● ●
373 REINFORCEMENT; SEAT BELT
(A) THA 		8-97584-367-2 01 1 1410- ● ●
373 REINFORCEMENT; SEAT BELT
(A) THA 		8-97584-375-2 01 1 1410- ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-98046-586-2 01 1 1410- ● ●
375 CLOSING; PILLAR
THA 		8-98044-897-3 01 1 1410- ● ●
375 CLOSING; PILLAR
THA 		8-98044-898-3 01 1 1410- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1410- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1410- ● ●
380 BRACKET; HEAD LAMP
(B) THA 		8-98059-824-1 01 1 1410- ● ●
380 BRACKET; HEAD LAMP
(B) THA 		8-98059-825-1 01 1 1410- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1410- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1410- ● ●
385 BRACKET
(A) THA 		8-97588-840-4 01 1 1410- ● ●
385 BRACKET
(B) THA 		8-98053-825-1 01 1 1410- ● ●
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1410- ● ●
427 BRACKET; CABLE
THA 		8-98053-090-2 01 1 1410- ● ●
448 CLOSING; ROCKER
THA 		8-97589-551-2 01 1 1410- ● ●
448 CLOSING; ROCKER
THA 		8-97589-552-2 01 1 1410- ● ●
536 PLUG; CABLE,PTO
THA 		8-97612-074-1 01 1 1410- ● ●
537 SUPPORT ASM; MTG RR
THA 		8-98046-599-2 01 1 1410- ● ●
537 SUPPORT ASM; MTG RR
THA 		8-98046-600-2 01 1 1410- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-98098-707-1 01 1 1410- ● ●
539 PATCH ASM; SAFTY HOOK
THA 		8-97584-440-2 01 1 1410- ● ●
540 BRACKET ASM; CAB LOCK LEVER
THA 		8-97584-438-1 01 1 1410- ● ●
541 REINFORCEMENT; MTG,FRT
THA 		8-98076-127-0 02 1 1410- ● ●
544 BRACKET; DUMP CONT
THA 		8-97584-363-1 01 1 1410- ● ●
544 BRACKET; DUMP CONT
THA 		8-98049-529-0 01 1 1410- ● ●
545 BRACKET; SEAT FRT
THA 		8-97584-361-1 01 1 1410- ● ●
545 BRACKET; SEAT FRT
THA 		8-97584-373-1 01 1 1410- ● ●
546 REINFORCEMENT; FLOOR SIDE
THA 		8-97584-426-0 02 1 1410- ● ●
547 BRACKET; JACK HANDLE
THA 		8-97588-843-1 01 1 1410- ● ●
548 BRACKET; MUD GUARD
THA 		8-97588-964-1 01 1 1410- ● ●
548 BRACKET; MUD GUARD
THA 		8-97588-965-1 01 1 1410- ● ●
549 BRACKET; SEAT RR
THA 		8-97589-557-4 01 1 1410- ● ●
549 BRACKET; SEAT RR
THA 		8-98094-836-2 01 1 1410- ● ●
550 CLOSING ASM; MTG,FRT
THA 		8-97584-615-4 01 1 1410- ● ●
554 REINFORCEMENT; FLOOR CENTER
THA 		8-98046-589-0 01 1 1410- ● ●
563 REINFORCEMENT; MTG FRT,RR
THA 		8-97589-579-2 04 1 1410- ● ●
566 REINFORCEMENT; FENDER,RR
THA 		8-98076-133-0 02 1 1410- ● ●
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-382-0 01 1 1410- ● ●
