6-60 — ROOF PANEL (#150782) — 8 parça

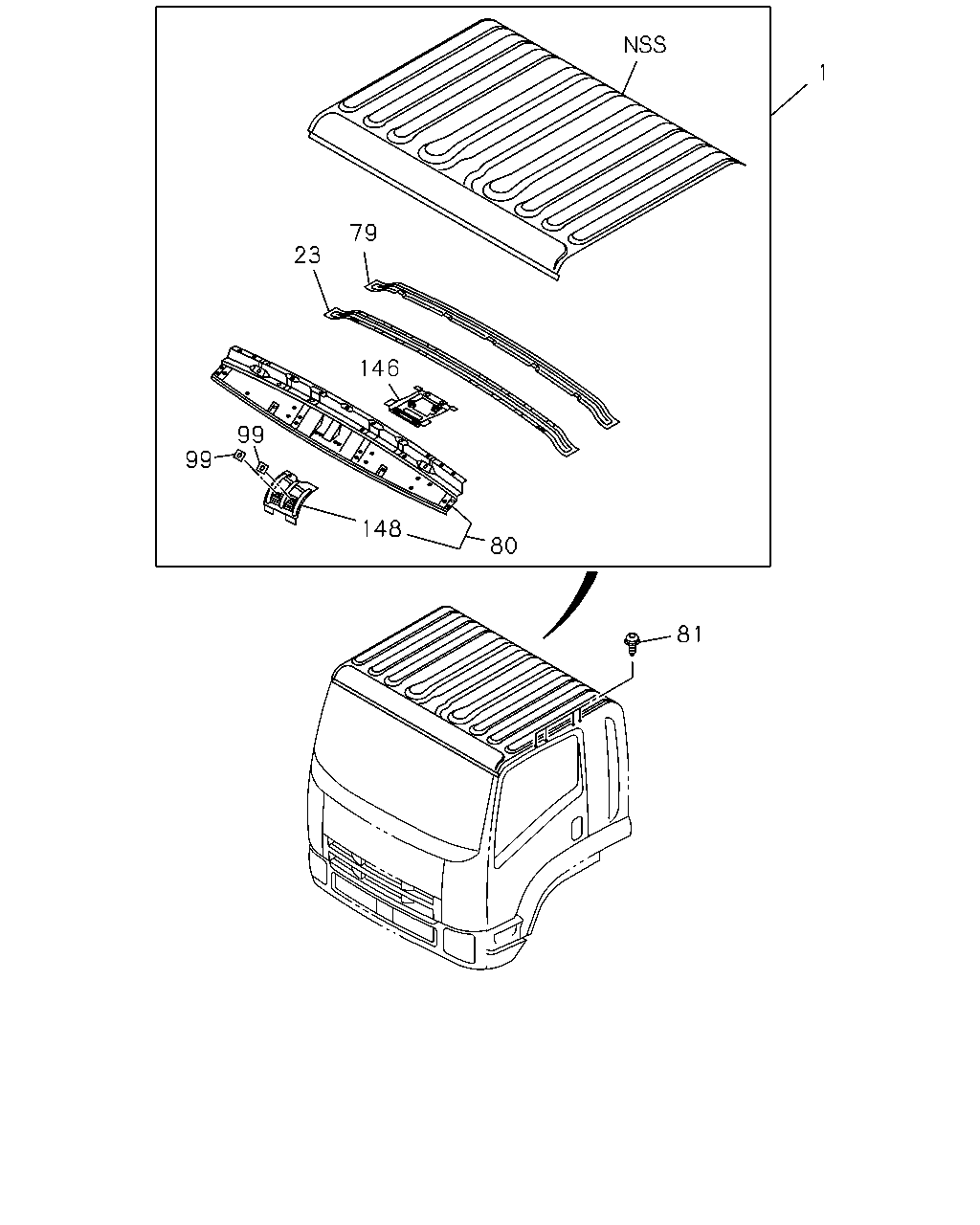

çizim 451214
81 80 148 99 99 146 23 79 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97925-345-0 01 1 1410- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98019-316-0 01 1 1410- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-276-0 01 1 1410- ● ●
80 PANEL; HEADER,ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97925-343-0 01 1 1410- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR THA 		8-98141-874-0 08 1 1410- ● ●
99 SEAL; BODY,METAL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 30X30 ID=20 T=0.7 THA 		1-61281-380-2 02 1 1410- ● ●
146 REINFORCEMENT; ROOM LAMP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98075-827-0 01 1 1410- ● ●
148 REINFORCEMENT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-275-0 01 1 1410- ● ●
