1-31 — AIR DUCT (#15078) — 123 parça

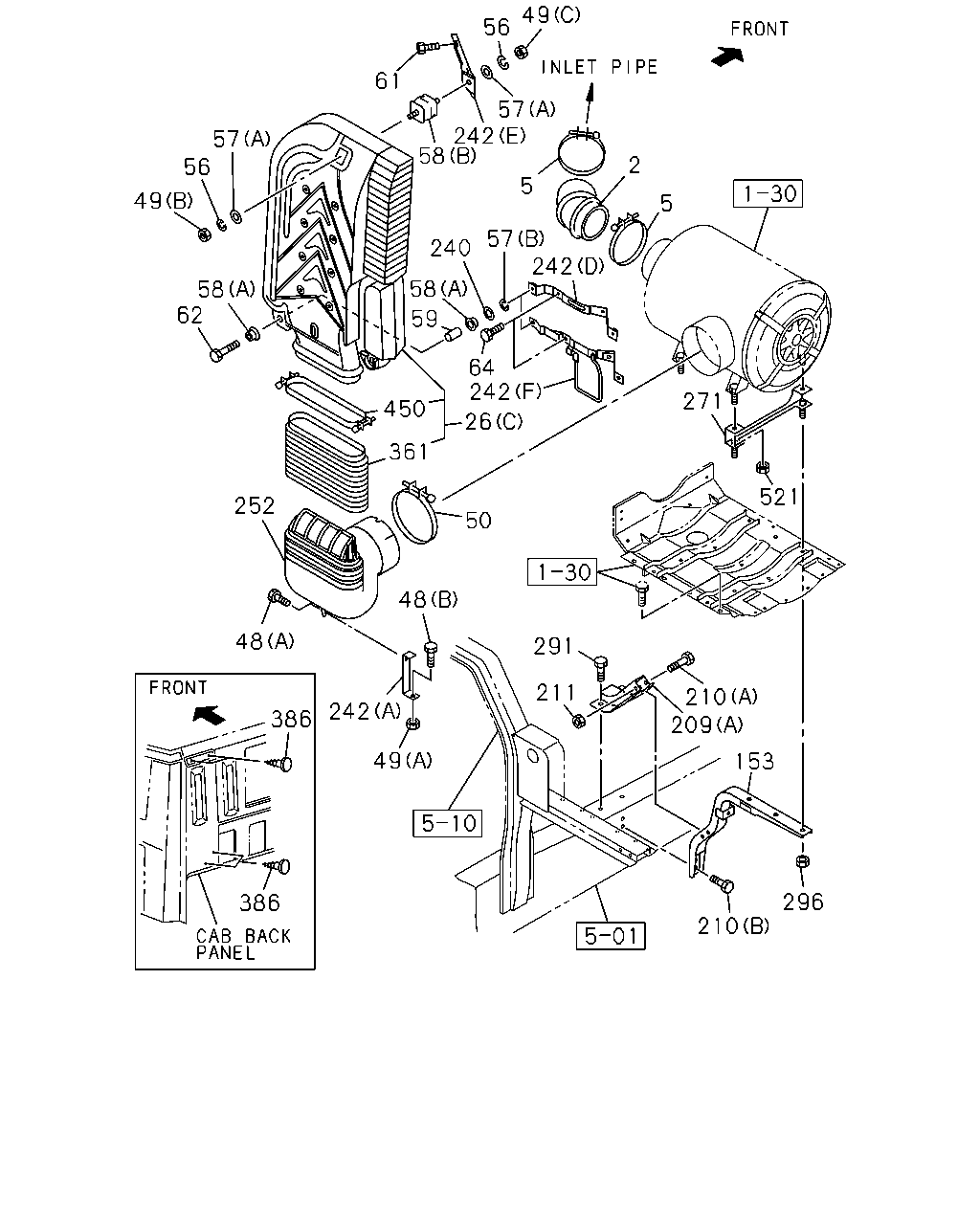

49 56 61 57 242 58 57 56 2 5 49 5 57 242 240 58 58 62 59 64 242 271 450 26 361 521 252 50 48 48 291 211 210 209 242 386 49 153 296 386 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-1	01	1	0804-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0804-
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14219-258-1	01	1	0804-
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14230-170-1	01	1	0804-0907
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-202-2	01	1	0804-1003
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	8-98122-904-2	01	1	1004-
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0804-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0804-
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	0804-
49	NUT; AIR DUCT (A) M10 FLANGE	0-91180-210-0	01	1	0804-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8	0-91110-508-0	01	1	0804-0808
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	0809-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	01	1	0804-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0804-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0804-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0804-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0804-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0804-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0804-
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0804-0810
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B)	8-98125-944-0	01	1	0811-0907
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17> (B)	8-98125-944-1	01	1	0908-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0804-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (B)	8-97080-149-0	01	1	0804-0907
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (B)	8-97080-149-0	01	1	0908-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0804-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0804-0807
61	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	0804-
64	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0804-0807
64	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0804-
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0804-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0804-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0804-
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0804-
240	WASHER; PL,BRKT EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0804-
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0804-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0804-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (D)	1-53419-351-1	01	1	0804-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (D)	8-98113-588-0	01	1	0808-0907
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17> (D)	8-98113-588-1	01	1	0908-
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0804-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-325-1	01	1	0804-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-0	01	1	0804-0907
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (F)	8-98041-993-1	01	1	0908-
252	DUCT; AIR INT PRE CLEANER<W17>	1-14232-059-0	01	1	0804-
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0804-
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	0804-
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0804-1004
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1005-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0804-
361	RUBBER; CUSHION,AIR DUCT	1-14230-149-2	01	1	0804-0907
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	0908-
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE,DRIVER & PASSENGER<W63> OD=15 L=14.5	1-76378-157-0	04	1	0908-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0804-0907
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE,DRIVER & PASSENGER<W63> OD=15 L=14.5	1-76378-157-0	01	1	0908-
450	CLAMP; HOSE	1-14239-237-0	01	1	0804-0907
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0908-
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0804-

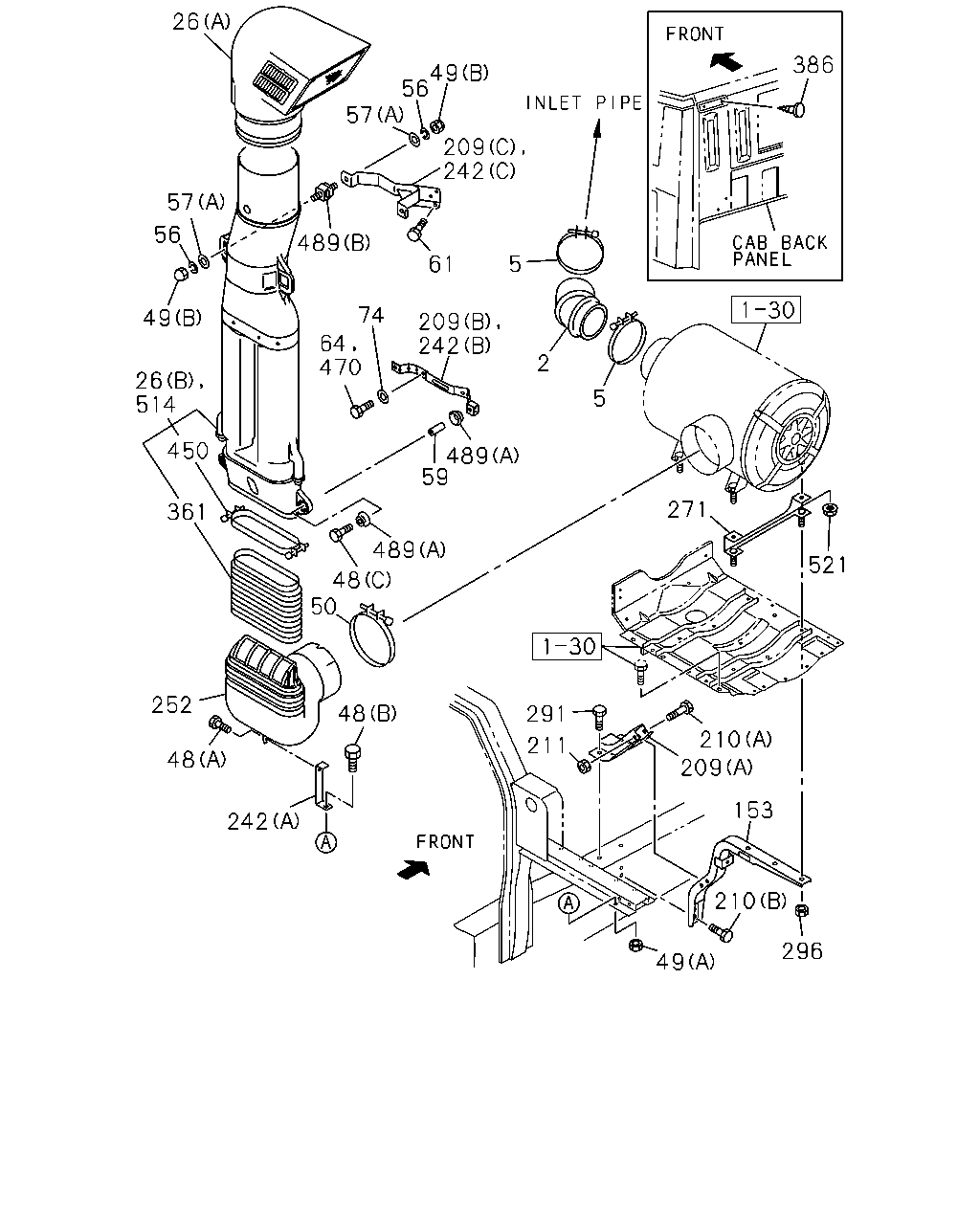

26 386 49 56 57 209 242 57 56 489 5 61 74 49 209 242 64 470 2 26 514 5 450 489 59 271 361 489 521 48 50 252 48 291 210 209 211 48 153 242 210 296 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-1	01	1	0804-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0804-
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14219-258-1	01	1	0804-
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14230-170-1	01	1	0804-0907
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-202-2	01	1	0804-1003
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	8-98122-904-2	01	1	1004-
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0804-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0804-
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	0804-
49	NUT; AIR DUCT (A) M10 FLANGE	0-91180-210-0	01	1	0804-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8	0-91110-508-0	01	1	0804-0808
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	0809-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	01	1	0804-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0804-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0804-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0804-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0804-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0804-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0804-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0804-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0804-0807
61	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
64	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0804-0807
64	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
74	WASHER; PL,ACL PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0808-
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0804-
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0804-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0804-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0804-
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0804-
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0804-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0804-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (D)	1-53419-351-1	01	1	0804-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (D)	8-98113-588-0	01	1	0808-0907
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17> (D)	8-98113-588-1	01	1	0908-
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0804-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-325-1	01	1	0804-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-0	01	1	0804-0907
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (F)	8-98041-993-1	01	1	0908-
252	DUCT; AIR INT PRE CLEANER<W17>	1-14232-059-0	01	1	0804-
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0804-
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	0804-
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0804-1004
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1005-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0804-
361	RUBBER; CUSHION,AIR DUCT	1-14230-149-2	01	1	0804-0907
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	0908-
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE,DRIVER & PASSENGER<W63> OD=15 L=14.5	1-76378-157-0	04	1	0908-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0804-0907
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE,DRIVER & PASSENGER<W63> OD=15 L=14.5	1-76378-157-0	01	1	0908-
450	CLAMP; HOSE	1-14239-237-0	01	1	0804-0907
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0908-
470	BOLT; BRKT PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	0808-
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0804-
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0804-
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-1	01	1	0908-
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0804-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
