◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#150776) — 11 parça

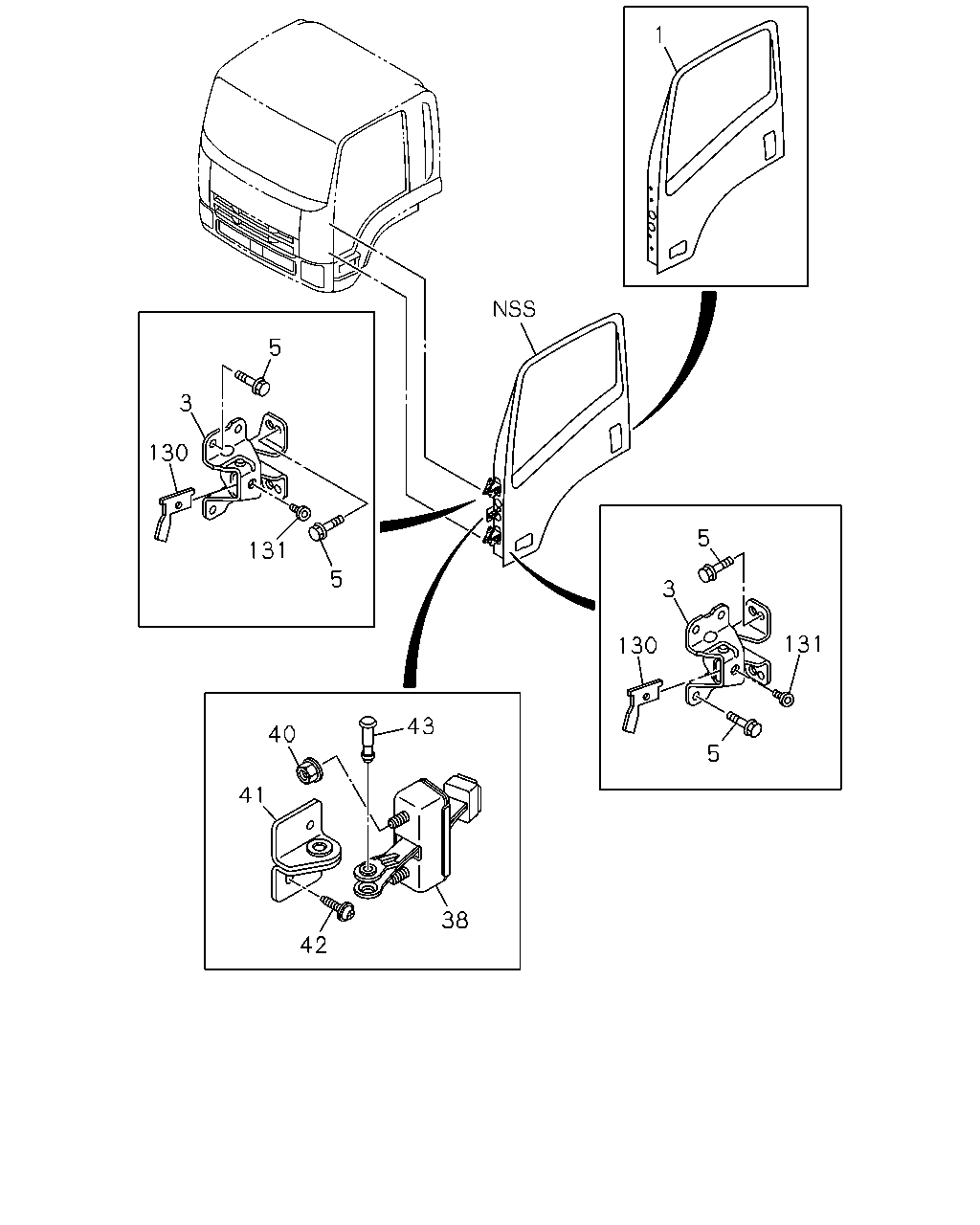

çizim 451172
5 3 130 131 5 1 40 43 41 42 38 5 3 130 131 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-579-0 01 1 1410- ● ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-582-0 01 1 1410- ● ●
3 HINGE; DOOR FRT
THA 		8-98191-302-0 04 1 1410- ● ●
5 BOLT; HINGE
M8X20 FLANGE THA 		8-98049-756-0 20 1 1410- ● ●
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98208-189-1 02 1 1410- ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER THA 		8-97329-625-0 04 1 1410- ● ●
41 BRACKET; CHECKER
THA 		8-98029-290-3 02 1 1410- ● ●
42 BOLT; BRKT
M6X20 W/PL WASHER THA 		8-98032-159-2 04 1 1410- ● ●
43 PIN
THA 		8-98037-152-2 02 1 1410- ● ●
130 STOPPER; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98038-299-1 04 1 1410- ● ●
131 BOLT; DOOR STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10X11 THA 		8-98039-593-1 04 1 1410- ● ●
