6-20 — SIDE PANEL AND STEP (#150775) — 81 parça

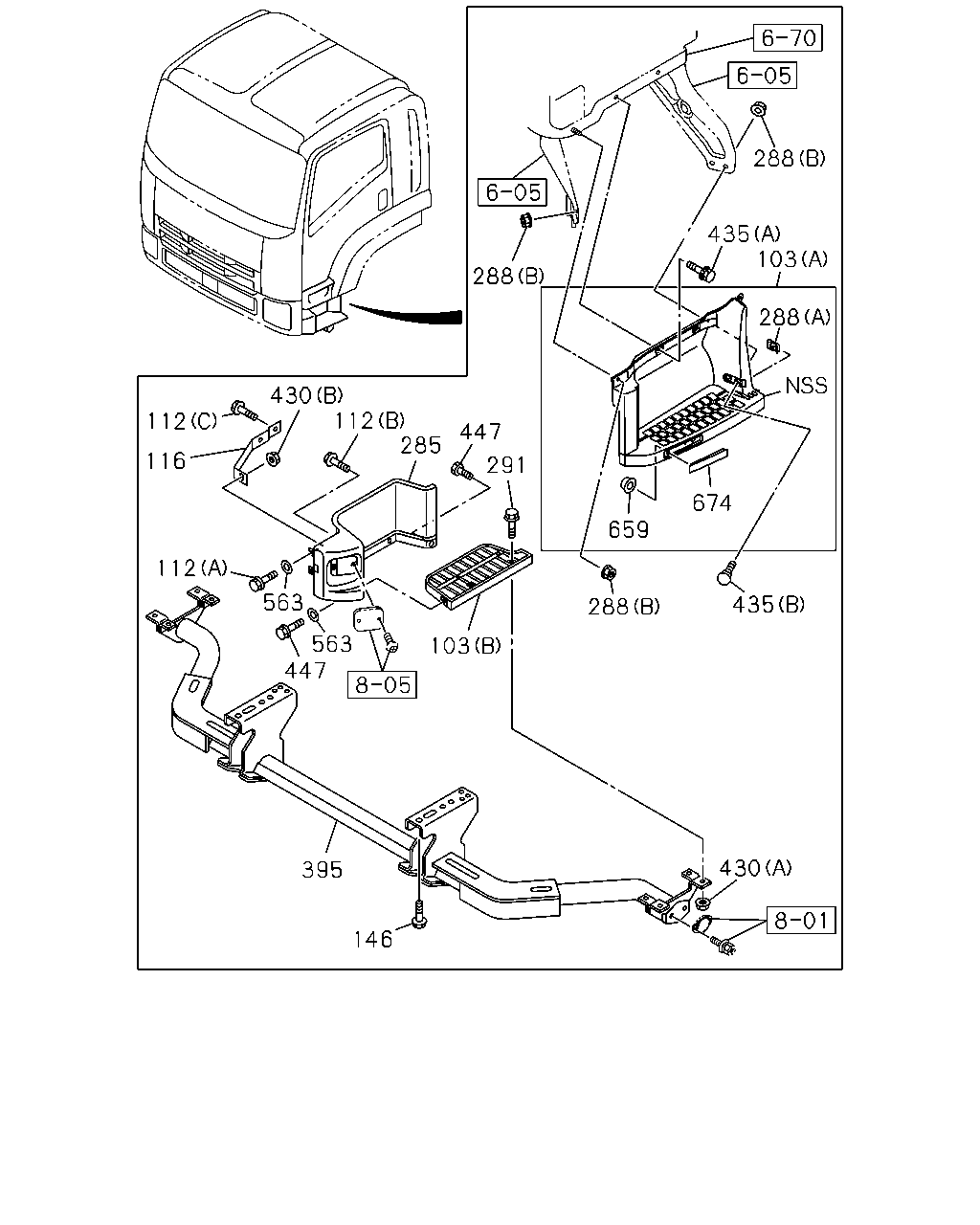

çizim 450902
288 435 103 288 288 674 659 288 435 430 146 395 103 563 447 563 112 116 112 430 112 285 447 291
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
(A) THA 		8-98069-976-2 01 1 1410- ● ●
103 PLATE; STEP
(A) THA 		8-98069-977-2 01 1 1410- ● ●
103 PLATE; STEP
(B) THA 		8-97924-109-0 01 1 1410- ● ●
103 PLATE; STEP
(B) THA 		8-97924-110-0 01 1 1410- ● ●
112 BOLT; 1ST STEP
(B) M6X20 FLANGE THA 		0-28050-620-0 02 1 1410- ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1410- ● ●
112 BOLT; 1ST STEP
(C) M8X12 FLANGE THA 		0-28050-812-0 04 1 1410- ● ●
116 STAY; 1ST STEP,FRT
THA 		8-98196-756-0 02 1 1410- ● ●
146 BOLT; STEP BRKT
M16X40 THA 		0-20851-640-0 02 1 1410- ● ●
146 BOLT; STEP BRKT
M16X50 THA 		0-20851-650-0 06 1 1410- ● ●
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 1410- ● ●
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 1410- ● ●
288 NUT; STEP
(A) M8 THA 		8-98040-792-0 02 1 1410- ● ●
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1410- ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE THA 		0-28650-840-0 08 1 1410- ● ●
395 BRACKET; SIDE STEP
THA 		8-98182-923-2 01 1 1410- ● ●
430 NUT; PANEL
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●
430 NUT; PANEL
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1410- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER THA 		8-98059-720-0 04 1 1410- ● ●
435 BOLT; RR STEP
(B) M8X18 THA 		8-98146-670-0 08 1 1410- ● ●
447 BOLT; PANEL
M6X12 FLANGE THA 		0-28050-612-0 06 1 1410- ● ●
563 WASHER; PL
ID=6.4 OD=18 THA 		0-91610-706-0 10 1 1410- ● ●
659 CLIP; SPRING NUT
THA 		8-97811-510-0 04 1 1410- ● ●
674 COVER; REFLECTOR
THA 		8-98092-733-0 01 1 1410- ● ●
674 COVER; REFLECTOR
THA 		8-98092-734-0 01 1 1410- ● ●

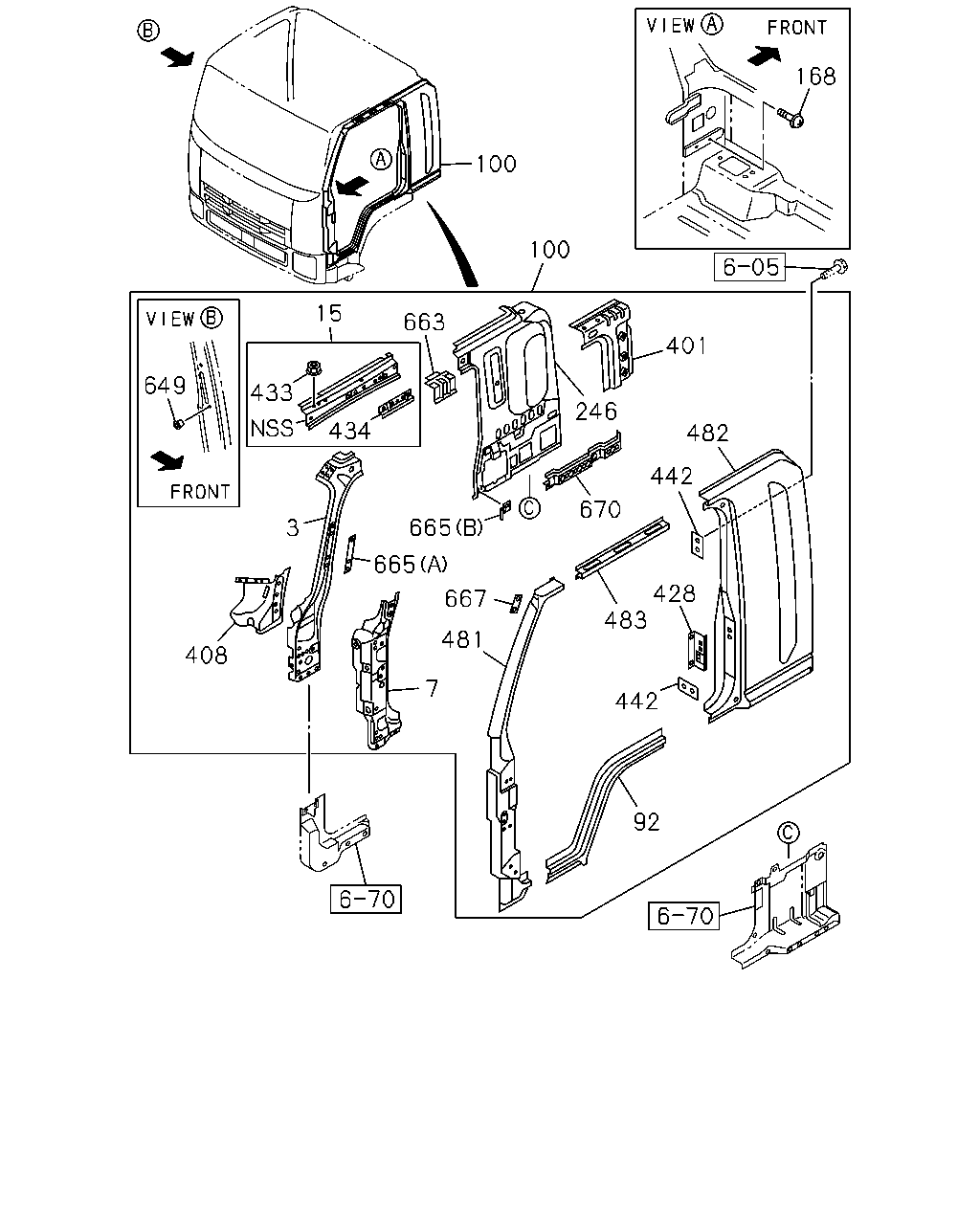

çizim 451237
100 100 401 482 246 442 670 663 15 433 649 434 665 665 667 481 7 408 483 428 442 92 168 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98058-237-1 01 1 1410- ●
3 PANEL; CLOSING,FRT PILLAR
THA 		8-98058-237-1 01 1 1410- ●
3 PANEL; CLOSING,FRT PILLAR
THA 		8-98058-236-1 01 1 1410- ● ●
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1410- ● ●
7 REINFORCEMENT; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97927-059-0 01 1 1410- ●
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1410- ●
15 PANEL; CANT RAIL SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97585-293-2 01 1 1410- ●
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1410- ●
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1410- ● ●
92 PANEL; SIDE SILL,CAB
THA 		8-98055-461-1 01 1 1410- ● ●
92 PANEL; SIDE SILL,CAB
THA 		8-98055-462-1 01 1 1410- ● ●
100 PANEL ASM; BODY SIDE
THA 		8-97948-576-1 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-570-1 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-575-1 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-571-1 01 1 1410- ●
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1410- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1410- ● ●
246 PANEL; RR PILLAR,INNER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97586-158-5 01 1 1410- ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1410- ●
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1410- ● ●
401 PATCH; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97586-161-2 01 1 1410- ●
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1410- ●
408 GUSSET; PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97586-194-2 01 1 1410- ●
408 GUSSET; PILLAR
THA 		8-97586-194-2 01 1 1410- ●
408 GUSSET; PILLAR
THA 		8-97586-193-3 01 1 1410- ● ●
428 REINFORCEMENT; DOOR STRIKER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97585-261-4 01 1 1410- ●
428 REINFORCEMENT; DOOR STRIKER
THA 		8-97585-261-4 01 1 1410- ●
428 REINFORCEMENT; DOOR STRIKER
THA 		8-97585-260-4 01 1 1410- ● ●
433 NUT; HEADER SHELF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6 THA 		9-09114-086-0 04 1 1410- ●
433 NUT; HEADER SHELF
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6 THA 		9-09114-086-0 02 1 1410- ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1410- ●
434 PATCH; ASSIST GRIP
THA 		8-98039-019-0 01 1 1410- ● ●
434 PATCH; ASSIST GRIP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98039-020-0 01 1 1410- ●
434 PATCH; ASSIST GRIP
THA 		8-98039-020-0 01 1 1410- ●
442 PATCH
THA 		8-98096-158-0 02 1 1410- ●
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98055-453-0 01 1 1410- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98055-471-0 01 1 1410- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98055-470-0 01 1 1410- ● ●
482 PANEL; SIDE RR PILLAR
THA 		8-98055-468-0 01 1 1410- ●
482 PANEL; SIDE RR PILLAR
THA 		8-98055-469-0 01 1 1410- ●
482 PANEL; SIDE RR PILLAR
THA 		8-98103-377-0 01 1 1410- ●
482 PANEL; SIDE RR PILLAR
THA 		8-98103-378-0 01 1 1410- ●
483 PANEL; SIDE CANTRAIL
THA 		8-98055-458-0 01 1 1410- ● ●
483 PANEL; SIDE CANTRAIL
THA 		8-98055-460-0 01 1 1410- ● ●
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1410- ● ●
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1410- ● ●
663 BRACKET; AIR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-278-0 01 1 1410- ●
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1410- ●
665 REINFORCEMENT; GRIP,ASSIST
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA 		8-97585-314-0 01 1 1410- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) THA 		8-97585-314-0 01 1 1410- ●
665 REINFORCEMENT; GRIP,ASSIST
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA 		8-98012-287-1 01 1 1410- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) THA 		8-98012-287-1 01 1 1410- ●
667 BRACKET; MIRROR
THA 		8-98109-948-0 01 1 1410- ●
670 STIFFENER; PANEL,SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA 		8-98015-044-1 02 1 1410- ●
670 STIFFENER; PANEL,SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98015-044-1 01 1 1410- ●
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1410- ●
