11652 - FXZ/GXZ THAILAND EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

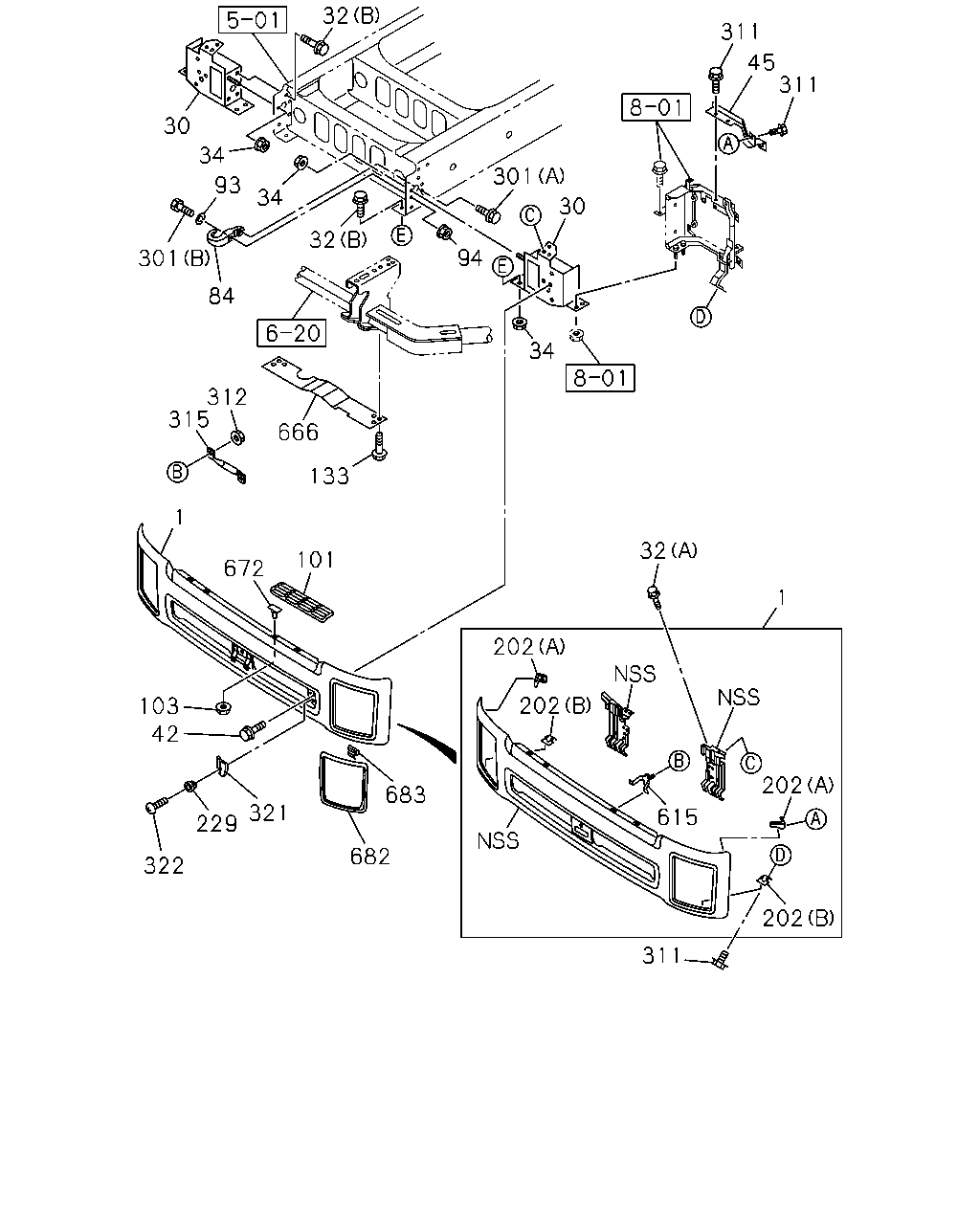

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#150771) — 36 parça
Tümü
A - FGZ5MX
B - GGZ5MX
30
34
93
34
32
301
32
94
30
311
45
311
34
301
84
312
315
666
133
1
672
101
103
42
322
229
321
683
682
32
1
202
202
615
202
311
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER ASM; FRT
WHITE THA
8-97425-037-0
01
1
1410-
●
●
30
BRACKET; FRT BUMPER
THA
8-98055-263-0
01
1
1410-
●
●
30
BRACKET; FRT BUMPER
THA
8-98055-264-0
01
1
1410-
●
●
32
BOLT; BRKT,BUMPER
(A) M10X30 THA
8-94324-205-0
01
1
1410-
●
●
32
BOLT; BRKT,BUMPER
(B) M12X35 FLANGE THA
0-28051-235-0
10
1
1410-
●
●
34
NUT; BRKT,BUMPER
M12 FLANGE THA
0-91180-212-0
06
1
1410-
●
●
42
BOLT; BUMPER
M10X30 THA
8-94324-205-0
06
1
1410-
●
●
45
BRACKET; BRKT TO BUMPER
THA
8-97613-647-2
01
1
1410-
●
●
45
BRACKET; BRKT TO BUMPER
THA
8-97613-648-2
01
1
1410-
●
●
84
HOOK
THA
8-97948-025-0
01
1
1410-
●
●
93
WASHER; LK,HOOK
ID=16.2 THA
0-91510-516-0
02
1
1410-
●
●
94
NUT; HOOK
M16 THA
0-91110-516-0
01
1
1410-
●
●
101
STEP; BUMPER
THA
8-97611-542-0
01
1
1410-
●
●
101
STEP; BUMPER
THA
8-97611-543-0
01
1
1410-
●
●
103
NUT; BUMPER STEP
M6 FLANGE THA
0-91180-106-0
04
1
1410-
●
●
133
BOLT; PROTECTOR FIX
M12X25 FLANGE THA
0-28661-225-0
06
1
1410-
●
●
202
BRACKET; BUMPER SIDE
(A) THA
8-98184-663-0
01
1
1410-
●
●
202
BRACKET; BUMPER SIDE
(A) THA
8-98184-664-0
01
1
1410-
●
●
202
BRACKET; BUMPER SIDE
(B) THA
8-98184-668-0
01
1
1410-
●
●
202
BRACKET; BUMPER SIDE
(B) THA
8-98184-669-0
01
1
1410-
●
●
229
GROMMET
D=7X7 L=7.5 THA
5-09983-007-0
02
1
1410-
●
●
301
BOLT; HOOK TO FRAME
(A) M16X60 THA
0-10861-660-0
01
1
1410-
●
●
301
BOLT; HOOK TO FRAME
(B) M16X70 THA
0-10861-670-0
01
1
1410-
●
●
311
BOLT; BRKT
M10X30 THA
8-94324-205-0
07
1
1410-
●
●
311
BOLT; BRKT
M10X25 FLANGE THA
0-28651-025-0
04
1
1410-
●
●
312
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1410-
●
●
315
STAY; BUMPER
THA
8-97617-115-0
01
1
1410-
●
●
321
COVER; BUMPER FRT SIDE
THA
8-97616-296-1
01
1
1410-
●
●
321
COVER; BUMPER FRT SIDE
THA
8-97616-297-1
01
1
1410-
●
●
322
SCREW; COVER FIX
T25 M5X16 TAPPING HEXALOBULAR THA
0-72180-516-0
02
1
1410-
●
●
615
BRACKET; BUMPER CENTER
THA
8-98184-611-0
01
1
1410-
●
●
666
PROTECTOR; UNDER
THA
8-97608-467-1
01
1
1410-
●
●
672
STUD; STEP
THA
8-97611-666-0
04
1
1410-
●
●
682
BEZEL; BUMPER
THA
8-97611-530-2
01
1
1410-
●
●
682
BEZEL; BUMPER
THA
8-97611-531-2
01
1
1410-
●
●
683
CLIP; BEZEL,BUMPER
THA
8-98084-293-0
08
1
1410-
●
●
