5-17 — CYLINDER; CAB TILT (#150768) — 26 parça

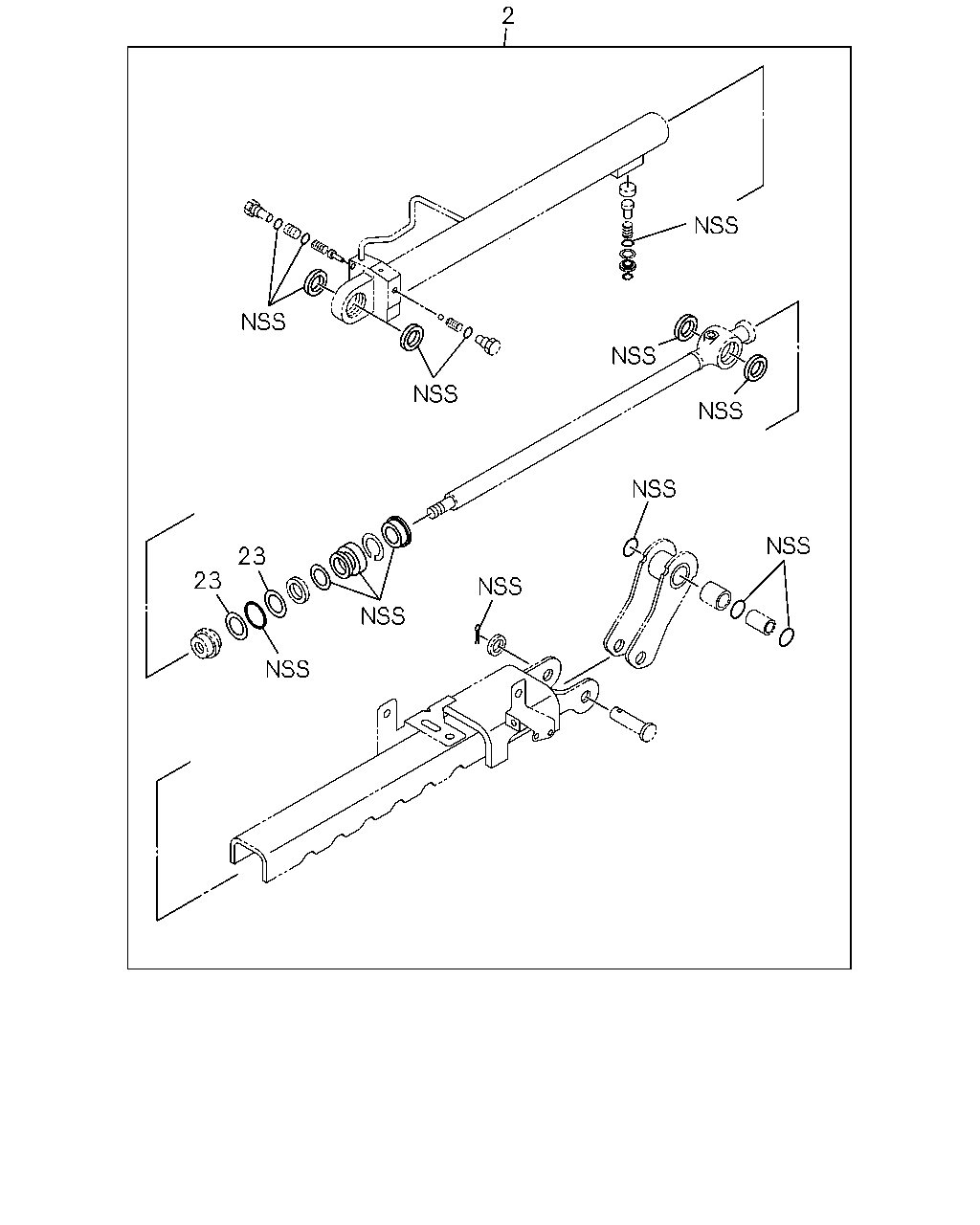

23 23 2

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	REPAIR KIT; OIL CYL THA	1-85579-068-0	01	1	1410-	●	●
	23	RING; SNAP THA	1-53457-048-0	02	1	1410-	●	●

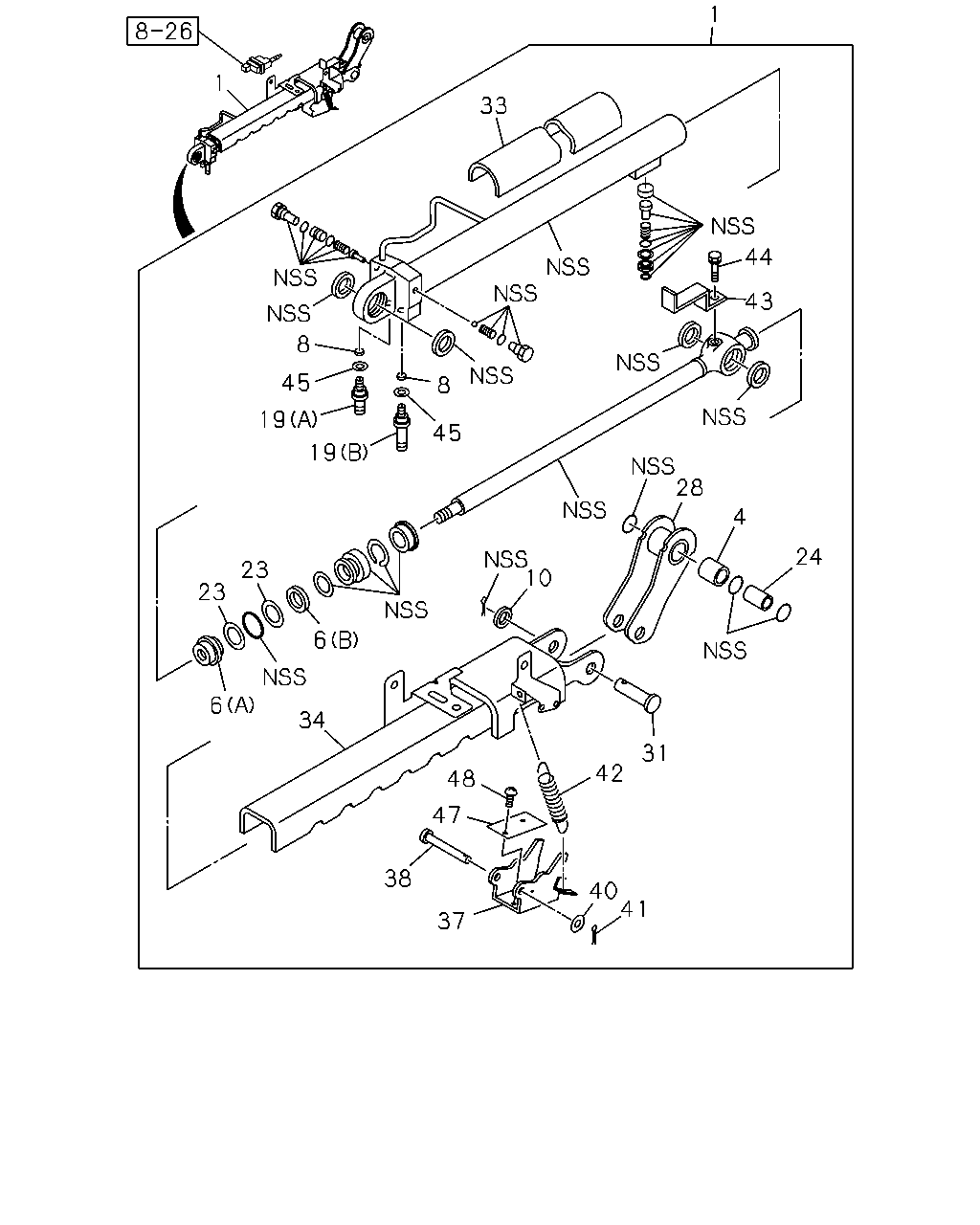

1 33 44 43 8 45 8 45 19 19 23 23 6 6 34 10 28 24 4 31 42 48 47 38 37 40 41 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER; OIL,CAB TILT THA	1-53457-151-1	01	1	1410-	●	●
4	BUSHING; OIL CYL THA	1-53458-405-0	01	1	1410-	●	●
6	PISTON; OIL CYL (A) THA	8-98134-365-0	01	1	1410-	●	●
6	PISTON; OIL CYL (B) THA	8-98134-367-0	01	1	1410-	●	●
8	FILTER; OIL CYL THA	1-53458-102-0	02	1	1410-	●	●
10	WASHER; OIL CYL THA	1-53458-401-0	01	1	1410-	●	●
19	NIPPLE; OIL CYL (A) THA	1-53457-044-0	01	1	1410-	●	●
19	NIPPLE; OIL CYL (B) THA	1-53457-045-0	01	1	1410-	●	●
23	RING; SNAP THA	1-53457-048-0	02	1	1410-	●	●
24	COLLAR; LEVER THA	1-53458-398-0	01	1	1410-	●	●
28	LEVER; OIL CYL THA	1-53458-557-1	01	1	1410-	●	●
31	PIN; OIL CYL THA	1-53457-172-0	01	1	1410-	●	●
33	COVER; CYL THA	1-53458-556-0	01	1	1410-	●	●
34	STOPPER; OIL CYL THA	1-53458-555-0	01	1	1410-	●	●
37	LEVER; STOPPER THA	1-53457-170-0	01	1	1410-	●	●
38	PIN; STOPPER THA	1-53458-550-0	01	1	1410-	●	●
40	WASHER; STOPPER PIN THA	1-53458-045-0	01	1	1410-	●	●
41	PIN; SPLIT THA	1-53458-545-0	01	1	1410-	●	●
42	SPRING; LOCK LEVER THA	1-53457-168-0	01	1	1410-	●	●
43	PLATE; SW THA	1-53457-167-0	01	1	1410-	●	●
44	BOLT; SW PLATE M6X12 THA	1-53458-542-0	01	1	1410-	●	●
45	GASKET; OIL CYL THA	1-53458-073-0	02	1	1410-	●	●
47	PLATE; THRUST,OIL CYL THA	1-53457-169-0	01	1	1410-	●	●
48	SCREW; OIL CYL M5X8 THA	1-53458-005-0	02	1	1410-	●	●
