5-16 — OIL PUMP; CAB TILT (#150767) — 61 parça

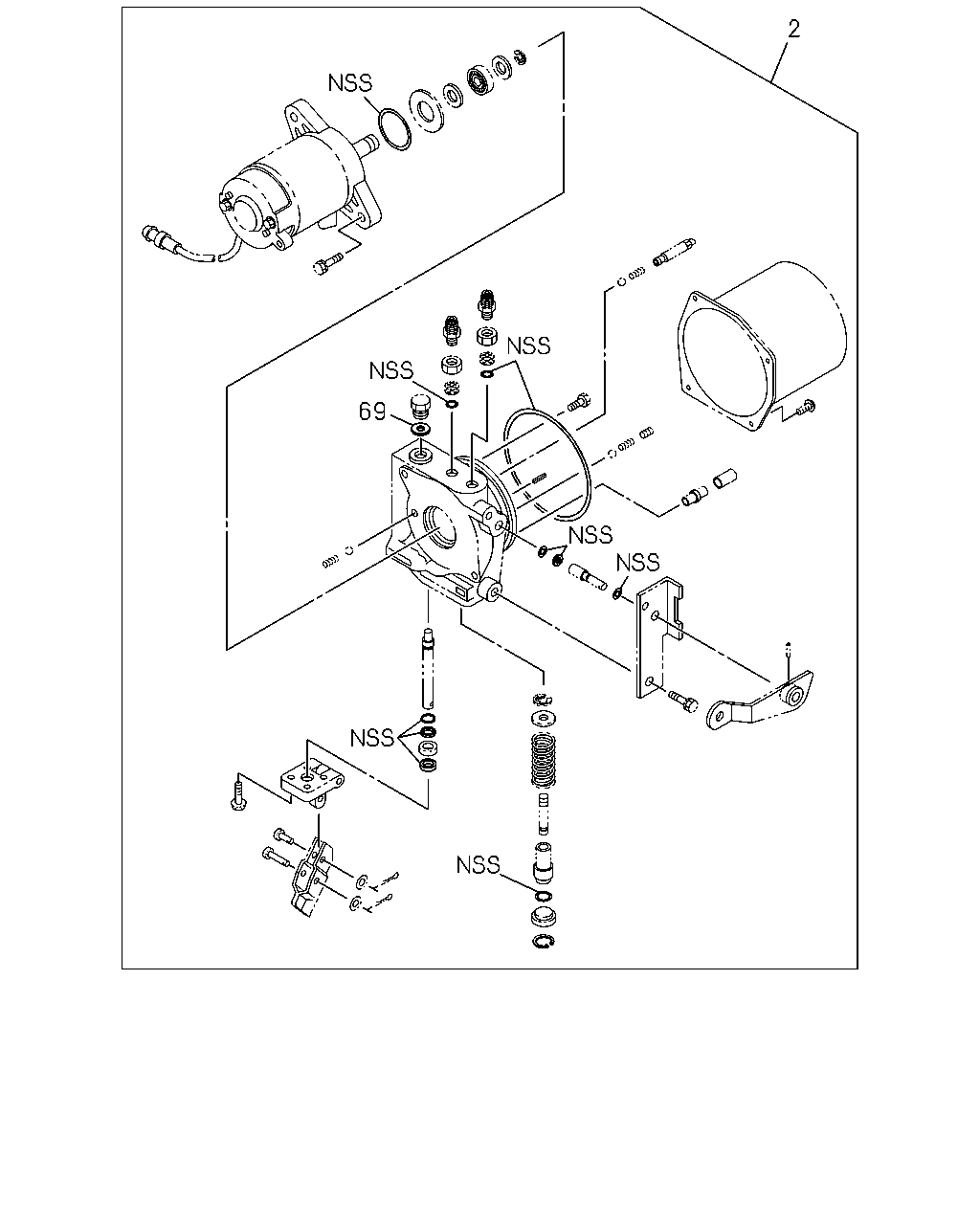

çizim 449449
69 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL PUMP
THA 		1-85579-069-0 01 1 1410- ● ●
69 GASKET; FILLER PLUG
THA 		1-53458-427-0 01 1 1410- ● ●

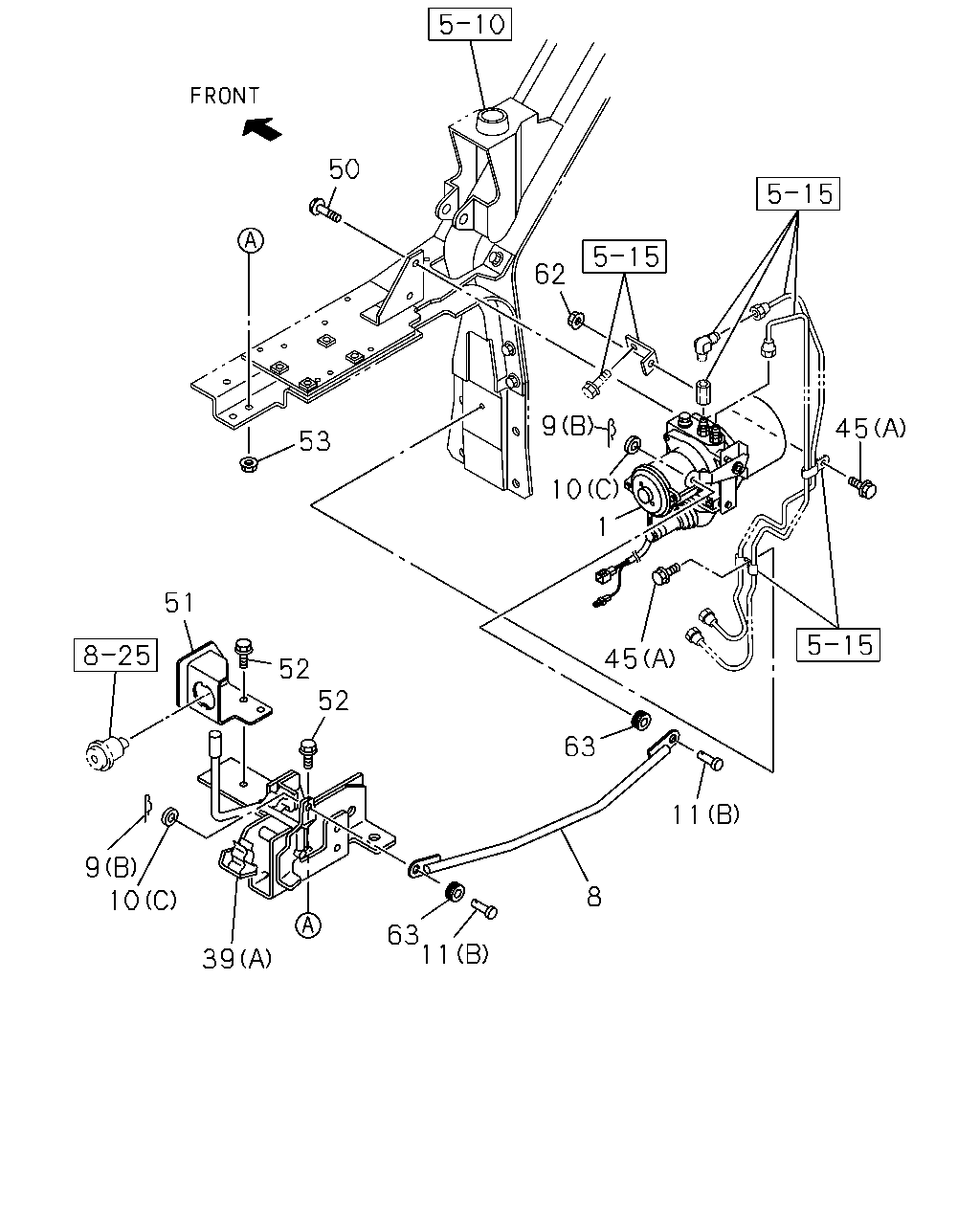

çizim 451297
50 62 53 51 52 52 9 10 39 63 11 8 63 11 45 9 10 45 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT
THA 		8-98279-120-0 01 1 1410- ● ●
8 LINK; OIL PUMP
THA 		1-53457-155-0 01 1 1410- ● ●
9 PIN; OIL PUMP
(B) L=27.7 THA 		1-09987-141-0 02 1 1410- ● ●
9 PIN; OIL PUMP
(C) THA 		1-53458-057-0 01 1 1410- ● ●
9 PIN; OIL PUMP
(A) THA 		1-53458-060-0 01 1 1410- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 THA 		0-91610-708-0 02 1 1410- ● ●
10 WASHER; OIL PUMP
(A) THA 		1-53458-013-0 01 1 1410- ● ●
10 WASHER; OIL PUMP
(B) THA 		1-53458-561-0 01 1 1410- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 THA 		0-82253-817-0 02 1 1410- ● ●
11 PIN; SPLIT,OIL PUMP
(A) THA 		1-53457-209-0 02 1 1410- ● ●
39 LEVER; OIL PUMP
(B) THA 		1-53458-567-0 01 1 1410- ● ●
39 LEVER; OIL PUMP
(A) THA 		8-98055-528-1 01 1 1410- ● ●
45 BOLT; COVER
(B) M6X8 THA 		1-53458-004-0 02 1 1410- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
50 BOLT; OIL PUMP
M10X16 FLANGE THA 		0-28051-016-0 02 1 1410- ● ●
51 BRACKET; OIL PUMP
THA 		8-98108-629-0 01 1 1410- ● ●
52 BOLT; BRKT
M8X20 FLANGE THA 		0-28050-820-0 04 1 1410- ● ●
53 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 03 1 1410- ● ●
62 NUT; COVER
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
63 GROMMET
ID=10 OD=23 T=8 THA 		1-09983-010-0 02 1 1410- ● ●

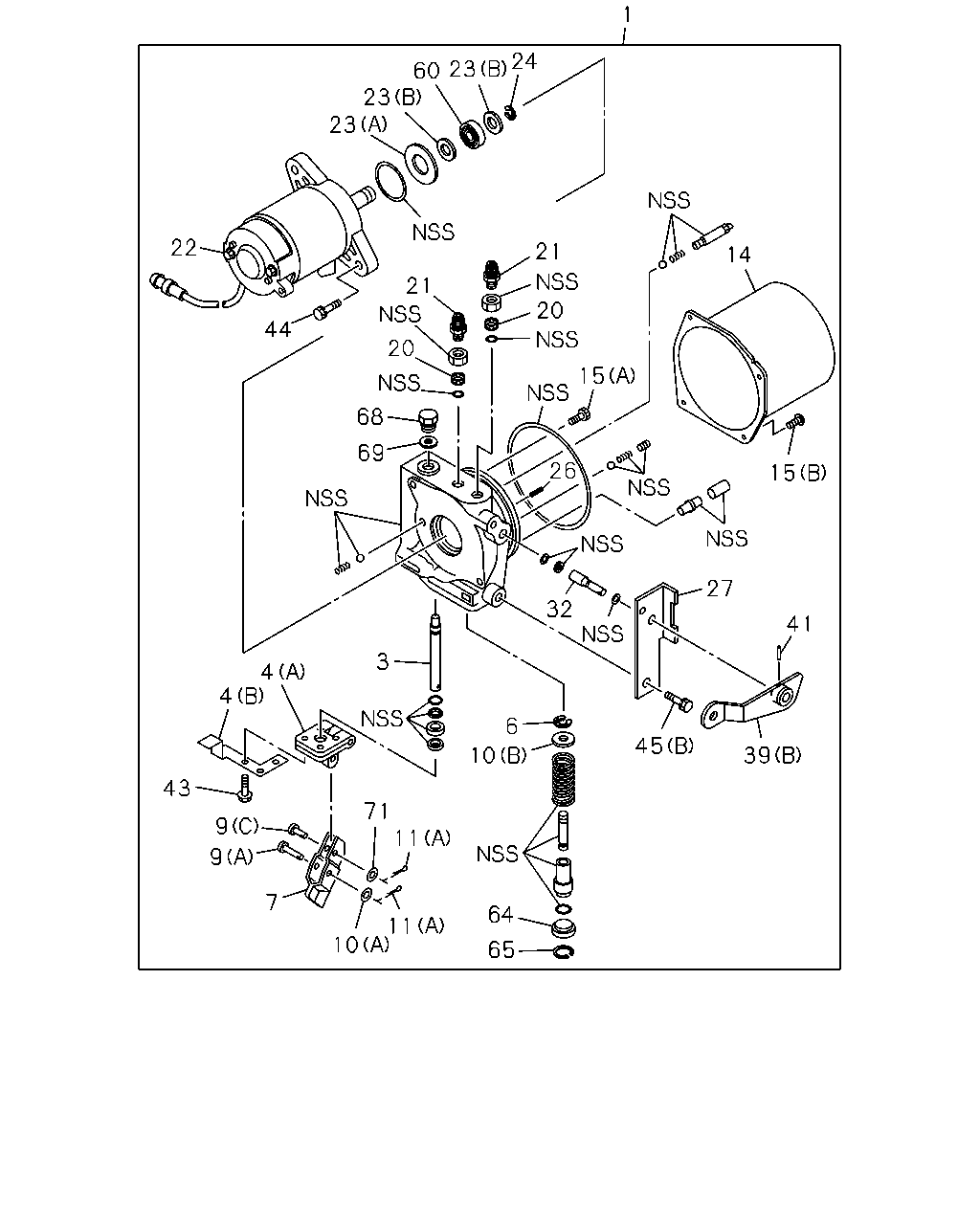

çizim 451298
1 14 15 27 39 45 32 26 15 20 21 21 20 68 69 6 10 64 65 10 11 11 71 7 9 43 4 4 9 3 44 22 23 23 60 23 24 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT
THA 		8-98279-120-0 01 1 1410- ● ●
3 PISTON; MANUAL
THA 		1-53457-204-0 01 1 1410- ● ●
4 BRACKET; OIL PUMP
(A) THA 		1-53457-205-0 01 1 1410- ● ●
4 BRACKET; OIL PUMP
(B) THA 		8-98281-606-0 01 1 1410- ● ●
6 RING; SNAP
THA 		1-53458-411-0 01 1 1410- ● ●
7 SOCKET; OIL PUMP
THA 		1-53457-207-0 01 1 1410- ● ●
9 PIN; OIL PUMP
(B) L=27.7 THA 		1-09987-141-0 02 1 1410- ● ●
9 PIN; OIL PUMP
(C) THA 		1-53458-057-0 01 1 1410- ● ●
9 PIN; OIL PUMP
(A) THA 		1-53458-060-0 01 1 1410- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 THA 		0-91610-708-0 02 1 1410- ● ●
10 WASHER; OIL PUMP
(A) THA 		1-53458-013-0 01 1 1410- ● ●
10 WASHER; OIL PUMP
(B) THA 		1-53458-561-0 01 1 1410- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 THA 		0-82253-817-0 02 1 1410- ● ●
11 PIN; SPLIT,OIL PUMP
(A) THA 		1-53457-209-0 02 1 1410- ● ●
14 RESERVOIR; OIL PUMP
THA 		1-53458-432-0 01 1 1410- ● ●
15 BOLT; RESERVOIR
(B) M5X8 THA 		1-53458-005-0 04 1 1410- ● ●
15 BOLT; RESERVOIR
(A) M5X8 THA 		1-53458-433-0 02 1 1410- ● ●
20 FILTER; OIL PUMP
THA 		1-53457-081-0 02 1 1410- ● ●
21 CONNECTOR; OIL PUMP
M12 THA 		1-53458-941-0 02 1 1410- ● ●
22 MOTOR; OIL PUMP
THA 		1-53457-080-0 01 1 1410- ● ●
23 WASHER; MOTOR
(A) THA 		1-53458-018-0 01 1 1410- ● ●
23 WASHER; MOTOR
(B) THA 		8-97613-686-0 02 1 1410- ● ●
24 RING; SNAP,MOTOR
THA 		1-53458-044-0 01 1 1410- ● ●
26 PIN; SPR,OIL PUMP
THA 		1-53458-038-0 01 1 1410- ● ●
27 COVER; OIL PUMP
THA 		1-53458-568-0 01 1 1410- ● ●
32 VALVE; OIL PUMP
THA 		1-53458-569-0 01 1 1410- ● ●
39 LEVER; OIL PUMP
(B) THA 		1-53458-567-0 01 1 1410- ● ●
39 LEVER; OIL PUMP
(A) THA 		8-98055-528-1 01 1 1410- ● ●
41 PIN; SPR,LEVER
THA 		1-53458-019-0 01 1 1410- ● ●
43 BOLT; LEVER
M5X16 THA 		1-53457-206-0 03 1 1410- ● ●
44 BOLT; MOTOR
M6X20 THA 		1-53458-007-0 02 1 1410- ● ●
45 BOLT; COVER
(B) M6X8 THA 		1-53458-004-0 02 1 1410- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
60 BEARING; OIL PUMP
THA 		1-53458-423-0 01 1 1410- ● ●
64 SLEEVE; OIL PUMP
THA 		8-98249-572-0 01 1 1410- ● ●
65 RING; SNAP,SLEEVE
THA 		1-53458-570-0 01 1 1410- ● ●
68 PLUG; FILLER
THA 		1-53458-428-0 01 1 1410- ● ●
69 GASKET; FILLER PLUG
THA 		1-53458-427-0 01 1 1410- ● ●
71 NUT; PUSH
THA 		1-53457-208-0 01 1 1410- ● ●
