5-01 — FRAME AND OTHER PARTS (#150764) — 118 parça

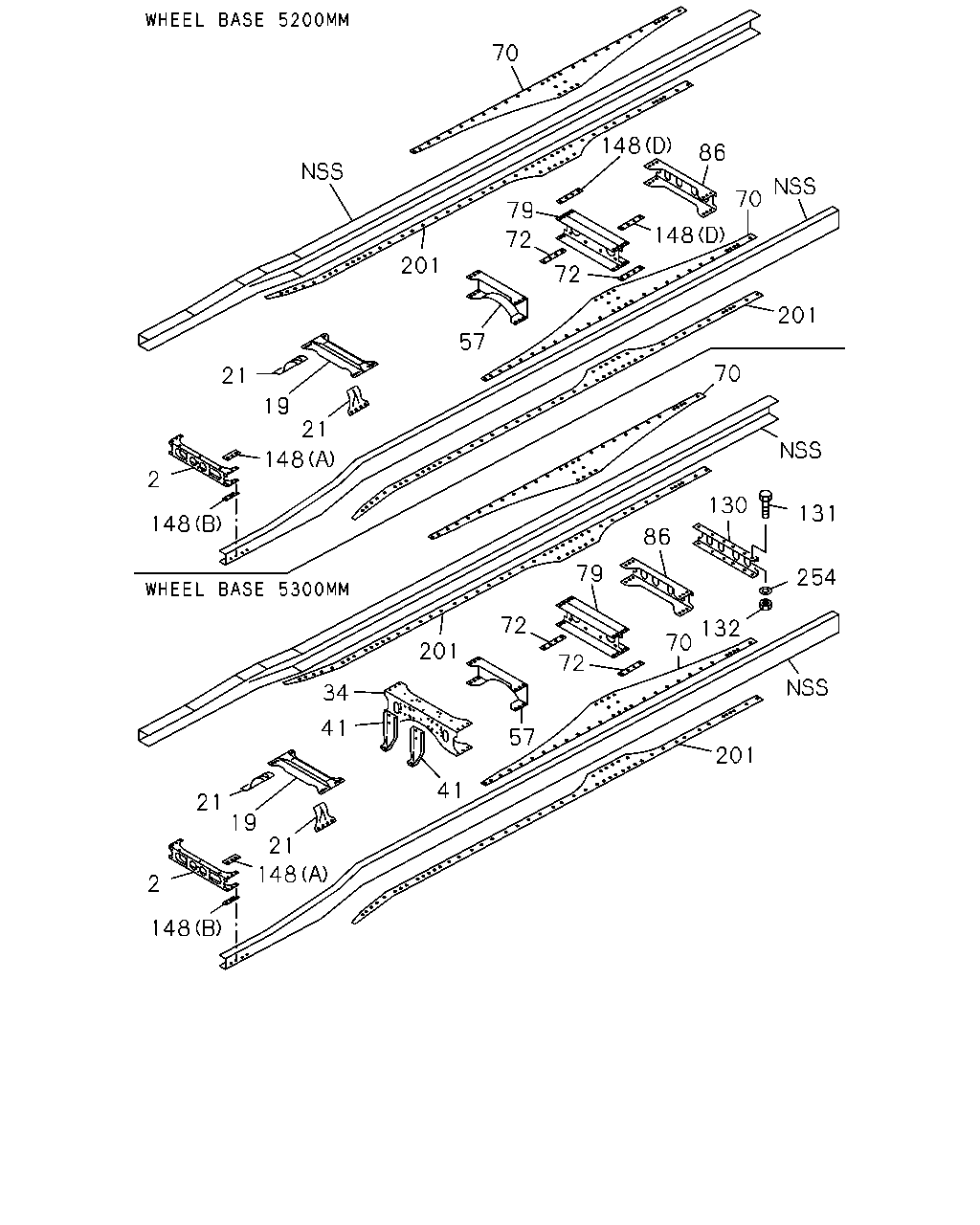

21 2 148 148 19 21 21 201 57 72 79 70 148 72 148 86 201 70 70 130 86 131 254 132 70 201 72 79 72 201 34 41 41 57 21 19 148 2 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1410-	●	●	●
19	MEMBER; CROSS,2ND FXZ<FG****> THA	1-53174-231-1	01	1	1410-	●
19	MEMBER; CROSS,2ND THA	1-53174-221-0	01	1	1410-		●	●
19	MEMBER; CROSS,2ND GXZ<GG****> THA	8-98187-273-0	01	1	1410-	●
21	GUSSET; 2ND CROSS FXZ<FG****> THA	1-53164-226-1	01	1	1410-	●
21	GUSSET; 2ND CROSS FXZ<FG****> THA	1-53164-227-1	01	1	1410-	●
21	GUSSET; 2ND CROSS THA	1-53164-225-0	02	1	1410-		●	●
21	GUSSET; 2ND CROSS GXZ<GG****> THA	8-98098-306-0	02	1	1410-	●
34	MEMBER; CROSS,3RD THA	1-53181-638-3	01	1	1410-			●
41	BRACKET; CENTER BRG,FRAME SIDE THA	8-97614-136-0	02	1	1410-			●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	1410-		●	●
70	GUSSET; TRUNNION,UPR GXZ<GG****>	8-97926-901-1	02	1	1410-	●
70	GUSSET; TRUNNION,UPR FXZ<FG****>	8-97926-894-1	02	1	1410-	●
70	GUSSET; TRUNNION,UPR THA	8-97926-895-1	02	1	1410-		●	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1410-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****> THA	1-53181-729-6	01	1	1410-	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	1410-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1410-		●	●
86	MEMBER; CROSS,RR SUSP RR FXZ<FG****> THA	8-98105-054-0	01	1	1410-	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****> THA	8-97623-323-0	01	1	1410-	●
86	MEMBER; CROSS,RR SUSP RR THA	1-53181-757-3	01	1	1410-		●	●
130	MEMBER; CROSS,END FXZ<FG****> THA	8-98105-054-0	01	1	1410-	●
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	1410-			●
131	BOLT; END C/MBR M14X40 THA	0-20951-440-0	04	1	1410-			●
132	NUT; END C/MBR M14 THA	0-91110-514-0	04	1	1410-			●
148	SPACER; C/MBR (A) THA	1-53168-400-1	02	1	1410-	●	●	●
148	SPACER; C/MBR (B) THA	1-53168-403-1	02	1	1410-	●	●	●
148	SPACER; C/MBR (D) THA	8-97623-199-0	02	1	1410-		●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	1410-	●
201	GUSSET; C/MBR	8-98178-152-0	02	1	1410-		●
201	GUSSET; C/MBR GXZ<GG****>	8-97618-853-0	02	1	1410-	●
201	GUSSET; C/MBR FXZ<FG****>	8-97620-767-0	02	1	1410-	●
201	GUSSET; C/MBR	8-97618-789-0	02	1	1410-			●
254	WASHER; PL,C/MBR ID=15 THA	8-98010-627-1	04	1	1410-			●

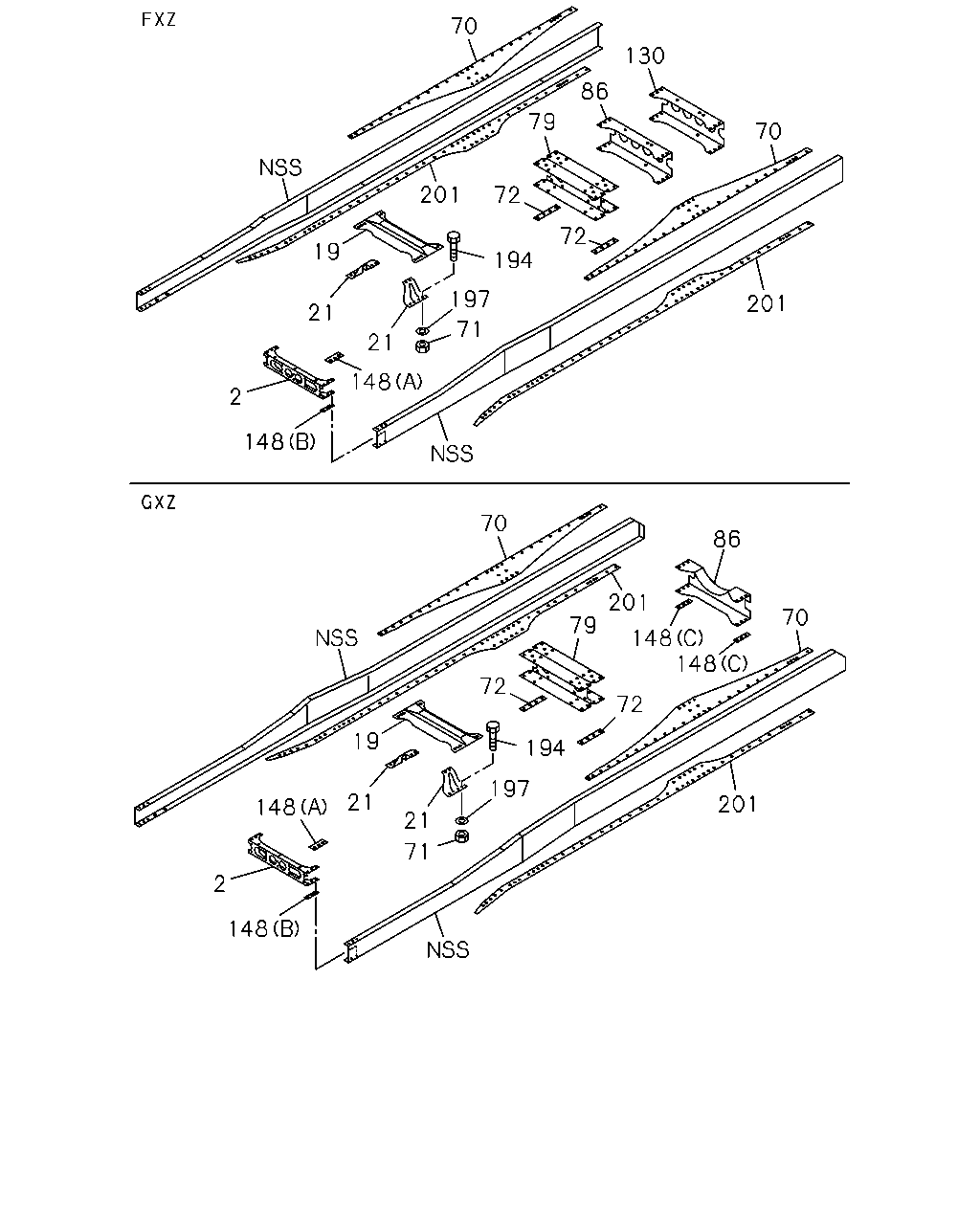

70 130 70 201 148 148 2 21 19 201 197 21 194 72 71 72 86 79 148 2 148 71 21 19 70 79 72 21 194 197 201 70 148 72 148 201 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1410-	●	●	●
19	MEMBER; CROSS,2ND FXZ<FG****> THA	1-53174-231-1	01	1	1410-	●
19	MEMBER; CROSS,2ND THA	1-53174-221-0	01	1	1410-		●	●
19	MEMBER; CROSS,2ND GXZ<GG****> THA	8-98187-273-0	01	1	1410-	●
21	GUSSET; 2ND CROSS FXZ<FG****> THA	1-53164-226-1	01	1	1410-	●
21	GUSSET; 2ND CROSS FXZ<FG****> THA	1-53164-227-1	01	1	1410-	●
21	GUSSET; 2ND CROSS THA	1-53164-225-0	02	1	1410-		●	●
21	GUSSET; 2ND CROSS GXZ<GG****> THA	8-98098-306-0	02	1	1410-	●
70	GUSSET; TRUNNION,UPR GXZ<GG****>	8-97926-901-1	02	1	1410-	●
70	GUSSET; TRUNNION,UPR FXZ<FG****>	8-97926-894-1	02	1	1410-	●
70	GUSSET; TRUNNION,UPR THA	8-97926-895-1	02	1	1410-		●	●
71	NUT; 2ND C/MBR GXZ<GG****> THA	8-98187-193-0	10	1	1410-	●
71	NUT; 2ND C/MBR FXZ<FG****> M14 THA	0-91110-514-0	08	1	1410-	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1410-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****> THA	1-53181-729-6	01	1	1410-	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	1410-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1410-		●	●
86	MEMBER; CROSS,RR SUSP RR FXZ<FG****> THA	8-98105-054-0	01	1	1410-	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****> THA	8-97623-323-0	01	1	1410-	●
86	MEMBER; CROSS,RR SUSP RR THA	1-53181-757-3	01	1	1410-		●	●
130	MEMBER; CROSS,END FXZ<FG****> THA	8-98105-054-0	01	1	1410-	●
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	1410-			●
148	SPACER; C/MBR (A) THA	1-53168-400-1	02	1	1410-	●	●	●
148	SPACER; C/MBR (B) THA	1-53168-403-1	02	1	1410-	●	●	●
148	SPACER; C/MBR (D) THA	8-97623-199-0	02	1	1410-		●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	1410-	●
194	BOLT; 2ND C/MBR FXZ<FG****> M14X60 THA	0-20951-460-0	08	1	1410-	●
194	BOLT; 2ND C/MBR GXZ<GG****> M14X50 THA	8-98097-158-0	10	1	1410-	●
197	WASHER; PL,2ND C/MBR FXZ<FG****> ID=15 THA	8-98010-627-1	16	1	1410-	●
197	WASHER; PL,2ND C/MBR GXZ<GG****> ID=15 THA	8-98010-627-1	10	1	1410-	●
201	GUSSET; C/MBR	8-98178-152-0	02	1	1410-		●
201	GUSSET; C/MBR GXZ<GG****>	8-97618-853-0	02	1	1410-	●
201	GUSSET; C/MBR FXZ<FG****>	8-97620-767-0	02	1	1410-	●
201	GUSSET; C/MBR	8-97618-789-0	02	1	1410-			●

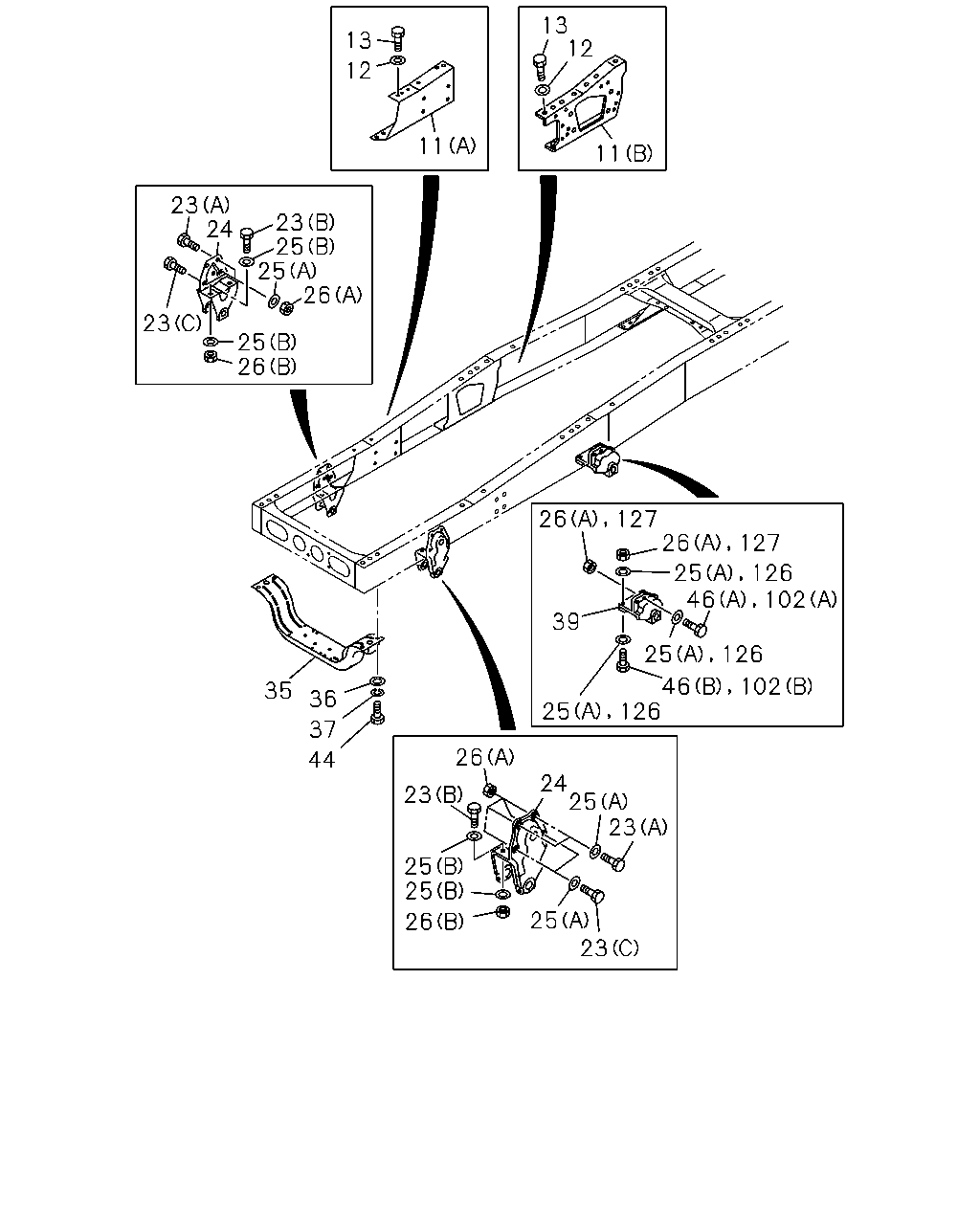

13 12 13 12 23 24 23 25 25 26 23 11 11 25 26 26 39 25 26 25 46 25 46 26 24 25 23 23 25 25 26 25 23 35 36 37 44 127 127 102 126 102 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG (A) THA	8-97948-487-0	01	1	1410-	●
11	BRACKET; ENG MTG (A) THA	8-97948-488-0	01	1	1410-	●
11	BRACKET; ENG MTG (B) THA	8-98055-432-1	01	1	1410-	●
11	BRACKET; ENG MTG (B) THA	8-98055-433-0	01	1	1410-	●
11	BRACKET; ENG MTG (A) THA	8-97948-489-0	01	1	1410-		●	●
11	BRACKET; ENG MTG (A) THA	8-97948-490-0	01	1	1410-		●	●
11	BRACKET; ENG MTG (B) THA	8-98055-430-1	01	1	1410-		●	●
11	BRACKET; ENG MTG (B) THA	8-98055-431-0	01	1	1410-		●	●
12	WASHER; PL,BRKT,ENG MTG ID=15 THA	8-98010-627-1	16	1	1410-	●	●	●
13	BOLT; BRKT,ENG MTG M14X35 THA	0-20951-435-0	04	1	1410-	●	●	●
13	BOLT; BRKT,ENG MTG M14X40 THA	0-20951-440-0	12	1	1410-	●
13	BOLT; BRKT,ENG MTG M14X50 THA	0-20951-450-0	12	1	1410-		●	●
23	BOLT; BRKT,SPR (B) M16X50 THA	0-20951-650-0	04	1	1410-	●	●	●
23	BOLT; BRKT,SPR (C) M14X43 THA	8-98097-159-0	04	1	1410-	●
23	BOLT; BRKT,SPR (A) M14X40 THA	0-20951-440-0	04	1	1410-	●	●	●
23	BOLT; BRKT,SPR (C) M14X50 THA	8-98097-158-0	04	1	1410-		●	●
24	BRACKET; FRT SPR,FRT THA	8-97948-496-0	02	1	1410-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2 THA	1-09503-316-0	08	1	1410-	●	●	●
25	WASHER; PL,BRKT FXZ<FG****> (A) ID=15 THA	8-98010-627-1	08	1	1410-	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	08	1	1410-		●	●
25	WASHER; PL,BRKT GXZ<GG****> (A) ID=15 THA	8-98010-627-1	20	1	1410-	●
26	NUT; BRKT,SPR FXZ<FG****> (A) M14 THA	0-91110-514-0	08	1	1410-	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	08	1	1410-		●	●
26	NUT; BRKT,SPR GXZ<GG****> (A) M14 THA	0-91110-514-0	16	1	1410-	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1410-	●	●	●
35	MEMBER; UNDER THA	1-53174-263-2	01	1	1410-	●	●	●
36	WASHER; PL,UNDER MBR ID=17 THA	0-91614-516-0	04	1	1410-	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2 THA	0-91510-816-0	04	1	1410-	●	●	●
39	BRACKET; FRT SPR,RR THA	1-53352-152-0	01	1	1410-	●	●	●
39	BRACKET; FRT SPR,RR THA	1-53352-153-0	01	1	1410-	●	●	●
44	BOLT; UNDER MBR M16X60 THA	0-20951-660-0	04	1	1410-	●	●	●
46	BOLT; BRKT FIX GXZ<GG****> (A) M14X40 THA	0-20951-440-0	04	1	1410-	●
46	BOLT; BRKT FIX GXZ<GG****> (B) M14X40 THA	8-98097-157-0	04	1	1410-	●
102	BOLT; BRKT,RR SPR FXZ<FG****> (A) M14X40 THA	0-20951-440-0	04	1	1410-	●
102	BOLT; BRKT,RR SPR FXZ<FG****> (B) M14X40 THA	8-98097-157-0	04	1	1410-	●
102	BOLT; BRKT,RR SPR (A) M14X50 THA	0-20951-450-0	04	1	1410-		●	●
102	BOLT; BRKT,RR SPR (B) M14X50 THA	8-98097-158-0	04	1	1410-		●	●
126	WASHER; PL,BRKT FXZ<FG****> ID=15 THA	8-98010-627-1	12	1	1410-	●
126	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	12	1	1410-		●	●
127	NUT; BRKT FXZ<FG****> M14 THA	0-91110-514-0	08	1	1410-	●
127	NUT; BRKT M14 THA	0-91110-514-0	08	1	1410-		●	●

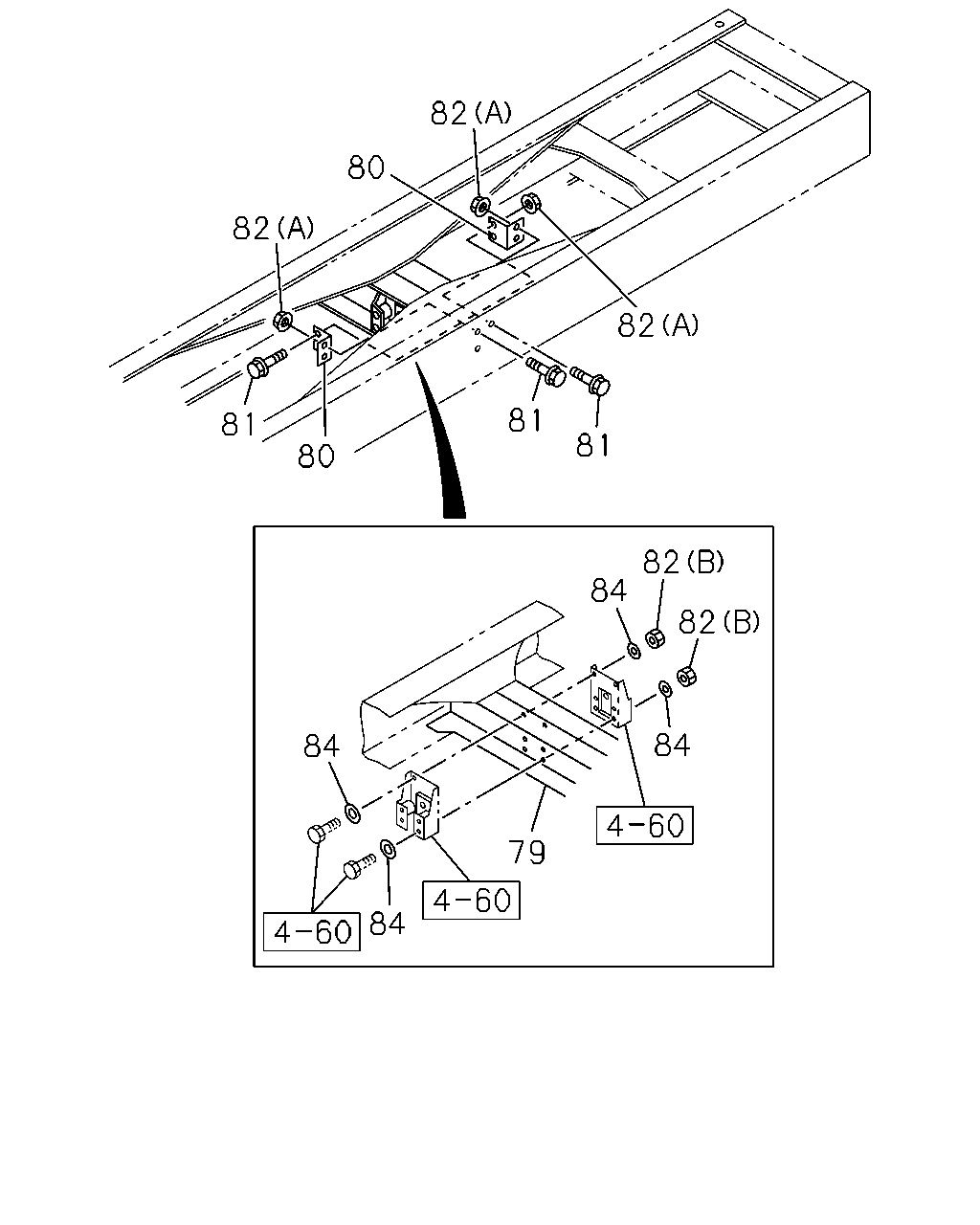

82 80 82 81 80 81 81 82 84 84 84 82 79 84 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****> THA	1-53181-729-6	01	1	1410-	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	1410-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1410-		●	●
80	BRACKET; C/MBR THA	1-53167-610-0	04	1	1410-	●
81	BOLT; BRKT M14X35 FLANGE THA	0-28861-435-0	08	1	1410-	●
81	BOLT; BRKT M14X50 FLANGE	0-28861-450-0	04	1	1410-	●
82	NUT; BRKT (A) M14 FLANGE THA	0-91180-214-0	12	1	1410-	●
82	NUT; BRKT (B) M14 THA	0-91110-514-0	04	1	1410-	●	●	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	08	1	1410-	●	●	●
