4-80 — ROAD WHEEL (#150763) — 49 parça

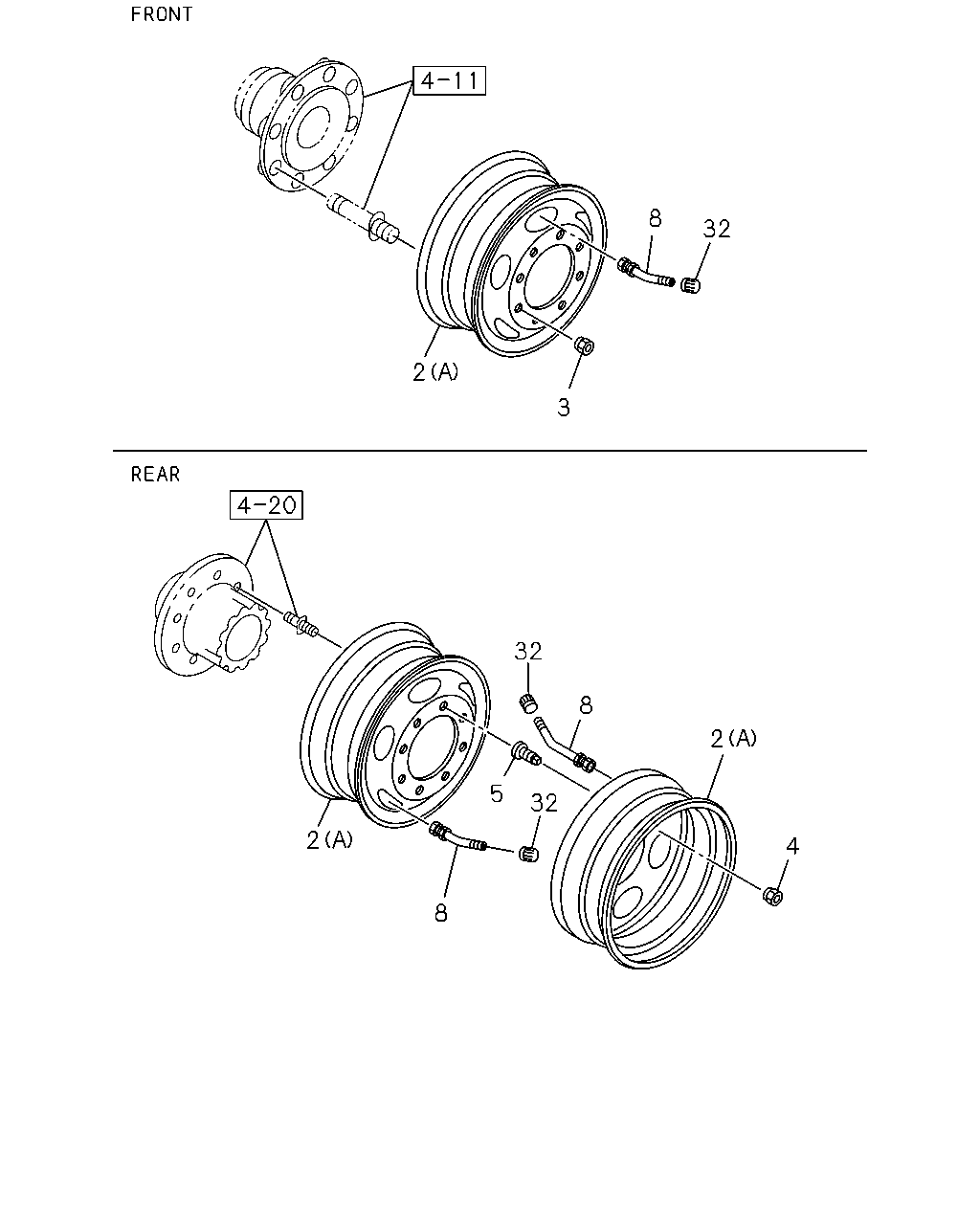

8 2 32 3 32 8 2 4 32 5 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT THA	8-97520-631-0	02	1	1410-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR THA	8-97520-631-0	08	1	1410-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE THA	8-97520-631-0	01	1	1410-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> (A) SPARE THA	8-97520-624-0	01	1	1410-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-97520-624-0	01	1	1410-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-97520-623-0	01	1	1410-	●	●
2	WHEEL; DISC DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE THA	8-97520-623-0	01	1	1410-	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-97520-623-0	08	1	1410-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> (A) FRONT THA	8-97520-623-0	02	1	1410-	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-97520-623-0	02	1	1410-		●
2	WHEEL; DISC DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> (A) REAR THA	8-97520-624-0	08	1	1410-	●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-97520-624-0	08	1	1410-		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-97520-624-0	02	1	1410-		●
3	NUT; WHEEL,FRT AXLE M24 THA	1-42333-022-3	08	1	1410-	●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	1-42334-022-3	08	1	1410-	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD THA	8-97359-809-0	16	1	1410-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97359-810-0	16	1	1410-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97359-805-0	16	1	1410-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97359-806-0	16	1	1410-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> SPARE THA	1-42370-020-3	01	1	1410-	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> SPARE THA	1-42370-020-3	01	1	1410-		●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> FRONT THA	1-42370-020-3	02	1	1410-	●
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> FRONT THA	1-42370-020-3	02	1	1410-		●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> REAR THA	1-42370-020-3	08	1	1410-	●
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> REAR THA	1-42370-020-3	08	1	1410-		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> THA	1-42374-001-0	11	1	1410-	●	●

2 31 32 3 2 31 31 2 32 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT THA	8-97520-631-0	02	1	1410-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR THA	8-97520-631-0	08	1	1410-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE THA	8-97520-631-0	01	1	1410-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> (A) SPARE THA	8-97520-624-0	01	1	1410-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-97520-624-0	01	1	1410-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-97520-623-0	01	1	1410-	●	●
2	WHEEL; DISC DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE THA	8-97520-623-0	01	1	1410-	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-97520-623-0	08	1	1410-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> (A) FRONT THA	8-97520-623-0	02	1	1410-	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-97520-623-0	02	1	1410-		●
2	WHEEL; DISC DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> (A) REAR THA	8-97520-624-0	08	1	1410-	●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-97520-624-0	08	1	1410-		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-97520-624-0	02	1	1410-		●
3	NUT; WHEEL,FRT AXLE M24 THA	1-42333-022-3	08	1	1410-	●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	1-42334-022-3	08	1	1410-	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD THA	8-97359-809-0	16	1	1410-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97359-810-0	16	1	1410-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97359-805-0	16	1	1410-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97359-806-0	16	1	1410-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT THA	8-97520-654-0	02	1	1410-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> REAR THA	8-97520-654-0	08	1	1410-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE THA	8-97520-654-0	01	1	1410-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> THA	1-42374-001-0	11	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
