◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#150761) — 65 parça

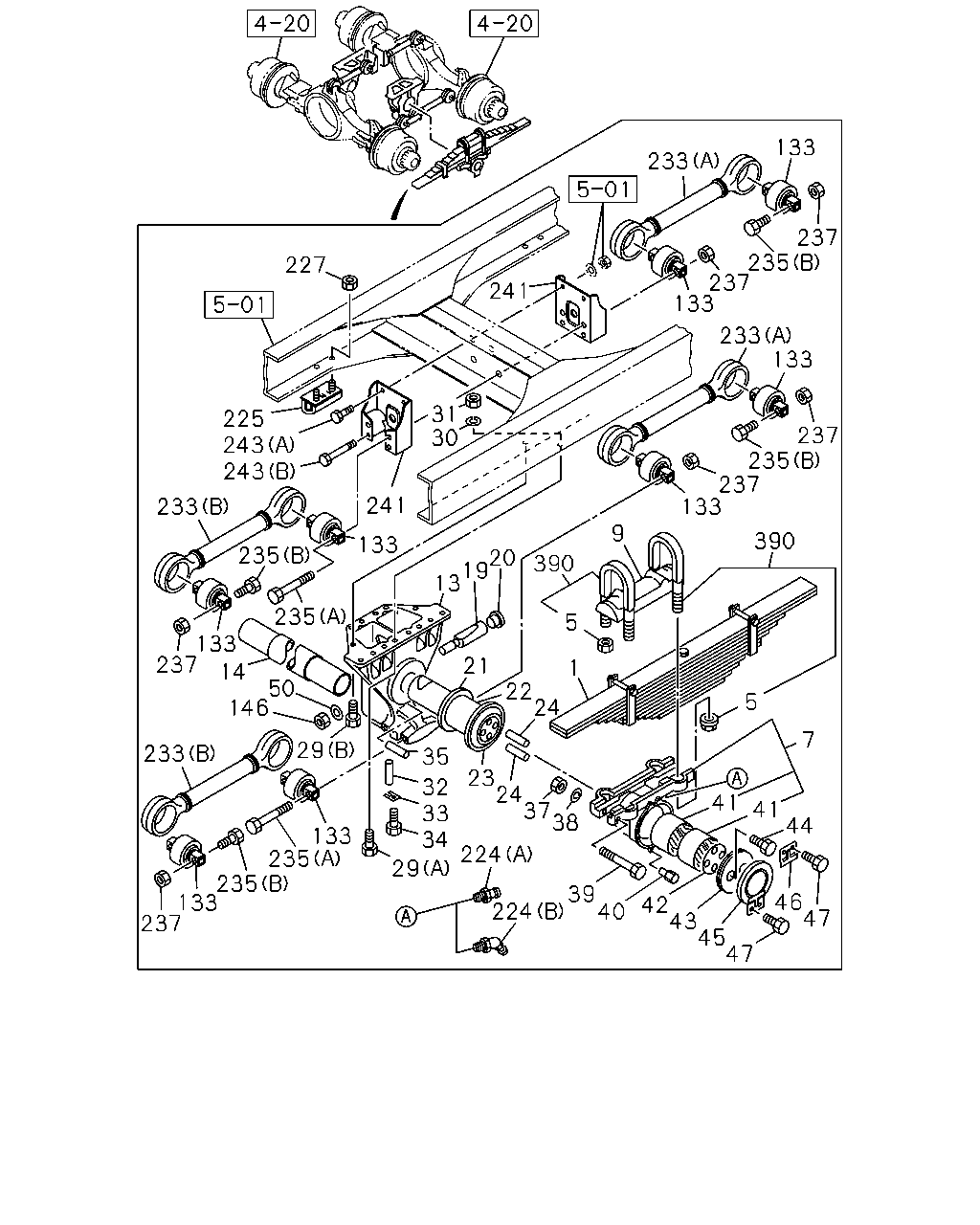

çizim 452024
233 133 237 235 237 133 241 233 237 133 235 237 133 9 390 390 5 20 19 13 21 22 24 5 7 41 41 44 47 46 47 45 43 42 40 39 224 224 29 35 32 33 34 23 24 37 38 133 235 235 133 237 29 233 50 14 237 235 146 133 235 133 233 243 243 225 241 30 31 227 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 11-LEAF THA 		1-51410-269-1 02 1 1410- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF THA 		1-51410-269-1 02 1 1410- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 5200MM<52W> 9-LEAF THA 		8-98140-159-0 02 1 1410- ●
5 NUT; U-BOLT,RR SPR
THA 		8-97948-151-0 08 1 1410- ● ●
7 SEAT; SPR,LWR
THA 		8-97916-703-2 02 1 1410- ● ●
9 PAD; U BOLT,RR SPR
THA 		8-98177-265-0 02 1 1410- ● ●
13 BRACKET; TRUNNION SHAFT
THA 		8-97915-942-3 02 1 1410- ● ●
14 PIPE; TRUNNION BRKT
THA 		1-51389-060-0 01 1 1410- ● ●
19 BOLT; KEY,SHAFT
THA 		8-97948-508-0 02 1 1410- ● ●
20 GROMMET; KEY BOLT
THA 		1-09333-057-0 02 1 1410- ● ●
21 WASHER; THRUST,TRUNNION SHAFT
THA 		1-51389-058-0 02 1 1410- ● ●
22 SHAFT; TRUNNION,RR SUSP
THA 		8-97916-554-0 02 1 1410- ● ●
23 SEAL; OIL,TRUNNION SHAFT
THA 		1-51389-005-0 02 1 1410- ● ●
24 PIN; SIDE PLATE TO SHAFT
THA 		1-09740-009-0 04 1 1410- ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 THA 		8-98012-872-0 24 1 1410- ● ●
29 BOLT; BRKT TO FRAME
(B) M18X55 THA 		9-92061-855-0 04 1 1410- ● ●
30 WASHER; PL,TRUNNION BRKT
ID=19 THA 		1-09503-162-0 28 1 1410- ● ●
31 NUT; TRUNNION BRKT
M18 THA 		0-91110-518-0 28 1 1410- ● ●
32 PIN; STRAIGHT
THA 		1-09740-027-0 04 1 1410- ● ●
33 PLATE; LK KNOCK PIN
THA 		1-53369-032-1 02 1 1410- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE THA 		0-28051-016-0 02 1 1410- ● ●
35 PIN; TRUNNION SHAFT
THA 		1-09749-030-1 04 1 1410- ● ●
37 NUT; SPR SETTING
M22 THA 		0-91110-522-0 04 1 1410- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 THA 		0-91510-622-0 04 1 1410- ● ●
39 BOLT; SPR SETTING
M22X155 THA 		9-09801-290-1 04 1 1410- ● ●
40 VALVE; GREASE ESCAPE
THA 		9-51389-010-0 02 1 1410- ● ●
41 BUSHING; TRUNNION SHAFT
THA 		8-98081-832-0 04 1 1410- ● ●
42 SHIM; SIDE PLATE TO SHAFT
THA 		1-51389-033-1 12 1 1410- ● ●
43 PLATE; SIDE,TRUNNION SHAFT
THA 		8-97948-142-0 02 1 1410- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE THA 		1-09044-038-2 04 1 1410- ● ●
45 COVER; SPR SEAT
THA 		1-51387-013-2 02 1 1410- ● ●
46 BRACKET; COVER
THA 		1-51387-015-2 02 1 1410- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE THA 		0-28050-812-0 08 1 1410- ● ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 THA 		8-98012-871-0 02 1 1410- ● ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		8-98218-958-0 06 1 1410- ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		8-98218-958-0 06 1 1410- ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1410- ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1410- ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W> THA 		8-98218-958-0 12 1 1410- ●
146 NUT; KEY BOLT
M24 THA 		0-91110-524-0 02 1 1410- ● ●
224 NIPPLE; GREASE,SPR SEAT
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1410- ●
224 NIPPLE; GREASE,SPR SEAT
(B) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410- ●
225 RUBBER; CUSHION,RR SPR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 1410- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 1410- ●
225 RUBBER; CUSHION,RR SPR
WHEEL BASE 5200MM<52W> FORWARD RH,REARWARD LH THA 		8-97925-895-0 02 1 1410- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD THA 		8-97916-011-0 02 1 1410- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE THA 		0-91180-212-0 08 1 1410- ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) L=525 THA 		8-98218-994-0 03 1 1410- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		8-98218-994-0 03 1 1410- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) L=550 THA 		8-98218-998-0 03 1 1410- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		8-98218-998-0 03 1 1410- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5200MM<52W> (B) L=555 THA 		8-98218-999-0 03 1 1410- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5200MM<52W> (A) L=580 THA 		8-98219-000-0 03 1 1410- ●
235 BOLT; TORQUE ROD
(A) M18X265 THA 		8-98012-875-0 06 1 1410- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 THA 		8-98012-877-0 12 1 1410- ● ●
237 NUT; TORQUE ROD
M18 THA 		1-09464-011-0 18 1 1410- ● ●
241 BRACKET; TORQUE ROD
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> THA 		1-53363-031-2 02 1 1410- ●
241 BRACKET; TORQUE ROD
ZF9S1310 M/T<Y5K> THA 		1-53363-031-2 02 1 1410- ●
243 BOLT; BRKT,TORQUE ROD
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) M14X50 THA 		0-20951-450-0 02 1 1410- ●
243 BOLT; BRKT,TORQUE ROD
ZF9S1310 M/T<Y5K> (A) M14X50 THA 		0-20951-450-0 02 1 1410- ●
243 BOLT; BRKT,TORQUE ROD
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (B) M14X205 THA 		1-09000-147-0 02 1 1410- ●
243 BOLT; BRKT,TORQUE ROD
ZF9S1310 M/T<Y5K> (B) M14X205 THA 		1-09000-147-0 02 1 1410- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> L=370 THA 		1-87870-217-3 04 1 1410- ●
390 U-BOLT SET; RR SPRING
L=370 THA 		1-87870-217-3 04 1 1410- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 5200MM<52W> L=350 THA 		1-87870-392-1 04 1 1410- ●
