◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#150759) — 36 parça

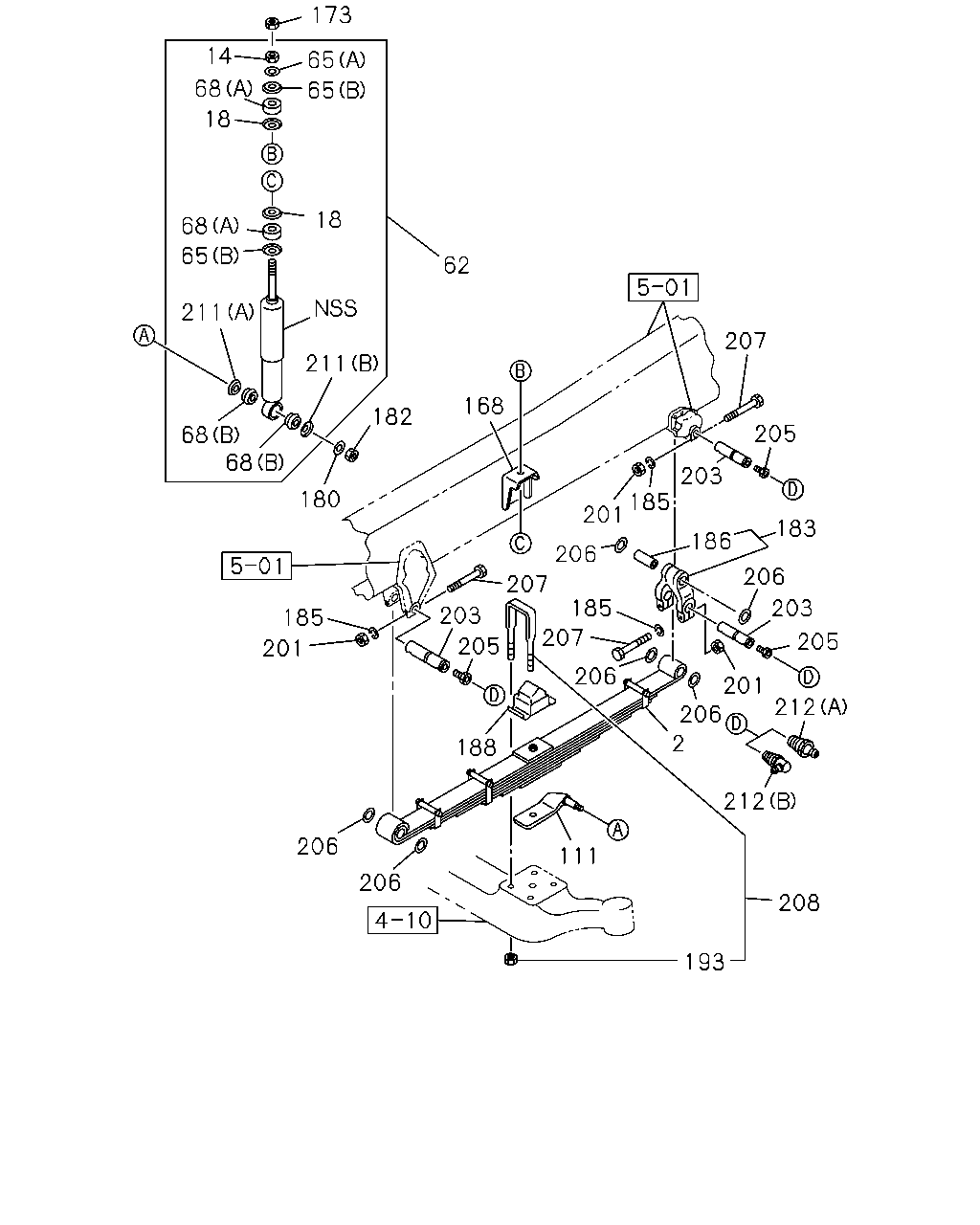

çizim 448565
193 208 212 2 212 206 205 201 203 206 186 183 206 207 111 206 206 188 201 185 205 203 185 207 201 206 185 203 205 207 168 180 182 62 211 68 68 211 65 68 18 18 68 14 173 65 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 7-LEAF THA 		1-51130-961-0 01 1 1410- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 7-LEAF THA 		8-98137-207-0 01 1 1410- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5200MM<52W> 7-LEAF THA 		8-98201-306-0 02 1 1410- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-98231-369-0 01 1 1410- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-98231-370-0 01 1 1410- ●
14 NUT; S/ABS,UPR
M14 THA 		9-99111-414-0 02 1 1410- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 THA 		1-51631-067-0 04 1 1410- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		1-51630-417-0 02 1 1410- ● ●
65 WASHER; S/ABS
(A) ID=16.5 THA 		1-09503-266-0 02 1 1410- ● ●
65 WASHER; S/ABS
(B) ID=16.5 THA 		1-51631-068-0 04 1 1410- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 THA 		1-51631-069-0 04 1 1410- ● ●
68 BUSHING; S/ABS
(B) THA 		9-51631-026-0 04 1 1410- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-497-0 01 1 1410- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-498-0 01 1 1410- ● ●
168 BRACKET; S/ABS,FRT SUSP
THA 		1-51681-616-0 02 1 1410- ● ●
173 NUT; S/ABS
M14 THA 		0-91111-514-0 02 1 1410- ● ●
180 WASHER; PL,PIN
ID=21 THA 		0-91610-520-0 02 1 1410- ● ●
182 NUT; S/ABS LWR
M20 THA 		0-91110-520-0 02 1 1410- ● ●
183 SHACKLE; FRT SUSP
THA 		1-51162-029-5 02 1 1410- ● ●
185 WASHER; LK,PIN
ID=12.2 THA 		0-91510-612-0 12 1 1410- ● ●
186 BUSHING; SHACKLE
OD=38 THA 		8-98081-829-0 02 1 1410- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		1-51172-085-2 02 1 1410- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		1-51172-081-1 02 1 1410- ●
193 NUT; U BOLT
M22 THA 		8-98179-318-0 08 1 1410- ● ●
201 NUT; PIN LK
M12 THA 		0-91110-512-0 12 1 1410- ● ●
203 PIN; SPR TO SHACKLE
THA 		8-97948-141-0 06 1 1410- ● ●
205 ATTACHMENT; GREASE NIPPLE
THA 		9-43165-001-0 06 1 1410- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 THA 		1-51169-018-0 12 1 1410- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 THA 		0-10856-280-0 12 1 1410- ● ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> L=240 THA 		1-87870-376-2 04 1 1410- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5200MM<52W> L=230 THA 		1-87870-493-0 04 1 1410- ●
208 U-BOLT SET; FRT SPRING
L=210 THA 		1-87870-498-0 04 1 1410- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 THA 		9-51631-027-0 02 1 1410- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 THA 		9-51631-028-0 02 1 1410- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1410- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW THA 		0-90301-610-0 04 1 1410- ● ●
