4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#150755) — 73 parça

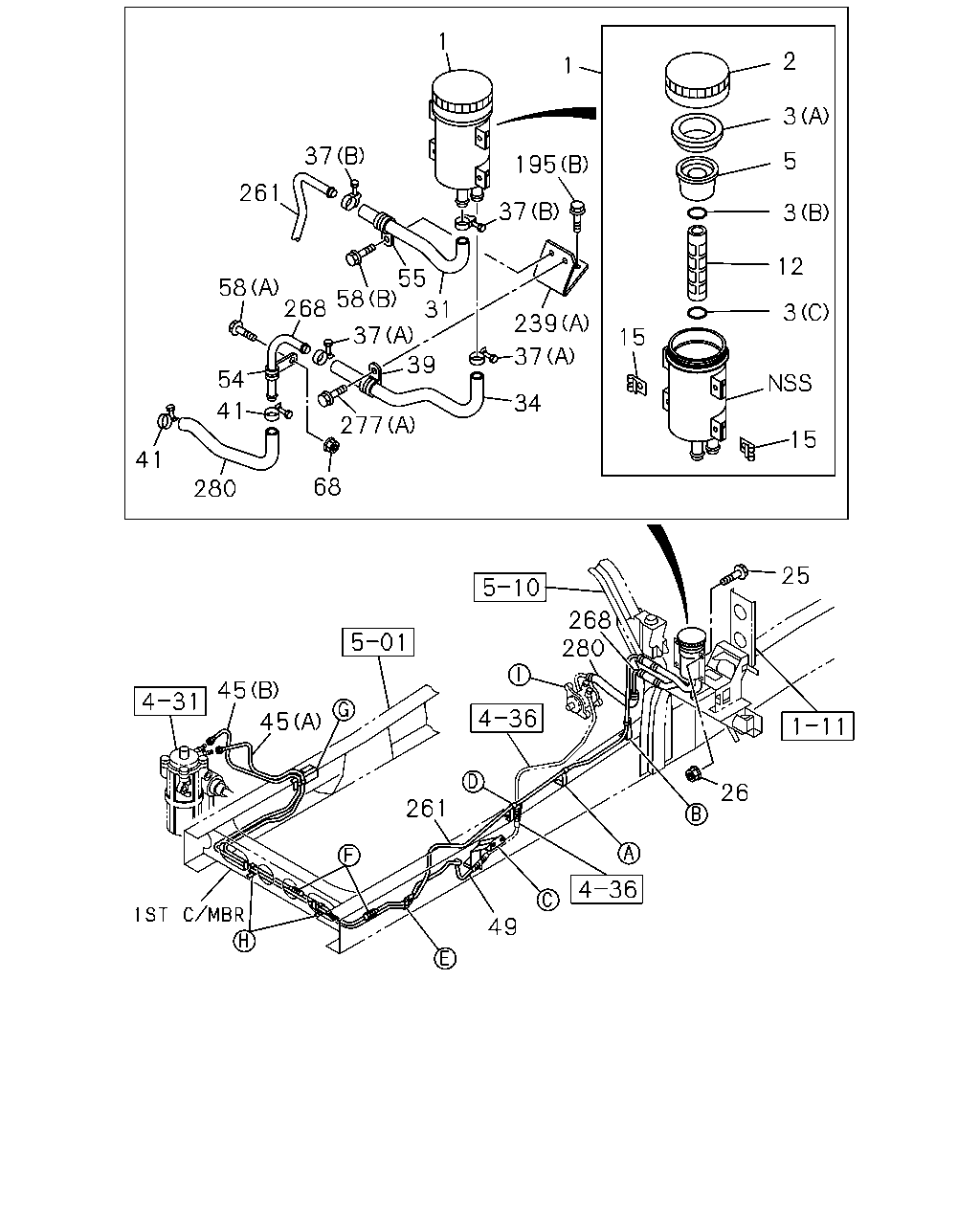

37 261 195 1 1 2 3 5 3 12 3 15 15 58 58 55 37 239 34 37 54 268 31 37 277 41 41 68 280 39 45 45 268 280 25 26 49 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S THA	8-97948-303-2	01	1	1410-	●	●
2	CAP; OIL TANK,P/S THA	8-97948-291-0	01	1	1410-	●	●
3	GASKET; OIL TANK,P/S (A) THA	8-97948-295-0	01	1	1410-	●	●
3	GASKET; OIL TANK,P/S (B) THA	8-97948-298-0	01	1	1410-	●	●
3	GASKET; OIL TANK,P/S (C) THA	8-97948-307-0	01	1	1410-	●	●
5	STRAINER; OIL TANK,P/S THA	8-97948-979-0	01	1	1410-	●	●
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-978-0	01	1	1410-	●	●
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	04	1	1410-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1410-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	04	1	1410-	●	●
31	HOSE; P/S OIL TANK,INL THA	8-97618-666-1	01	1	1410-	●	●
34	HOSE; P/S OIL TANK,OUTLET THA	8-97618-665-1	01	1	1410-	●	●
37	CLIP; HOSE,P/S (A) ID=32 THA	1-09704-085-0	02	1	1410-	●	●
37	CLIP; HOSE,P/S (B) ID=28 THA	9-09915-672-1	02	1	1410-	●	●
39	CLIP; FLEX HOSE ID=31 L=35 THA	1-09700-329-1	01	1	1410-	●	●
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	1410-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B) THA	8-98123-061-0	01	1	1410-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A) THA	8-98123-062-0	01	1	1410-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION THA	8-98123-063-0	01	1	1410-	●	●
54	CLIP; OIL PIPE ID=19 L=60 THA	0-95235-896-0	01	1	1410-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32 THA	1-09701-107-1	01	1	1410-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1410-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1410-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER THA	0-50640-835-0	03	1	1410-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1410-	●	●
239	BRACKET; FLEX HOSE (B) THA	8-97618-673-0	01	1	1410-	●	●
239	BRACKET; FLEX HOSE (A) THA	8-97621-113-0	01	1	1410-	●	●
261	PIPE; OIL,UNION TO HOSE THA	8-98124-680-0	01	1	1410-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE THA	8-97618-672-0	01	1	1410-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●	●
280	HOSE; P/S OIL PUMP,INL THA	1-21437-995-0	01	1	1410-	●	●

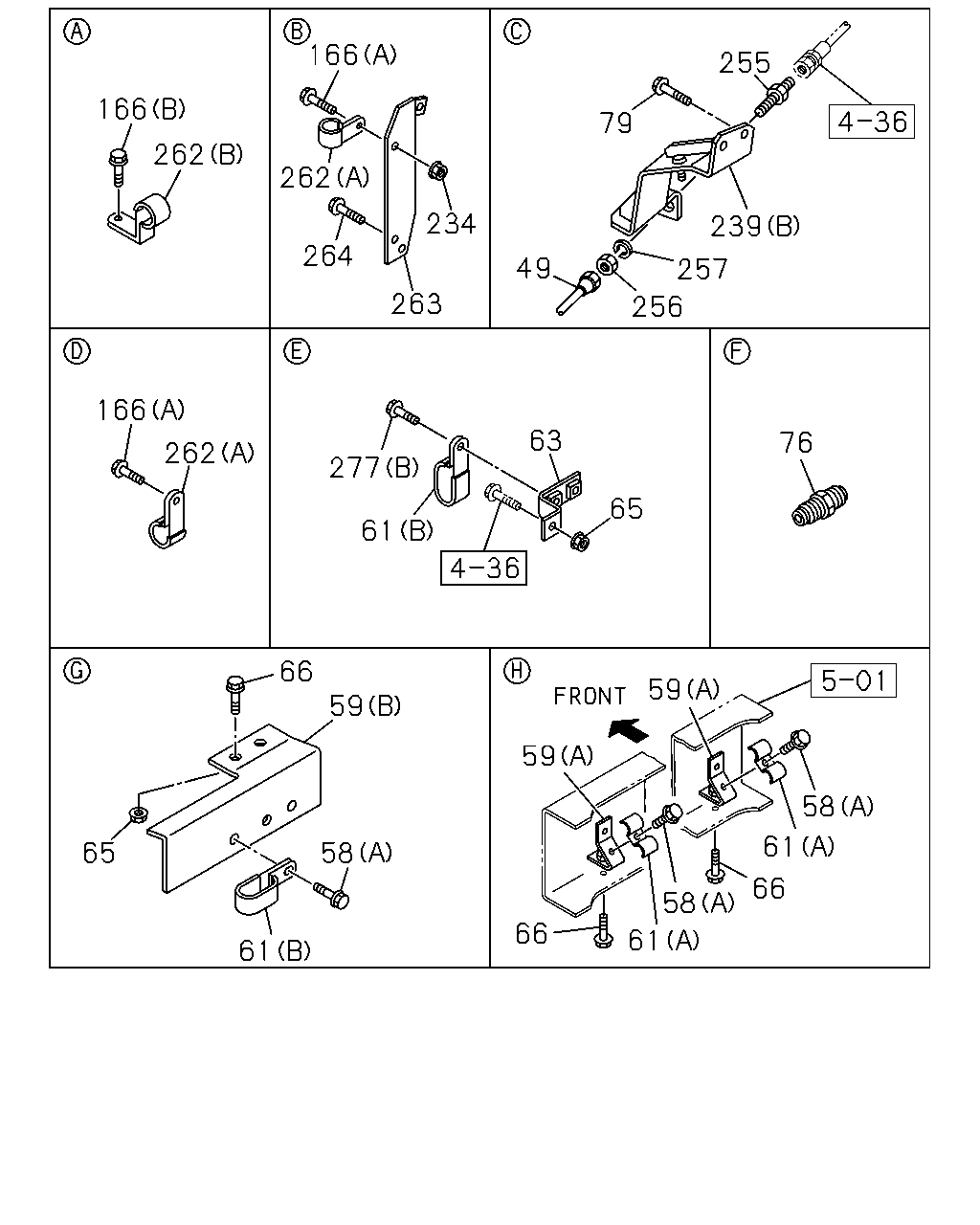

166 262 166 262 234 264 263 79 255 239 257 256 166 262 277 61 63 65 76 66 59 58 65 61 59 59 58 61 58 61 66 49 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION THA	8-98123-063-0	01	1	1410-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1410-	●	●
59	BRACKET; CLIP,OIL PIPE (A) THA	1-47479-521-0	02	1	1410-	●	●
59	BRACKET; CLIP,OIL PIPE (B) THA	8-97618-675-0	01	1	1410-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20 THA	0-95325-535-0	02	1	1410-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5 THA	1-09700-674-0	02	1	1410-	●	●
63	BRACKET; CLIP,P/S THA	1-47479-482-0	01	1	1410-	●	●
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1410-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE THA	0-28650-820-0	02	1	1410-	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
76	UNION; OIL PIPE M22 THA	0-92123-015-0	02	1	1410-	●	●
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE THA	0-91180-108-0	01	1	1410-	●	●
239	BRACKET; FLEX HOSE (B) THA	8-97618-673-0	01	1	1410-	●	●
239	BRACKET; FLEX HOSE (A) THA	8-97621-113-0	01	1	1410-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT THA	1-09654-204-2	01	1	1410-	●	●
256	NUT; UNION M22 THA	0-91111-522-0	01	1	1410-	●	●
256	NUT; UNION M22 THA	0-91111-522-0	01	1	1410-	●	●
257	WASHER; LK,UNION ID=22.5 THA	0-91510-522-0	01	1	1410-	●	●
257	WASHER; LK,UNION ID=22.5 THA	0-91510-522-0	01	1	1410-	●	●
262	CLIP; P/S PIPE (A) ID=16 L=20 THA	0-95235-535-0	02	1	1410-	●	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-	●	●
263	BRACKET; P/S PIPE THA	8-98090-366-0	01	1	1410-	●	●
264	BOLT; PIPE BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●	●

41 280 41 157 195 266 111 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	1410-	●	●
111	BRACKET; OIL PIPE THA	8-98086-991-0	01	1	1410-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77 THA	1-09623-143-0	01	1	1410-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER THA	0-50640-835-0	03	1	1410-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1410-	●	●
256	NUT; UNION M22 THA	0-91111-522-0	01	1	1410-	●	●
256	NUT; UNION M22 THA	0-91111-522-0	01	1	1410-	●	●
257	WASHER; LK,UNION ID=22.5 THA	0-91510-522-0	01	1	1410-	●	●
257	WASHER; LK,UNION ID=22.5 THA	0-91510-522-0	01	1	1410-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT THA	1-09654-167-1	01	1	1410-	●	●
280	HOSE; P/S OIL PUMP,INL THA	1-21437-995-0	01	1	1410-	●	●
