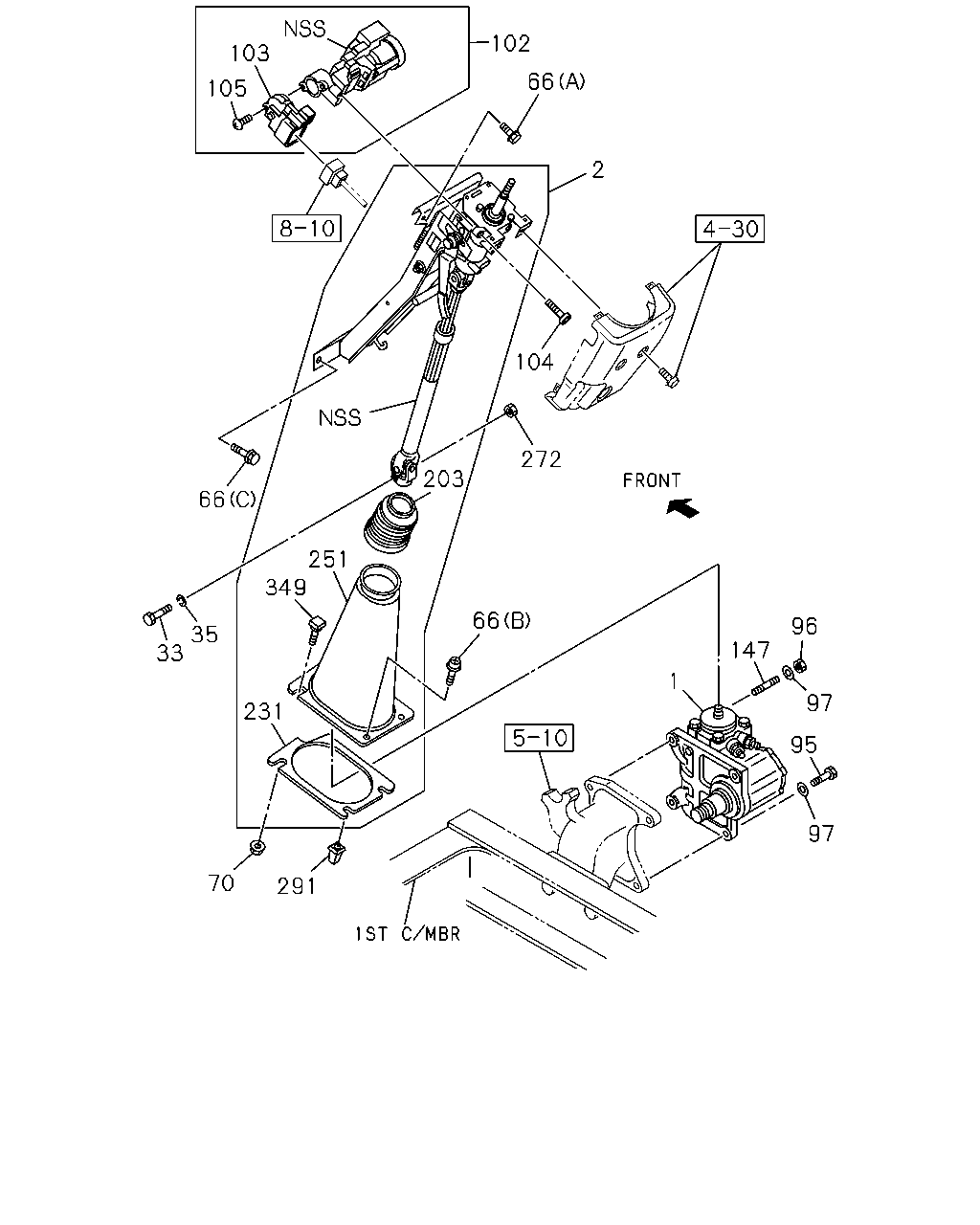

4-31 — STEERING COLUMN AND SHAFT (#150753) — 22 parça

103 105 66 33 35 349 251 231 70 203 272 104 291 66 102 66 2 1 147 96 97 95 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	1-44000-942-2	01	1	1410-	●	●
2	SHAFT ASM; STRG THA	8-97948-357-1	01	1	1410-	●	●
33	BOLT; STRG SHAFT TO UNIT M10X50 THA	1-09000-786-0	01	1	1410-	●	●
35	WASHER; LK,STRG SHAFT ID=10.2 THA	0-91510-810-0	01	1	1410-	●	●
66	BOLT; STRG COLUMN (B) M5X18 TAPPING THA	0-72180-518-0	02	1	1410-	●	●
66	BOLT; STRG COLUMN (C) M8X25 W/LK&PL WASHER THA	8-98018-439-0	02	1	1410-	●	●
66	BOLT; STRG COLUMN (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-	●	●
70	NUT; STRG COLUMN M6 FLANGE W/RUBBER THA	1-09984-180-0	02	1	1410-	●	●
95	BOLT; STRG UNIT M18X60 THA	8-98036-497-0	03	1	1410-	●	●
96	NUT; STRG UNIT M18 THA	0-91110-518-0	01	1	1410-	●	●
97	WASHER; PL,STRG UNIT ID=18 THA	9-09851-862-0	04	1	1410-	●	●
102	LOCK ASM; STRG THA	8-97948-271-0	01	1	1410-	●	●
103	SWITCH; IGNITION THA	8-98045-349-0	01	1	1410-	●	●
104	BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT THA	8-97321-385-0	02	1	1410-	●	●
105	SCREW; IGN SW THA	8-98045-346-0	02	1	1410-	●	●
147	STUD; STRG UNIT M18X49 L=76 THA	1-09300-107-0	01	1	1410-	●	●
203	BOOT; STRG COLUMN LWR THA	8-97948-998-0	01	1	1410-	●	●
231	SEAL; RUBBER,STRG COLUMN THA	8-97949-003-0	01	1	1410-	●	●
251	COVER; LWR THA	8-97949-001-0	01	1	1410-	●	●
272	NUT; SHAFT TO YOKE M10 THA	0-91110-510-0	01	1	1410-	●	●
291	GROMMET; STRG SHAFT COVER D=7.8X7.8 L=18 NATURAL THA	8-94279-043-0	02	1	1410-	●	●
349	BOLT; COVER THA	8-97949-004-0	02	1	1410-	●	●
