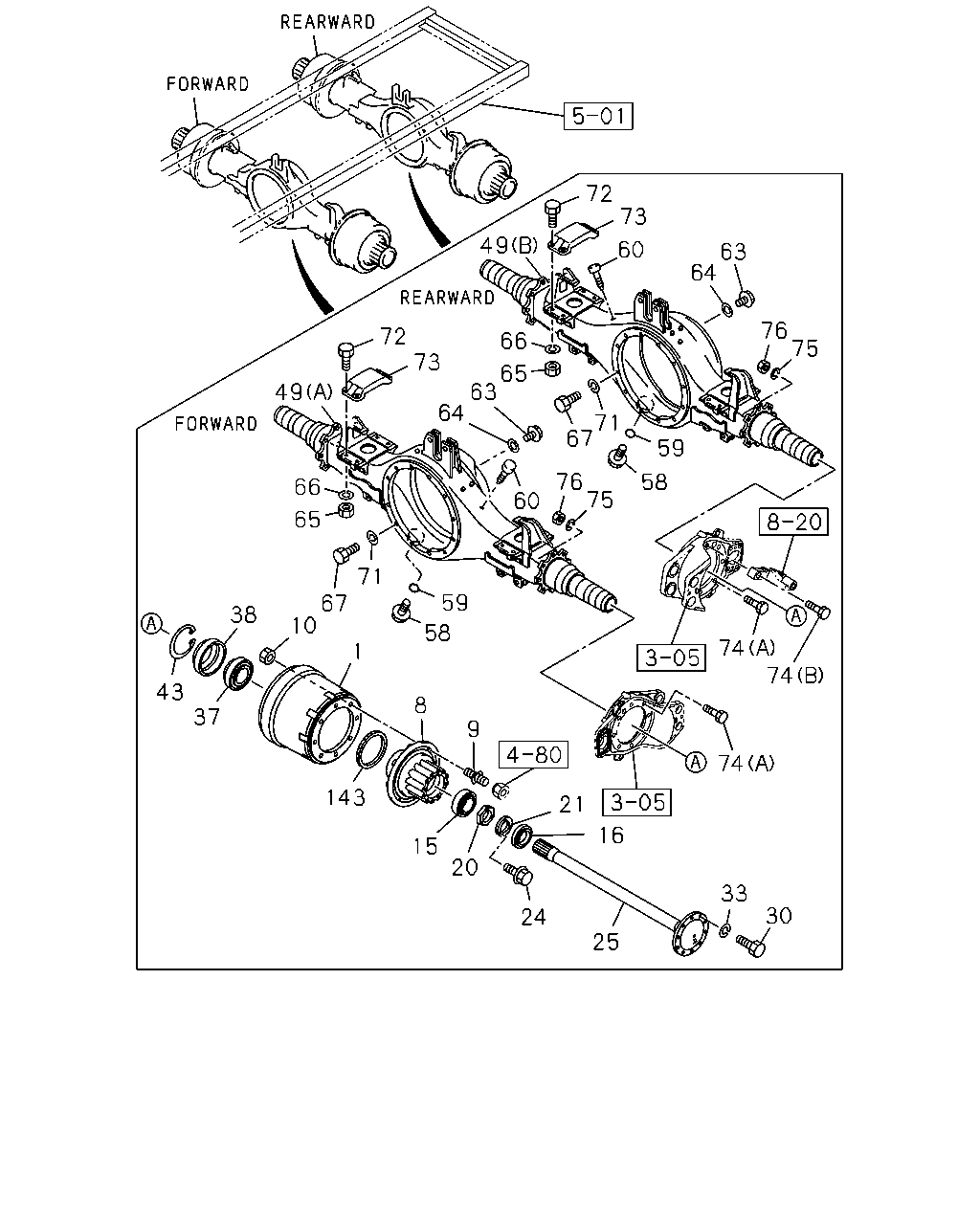

4-20 — REAR AXLE CASE AND SHAFT (#150750) — 84 parça

72 49 73 60 63 64 76 75 59 71 66 65 63 64 73 72 67 58 75 76 60 49 66 65 71 59 58 67 10 38 43 37 143 15 20 24 25 33 30 16 21 9 8 1 74 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR THA	1-42315-358-0	02	1	1410-1410	●	●
1	DRUM; BRK,RR THA	1-42315-358-0	02	1	1410-1410	●	●
1	DRUM; BRK,RR THA	8-98293-399-0	02	1	1411-	●	●
1	DRUM; BRK,RR THA	8-98293-399-0	02	1	1411-	●	●
8	HUB; RR AXLE FORWARD THA	8-97520-618-0	02	1	1410-	●	●
8	HUB; RR AXLE REARWARD THA	8-97520-618-0	02	1	1410-	●
8	HUB; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA	8-97520-618-0	02	1	1410-		●
8	HUB; RR AXLE ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA	8-97520-619-0	02	1	1410-		●
9	PIN; WHEEL,RR AXLE M20X34.0,M22X51.5 RH THREAD THA	8-97916-071-0	08	1	1410-	●	●
9	PIN; WHEEL,RR AXLE M20X34.0,M22X51.5 RH THREAD THA	8-97916-071-0	08	1	1410-	●	●
9	PIN; WHEEL,RR AXLE M20X34.0 LH THREAD,M22X51.5 RH THREAD THA	8-97916-073-0	08	1	1410-	●	●
9	PIN; WHEEL,RR AXLE M20X34.0 LH THREAD,M22X51.5 RH THREAD THA	8-97916-073-0	08	1	1410-	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE THA	8-97914-195-0	16	1	1410-	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE THA	8-97914-195-0	16	1	1410-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT THA	1-09812-232-0	02	1	1410-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT THA	1-09812-232-0	02	1	1410-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF THA	1-09812-256-0	02	1	1410-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF THA	1-09812-256-0	02	1	1410-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK THA	1-09625-444-0	02	1	1410-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK THA	1-09625-444-0	02	1	1410-	●	●
20	NUT; BRG,RR HUB M88 THA	9-09843-062-2	02	1	1410-	●	●
20	NUT; BRG,RR HUB M88 THA	9-09843-062-2	02	1	1410-	●	●
21	WASHER; LK,BRG NUT ID=88 THA	9-09854-112-0	02	1	1410-	●	●
21	WASHER; LK,BRG NUT ID=88 THA	9-09854-112-0	02	1	1410-	●	●
24	BOLT; LK WASHER M6X16 FLANGE THA	0-28650-616-0	06	1	1410-	●	●
24	BOLT; LK WASHER M6X16 FLANGE THA	0-28650-616-0	06	1	1410-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990 THA	8-98146-166-0	01	1	1410-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990 THA	8-98146-166-0	01	1	1410-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1110 THA	8-98146-167-0	01	1	1410-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1110 THA	8-98146-167-0	01	1	1410-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58 THA	1-09000-582-0	20	1	1410-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58 THA	1-09000-582-0	20	1	1410-	●	●
33	WASHER; AXLE SHAFT ID=14.2 THA	0-91510-814-0	20	1	1410-	●	●
33	WASHER; AXLE SHAFT ID=14.2 THA	0-91510-814-0	20	1	1410-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT THA	1-09812-233-0	02	1	1410-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT THA	1-09812-233-0	02	1	1410-	●	●
37	BEARING; HUB INNER,RR AXLE SKF THA	1-09812-257-0	02	1	1410-	●	●
37	BEARING; HUB INNER,RR AXLE SKF THA	1-09812-257-0	02	1	1410-	●	●
38	SEAL; OIL,RR HUB,INNER NOK THA	1-09625-265-0	02	1	1410-	●	●
38	SEAL; OIL,RR HUB,INNER NOK THA	1-09625-265-0	02	1	1410-	●	●
38	SEAL; OIL,RR HUB,INNER TKK THA	1-09625-350-0	02	1	1410-	●	●
38	SEAL; OIL,RR HUB,INNER TKK THA	1-09625-350-0	02	1	1410-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179 THA	1-09587-057-0	02	1	1410-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179 THA	1-09587-057-0	02	1	1410-	●	●
49	CASE; RR AXLE WHEEL BASE 4700MM<47W> (A) FORWARD THA	8-98106-811-2	01	1	1410-	●
49	CASE; RR AXLE (A) FORWARD THA	8-98106-811-2	01	1	1410-		●
49	CASE; RR AXLE WHEEL BASE 4700MM<47W> (B) REARWARD THA	8-98106-812-2	01	1	1410-	●
49	CASE; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) REARWARD THA	8-98106-812-2	01	1	1410-		●
49	CASE; RR AXLE WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) FORWARD THA	8-98207-304-2	01	1	1410-	●
49	CASE; RR AXLE WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) REARWARD THA	8-98207-306-2	01	1	1410-	●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM<BFA> (B) REARWARD THA	8-98127-990-2	01	1	1410-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE THA	1-09604-023-0	01	1	1410-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE THA	1-09604-023-0	01	1	1410-	●	●
59	GASKET; DRAIN PLUG ID=26.8 THA	9-09920-605-0	01	1	1410-	●	●
59	GASKET; DRAIN PLUG ID=26.8 THA	9-09920-605-0	01	1	1410-	●	●
60	BREATHER; RR AXLE CASE THA	9-36122-015-1	02	1	1410-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE THA	1-09604-022-0	01	1	1410-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE THA	1-09604-022-0	01	1	1410-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8 THA	9-09920-605-0	01	1	1410-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8 THA	9-09920-605-0	01	1	1410-	●	●
65	NUT M14 THA	0-91110-514-0	08	1	1410-	●	●
65	NUT M14 THA	0-91110-514-0	08	1	1410-	●	●
66	WASHER; LK ID=14.2 THA	0-91510-814-0	08	1	1410-	●	●
66	WASHER; LK ID=14.2 THA	0-91510-814-0	08	1	1410-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70 THA	0-10956-670-0	04	1	1410-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70 THA	0-10956-670-0	04	1	1410-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40 THA	0-20951-640-0	08	1	1410-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40 THA	0-20951-640-0	07	1	1410-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2 THA	0-91510-816-0	12	1	1410-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2 THA	0-91510-816-0	12	1	1410-	●	●
72	BOLT; PAD FIX M14X40 THA	0-20951-440-0	08	1	1410-	●	●
72	BOLT; PAD FIX M14X40 THA	0-20951-440-0	08	1	1410-	●	●
73	PAD; RR SPR CONTACT THA	1-42124-101-0	02	1	1410-	●	●
73	PAD; RR SPR CONTACT THA	1-42124-101-0	02	1	1410-	●	●
74	BOLT; RR BRK ASM SETTING (A) FORWARD THA	8-98281-531-0	16	1	1410-	●	●
74	BOLT; RR BRK ASM SETTING (A) REARWARD THA	8-98281-531-0	16	1	1410-	●
74	BOLT; RR BRK ASM SETTING EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) REARWARD THA	8-98281-531-0	16	1	1410-		●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (A) REARWARD THA	8-98281-531-0	12	1	1410-		●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (B) REARWARD THA	8-98281-532-0	04	1	1410-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2 THA	0-91510-814-0	16	1	1410-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2 THA	0-91510-814-0	16	1	1410-	●	●
76	NUT; RR BRK ASM SETTING M14 THA	0-91110-514-0	16	1	1410-	●	●
76	NUT; RR BRK ASM SETTING M14 THA	0-91110-514-0	16	1	1410-	●	●
143	RING; EXCITER ANTILOCK BRAKE SYSTEM<BFA> THA	1-42319-173-0	02	1	1410-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
