3-78 — FIXING PARTS; AIR PIPING (#150743) — 175 parça

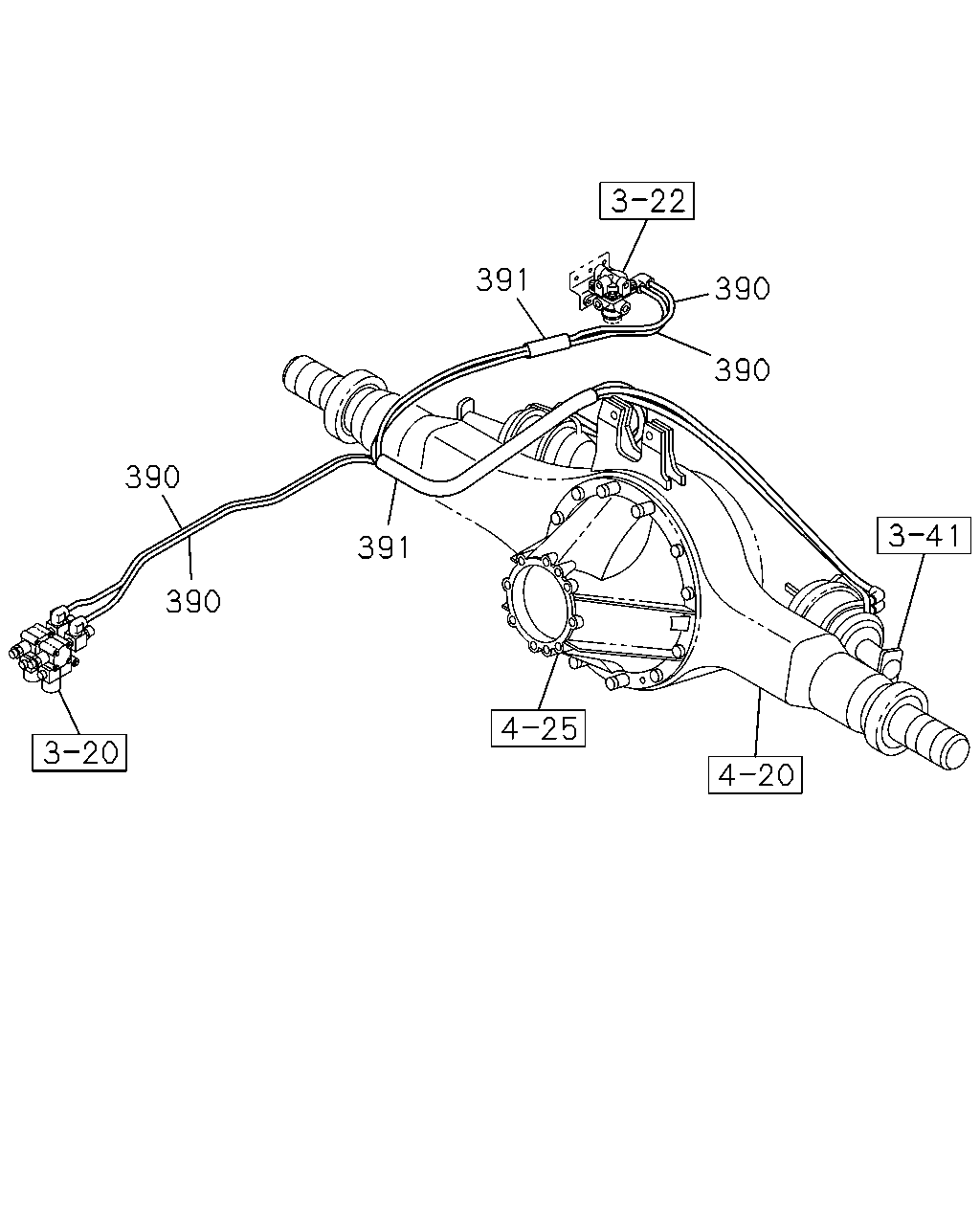

391 390 390 391 390 390

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
390	TUBE; NYLON ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=4000 OD=12 THA	1-87411-012-0	04	1	1410-	●
391	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=13 THA	1-87411-022-0	04	1	1410-	●
391	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=25 THA	1-87411-031-0	01	1	1410-	●
391	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=28 THA	1-87411-033-0	01	1	1410-	●

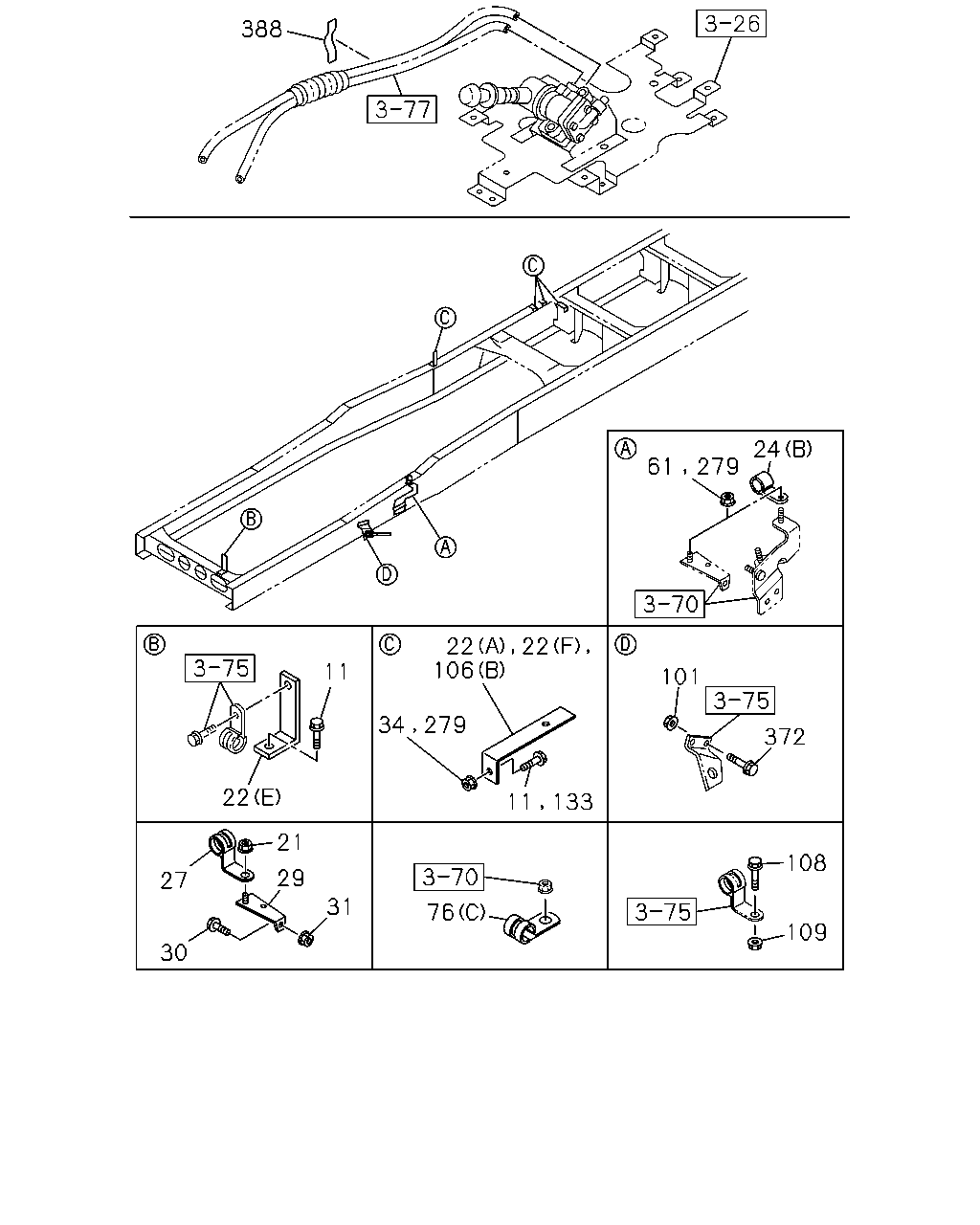

388 61 279 24 11 22 34 279 106 22 22 11 133 101 372 27 21 29 31 30 76 108 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; CLIP BRKT WHEEL BASE 5300MM<53W> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-		●
11	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●	●
11	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-		●
11	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	05	1	1410-	●
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1410-	●	●
21	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-		●
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	04	1	1410-	●	●
22	BRACKET; CLIP WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (D) THA	1-47471-274-0	01	1	1410-		●
22	BRACKET; CLIP WHEEL BASE 4700MM<47W> (D) THA	1-47471-274-0	01	1	1410-	●
22	BRACKET; CLIP WHEEL BASE 5300MM<53W> (B) L=150 THA	1-47471-217-0	02	1	1410-		●
22	BRACKET; CLIP (A) L=60 H=30 THA	1-47477-716-1	01	1	1410-	●	●
22	BRACKET; CLIP (A) L=60 H=30 THA	1-47477-716-1	01	1	1410-	●	●
22	BRACKET; CLIP (F) L=95 THA	1-82699-085-0	01	1	1410-	●	●
22	BRACKET; CLIP (E) L=145 THA	1-47475-655-0	01	1	1410-	●
22	BRACKET; CLIP (C) L=100 H=30 THA	1-47477-645-2	04	1	1410-	●
22	BRACKET; CLIP (G) THA	1-47479-554-0	01	1	1410-	●
22	BRACKET; CLIP (E) THA	1-34656-009-0	01	1	1410-		●
24	CLIP; PIPE ENGINE REAR PTO<SV1> (B) ID=25 L=50 THA	1-09701-019-0	02	1	1410-		●
24	CLIP; PIPE (A) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-	●	●
24	CLIP; PIPE EXC. ENGINE REAR PTO<SV1> (B) ID=25 L=50 THA	1-09701-019-0	03	1	1410-		●
24	CLIP; PIPE (B) ID=25 L=50 THA	1-09701-019-0	03	1	1410-	●
27	CLIP; FLEX HOSE ID=25 H=30 L=35 THA	1-09700-875-0	01	1	1410-	●	●
29	BRACKET; CLIP,AIR PIPE THA	8-97609-096-0	01	1	1410-	●	●
30	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●	●
31	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	01	1	1410-	●	●
34	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
61	NUT; CLIP FIX ENGINE REAR PTO<SV1> M8 FLANGE THA	0-91180-108-0	02	1	1410-		●
61	NUT; CLIP FIX EXC. ENGINE REAR PTO<SV1> M8 FLANGE THA	0-91180-108-0	03	1	1410-		●
61	NUT; CLIP FIX M8 FLANGE THA	0-91180-108-0	03	1	1410-	●
76	CLIP; NYLON TUBE (A) L=350 THA	1-09707-183-0	05	1	1410-	●	●
76	CLIP; NYLON TUBE (B) ID=24-30 L=18 THA	1-09709-297-0	01	1	1410-	●	●
76	CLIP; NYLON TUBE (C) ID=39 L=33 THA	8-98009-359-0	01	1	1410-	●	●
101	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	04	1	1410-	●	●
106	BRACKET; TUBE CLIP WHEEL BASE 4700MM<47W> (C) THA	1-47477-571-3	01	1	1410-		●
106	BRACKET; TUBE CLIP (C) THA	1-47477-571-3	01	1	1410-	●
106	BRACKET; TUBE CLIP WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (E) L=60 H=30 THA	1-47477-716-1	01	1	1410-		●
106	BRACKET; TUBE CLIP (B) L=90 THA	1-47477-755-1	02	1	1410-	●	●
106	BRACKET; TUBE CLIP (F) L=55 B=25 THA	1-47478-439-0	01	1	1410-	●	●
106	BRACKET; TUBE CLIP (D) THA	1-47479-554-0	01	1	1410-	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30 THA	1-47477-645-2	04	1	1410-		●
106	BRACKET; TUBE CLIP EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 THA	1-47477-645-2	04	1	1410-	●
106	BRACKET; TUBE CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 THA	1-47477-645-2	06	1	1410-	●
108	BOLT; TUBE CLIP M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
108	BOLT; TUBE CLIP M8X35 FLANGE THA	0-28650-835-0	03	1	1410-	●	●
109	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	03	1	1410-	●	●
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	03	1	1410-	●	●
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	03	1	1410-		●
133	BOLT; BRKT EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA	0-28650-825-0	03	1	1410-	●
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
133	BOLT; BRKT M8X35 FLANGE THA	0-28650-835-0	01	1	1410-	●	●
133	BOLT; BRKT M8X35 FLANGE THA	0-28650-835-0	04	1	1410-	●	●
133	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA	0-28650-825-0	05	1	1410-	●
279	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
279	NUT; BRKT M8 FLANGE THA	0-91180-108-0	08	1	1410-		●
279	NUT; BRKT EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	08	1	1410-	●
279	NUT; BRKT ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	10	1	1410-	●
372	BOLT; CLIP BRKT WHEEL BASE 5300MM<53W> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-		●
372	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1410-	●	●
388	SEAL 100X40 THA	1-72498-022-1	03	1	1410-	●	●

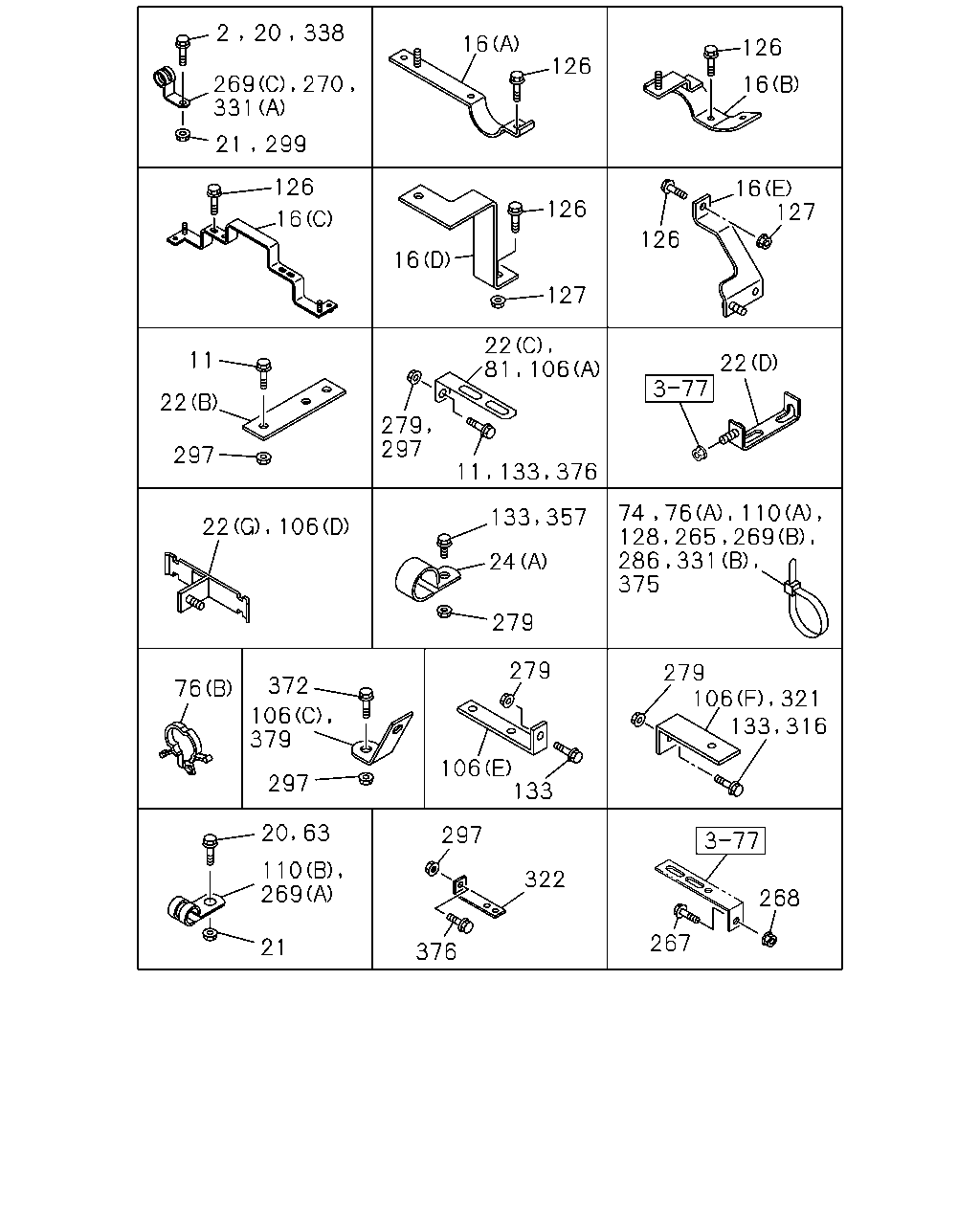

2 20 338 269 270 331 21 299 16 126 126 16 126 16 126 16 127 126 16 127 11 22 297 22 81 106 279 297 11 133 376 22 22 106 133 357 24 279 74 76 110 128 265 269 286 331 375 76 372 106 379 297 279 106 133 279 106 321 133 316 20 63 110 269 21 297 322 376 267 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE THA	0-28650-820-0	03	1	1410-	●	●
11	BOLT; CLIP BRKT WHEEL BASE 5300MM<53W> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-		●
11	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●	●
11	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-		●
11	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	05	1	1410-	●
16	BRACKET; PIPE CLIP (C) THA	1-47479-898-0	02	1	1410-	●	●
16	BRACKET; PIPE CLIP (D) THA	8-98086-226-0	01	1	1410-	●	●
16	BRACKET; PIPE CLIP (E) THA	8-98110-074-0	01	1	1410-	●	●
16	BRACKET; PIPE CLIP (A) THA	1-47479-856-0	02	1	1410-	●	●
16	BRACKET; PIPE CLIP (B) THA	1-47479-857-0	02	1	1410-	●	●
20	BOLT; CLIP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-		●
20	BOLT; CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●
20	BOLT; CLIP MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-		●
20	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	02	1	1410-	●	●
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1410-	●	●
21	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-		●
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	04	1	1410-	●	●
22	BRACKET; CLIP WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (D) THA	1-47471-274-0	01	1	1410-		●
22	BRACKET; CLIP WHEEL BASE 4700MM<47W> (D) THA	1-47471-274-0	01	1	1410-	●
22	BRACKET; CLIP WHEEL BASE 5300MM<53W> (B) L=150 THA	1-47471-217-0	02	1	1410-		●
22	BRACKET; CLIP (A) L=60 H=30 THA	1-47477-716-1	01	1	1410-	●	●
22	BRACKET; CLIP (A) L=60 H=30 THA	1-47477-716-1	01	1	1410-	●	●
22	BRACKET; CLIP (F) L=95 THA	1-82699-085-0	01	1	1410-	●	●
22	BRACKET; CLIP (E) L=145 THA	1-47475-655-0	01	1	1410-	●
22	BRACKET; CLIP (C) L=100 H=30 THA	1-47477-645-2	04	1	1410-	●
22	BRACKET; CLIP (G) THA	1-47479-554-0	01	1	1410-	●
22	BRACKET; CLIP (E) THA	1-34656-009-0	01	1	1410-		●
24	CLIP; PIPE ENGINE REAR PTO<SV1> (B) ID=25 L=50 THA	1-09701-019-0	02	1	1410-		●
24	CLIP; PIPE (A) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-	●	●
24	CLIP; PIPE EXC. ENGINE REAR PTO<SV1> (B) ID=25 L=50 THA	1-09701-019-0	03	1	1410-		●
24	CLIP; PIPE (B) ID=25 L=50 THA	1-09701-019-0	03	1	1410-	●
63	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	02	1	1410-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 4700MM<47W> L=350 THA	1-09707-183-0	06	1	1410-		●
74	CLIP; NYLON TUBE L=350 THA	1-09707-183-0	01	1	1410-	●
76	CLIP; NYLON TUBE (A) L=350 THA	1-09707-183-0	05	1	1410-	●	●
76	CLIP; NYLON TUBE (B) ID=24-30 L=18 THA	1-09709-297-0	01	1	1410-	●	●
76	CLIP; NYLON TUBE (C) ID=39 L=33 THA	8-98009-359-0	01	1	1410-	●	●
81	BRACKET; CLIP L=100 H=30 THA	1-47477-645-2	01	1	1410-	●
106	BRACKET; TUBE CLIP WHEEL BASE 4700MM<47W> (C) THA	1-47477-571-3	01	1	1410-		●
106	BRACKET; TUBE CLIP (C) THA	1-47477-571-3	01	1	1410-	●
106	BRACKET; TUBE CLIP WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (E) L=60 H=30 THA	1-47477-716-1	01	1	1410-		●
106	BRACKET; TUBE CLIP (B) L=90 THA	1-47477-755-1	02	1	1410-	●	●
106	BRACKET; TUBE CLIP (F) L=55 B=25 THA	1-47478-439-0	01	1	1410-	●	●
106	BRACKET; TUBE CLIP (D) THA	1-47479-554-0	01	1	1410-	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30 THA	1-47477-645-2	04	1	1410-		●
106	BRACKET; TUBE CLIP EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 THA	1-47477-645-2	04	1	1410-	●
106	BRACKET; TUBE CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 THA	1-47477-645-2	06	1	1410-	●
110	CLIP; BAND,NYLON TUBE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (B) ID=19 L=20 THA	0-95235-836-0	02	1	1410-		●
110	CLIP; BAND,NYLON TUBE ZF9S1310 M/T<Y5K> (B) ID=19 L=20 THA	0-95235-836-0	02	1	1410-	●
110	CLIP; BAND,NYLON TUBE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) L=350 THA	1-09707-183-0	09	1	1410-		●
110	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 THA	1-09707-183-0	09	1	1410-	●
110	CLIP; BAND,NYLON TUBE MJT7U M/T<Y4X> (B) ID=19 L=28 THA	0-95235-856-0	02	1	1410-		●
110	CLIP; BAND,NYLON TUBE MJT7U M/T<Y4X> (A) L=350 THA	1-09707-183-0	18	1	1410-		●
110	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 THA	1-09707-183-0	10	1	1410-	●
126	BOLT; CLIP BRKT M8X12 FLANGE THA	0-28050-812-0	04	1	1410-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1410-	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●	●
127	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
128	CLIP; NYLON TUBE WHEEL BASE 4700MM<47W> L=350 THA	1-09707-183-0	04	1	1410-		●
128	CLIP; NYLON TUBE L=350 THA	1-09707-183-0	04	1	1410-	●
128	CLIP; NYLON TUBE WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> L=350 THA	1-09707-183-0	07	1	1410-		●
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	03	1	1410-	●	●
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	03	1	1410-		●
133	BOLT; BRKT EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA	0-28650-825-0	03	1	1410-	●
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
133	BOLT; BRKT M8X35 FLANGE THA	0-28650-835-0	01	1	1410-	●	●
133	BOLT; BRKT M8X35 FLANGE THA	0-28650-835-0	04	1	1410-	●	●
133	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA	0-28650-825-0	05	1	1410-	●
265	CLIP; NYLON TUBE L=350 THA	1-09707-183-0	02	1	1410-	●
267	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●
268	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
269	CLIP; BAND,NYLON TUBE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (B) L=350 THA	1-09707-183-0	12	1	1410-		●
269	CLIP; BAND,NYLON TUBE (B) L=350 THA	1-09707-183-0	01	1	1410-		●
269	CLIP; BAND,NYLON TUBE MJT7U M/T<Y4X> (B) L=350 THA	1-09707-183-0	01	1	1410-		●
269	CLIP; BAND,NYLON TUBE (A) ID=23 L=27 THA	1-09700-946-0	01	1	1410-		●
269	CLIP; BAND,NYLON TUBE (C) ID=21 L=30 H=40 THA	1-09700-991-1	02	1	1410-		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33 THA	1-09700-945-0	05	1	1410-	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=35 H=45 L=33 THA	1-09700-947-0	01	1	1410-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350 THA	1-09707-183-0	02	1	1410-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350 THA	1-09707-183-0	02	1	1410-	●
269	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> (B) L=350 THA	1-09707-183-0	21	1	1410-	●
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30 THA	1-09700-948-0	02	1	1410-	●
269	CLIP; BAND,NYLON TUBE (A) ID=28 L=40 THA	1-09701-261-0	01	1	1410-	●
269	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=350 THA	1-09707-183-0	19	1	1410-	●
270	CLIP; NYLON TUBE ID=16 H=25 L=25 THA	1-09701-162-0	03	1	1410-	●	●
279	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
279	NUT; BRKT M8 FLANGE THA	0-91180-108-0	08	1	1410-		●
279	NUT; BRKT EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	08	1	1410-	●
279	NUT; BRKT ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	10	1	1410-	●
286	CLIP; NYLON TUBE WHEEL BASE 5300MM<53W> L=350 THA	1-09707-183-0	02	1	1410-		●
286	CLIP; NYLON TUBE L=350 THA	1-09707-183-0	02	1	1410-	●
297	NUT; BRKT MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-		●
297	NUT; BRKT WHEEL BASE 5300MM<53W> M8 FLANGE THA	0-91180-108-0	01	1	1410-		●
297	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
297	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
299	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1410-	●	●
316	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-		●
321	BRACKET; CLIP MJT7U M/T<Y4X> L=105 B=25 THA	1-47476-161-0	02	1	1410-		●
322	BRACKET; CLIP MJT7U M/T<Y4X> L=95 THA	1-82698-557-0	01	1	1410-		●
331	CLIP; NYLON TUBE (A) ID=18 H=23 L=28 THA	1-09701-070-0	01	1	1410-	●	●
331	CLIP; NYLON TUBE (B) L=350 THA	1-09707-183-0	03	1	1410-	●	●
338	BOLT; PIPE CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
357	BOLT; CLIP FIX M8X10 FLANGE THA	0-28050-810-0	02	1	1410-		●
357	BOLT; CLIP FIX EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X10 FLANGE THA	0-28050-810-0	02	1	1410-	●
357	BOLT; CLIP FIX ANTILOCK BRAKE SYSTEM<BFA> M8X10 FLANGE THA	0-28050-810-0	01	1	1410-	●
372	BOLT; CLIP BRKT WHEEL BASE 5300MM<53W> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-		●
372	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1410-	●	●
375	CLIP; AIR PIPE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350 THA	1-09707-183-0	01	1	1410-		●
375	CLIP; AIR PIPE ZF9S1310 M/T<Y5K> L=350 THA	1-09707-183-0	01	1	1410-	●
376	BOLT; BRKT MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-		●
376	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●
379	BRACKET; NYLON TUBE WHEEL BASE 5300MM<53W> THA	1-47477-571-3	01	1	1410-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
