3-75 — BRAKE PIPING; AIR,FRONT (#150741) — 93 parça
çizim 450320
159 159 159 51 98 178 98 15 150 149 28 31 30 29 35 32 35 122
BalonParca AdiParca NoAdetTipApplied Date A B
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT THA 		1-09660-877-0 01 1 1410- ● ●
28 NIPPLE; AIR PIPE
THA 		1-09654-128-1 02 1 1410- ● ●
29 NUT; NIPPLE
M20 THA 		0-91111-520-0 02 1 1410- ● ●
30 WASHER; LK,NIPPLE
ID=20.2 THA 		0-91510-520-0 02 1 1410- ● ●
31 BRACKET; NIPPLE
THA 		8-98094-074-0 01 1 1410- ● ●
31 BRACKET; NIPPLE
THA 		8-98094-075-0 01 1 1410- ● ●
32 HOSE; FLEX,FRT
L=430 THA 		0-57847-430-1 02 1 1410- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 THA 		9-09572-510-0 04 1 1410- ● ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=25 THA 		1-09332-011-1 01 1 1410- ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=25 THA 		1-09332-011-1 01 1 1410- ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410- ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1410- ● ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1410- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1410- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1410- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1410- ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1410- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1410- ● ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 THA 		1-09660-731-1 02 1 1410- ● ●
149 BOLT; UNION
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ●
149 BOLT; UNION
M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
150 ADAPTER; CONT,NEUTRAL BUS STOP
DIN12 & M20 STRAIGHT THA 		1-09660-877-0 01 1 1410- ● ●
159 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> (C) L=350 THA 		1-09707-183-0 23 1 1410- ●
159 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 THA 		1-09707-183-0 23 1 1410- ●
159 CLIP; NYLON TUBE
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) L=350 THA 		1-09707-183-0 25 1 1410- ●
159 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 THA 		1-09707-183-0 25 1 1410- ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 THA 		1-09700-994-0 02 1 1410- ● ●
159 CLIP; NYLON TUBE
(B) ID=26 L=26 THA 		1-09701-236-0 01 1 1410- ● ●
159 CLIP; NYLON TUBE
(B) ID=29 L=35 THA 		5-09700-293-1 01 1 1410- ● ●
159 CLIP; NYLON TUBE
(B) ID=39 L=33 THA 		8-98009-359-0 01 1 1410- ● ●
178 UNION
THA 		1-09661-128-0 02 1 1410- ●
178 UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> THA 		1-09661-128-0 02 1 1410- ●

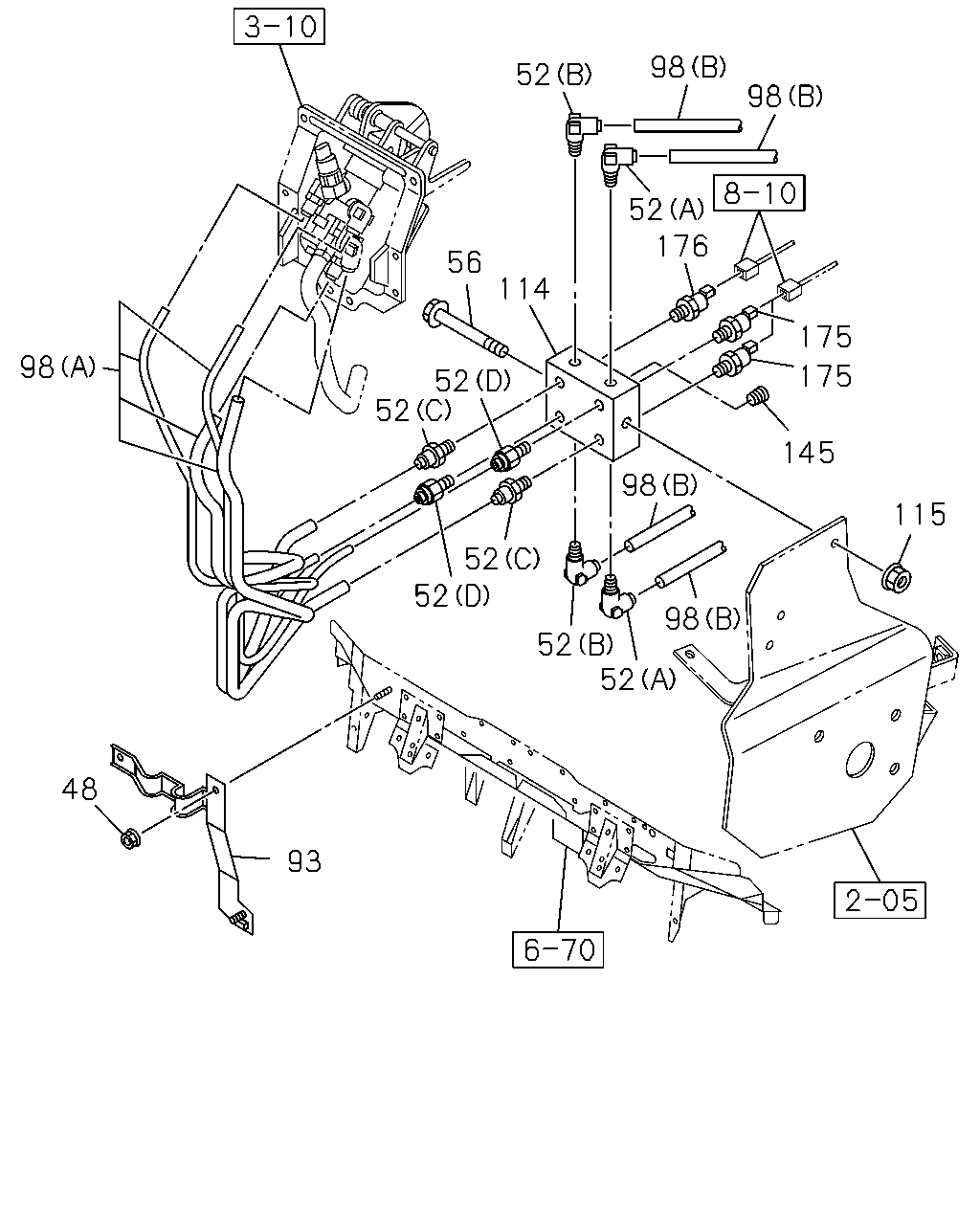

çizim 450685
98 48 93 56 114 52 52 52 52 52 52 98 98 52 98 98 52 176 175 175 145 115
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 1410- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW THA 		1-09660-958-0 02 1 1410- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 02 1 1410- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT THA 		1-09660-967-0 02 1 1410- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE THA 		0-28050-800-0 01 1 1410- ● ●
93 BRACKET; UNION,TUBE
THA 		8-98186-924-0 01 1 1410- ● ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1410- ● ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1410- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1410- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1410- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1410- ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1410- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1410- ● ●
114 UNION; NYLON TUBE
THA 		8-98057-394-1 01 1 1410- ● ●
115 NUT; TUBE UNION
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 02 1 1410- ●
115 NUT; TUBE UNION
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
145 PLUG
PT1/4 THA 		9-99204-513-0 01 1 1410- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 THA 		1-80220-023-1 02 1 1410- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 THA 		8-98010-857-0 01 1 1410- ● ●

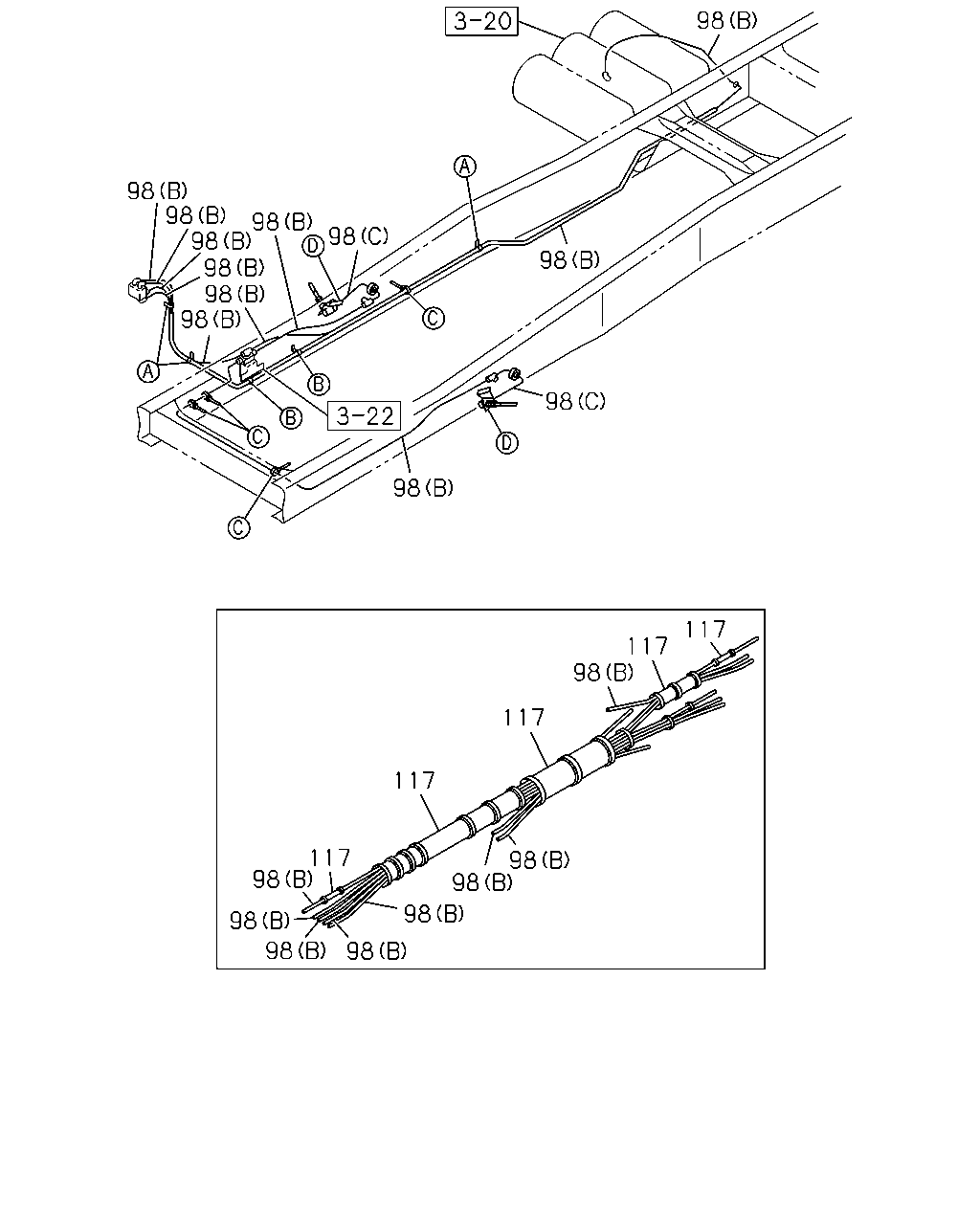

çizim 450808
98 98 98 98 98 98 98 98 98 98 98 98 117 117 98 117 117 117 98 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1410- ● ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1410- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1410- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1410- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1410- ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1410- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1410- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1410- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1410- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 THA 		1-87411-023-0 AR 1 1410- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 THA 		1-87411-025-0 AR 1 1410- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 1410- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 AR 1 1410- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1410- ● ●
