◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#150740) — 109 parça

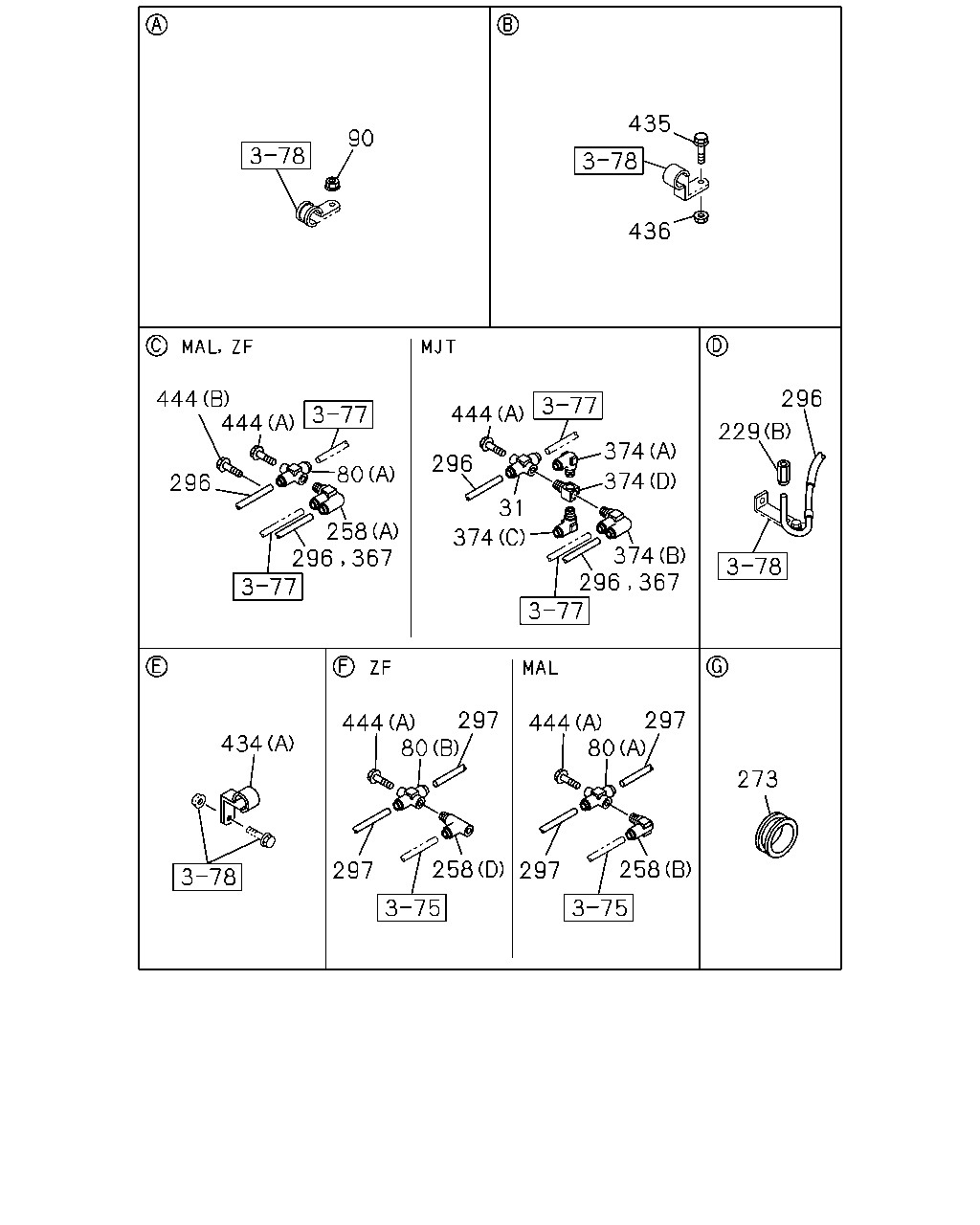

çizim 448541
90 435 436 444 444 80 258 296 367 374 31 296 444 374 374 374 296 367 229 296 434 444 80 297 444 297 80 273 258 297 297 258 296
BalonParca AdiParca NoAdetTipApplied Date A B
31 UNION; 3 WAY
MJT7U M/T<Y4X> DIN8 & DIN12 & R3/8 3WAY THA 		1-09661-130-0 01 1 1410- ●
80 UNION; 3 WAY
MAL6R M/T<Y2J> (A) DIN8 & DIN12 & R3/8 3WAY THA 		1-09661-130-0 02 1 1410- ●
80 UNION; 3 WAY
ZF9S1310 M/T<Y5K> (B) DIN8 & RC3/8 3WAY THA 		1-09661-129-0 01 1 1410- ● ●
80 UNION; 3 WAY
ZF9S1310 M/T<Y5K> (A) DIN8 & DIN12 & R3/8 3WAY THA 		1-09661-130-0 01 1 1410- ● ●
90 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
229 ADAPTER; NYLON TUBE
MAL6R M/T<Y2J> (C) DIN12 & M20 STRAIGHT THA 		1-09660-877-0 01 1 1410- ●
229 ADAPTER; NYLON TUBE
MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410- ●
229 ADAPTER; NYLON TUBE
ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410- ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT THA 		1-09661-379-0 01 1 1410- ● ●
258 CONNECTOR; NYLON TUBE
MAL6R M/T<Y2J> (A) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1410- ●
258 CONNECTOR; NYLON TUBE
MAL6R M/T<Y2J> (B) DIN6 & R3/8 ELBOW THA 		1-09661-234-0 01 1 1410- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> (C) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> (E) THA 		1-09661-303-0 01 1 1410- ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T<Y5K> (D) THA 		1-09660-969-0 01 1 1410- ● ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T<Y5K> (A) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1410- ● ●
273 GROMMET
ID=32 OD=40 T=18 THA 		1-09891-003-0 01 1 1410- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 THA 		1-87411-001-0 AR 1 1410- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1410- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1410- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 THA 		1-87411-016-0 AR 1 1410- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1410- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1410- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1410- ● ●
374 CONNECTOR
MJT7U M/T<Y4X> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410- ●
374 CONNECTOR
MJT7U M/T<Y4X> (B) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1410- ●
374 CONNECTOR
MJT7U M/T<Y4X> (C) DIN6 & R3/8 ELBOW THA 		1-09661-234-0 01 1 1410- ●
374 CONNECTOR
MJT7U M/T<Y4X> (D) PT3/8 4WAY THA 		1-09661-489-0 01 1 1410- ●
434 CLIP
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 THA 		1-09700-604-0 01 1 1410- ●
434 CLIP
ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 THA 		1-09700-604-0 01 1 1410- ●
434 CLIP
MJT7U M/T<Y4X> (A) ID=8 H=20 L=20 THA 		1-09700-604-0 02 1 1410- ●
434 CLIP
MJT7U M/T<Y4X> (B) L=350 THA 		1-09707-183-0 02 1 1410- ●
435 BOLT; CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ● ●
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
444 BOLT; UNION
WHEEL BASE 4700MM<47W> (B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
444 BOLT; UNION
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
444 BOLT; UNION
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
444 BOLT; UNION
WHEEL BASE 5300MM<53W> (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ●

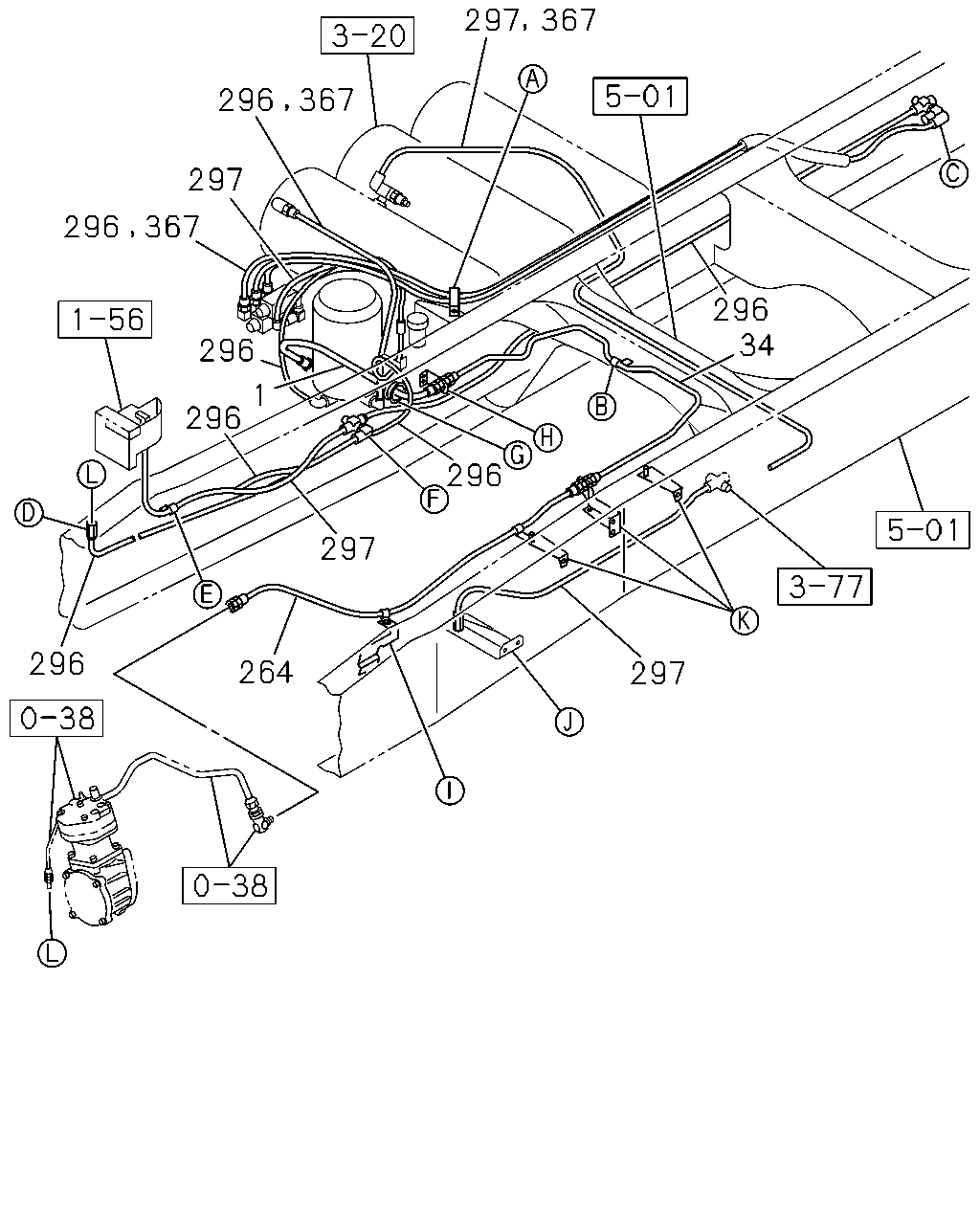

çizim 450388
296 264 297 296 34 296 367 297 367 296 297 367 296 296 296 1 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
THA 		1-09363-940-0 01 1 1410- ● ●
34 PIPE; AIR
FRAME EQUIPMENT HEAVY DUTY<F01> L=1287 THA 		8-97620-985-0 01 1 1410- ●
34 PIPE; AIR
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258 THA 		8-97618-580-0 01 1 1410- ●
34 PIPE; AIR
L=1258 THA 		8-97618-580-0 01 1 1410- ●
264 HOSE; FLEX
ENGINE REAR PTO<SV1> L=1000 THA 		1-09363-794-0 01 1 1410- ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO<SV1> L=1150 THA 		1-09363-791-0 01 1 1410- ●
264 HOSE; FLEX
L=1150 THA 		1-09363-791-0 01 1 1410- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 THA 		1-87411-001-0 AR 1 1410- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1410- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1410- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 THA 		1-87411-016-0 AR 1 1410- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1410- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1410- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1410- ● ●

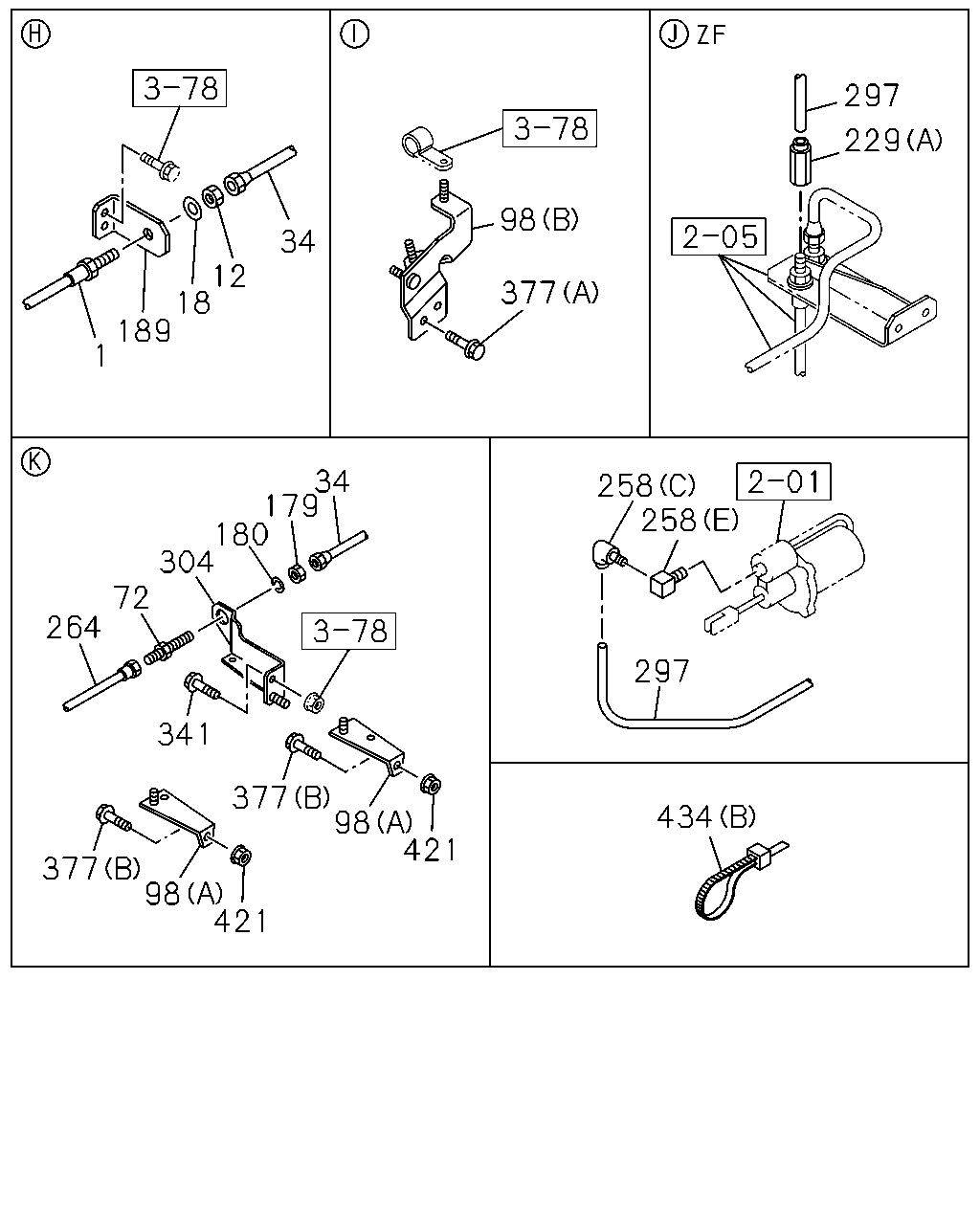

çizim 450544
34 12 18 189 1 98 377 297 229 34 179 180 304 72 264 341 377 98 421 377 98 421 258 258 297 434
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
THA 		1-09363-940-0 01 1 1410- ● ●
12 NUT; UNION
M22 THA 		0-91111-522-0 01 1 1410- ● ●
18 WASHER; LK,UNION
ID=22.5 THA 		0-91510-522-0 01 1 1410- ● ●
34 PIPE; AIR
FRAME EQUIPMENT HEAVY DUTY<F01> L=1287 THA 		8-97620-985-0 01 1 1410- ●
34 PIPE; AIR
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258 THA 		8-97618-580-0 01 1 1410- ●
34 PIPE; AIR
L=1258 THA 		8-97618-580-0 01 1 1410- ●
72 UNION; AIR PIPE
M22 THA 		0-92123-315-0 01 1 1410- ● ●
98 BRACKET; AIR PIPE
(A) THA 		8-97609-096-0 02 1 1410- ● ●
98 BRACKET; AIR PIPE
(B) THA 		8-97610-999-0 01 1 1410- ● ●
179 NUT; UNION
M22 THA 		0-91111-522-0 01 1 1410- ● ●
180 WASHER; LK,UNION
ID=22.5 THA 		0-91510-522-0 01 1 1410- ● ●
189 BRACKET; FLEX HOSE
THA 		1-47479-473-0 01 1 1410- ● ●
229 ADAPTER; NYLON TUBE
MAL6R M/T<Y2J> (C) DIN12 & M20 STRAIGHT THA 		1-09660-877-0 01 1 1410- ●
229 ADAPTER; NYLON TUBE
MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410- ●
229 ADAPTER; NYLON TUBE
ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410- ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT THA 		1-09661-379-0 01 1 1410- ● ●
258 CONNECTOR; NYLON TUBE
MAL6R M/T<Y2J> (A) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1410- ●
258 CONNECTOR; NYLON TUBE
MAL6R M/T<Y2J> (B) DIN6 & R3/8 ELBOW THA 		1-09661-234-0 01 1 1410- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> (C) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> (E) THA 		1-09661-303-0 01 1 1410- ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T<Y5K> (D) THA 		1-09660-969-0 01 1 1410- ● ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T<Y5K> (A) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1410- ● ●
264 HOSE; FLEX
ENGINE REAR PTO<SV1> L=1000 THA 		1-09363-794-0 01 1 1410- ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO<SV1> L=1150 THA 		1-09363-791-0 01 1 1410- ●
264 HOSE; FLEX
L=1150 THA 		1-09363-791-0 01 1 1410- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
304 BRACKET; UNION
THA 		8-97610-362-1 01 1 1410- ● ●
341 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1410- ● ●
377 BOLT; BRKT FIX
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ● ●
377 BOLT; BRKT FIX
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 1410- ● ●
421 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
434 CLIP
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 THA 		1-09700-604-0 01 1 1410- ●
434 CLIP
ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 THA 		1-09700-604-0 01 1 1410- ●
434 CLIP
MJT7U M/T<Y4X> (A) ID=8 H=20 L=20 THA 		1-09700-604-0 02 1 1410- ●
434 CLIP
MJT7U M/T<Y4X> (B) L=350 THA 		1-09707-183-0 02 1 1410- ●

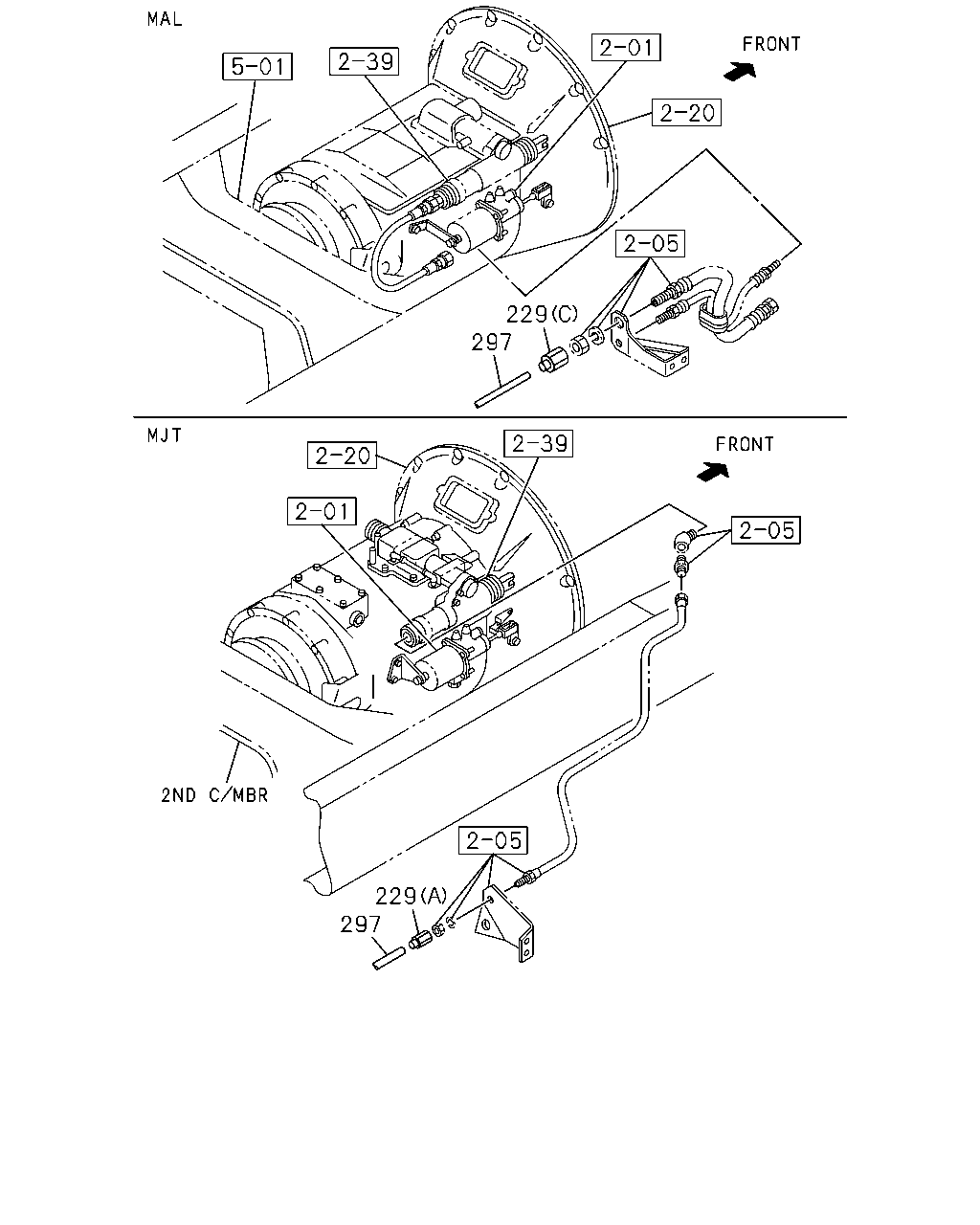

çizim 450609
229 297 229 297
BalonParca AdiParca NoAdetTipApplied Date A B
229 ADAPTER; NYLON TUBE
MAL6R M/T<Y2J> (C) DIN12 & M20 STRAIGHT THA 		1-09660-877-0 01 1 1410- ●
229 ADAPTER; NYLON TUBE
MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410- ●
229 ADAPTER; NYLON TUBE
ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410- ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT THA 		1-09661-379-0 01 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410- ● ●
