Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11652 - FXZ/GXZ THAILAND EURO3
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#150736) — 34 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

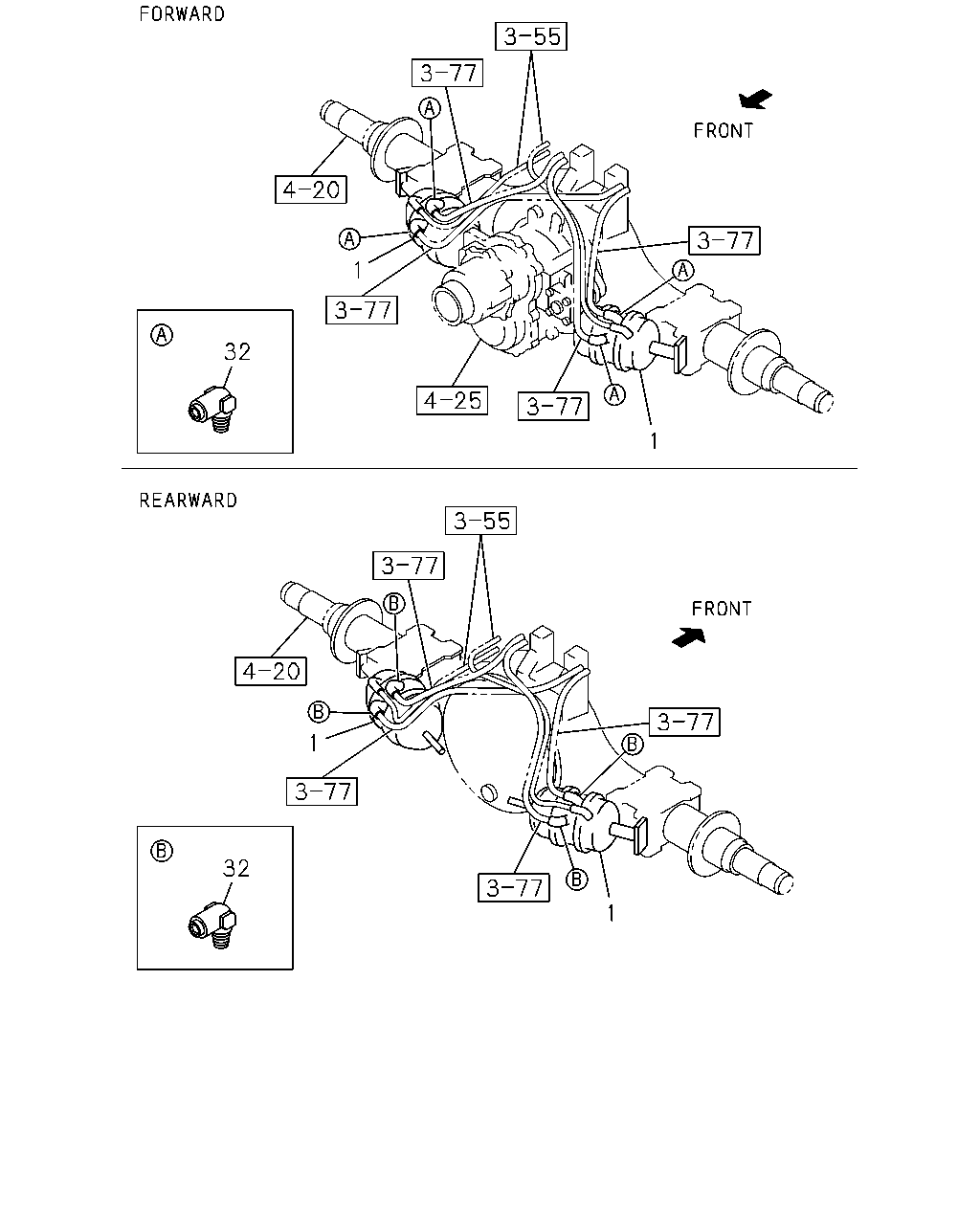

[341A] CONNECTOR;NYLON TUBE (6 parça)

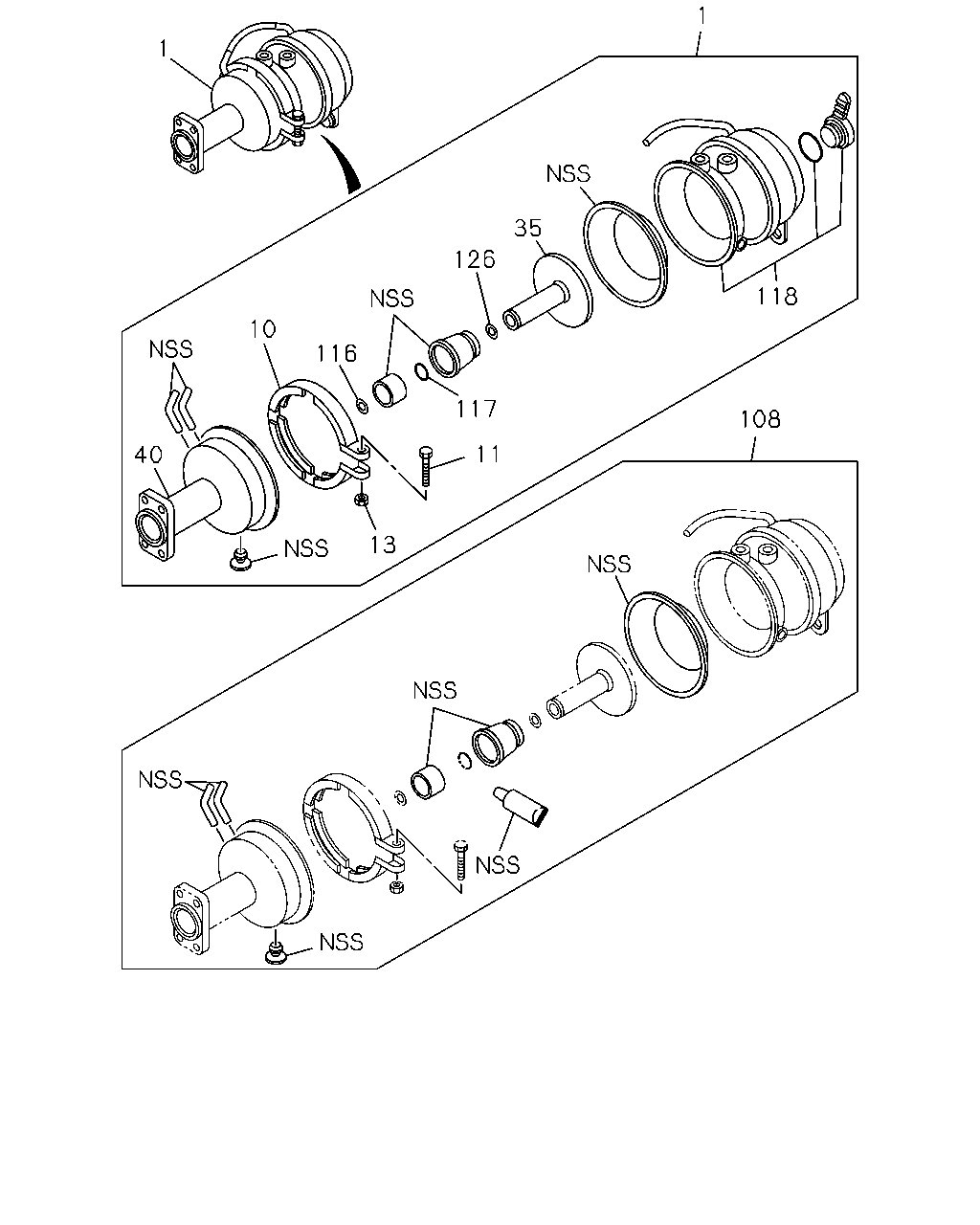

[341A] COMPONENT AND REPAIR KIT (28 parça)
▶
1
1
32
32
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH THA
1-87412-461-0
01
1
1410-
●
●
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH THA
1-87412-461-0
01
1
1410-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH THA
1-87412-462-0
01
1
1410-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH THA
1-87412-462-0
01
1
1410-
●
●
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW THA
1-09660-959-0
04
1
1410-
●
●
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW THA
1-09660-959-0
04
1
1410-
●
●
1
1
118
108
35
126
117
11
13
116
10
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH THA
1-87412-461-0
01
1
1410-
●
●
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH THA
1-87412-461-0
01
1
1410-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH THA
1-87412-462-0
01
1
1410-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH THA
1-87412-462-0
01
1
1410-
●
●
10
RING; CLAMP,SPR CHAMBER
THA
1-48269-256-0
02
1
1410-
●
●
10
RING; CLAMP,SPR CHAMBER
THA
1-48269-256-0
02
1
1410-
●
●
11
BOLT; CLAMP RING
THA
1-48269-257-0
02
1
1410-
●
●
11
BOLT; CLAMP RING
THA
1-48269-257-0
02
1
1410-
●
●
13
NUT; CLAMP RING
THA
1-48269-147-0
02
1
1410-
●
●
13
NUT; CLAMP RING
THA
1-48269-147-0
02
1
1410-
●
●
35
PLATE; ROD END,SPR CHAMBER
THA
8-98146-972-0
02
1
1410-
●
●
35
PLATE; ROD END,SPR CHAMBER
THA
8-98146-972-0
02
1
1410-
●
●
40
COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH THA
1-48251-134-1
01
1
1410-
●
●
40
COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH THA
1-48251-134-1
01
1
1410-
●
●
40
COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH THA
1-48251-135-1
01
1
1410-
●
●
40
COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH THA
1-48251-135-1
01
1
1410-
●
●
108
REPAIR KIT; SPR CHAMBER
THA
8-98146-982-0
02
1
1410-
●
●
108
REPAIR KIT; SPR CHAMBER
THA
8-98146-982-0
02
1
1410-
●
●
116
GUIDE; SPR CHAMBER
THA
8-98146-963-0
02
1
1410-
●
●
116
GUIDE; SPR CHAMBER
THA
8-98146-963-0
02
1
1410-
●
●
117
RING; SPR CHAMBER
THA
8-98146-966-0
02
1
1410-
●
●
117
RING; SPR CHAMBER
THA
8-98146-966-0
02
1
1410-
●
●
118
CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH THA
1-87412-111-0
01
1
1410-
●
●
118
CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH THA
1-87412-111-0
01
1
1410-
●
●
118
CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH THA
1-87412-112-0
01
1
1410-
●
●
118
CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH THA
1-87412-112-0
01
1
1410-
●
●
126
SHIM
THA
8-98146-965-0
AR
1
1410-
●
●
126
SHIM
THA
8-98146-965-0
AR
1
1410-
●
●
