3-26 — TRAILER CONTROL (#150733) — 107 parça

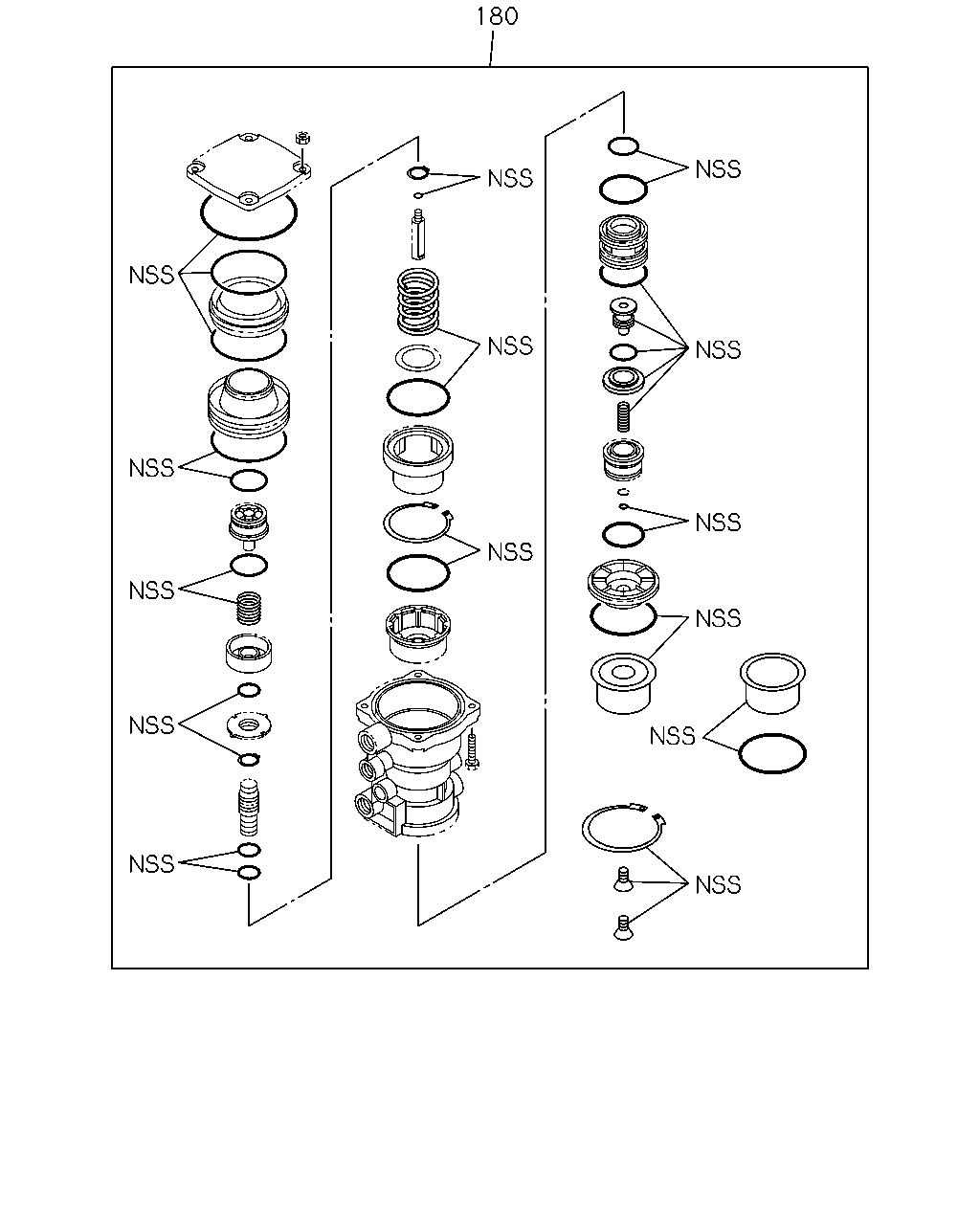

çizim 448597
180
BalonParca AdiParca NoAdetTipApplied Date A B
180 REPAIR KIT; RELAY VLV
THA 		1-85576-449-0 01 1 1410- ●

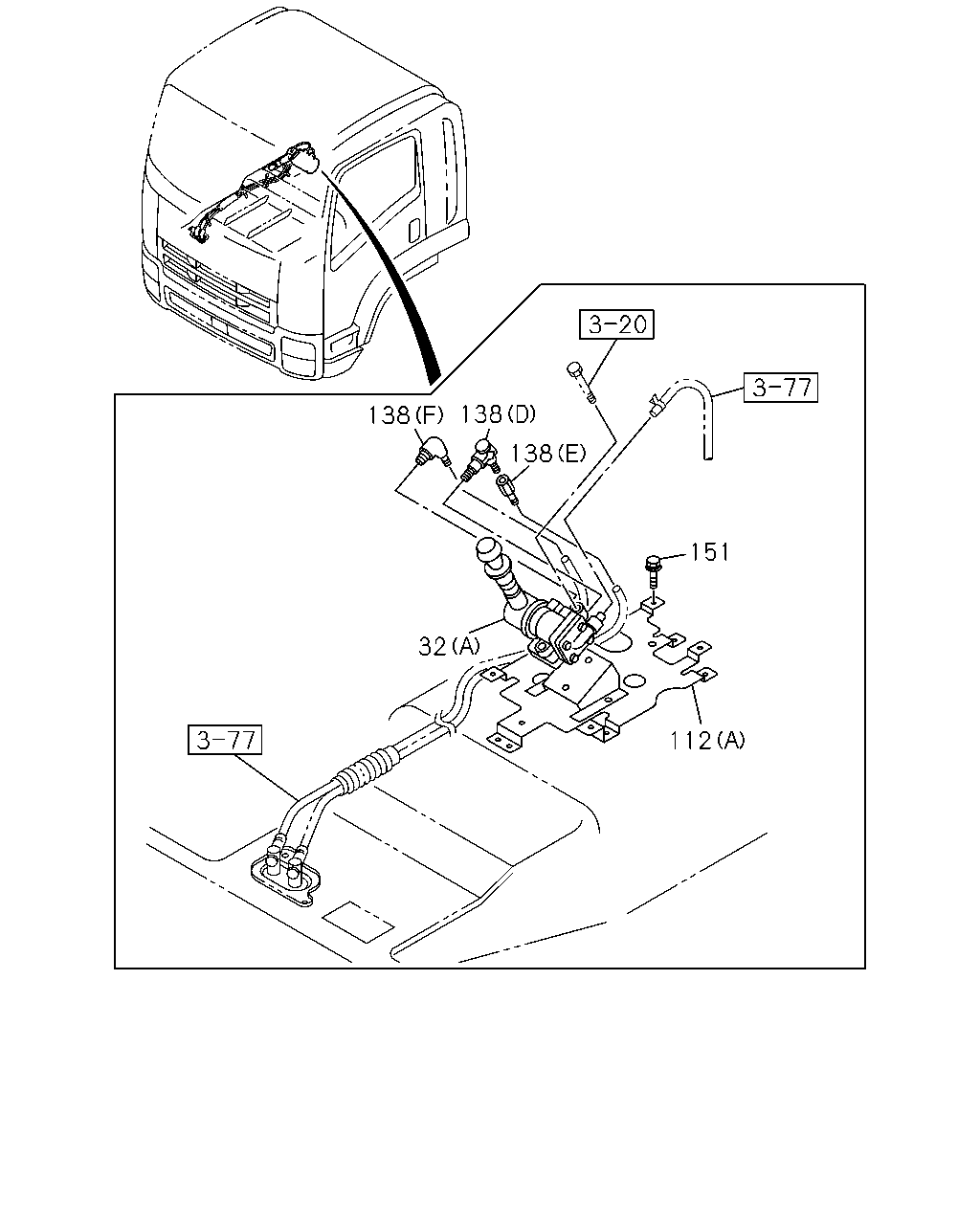

çizim 449186
138 138 138 32 151 112
BalonParca AdiParca NoAdetTipApplied Date A B
32 VALVE; BRK,HAND CONT
(A) THA 		1-48460-306-0 01 1 1410- ● ●
32 VALVE; BRK,HAND CONT
(B) THA 		1-48100-674-0 01 1 1410- ●
112 BRACKET; CONT VLV
(A) THA 		1-73908-054-7 01 1 1410- ●
112 BRACKET; CONT VLV
(B) THA 		8-98049-855-2 01 1 1410- ●
112 BRACKET; CONT VLV
(C) THA 		1-73908-268-0 01 1 1410- ●
138 CONNECTOR; DELIVERY
(D) THA 		1-09650-240-1 01 1 1410- ●
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT THA 		1-09660-874-0 01 1 1410- ●
138 CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1410- ● ●
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY THA 		1-09660-693-0 02 1 1410- ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1410- ●
138 CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1410- ●
151 BOLT; VLV BRKT
M6X16 THA 		0-52000-616-0 04 1 1410- ● ●

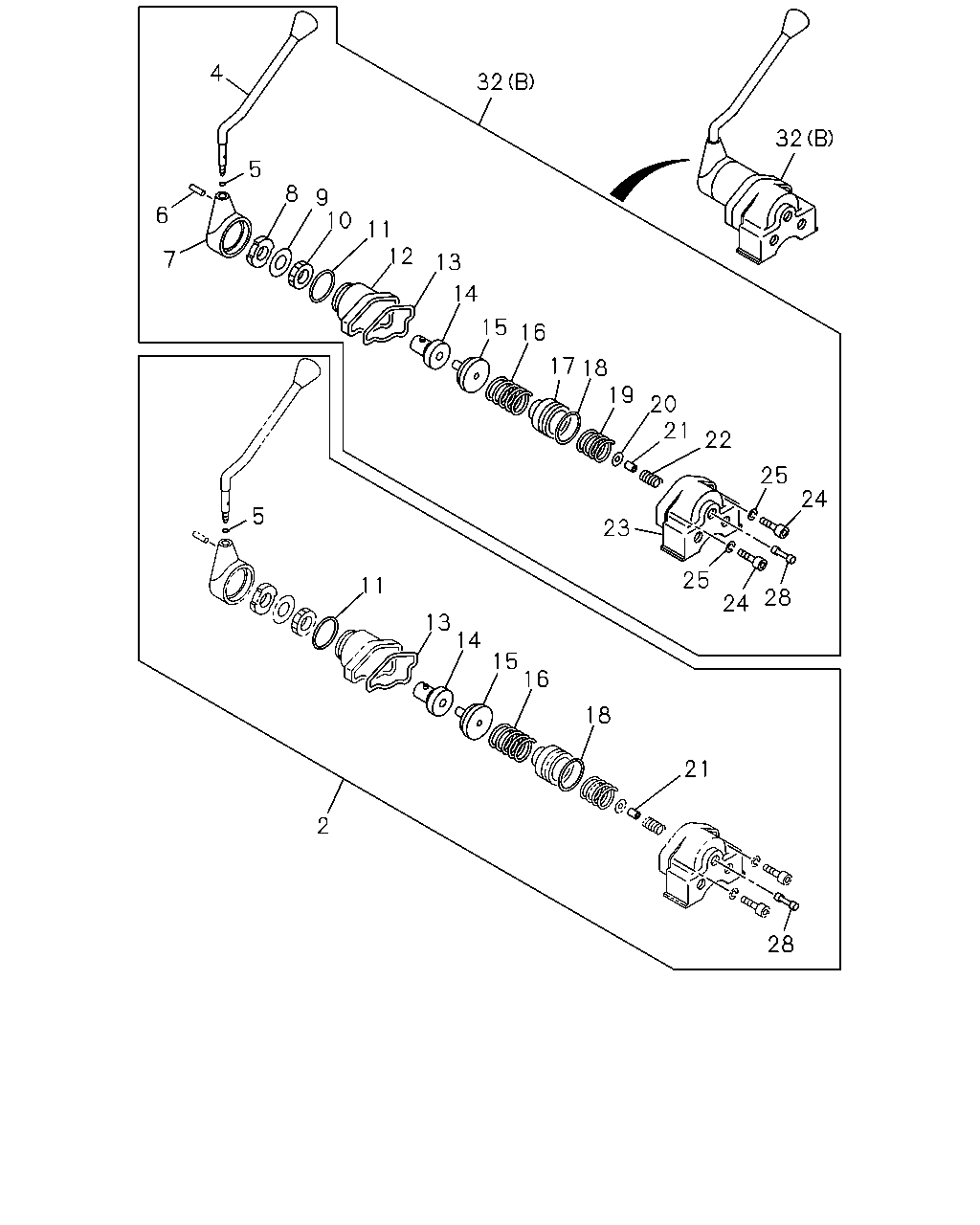

çizim 449622
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 25 24 28 32 32 11 5 2 13 14 15 16 18 21 28
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; HAND BRK VLV
THA 		1-85576-180-0 01 1 1410- ●
4 HANDLE ASM; BRK VLV
THA 		1-48119-144-0 01 1 1410- ●
5 GASKET; HANDLE
THA 		1-48119-128-0 01 1 1410- ●
6 PIN; SPR
THA 		1-48119-143-0 01 1 1410- ●
7 HEAD; BRK VLV
THA 		1-48119-131-1 01 1 1410- ●
8 STOPPER; BRK VLV
THA 		1-48119-136-0 01 1 1410- ●
9 WASHER; LK,ADJ
THA 		1-48119-123-0 01 1 1410- ●
10 RING; ADJ
THA 		1-48119-122-0 01 1 1410- ●
11 GASKET; HD TO COVER
THA 		1-48119-130-0 01 1 1410- ●
12 COVER; BRK VLV
THA 		1-48129-097-1 01 1 1410- ●
13 GASKET; BODY TO COVER
THA 		1-48119-120-0 01 1 1410- ●
14 FOLLOWER; CAM
THA 		1-48129-109-0 01 1 1410- ●
15 CAM; FOLLOWER
THA 		1-48129-110-0 01 1 1410- ●
16 SPRING; GRUDUATING
THA 		1-48129-101-0 01 1 1410- ●
17 PISTON; SPR
THA 		1-48129-095-0 01 1 1410- ●
18 GASKET; BODY
THA 		1-48129-096-0 01 1 1410- ●
19 SPRING; PISTON
THA 		1-48129-094-0 01 1 1410- ●
20 GUIDE; VLV
THA 		1-48129-090-0 01 1 1410- ●
21 VALVE; IN & EXH
THA 		1-48121-017-0 01 1 1410- ●
22 SPRING; VLV
THA 		1-48123-024-0 01 1 1410- ●
23 BODY; BRK VLV
THA 		1-48111-060-1 01 1 1410- ●
24 BOLT; EXH VLV
THA 		1-48129-092-0 02 1 1410- ●
25 WASHER; LK,EXH VLV
THA 		1-48129-093-0 02 1 1410- ●
28 STEM ASM; BRK VLV
THA 		1-48129-089-0 01 1 1410- ●
32 VALVE; BRK,HAND CONT
(A) THA 		1-48460-306-0 01 1 1410- ● ●
32 VALVE; BRK,HAND CONT
(B) THA 		1-48100-674-0 01 1 1410- ●
çizim 449655
203
BalonParca AdiParca NoAdetTipApplied Date A B
203 CABLE; JUMPER
REAR BODY MAKER<XN4> L=5500 THA 		8-98107-178-0 01 1 1410- ●

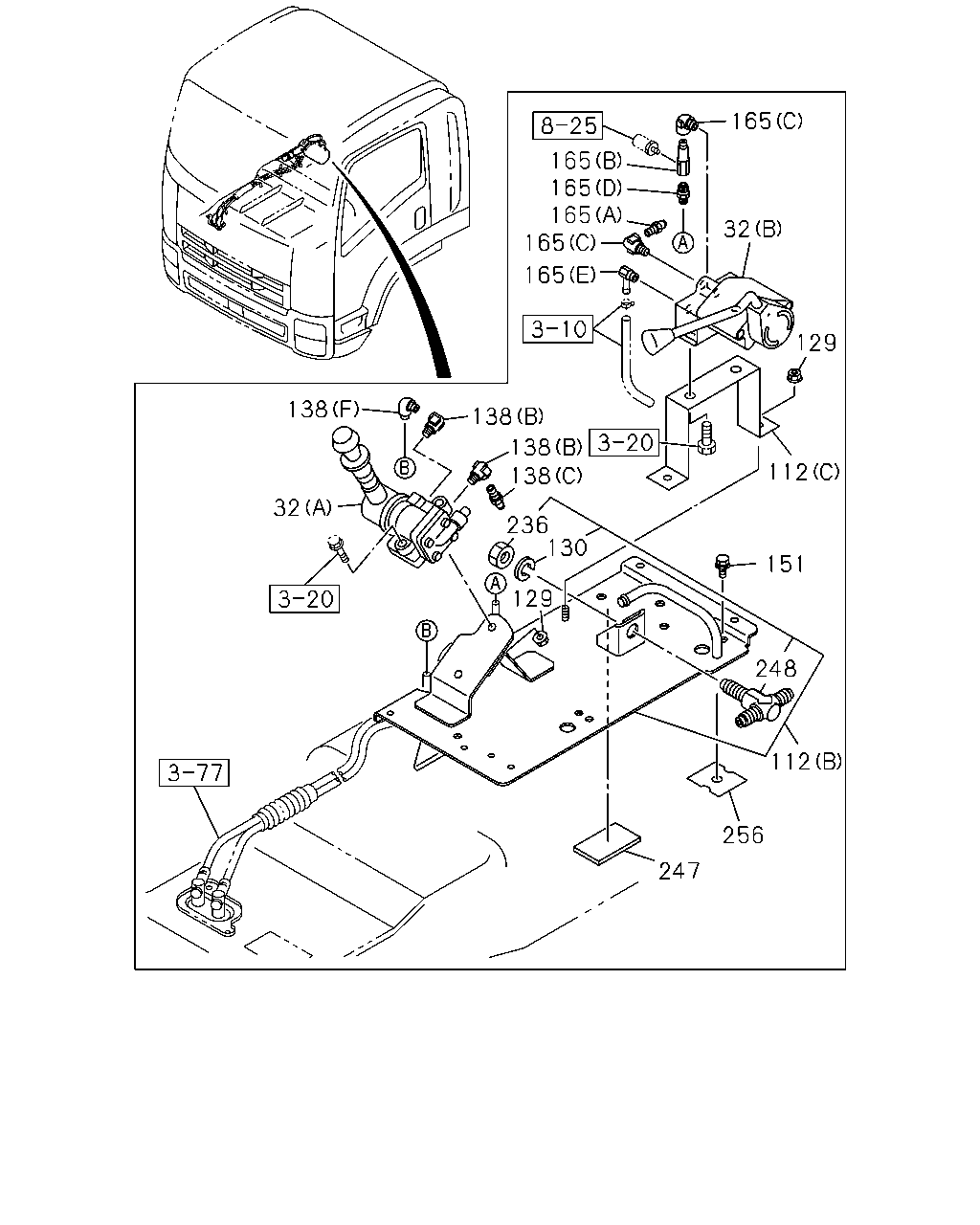

çizim 450469
165 165 165 165 165 32 165 129 112 151 248 112 256 247 129 130 236 138 138 138 138 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 VALVE; BRK,HAND CONT
(A) THA 		1-48460-306-0 01 1 1410- ● ●
32 VALVE; BRK,HAND CONT
(B) THA 		1-48100-674-0 01 1 1410- ●
112 BRACKET; CONT VLV
(A) THA 		1-73908-054-7 01 1 1410- ●
112 BRACKET; CONT VLV
(B) THA 		8-98049-855-2 01 1 1410- ●
112 BRACKET; CONT VLV
(C) THA 		1-73908-268-0 01 1 1410- ●
129 NUT; VLV
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ●
129 NUT; VLV
M8 FLANGE THA 		0-91180-108-0 04 1 1410- ●
130 WASHER; LK,VLV
ID=16.2 THA 		0-91510-816-0 01 1 1410- ●
138 CONNECTOR; DELIVERY
(D) THA 		1-09650-240-1 01 1 1410- ●
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT THA 		1-09660-874-0 01 1 1410- ●
138 CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1410- ● ●
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY THA 		1-09660-693-0 02 1 1410- ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1410- ●
138 CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1410- ●
151 BOLT; VLV BRKT
M6X16 THA 		0-52000-616-0 04 1 1410- ● ●
165 CONNECTOR; HAND BRK VLV
(A) THA 		1-09650-352-1 01 1 1410- ●
165 CONNECTOR; HAND BRK VLV
(B) THA 		1-09660-335-1 01 1 1410- ●
165 CONNECTOR; HAND BRK VLV
(C) PT1/4 2WAY THA 		1-09660-693-0 02 1 1410- ●
165 CONNECTOR; HAND BRK VLV
(D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1410- ●
165 CONNECTOR; HAND BRK VLV
(E) THA 		8-97062-077-1 01 1 1410- ●
236 NUT
M16 THA 		0-91111-516-0 01 1 1410- ●
247 SEAL; HOSE
100X40 THA 		1-72498-022-1 01 1 1410- ●
248 UNION
M16 3WAY THA 		0-92148-610-0 01 1 1410- ●
256 SEAL
THA 		1-79996-382-0 01 1 1410- ●

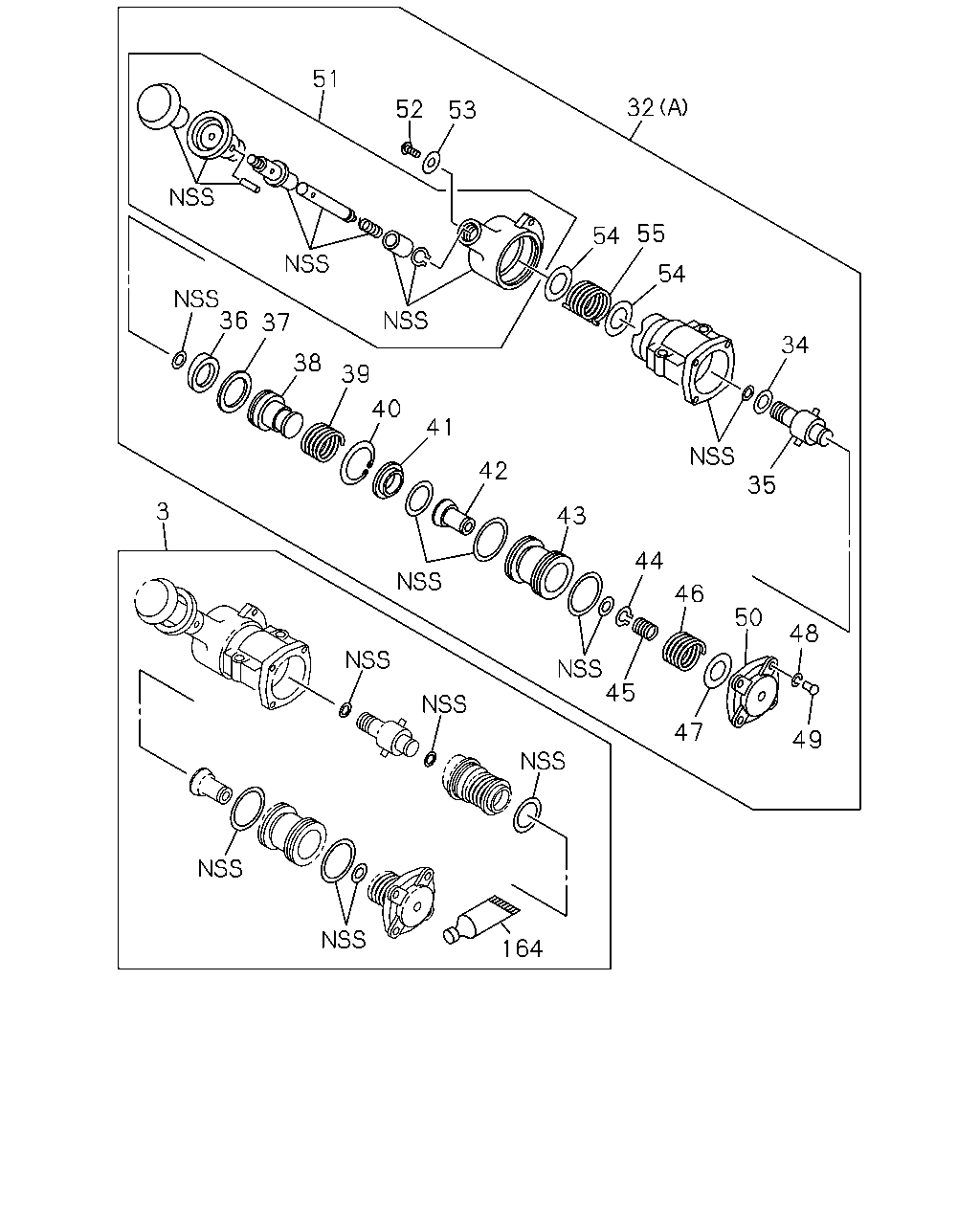

çizim 450506
51 52 53 32 55 54 54 34 35 50 48 46 44 43 42 41 40 39 38 37 36 3 164 45 47 49
BalonParca AdiParca NoAdetTipApplied Date A B
3 REPAIR KIT; HAND BRK VLV
THA 		1-48469-096-0 01 1 1410- ● ●
32 VALVE; BRK,HAND CONT
(A) THA 		1-48460-306-0 01 1 1410- ● ●
32 VALVE; BRK,HAND CONT
(B) THA 		1-48100-674-0 01 1 1410- ●
34 SHIM; CAM HOLDER
THA 		1-48469-055-0 AR 1 1410- ● ●
35 HOLDER; CAM
THA 		1-48469-054-0 01 1 1410- ● ●
36 RING; CAM
THA 		1-48469-056-0 01 1 1410- ● ●
37 GUIDE; CAM RING
THA 		1-48469-058-0 01 1 1410- ● ●
38 SEAT; EXH VLV
THA 		1-48469-057-0 01 1 1410- ● ●
39 SPRING; RETURN,CAM RING
THA 		1-48469-063-0 01 1 1410- ● ●
40 RING; SNAP
THA 		1-48469-067-0 01 1 1410- ● ●
41 SEAT; FEED VLV
THA 		1-48469-066-0 01 1 1410- ● ●
42 VALVE; FEED
THA 		1-48469-065-0 01 1 1410- ● ●
43 PISTON; HAND BRK VLV
THA 		1-48469-064-0 01 1 1410- ● ●
44 RING; SNAP,FEED VLV
THA 		1-48469-068-0 02 1 1410- ● ●
45 SPRING; FEED VLV
THA 		1-48469-070-0 01 1 1410- ● ●
46 SPRING; MAIN,PISTON
THA 		1-48469-089-0 01 1 1410- ● ●
47 SHIM; MAIN SPRING
THA 		1-48469-072-0 AR 1 1410- ● ●
48 WASHER; COVER
THA 		1-48469-091-0 04 1 1410- ● ●
49 SCREW; COVER
THA 		1-48469-092-0 04 1 1410- ● ●
50 COVER; HAND BRK VLV
THA 		1-48469-090-0 01 1 1410- ● ●
51 HANDLE ASM; HAND BRK VLV
THA 		1-48469-122-0 01 1 1410- ● ●
52 SCREW; HANDLE
THA 		1-48469-062-0 01 1 1410- ● ●
53 WASHER; HANDLE
THA 		1-48469-061-0 01 1 1410- ● ●
54 SEAT; SPRING
THA 		1-48469-082-0 02 1 1410- ● ●
55 SPRING; RETURN,HANDLE
THA 		1-48469-059-0 01 1 1410- ● ●
164 GREASE; HAND BRK VLV
THA 		1-48469-084-0 01 1 1410- ● ●

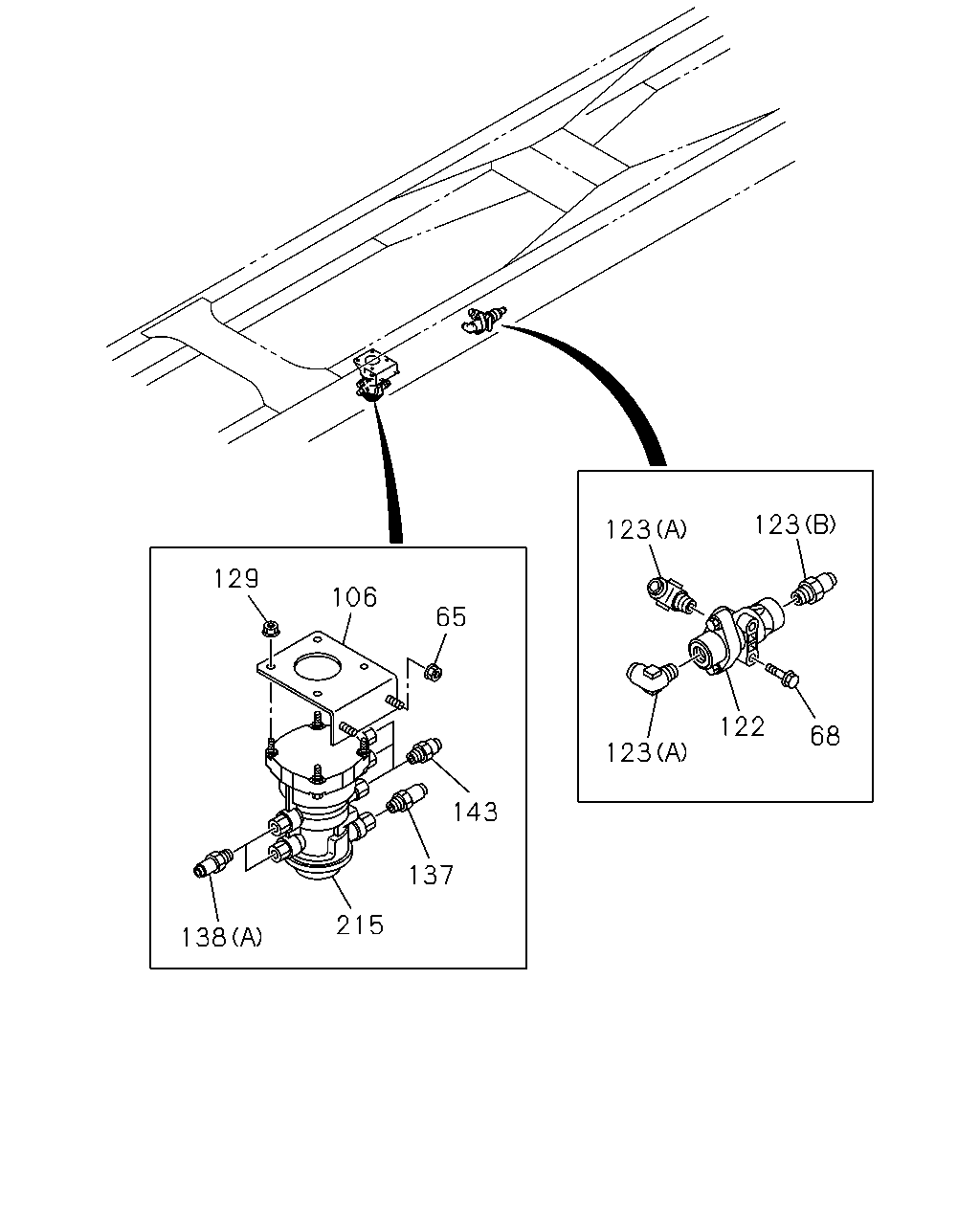

çizim 450536
65 106 129 138 215 137 143 123 122 68 123 123
BalonParca AdiParca NoAdetTipApplied Date A B
65 NUT; RELAY VLV
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ●
68 BOLT; DOUBLE CHECK VLV
M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ●
106 BRACKET; VLV
THA 		8-97618-638-0 01 1 1410- ●
122 VALVE ASM; DOUBLE CHECK
THA 		1-48410-531-1 01 1 1410- ●
123 CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 02 1 1410- ●
123 CONNECTOR; DBL CHECK VLV
(B) DIN8 & R3/8 STRAIGHT THA 		1-09660-964-0 01 1 1410- ●
129 NUT; VLV
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ●
129 NUT; VLV
M8 FLANGE THA 		0-91180-108-0 04 1 1410- ●
137 CONNECTOR; SUPPLY
DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1410- ●
138 CONNECTOR; DELIVERY
(D) THA 		1-09650-240-1 01 1 1410- ●
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT THA 		1-09660-874-0 01 1 1410- ●
138 CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1410- ● ●
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY THA 		1-09660-693-0 02 1 1410- ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1410- ●
138 CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1410- ●
143 CONNECTOR; CONT
DIN8 & R3/8 STRAIGHT THA 		1-09660-964-0 03 1 1410- ●
215 VALVE; TRAILER CONT
THA 		8-98091-694-0 01 1 1410- ●
