2-85 — POWER TAKE OFF CONTROL (#150727) — 35 parça

48 250 111 171 57 204 50 49 48 60 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	HOSE; FLEX,PTO PTO ZF TRANS RR<BDM> L=400 THA	1-09363-606-0	01	1	1410-	●	●
48	HOSE; FLEX,PTO MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> L=720 THA	1-09363-801-0	01	1	1410-	●
49	WASHER; LK,FLEX HOSE PTO ZF TRANS RR<BDM> ID=12.2 THA	0-91510-512-0	01	1	1410-	●	●
49	WASHER; LK,FLEX HOSE MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=12.2 THA	0-91510-512-0	01	1	1410-	●
50	NUT; FLEX HOSE PTO ZF TRANS RR<BDM> M12 THA	9-09840-280-0	01	1	1410-	●	●
50	NUT; FLEX HOSE MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 THA	9-09840-280-0	01	1	1410-	●
57	BOLT; BRKT PTO ZF TRANS RR<BDM> M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●	●
57	BOLT; BRKT MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●
60	BOLT; CLIP FIX MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
62	CLIP; PIPE,AIR MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=15 L=22 H=30 THA	1-09701-215-1	01	1	1410-	●
111	NUT; BRKT PTO ZF TRANS RR<BDM> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
111	NUT; BRKT MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●
171	BRACKET; FLEX HOSE MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	1-47471-088-0	01	1	1410-	●
171	BRACKET; FLEX HOSE PTO ZF TRANS RR<BDM> THA	8-98086-261-0	01	1	1410-	●	●
204	CONNECTOR; NYLON TUBE MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1410-	●
250	TUBE; NYLON MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=8 THA	1-87411-007-0	01	1	1410-	●
250	TUBE; NYLON PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA	1-87411-006-0	01	1	1410-		●

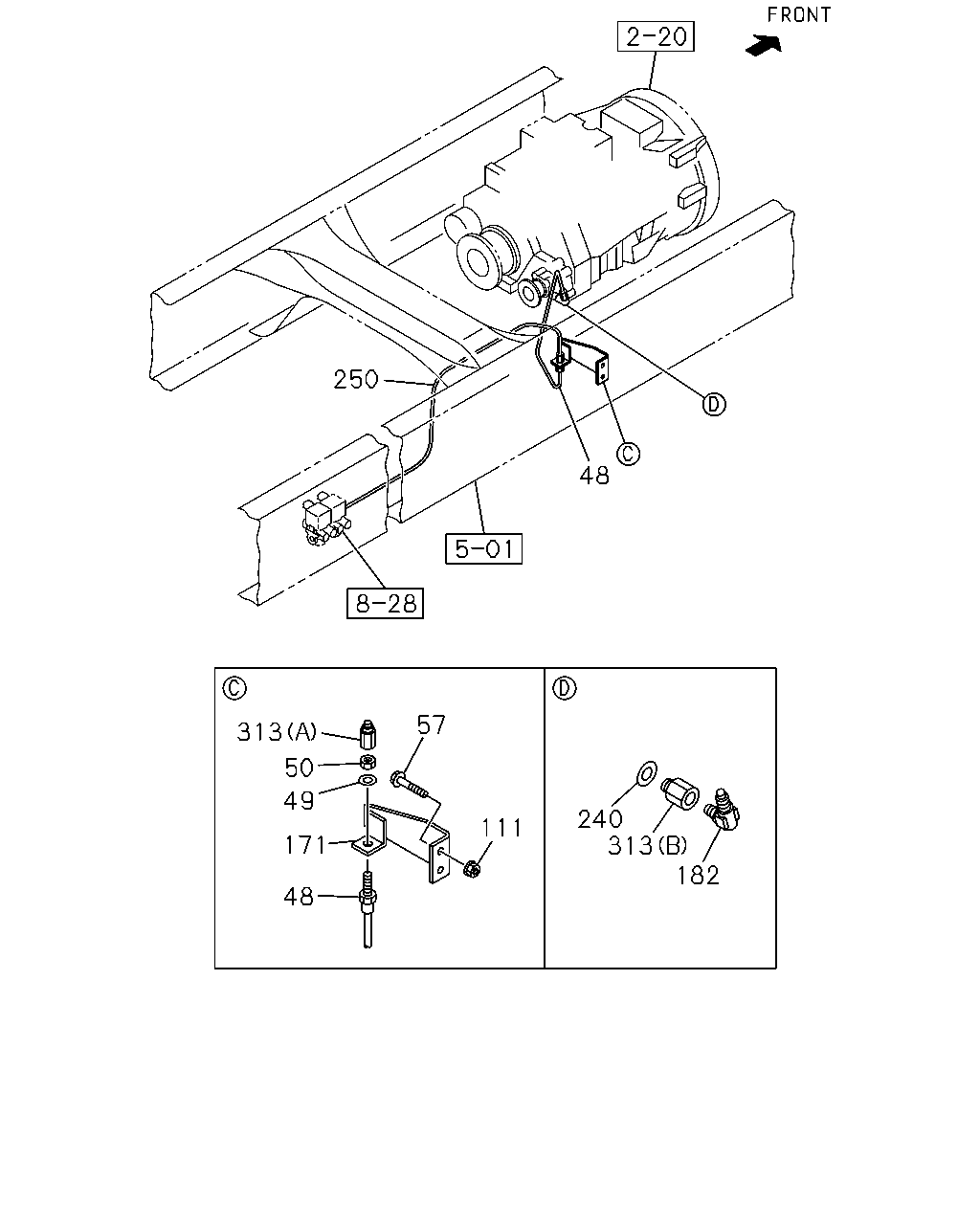

48 250 313 50 49 171 48 111 57 240 313 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	HOSE; FLEX,PTO PTO ZF TRANS RR<BDM> L=400 THA	1-09363-606-0	01	1	1410-	●	●
48	HOSE; FLEX,PTO MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> L=720 THA	1-09363-801-0	01	1	1410-	●
49	WASHER; LK,FLEX HOSE PTO ZF TRANS RR<BDM> ID=12.2 THA	0-91510-512-0	01	1	1410-	●	●
49	WASHER; LK,FLEX HOSE MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=12.2 THA	0-91510-512-0	01	1	1410-	●
50	NUT; FLEX HOSE PTO ZF TRANS RR<BDM> M12 THA	9-09840-280-0	01	1	1410-	●	●
50	NUT; FLEX HOSE MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 THA	9-09840-280-0	01	1	1410-	●
57	BOLT; BRKT PTO ZF TRANS RR<BDM> M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●	●
57	BOLT; BRKT MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●
111	NUT; BRKT PTO ZF TRANS RR<BDM> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
111	NUT; BRKT MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●
171	BRACKET; FLEX HOSE MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	1-47471-088-0	01	1	1410-	●
171	BRACKET; FLEX HOSE PTO ZF TRANS RR<BDM> THA	8-98086-261-0	01	1	1410-	●	●
182	CONNECTOR; FLARE ZF9S1310 M/T<Y5K> PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	1410-	●	●
240	GASKET; CONNECTOR,PTO ZF9S1310 M/T<Y5K> PTO ZF TRANS RR<BDM> ID=12.2 THA	8-98251-344-0	01	1	1410-	●	●
250	TUBE; NYLON MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=8 THA	1-87411-007-0	01	1	1410-	●
250	TUBE; NYLON PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA	1-87411-006-0	01	1	1410-		●
313	ADAPTER PTO ZF TRANS RR<BDM> (A) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1410-	●	●
313	ADAPTER ZF9S1310 M/T<Y5K> PTO ZF TRANS RR<BDM> (B) THA	1-09654-396-0	01	1	1410-	●	●
