Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#150721) — 18 parça

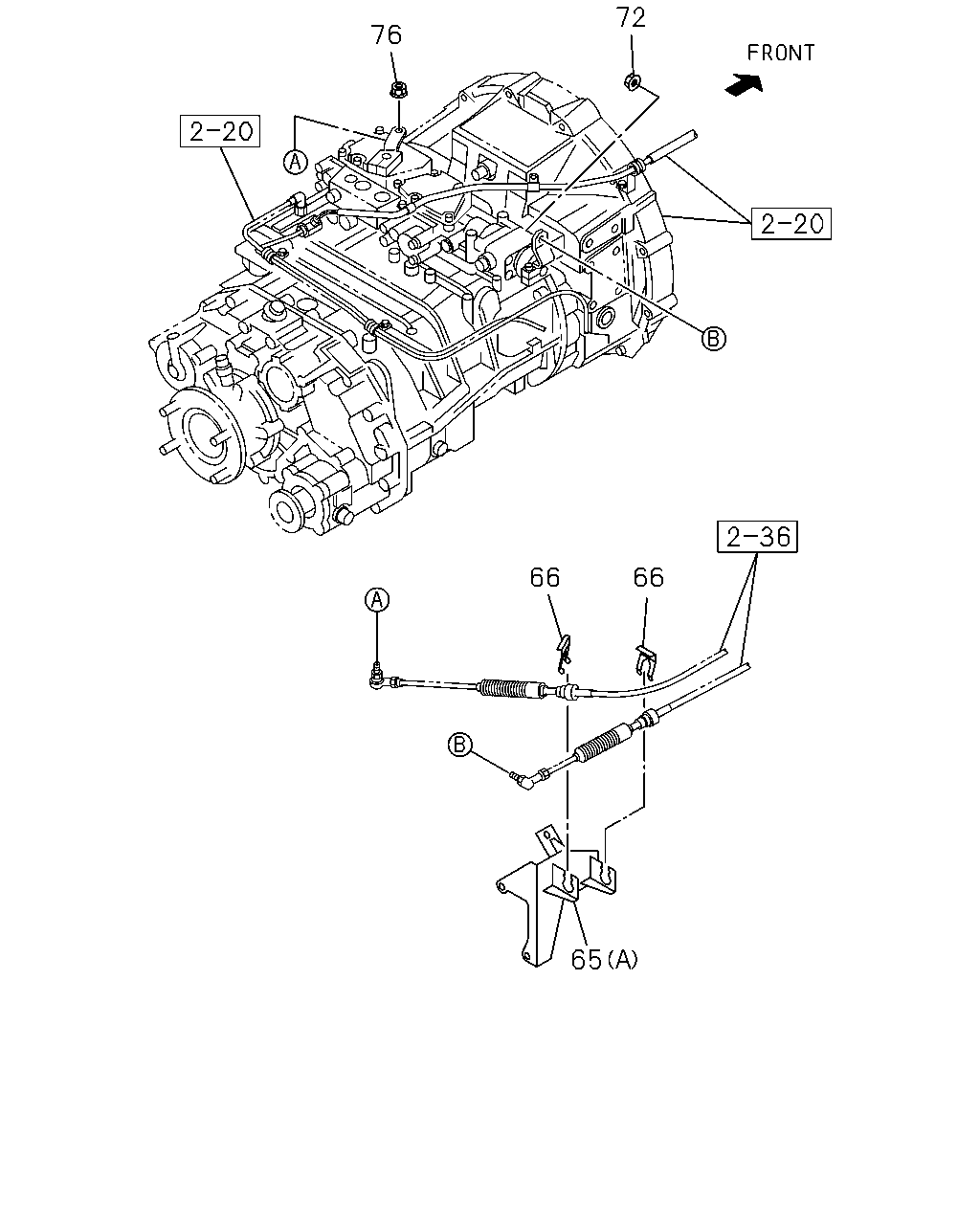

76 72 66 66 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT MAL6R M/T<Y2J> (B) THA	8-98055-459-0	01	1	1410-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MJT7U M/T<Y4X> (C) THA	8-98122-075-0	01	1	1410-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1310 M/T<Y5K> (A) THA	8-98055-454-1	01	1	1410-	●	●
66	CLIP; SELECT BRKT ID=22.2 THA	1-09701-209-1	02	1	1410-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE THA	1-09440-062-1	01	1	1410-	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE THA	1-09440-061-0	01	1	1410-	●	●

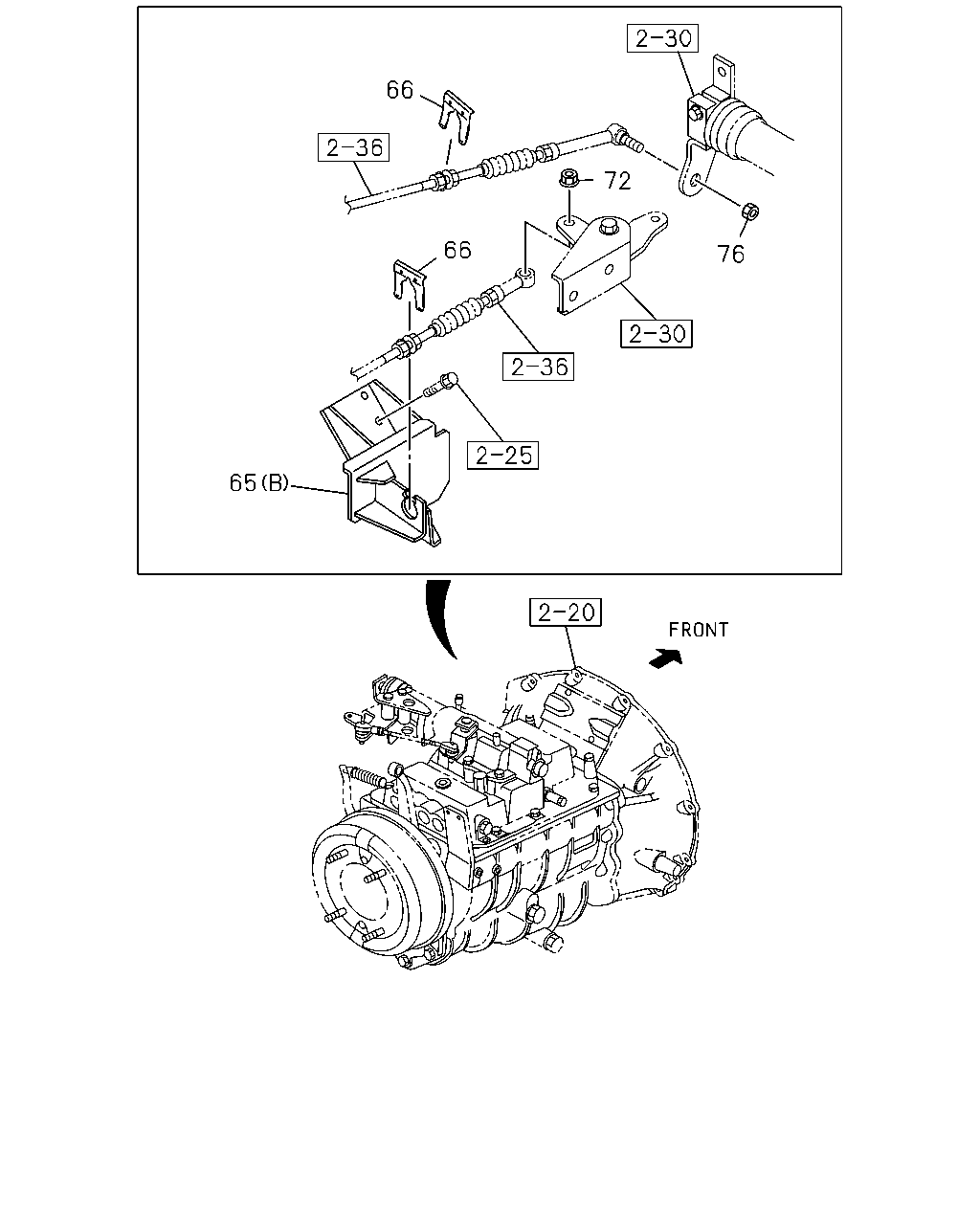

66 66 72 76 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT MAL6R M/T<Y2J> (B) THA	8-98055-459-0	01	1	1410-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MJT7U M/T<Y4X> (C) THA	8-98122-075-0	01	1	1410-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1310 M/T<Y5K> (A) THA	8-98055-454-1	01	1	1410-	●	●
66	CLIP; SELECT BRKT ID=22.2 THA	1-09701-209-1	02	1	1410-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE THA	1-09440-062-1	01	1	1410-	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE THA	1-09440-061-0	01	1	1410-	●	●

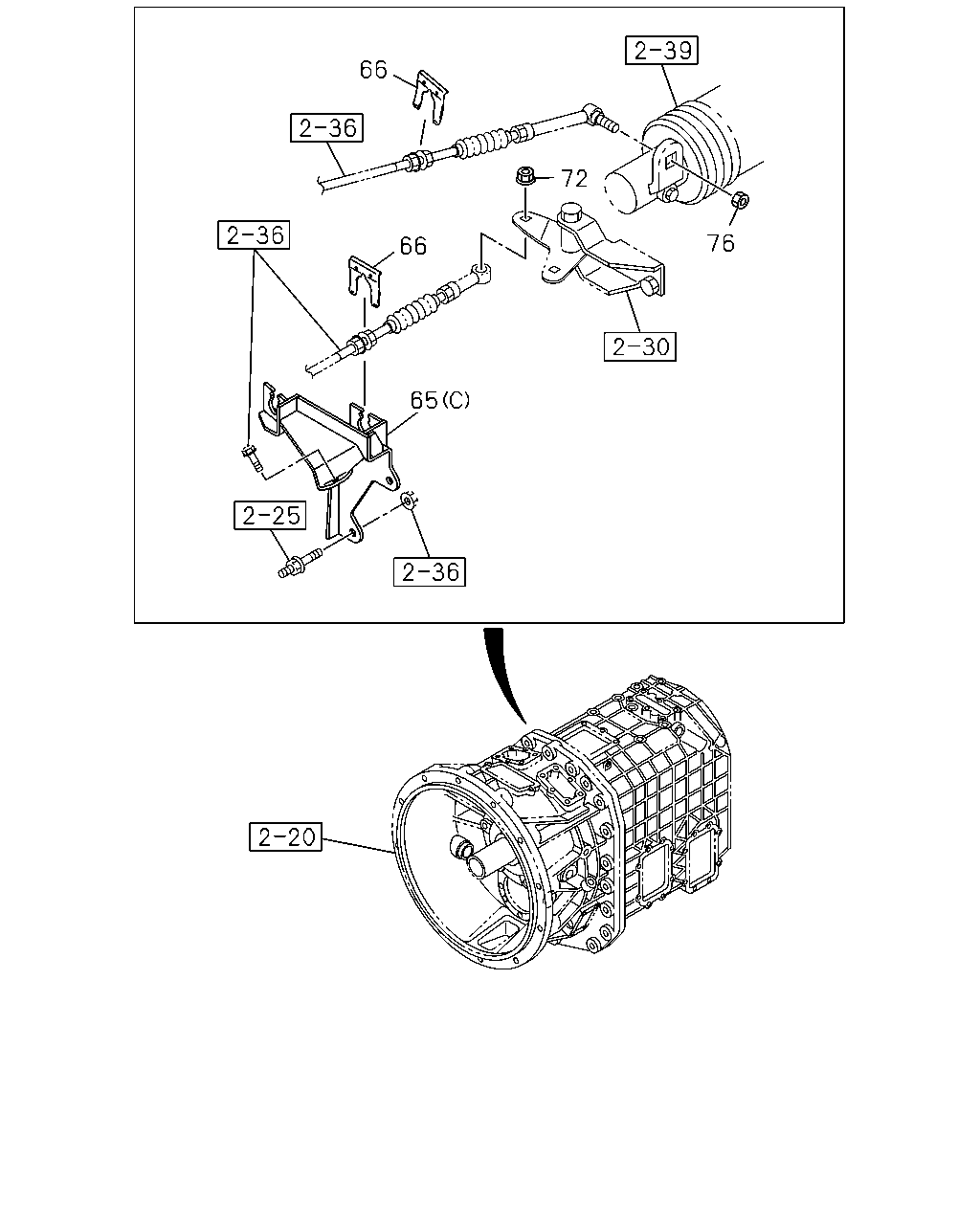

66 66 72 76 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT MAL6R M/T<Y2J> (B) THA	8-98055-459-0	01	1	1410-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MJT7U M/T<Y4X> (C) THA	8-98122-075-0	01	1	1410-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1310 M/T<Y5K> (A) THA	8-98055-454-1	01	1	1410-	●	●
66	CLIP; SELECT BRKT ID=22.2 THA	1-09701-209-1	02	1	1410-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE THA	1-09440-062-1	01	1	1410-	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE THA	1-09440-061-0	01	1	1410-	●	●
