2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#150720) — 31 parça

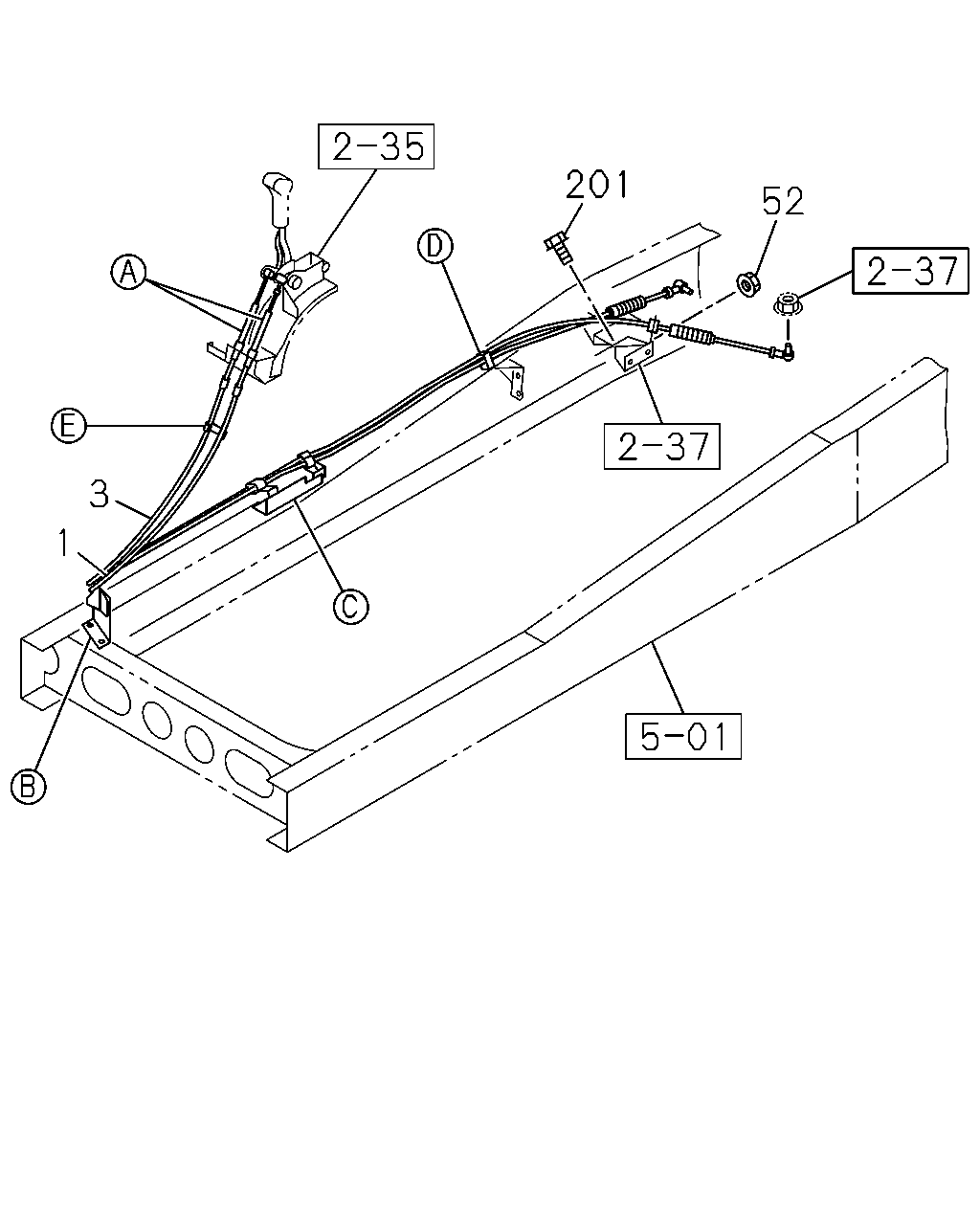

201 52 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MAL6R M/T<Y2J> L=3130 THA	8-98246-042-0	01	1	1410-	●
1	CABLE; SHIFT,TRANS CONT MJT7U M/T<Y4X> L=3201 THA	8-98246-044-0	01	1	1410-	●
1	CABLE; SHIFT,TRANS CONT ZF9S1310 M/T<Y5K> L=3205 THA	8-98246-040-0	01	1	1410-	●	●
3	CABLE; SELECT,TRANS CONT MAL6R M/T<Y2J> L=3150 THA	8-98054-898-3	01	1	1410-	●
3	CABLE; SELECT,TRANS CONT MJT7U M/T<Y4X> L=3223 THA	8-98123-234-0	01	1	1410-	●
3	CABLE; SELECT,TRANS CONT ZF9S1310 M/T<Y5K> L=3105 THA	8-98054-894-3	01	1	1410-	●	●
52	NUT; BRKT MJT7U M/T<Y4X> M10 FLANGE THA	0-91180-210-0	02	1	1410-	●
201	BOLT; BRKT MAL6R M/T<Y2J> M8X16 FLANGE THA	0-28050-816-0	04	1	1410-	●
201	BOLT; BRKT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8X16 FLANGE THA	0-28050-816-0	01	1	1410-	●
201	BOLT; BRKT ZF9S1310 M/T<Y5K> M8X16 FLANGE THA	0-28050-816-0	01	1	1410-		●

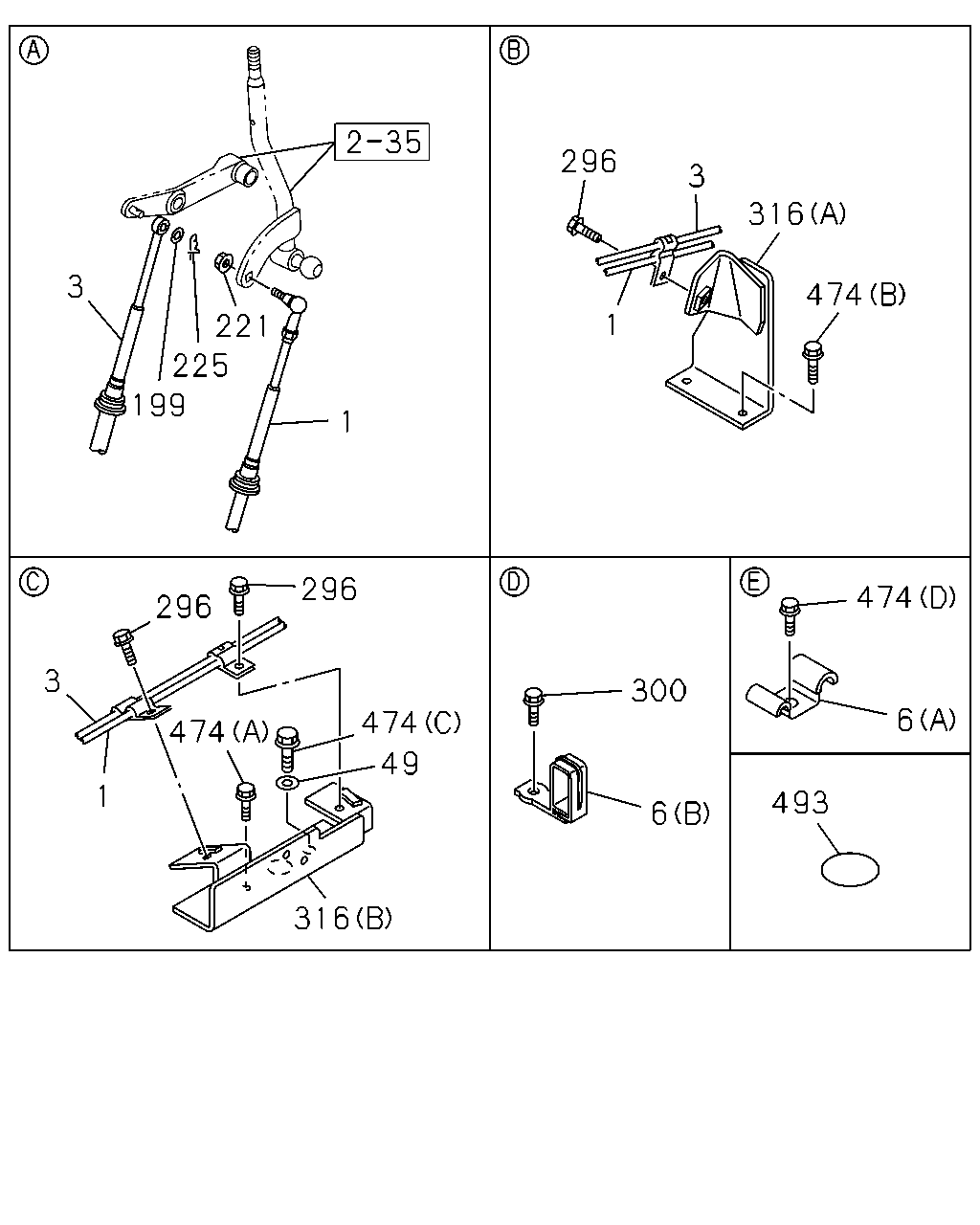

3 221 225 199 1 296 296 3 1 474 474 49 316 300 6 474 6 493 1 474 316 3 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MAL6R M/T<Y2J> L=3130 THA	8-98246-042-0	01	1	1410-	●
1	CABLE; SHIFT,TRANS CONT MJT7U M/T<Y4X> L=3201 THA	8-98246-044-0	01	1	1410-	●
1	CABLE; SHIFT,TRANS CONT ZF9S1310 M/T<Y5K> L=3205 THA	8-98246-040-0	01	1	1410-	●	●
3	CABLE; SELECT,TRANS CONT MAL6R M/T<Y2J> L=3150 THA	8-98054-898-3	01	1	1410-	●
3	CABLE; SELECT,TRANS CONT MJT7U M/T<Y4X> L=3223 THA	8-98123-234-0	01	1	1410-	●
3	CABLE; SELECT,TRANS CONT ZF9S1310 M/T<Y5K> L=3105 THA	8-98054-894-3	01	1	1410-	●	●
6	CLIP; CABLE (A) ID=11 & 11 L=17.5 & 17.5 THA	1-09700-739-0	01	1	1410-	●	●
6	CLIP; CABLE (B) ID=10 & 10 M8 THA	1-09701-220-0	01	1	1410-	●	●
49	WASHER; LK ID=14.2 THA	0-91510-614-0	01	1	1410-	●	●
199	WASHER; PL,SELECT ID=8.4 OD=16 THA	0-91614-508-0	01	1	1410-	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE THA	1-09440-062-1	01	1	1410-	●	●
225	PIN; SELECT CABLE L=27.7 THA	8-94111-137-0	01	1	1410-	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE THA	0-28050-820-0	03	1	1410-	●	●
300	BOLT; CLIP M8X20 FLANGE THA	0-28050-820-0	01	1	1410-	●	●
316	BRACKET; CLIP (A) THA	8-98055-446-1	01	1	1410-	●	●
316	BRACKET; CLIP (B) THA	8-98056-946-0	01	1	1410-	●	●
474	BOLT; BRKT (A) M14X45 THA	0-20801-445-0	01	1	1410-	●	●
474	BOLT; BRKT (D) M8X25 W/WASHER THA	0-51640-825-0	01	1	1410-	●	●
474	BOLT; BRKT (B) M8X20 FLANGE THA	0-28050-820-0	02	1	1410-	●	●
474	BOLT; BRKT (C) M8X30 FLANGE THA	0-28050-830-0	01	1	1410-	●	●
493	SEAL; CABLE OD=36 T=0.05 BLACK THA	5-76777-035-0	01	1	1410-	●	●
