◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11149 - EXY SOUTH AFRICA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#15072) — 81 parça

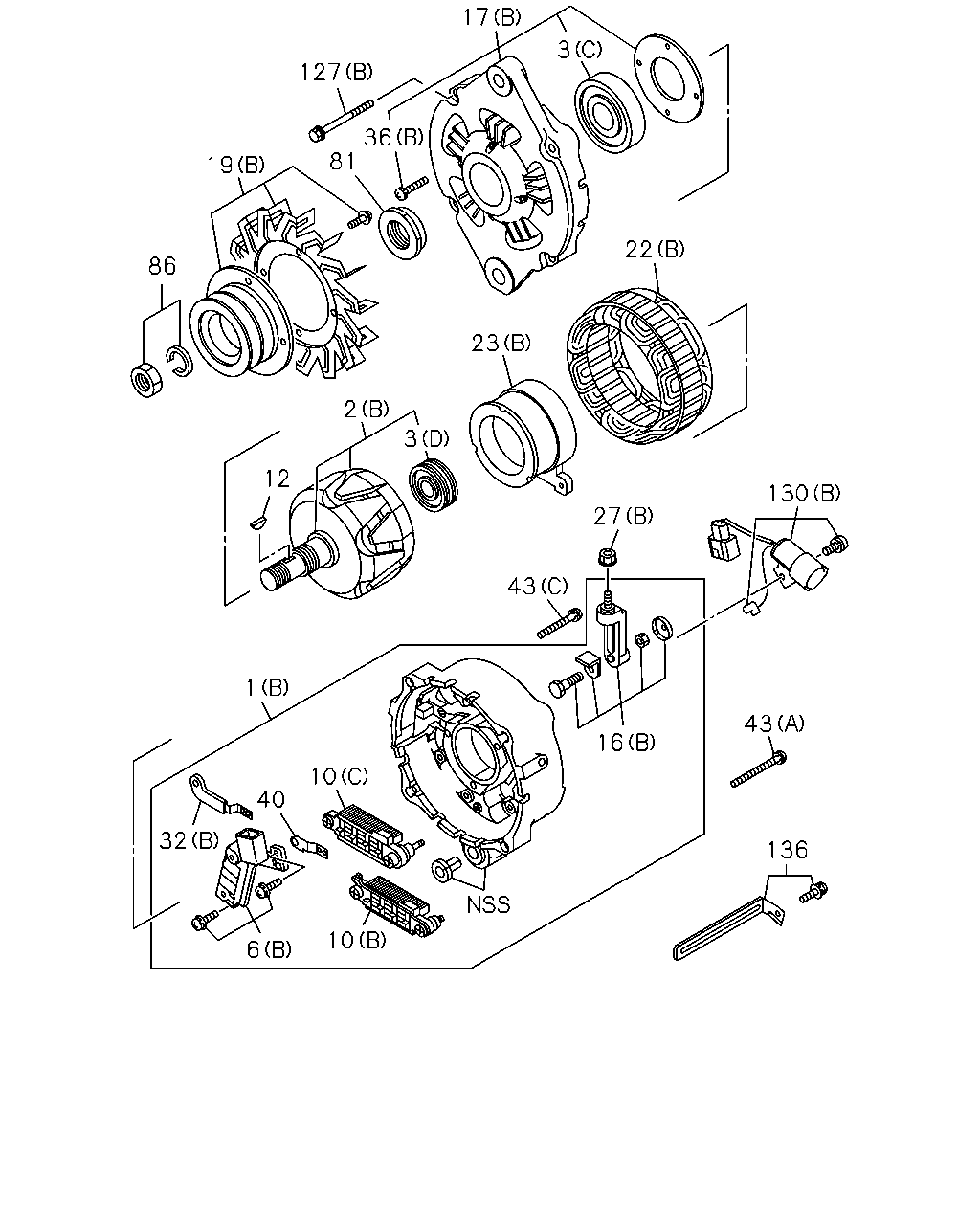

çizim 61177
17 3 127 36 81 19 22 86 23 2 3 12 130 27 43 1 43 16 10 40 32 136 10 6
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		8-98047-075-1 01 1 -
1 COVER ASM; RR,GEN
(B) ASM PART: B = 8-98013-614-3 		8-98047-076-1 01 1 -
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81221-102-0 01 1 -
2 ROTOR; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81221-106-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-769-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-770-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: B = 8-98013-614-3 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: B = 8-98013-614-3 		1-81229-816-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		8-98047-079-1 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(B) ASM PART: B = 8-98013-614-3 		8-98047-080-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		8-98047-082-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: B = 8-98013-614-3 		8-98047-083-0 01 1 -
10 RECTIFIER; GEN
(C) ASM PART: B = 8-98013-614-3 		8-98047-084-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: B = 8-98013-614-3 		1-81229-822-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-771-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
(B) ASM PART: B = 8-98013-614-3 		1-81229-806-0 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81213-101-0 01 1 -
17 COVER ASM; FRT,GEN
(B) ASM PART: B = 8-98013-614-3 		1-81213-115-1 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81222-130-2 01 1 -
19 PULLEY; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81222-149-3 01 1 -
22 STATOR; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81211-129-0 01 1 -
22 STATOR; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81211-132-1 01 1 -
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-612-3 		1-81212-016-0 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: B = 8-98013-614-3 		1-81212-025-1 01 1 -
23 COIL; ROTOR GEN
ASM PART: C = 8-98200-162-0 		8-98200-173-0 01 1 -
27 NUT; RECTIFIER,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-772-0 01 1 -
27 NUT; RECTIFIER,GEN
(B) ASM PART: B = 8-98013-614-3 		1-81229-821-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		8-98047-088-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
(B) ASM PART: B = 8-98013-614-3 		8-98047-089-0 01 1 -
36 SCREW; FRT COVER
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-768-0 01 1 -
36 SCREW; FRT COVER
(B) ASM PART: B = 8-98013-614-3 		1-81229-814-0 01 1 -
40 PLATE; RR COVER
ASM PART: B = 8-98013-614-3 		1-81222-163-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-773-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-612-3, B = 8-98013-614-3, C = 8-98200-162-0 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(C) ASM PART: B = 8-98013-614-3 		1-81229-817-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: B = 8-98013-614-3 		1-81229-813-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 8-98013-612-3, B = 8-98013-614-3, C = 8-98200-162-0 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-767-0 01 1 -
127 BOLT SET; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-776-0 01 1 -
130 CONNECTOR; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81229-892-0 01 1 -
136 CLAMP; GENERATOR
ASM PART: A = 8-98013-612-3, B = 8-98013-614-3, C = 8-98200-162-0 		1-81229-775-0 01 1 -

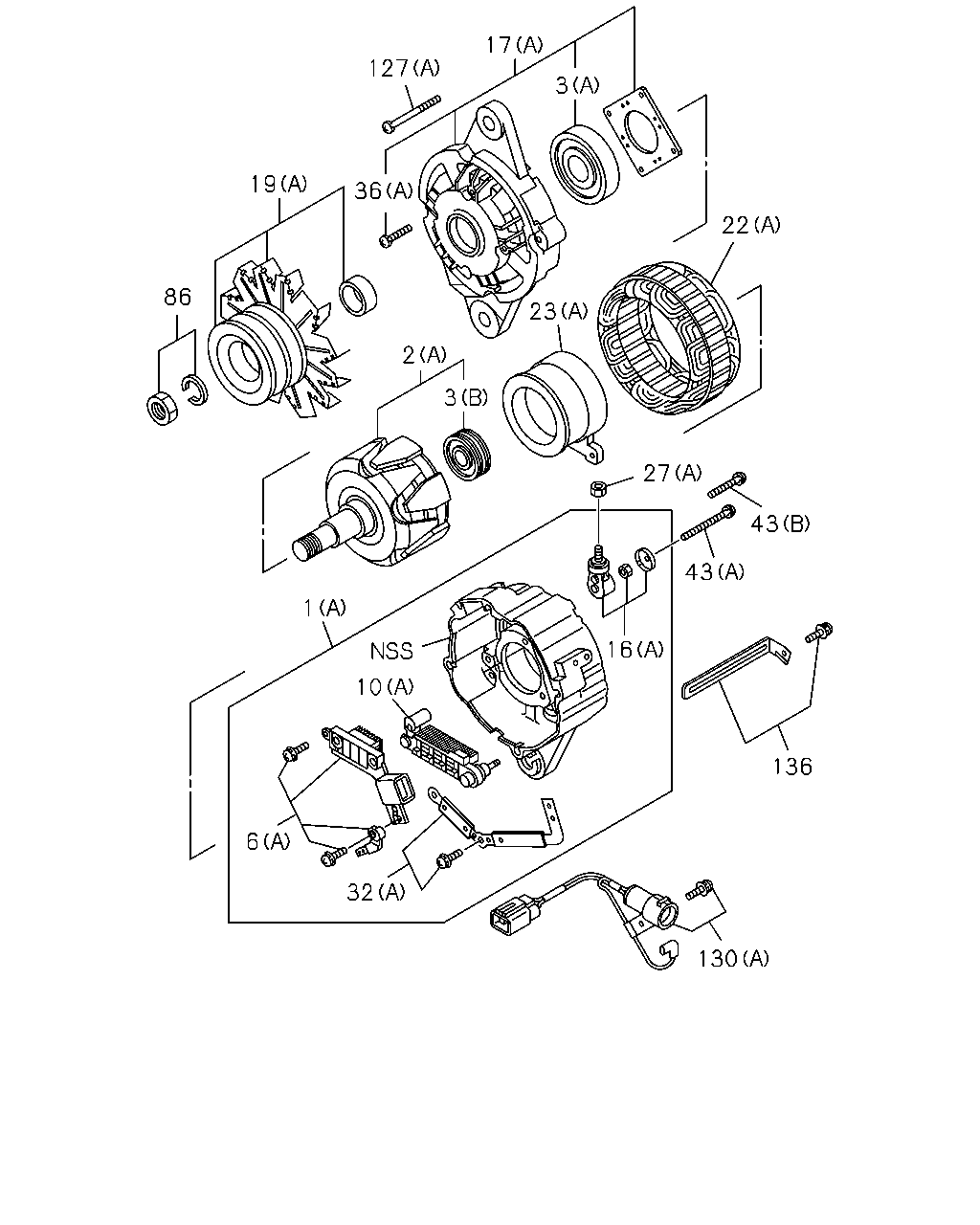

çizim 61365
17 127 3 19 36 22 86 23 2 3 27 43 43 1 16 10 136 6 32 130
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		8-98047-075-1 01 1 -
1 COVER ASM; RR,GEN
(B) ASM PART: B = 8-98013-614-3 		8-98047-076-1 01 1 -
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81221-102-0 01 1 -
2 ROTOR; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81221-106-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-769-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-770-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: B = 8-98013-614-3 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: B = 8-98013-614-3 		1-81229-816-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		8-98047-079-1 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(B) ASM PART: B = 8-98013-614-3 		8-98047-080-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		8-98047-082-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: B = 8-98013-614-3 		8-98047-083-0 01 1 -
10 RECTIFIER; GEN
(C) ASM PART: B = 8-98013-614-3 		8-98047-084-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-771-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
(B) ASM PART: B = 8-98013-614-3 		1-81229-806-0 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81213-101-0 01 1 -
17 COVER ASM; FRT,GEN
(B) ASM PART: B = 8-98013-614-3 		1-81213-115-1 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81222-130-2 01 1 -
19 PULLEY; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81222-149-3 01 1 -
22 STATOR; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81211-129-0 01 1 -
22 STATOR; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81211-132-1 01 1 -
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-612-3 		1-81212-016-0 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: B = 8-98013-614-3 		1-81212-025-1 01 1 -
23 COIL; ROTOR GEN
ASM PART: C = 8-98200-162-0 		8-98200-173-0 01 1 -
27 NUT; RECTIFIER,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-772-0 01 1 -
27 NUT; RECTIFIER,GEN
(B) ASM PART: B = 8-98013-614-3 		1-81229-821-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		8-98047-088-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
(B) ASM PART: B = 8-98013-614-3 		8-98047-089-0 01 1 -
36 SCREW; FRT COVER
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-768-0 01 1 -
36 SCREW; FRT COVER
(B) ASM PART: B = 8-98013-614-3 		1-81229-814-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-773-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-612-3, B = 8-98013-614-3, C = 8-98200-162-0 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(C) ASM PART: B = 8-98013-614-3 		1-81229-817-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 8-98013-612-3, B = 8-98013-614-3, C = 8-98200-162-0 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-767-0 01 1 -
127 BOLT SET; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
(A) ASM PART: A = 8-98013-612-3, C = 8-98200-162-0 		1-81229-776-0 01 1 -
130 CONNECTOR; GEN
(B) ASM PART: B = 8-98013-614-3 		1-81229-892-0 01 1 -
136 CLAMP; GENERATOR
ASM PART: A = 8-98013-612-3, B = 8-98013-614-3, C = 8-98200-162-0 		1-81229-775-0 01 1 -
