◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#150719) — 21 parça

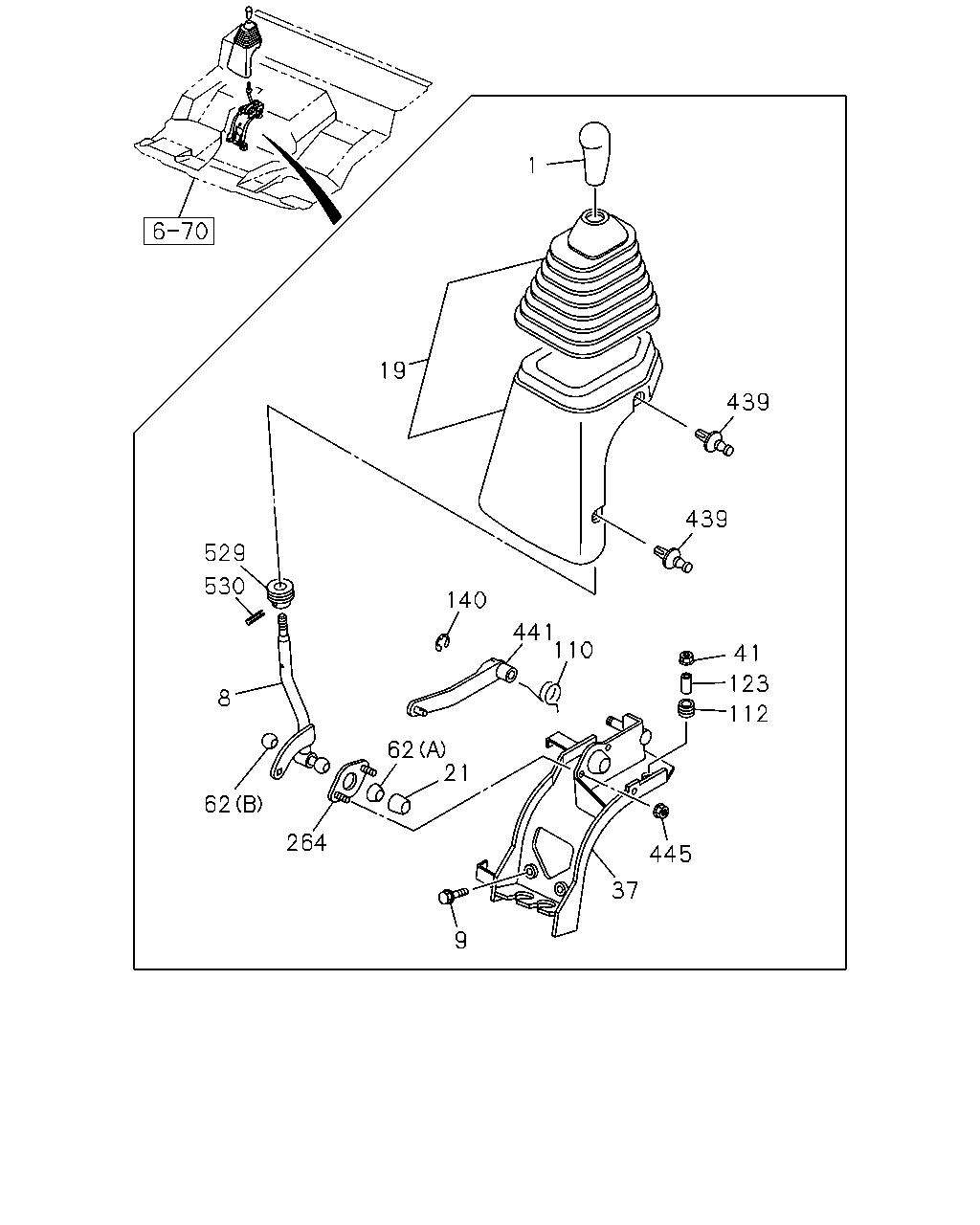

çizim 450238
1 19 439 439 41 123 112 445 37 9 264 62 8 530 529 62 21 110 441 140
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
MAL6R M/T<Y2J> THA 		1-33611-068-1 01 1 1410- ●
1 KNOB; CHANGE LEVER
MJT7U M/T<Y4X> THA 		1-33611-082-1 01 1 1410- ●
1 KNOB; CHANGE LEVER
ZF9S1310 M/T<Y5K> THA 		1-33611-099-1 01 1 1410- ● ●
8 LEVER; CHANGE
THA 		8-98079-299-0 01 1 1410- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER THA 		8-94412-342-0 02 1 1410- ● ●
19 COVER; CHANGE LEVER
GRAY THA 		8-97416-183-2 01 1 1410- ● ●
21 SEAT; CHANGE LEVER
THA 		1-33619-429-0 01 1 1410- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
THA 		8-98245-919-0 01 1 1410- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER THA 		8-97329-625-0 02 1 1410- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) THA 		1-33619-427-0 01 1 1410- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) THA 		8-97049-147-0 01 1 1410- ● ●
110 SPRING; RETURN,CHANGE LEVER
THA 		1-33619-435-0 01 1 1410- ● ●
112 RUBBER; CUSHION
THA 		1-33619-442-0 04 1 1410- ● ●
123 COLLAR; DIST,CHANGE LEVER
THA 		1-33619-443-0 04 1 1410- ● ●
140 RING; SNAP
ID=10 THA 		0-91805-510-0 01 1 1410- ● ●
264 PLATE; COVER
THA 		1-33619-430-0 01 1 1410- ● ●
439 FASTENER; COVER
GRAY THA 		8-97407-955-0 04 1 1410- ● ●
441 LEVER; SELECT
THA 		8-98079-302-0 01 1 1410- ● ●
445 NUT; PLATE
M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●
529 RING; BOOT
THA 		1-33619-504-0 01 1 1410- ● ●
530 PIN; SPRING
THA 		1-33619-505-0 01 1 1410- ● ●
