Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#150717) — 228 parça

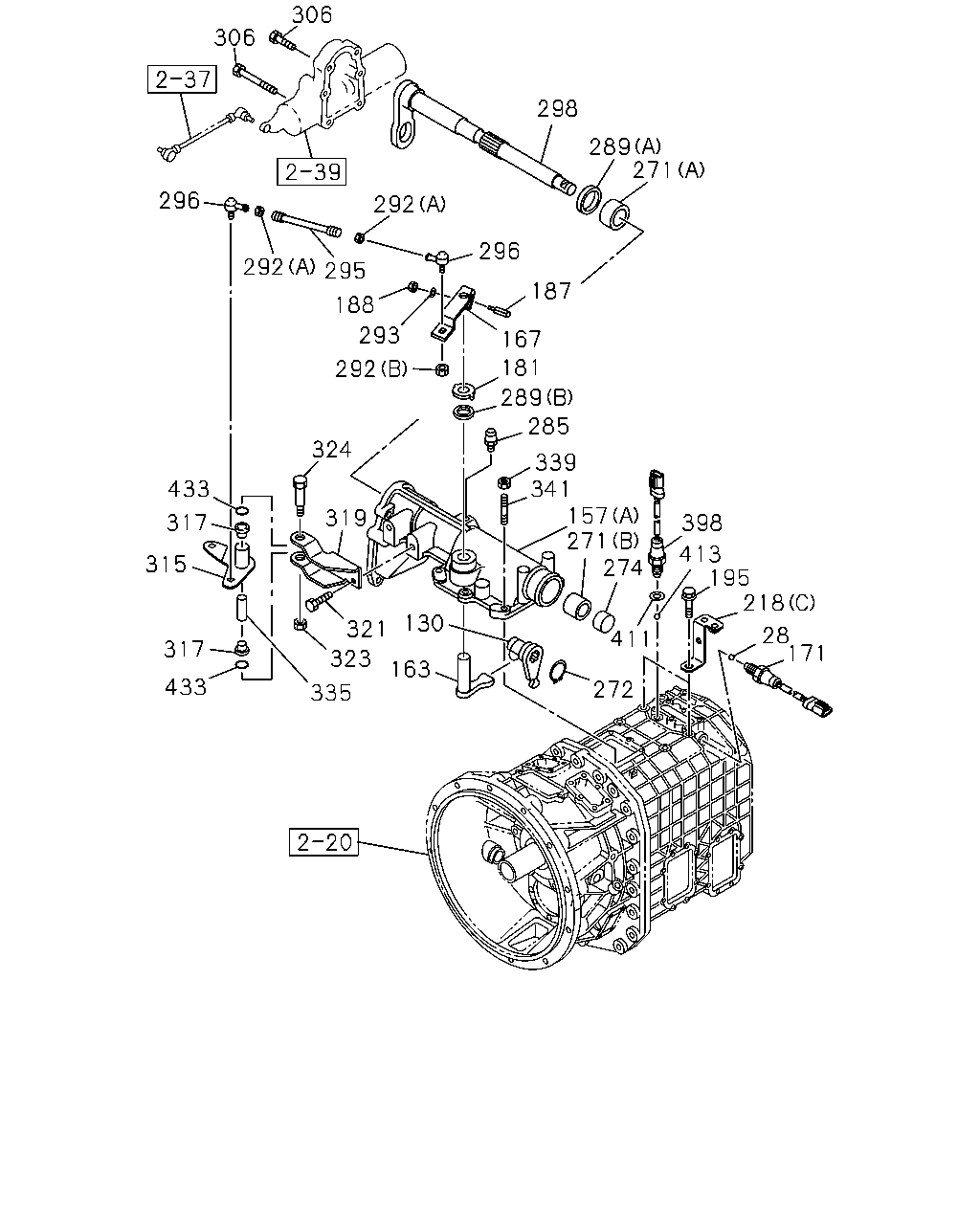

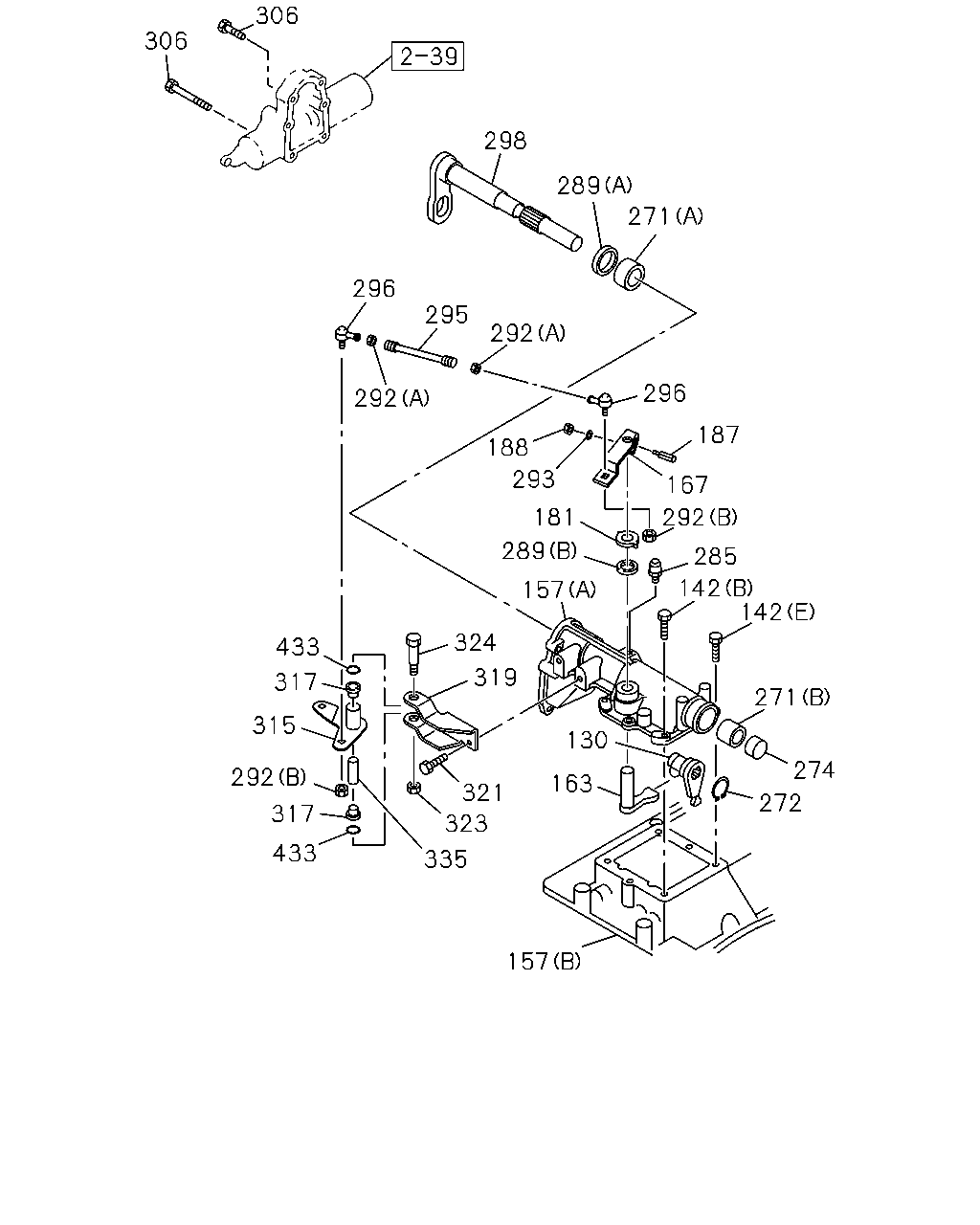

306 306 298 289 271 187 296 292 296 292 295 188 293 292 324 433 317 315 317 433 335 323 321 130 163 272 411 274 271 157 341 339 285 289 181 167 398 413 195 218 28 171 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK THA	9-00097-501-0	04	1	1410-	●	●
130	LEVER; SHIFT,INTERNAL THA	1-33521-124-0	01	1	1410-	●	●
157	BOX; QUAD,TRANS (B) THA	1-33541-345-2	01	1	1410-	●
157	BOX; QUAD,TRANS (A) THA	8-98231-390-0	01	1	1410-	●	●
163	LEVER; SELECT,INTERNAL THA	1-33522-162-1	01	1	1410-	●	●
167	LEVER; SELECT,EXTERNAL THA	1-33521-163-0	01	1	1410-	●	●
171	SWITCH; NEUTRAL THA	8-97640-725-0	01	1	1410-	●	●
181	WASHER; PL,SELECT LEVER OD=40 THA	1-09532-008-0	01	1	1410-	●	●
187	BOLT; SELECT LEVER M8X42 THA	1-33659-045-0	01	1	1410-	●	●
188	NUT; SELECT LEVER M8 FLANGE THA	1-09440-062-1	01	1	1410-	●	●
195	BOLT M10X25 FLANGE THA	0-28751-025-0	02	1	1410-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) THA	1-47475-689-0	01	1	1410-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B) THA	1-82699-425-0	01	1	1410-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C) THA	1-82699-639-1	02	1	1410-		●
271	BUSHING; QUAD BOX (B) ID=20 OD=23 THA	1-33549-016-0	01	1	1410-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32 THA	1-33549-104-0	01	1	1410-	●	●
272	RING; SNAP,QUAD BOX THA	1-09588-175-0	01	1	1410-	●	●
274	COVER; SHAFT,QUAD BOX THA	9-33545-017-1	01	1	1410-	●	●
285	BREATHER; AIR,QUAD BOX THA	1-33149-008-0	01	1	1410-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 THA	1-09625-386-0	01	1	1410-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 THA	1-09625-647-0	01	1	1410-	●	●
292	NUT; LINK ROD (A) M8 THA	0-91111-508-0	02	1	1410-	●	●
292	NUT; LINK ROD (B) M8 FLANGE THA	1-09440-062-1	02	1	1410-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22 THA	0-91610-708-0	01	1	1410-	●	●
295	ROD; LINK,RELAY LEVER THA	9-08400-816-0	01	1	1410-	●	●
296	ROD END THA	1-09760-108-0	02	1	1410-	●	●
298	SHAFT; SHIFT LEVER THA	1-33522-180-0	01	1	1410-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE THA	0-28151-045-0	02	1	1410-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE THA	0-28151-080-0	04	1	1410-	●	●
315	LEVER; SELECT THA	8-98097-127-0	01	1	1410-	●	●
317	BUSHING; LEVER THA	1-09330-119-0	02	1	1410-	●	●
319	BRACKET; SELECT LEVER THA	1-33657-753-0	01	1	1410-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE THA	0-28181-022-0	02	1	1410-	●	●
323	NUT; LK,SELECT LEVER THA	1-33659-219-0	01	1	1410-	●	●
324	BOLT; SHAFT M10X60 FLANGE THA	0-28051-060-0	01	1	1410-	●	●
335	COLLAR; DIST,RELAY LEVER ASM THA	1-33659-220-0	01	1	1410-	●	●
339	NUT; QUAD BOX M10 FLANGE THA	0-91180-210-0	06	1	1410-		●
341	STUD; QUAD BOX M10X25 L=40 THA	0-44011-025-0	06	1	1410-		●
398	SWITCH; REV LAMP THA	1-82440-082-0	01	1	1410-	●
398	SWITCH; REV LAMP THA	8-98228-482-0	01	1	1410-		●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 THA	8-94462-114-0	01	1	1410-		●
413	BALL; BACK SW THA	9-00097-013-0	01	1	1410-		●
433	GASKET; BUSHING THA	1-09623-636-0	02	1	1410-	●	●

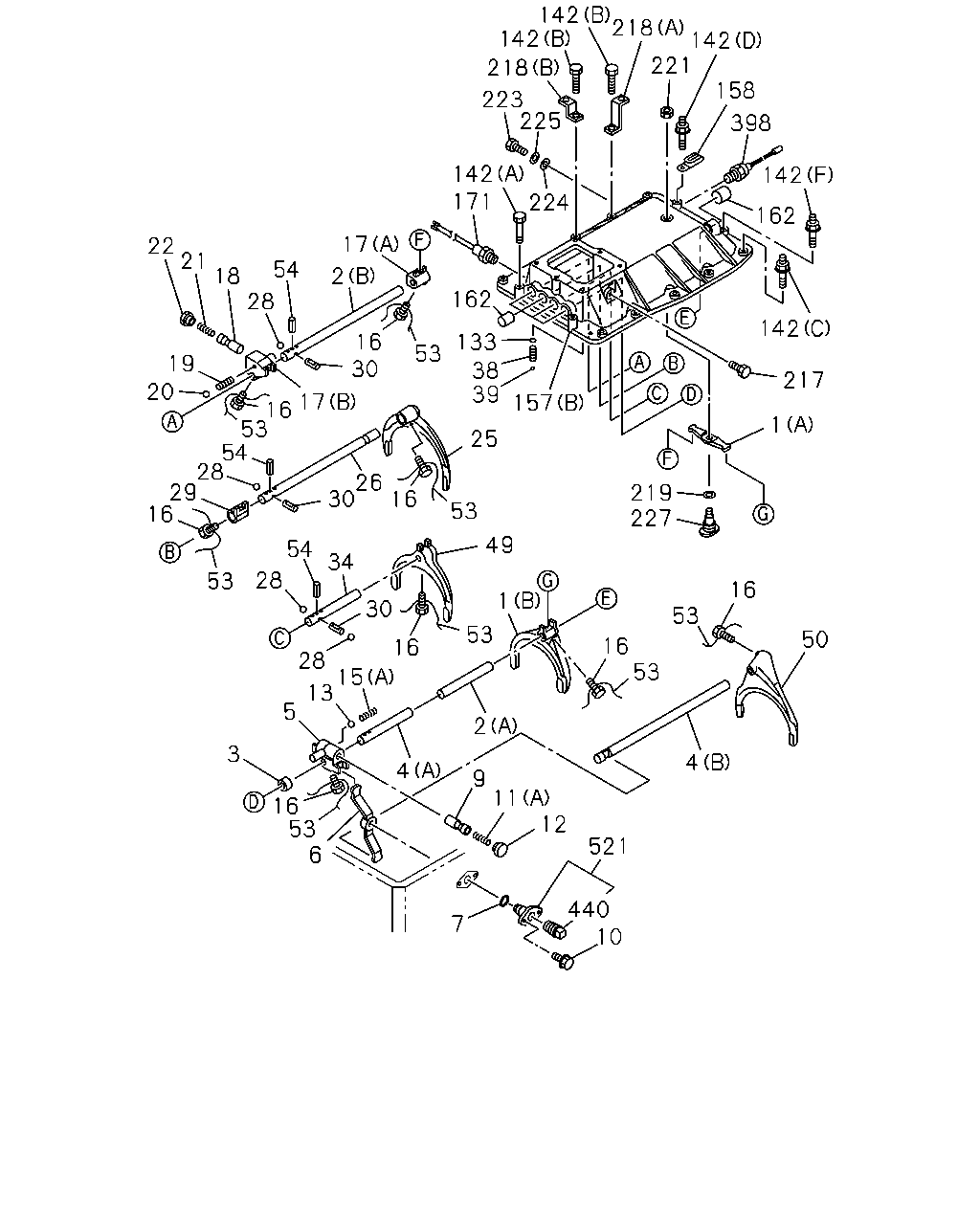

142 142 218 218 223 221 225 142 158 142 398 142 162 224 171 142 217 1 219 157 227 25 39 38 133 162 17 2 53 16 17 30 54 28 18 21 22 19 20 16 53 54 28 29 16 53 28 30 54 26 34 16 49 53 30 28 15 13 5 3 16 1 53 2 4 16 53 6 11 9 12 521 440 10 7 4 16 50 53 16 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (B) THA	1-33511-458-0	01	1	1410-	●
1	ARM; SHIFT,1ST & REV (A) THA	1-33511-541-0	01	1	1410-	●
1	ARM; SHIFT,1ST & REV (C) THA	1-33511-579-0	01	1	1410-		●
2	ROD; SHIFT,1ST & REV (A) THA	1-33531-400-1	01	1	1410-	●
2	ROD; SHIFT,1ST & REV (B) THA	1-33531-415-1	01	1	1410-	●
2	ROD; SHIFT,1ST & REV (A) THA	1-33531-438-0	01	1	1410-		●
2	ROD; SHIFT,1ST & REV (B) THA	1-33531-456-0	01	1	1410-		●
3	STOPPER; 6TH SHIFT ROD THA	9-33537-018-0	01	1	1410-	●
4	ROD; SHIFT,6TH (A) THA	1-33531-405-1	01	1	1410-	●
4	ROD; SHIFT,6TH (B) THA	1-33531-407-1	01	1	1410-	●
4	ROD; SHIFT,6TH (A) THA	1-33531-443-1	01	1	1410-		●
4	ROD; SHIFT,6TH (B) THA	1-33531-445-0	01	1	1410-		●
5	BLOCK; SHIFT,6TH THA	1-33511-372-2	01	1	1410-	●
6	LEVER; RELAY THA	9-33511-402-1	01	1	1410-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 THA	1-09623-057-0	01	1	1410-	●
9	SLEEVE; 6TH,SHIFT BLOCK THA	1-33516-022-1	01	1	1410-	●
10	BOLT; SPINDLE M14X20 THA	1-09044-078-0	02	1	1410-	●
11	SPRING; RETURN,SHIFT SLEEVE (A) THA	9-09941-160-0	01	1	1410-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B) THA	1-09580-444-0	01	1	1410-		●
12	CAP; RETURN SPR,SHIFT BLOCK THA	1-33516-003-1	01	1	1410-	●
12	CAP; RETURN SPR,SHIFT BLOCK THA	1-33516-039-1	01	1	1410-		●
13	BALL; LK,SHIFT SLEEVE THA	9-00097-509-0	01	1	1410-	●	●
15	SPRING; LK,SHIFT SLEEVE (A) THA	9-09941-007-0	01	1	1410-	●	●
15	SPRING; LK,SHIFT SLEEVE (B) THA	1-09580-439-0	01	1	1410-		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE THA	1-09052-038-0	08	1	1410-	●
17	BLOCK; SHIFT,1ST & REV (B) THA	1-33511-298-4	01	1	1410-	●
17	BLOCK; SHIFT,1ST & REV (A) THA	1-33511-540-0	01	1	1410-	●
17	BLOCK; SHIFT,1ST & REV (A) THA	1-33511-202-3	01	1	1410-		●
17	BLOCK; SHIFT,1ST & REV (B) THA	1-33511-552-1	01	1	1410-		●
17	BLOCK; SHIFT,1ST & REV (C) THA	1-33511-557-0	02	1	1410-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK THA	1-33516-022-1	01	1	1410-	●	●
19	SPRING; COIL COMP THA	1-09580-438-0	01	1	1410-	●
20	BALL; DETENT SLEEVE THA	9-00097-509-0	01	1	1410-	●	●
21	SPRING; COIL COMP SLEEVE THA	1-09580-444-0	01	1	1410-	●
22	CAP; RETURN SPR,SHIFT BLOCK THA	1-33516-003-1	01	1	1410-	●
22	CAP; RETURN SPR,SHIFT BLOCK THA	1-33516-039-1	01	1	1410-		●
25	ARM; SHIFT,2ND & 3RD THA	1-33511-440-0	01	1	1410-	●
25	ARM; SHIFT,2ND & 3RD THA	1-33511-435-0	01	1	1410-		●
26	ROD; SHIFT,2ND & 3RD THA	1-33531-401-1	01	1	1410-	●
26	ROD; SHIFT,2ND & 3RD THA	1-33531-440-1	01	1	1410-		●
28	BALL; INTER LK THA	9-00097-501-0	04	1	1410-	●	●
29	BLOCK; SHIFT,2ND & 3RD THA	1-33511-376-1	01	1	1410-	●	●
30	PIN; INTER LK THA	9-33534-003-0	03	1	1410-	●	●
34	ROD; SHIFT,4TH & 5TH ARM THA	1-33531-402-1	01	1	1410-	●
38	SPRING; DETENT THA	1-09580-379-0	04	1	1410-	●	●
39	BALL; DETENT THA	1-09843-012-0	04	1	1410-	●	●
49	ARM; SHIFT,4TH & 5TH THA	1-33511-461-0	01	1	1410-	●
49	ARM; SHIFT,4TH & 5TH THA	1-33511-466-1	01	1	1410-		●
50	ARM; SHIFT,6TH THA	1-33511-185-3	01	1	1410-	●
50	ARM; SHIFT,6TH THA	1-33511-550-0	01	1	1410-		●
53	WIRE; BOLT L=180 THA	1-09780-024-0	06	1	1410-	●
53	WIRE; BOLT L=200 THA	9-08351-020-0	02	1	1410-	●
54	PIN; SPR,SHIFT BLOCK THA	1-09748-014-0	03	1	1410-	●	●
133	SEAT; SPR THA	1-33549-072-0	04	1	1410-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER THA	8-97365-375-0	02	1	1410-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE THA	8-97365-449-0	02	1	1410-	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56 THA	8-98010-334-0	03	1	1410-	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75 THA	8-98010-335-0	01	1	1410-	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85 THA	8-98032-017-0	01	1	1410-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE THA	8-98044-944-0	11	1	1410-	●
157	BOX; QUAD,TRANS (B) THA	1-33541-345-2	01	1	1410-	●
157	BOX; QUAD,TRANS (A) THA	8-98231-390-0	01	1	1410-	●	●
158	CLIP; HARNESS L=36 THA	8-94224-891-1	01	1	1410-	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31 THA	9-33545-011-1	05	1	1410-	●
171	SWITCH; NEUTRAL THA	8-97640-725-0	01	1	1410-	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5 THA	9-09814-533-0	01	1	1410-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) THA	1-47475-689-0	01	1	1410-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B) THA	1-82699-425-0	01	1	1410-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C) THA	1-82699-639-1	02	1	1410-		●
219	WASHER; PL,SPINDLE ID=16.5 THA	9-09857-042-0	01	1	1410-	●
221	NUT; SPINDLE M12 FLANGE THA	0-91180-212-0	01	1	1410-	●
223	SCREW; SET,QUAD BOX M14X45 THA	9-09816-057-1	01	1	1410-	●
224	WASHER; PL,QUAD BOX ID=15 THA	0-91610-514-0	01	1	1410-	●
225	WASHER; LK,QUAD BOX ID=14.2 THA	0-91510-514-0	01	1	1410-	●
227	SPINDLE; 1ST & REV THA	1-33519-012-0	01	1	1410-	●
227	SPINDLE; 1ST & REV THA	1-33519-104-0	01	1	1410-		●
398	SWITCH; REV LAMP THA	1-82440-082-0	01	1	1410-	●
398	SWITCH; REV LAMP THA	8-98228-482-0	01	1	1410-		●
440	PLUG; OIL PT1/4 THA	9-99204-513-0	01	1	1410-	●
521	SPINDLE; 6TH THA	1-33119-255-0	01	1	1410-	●

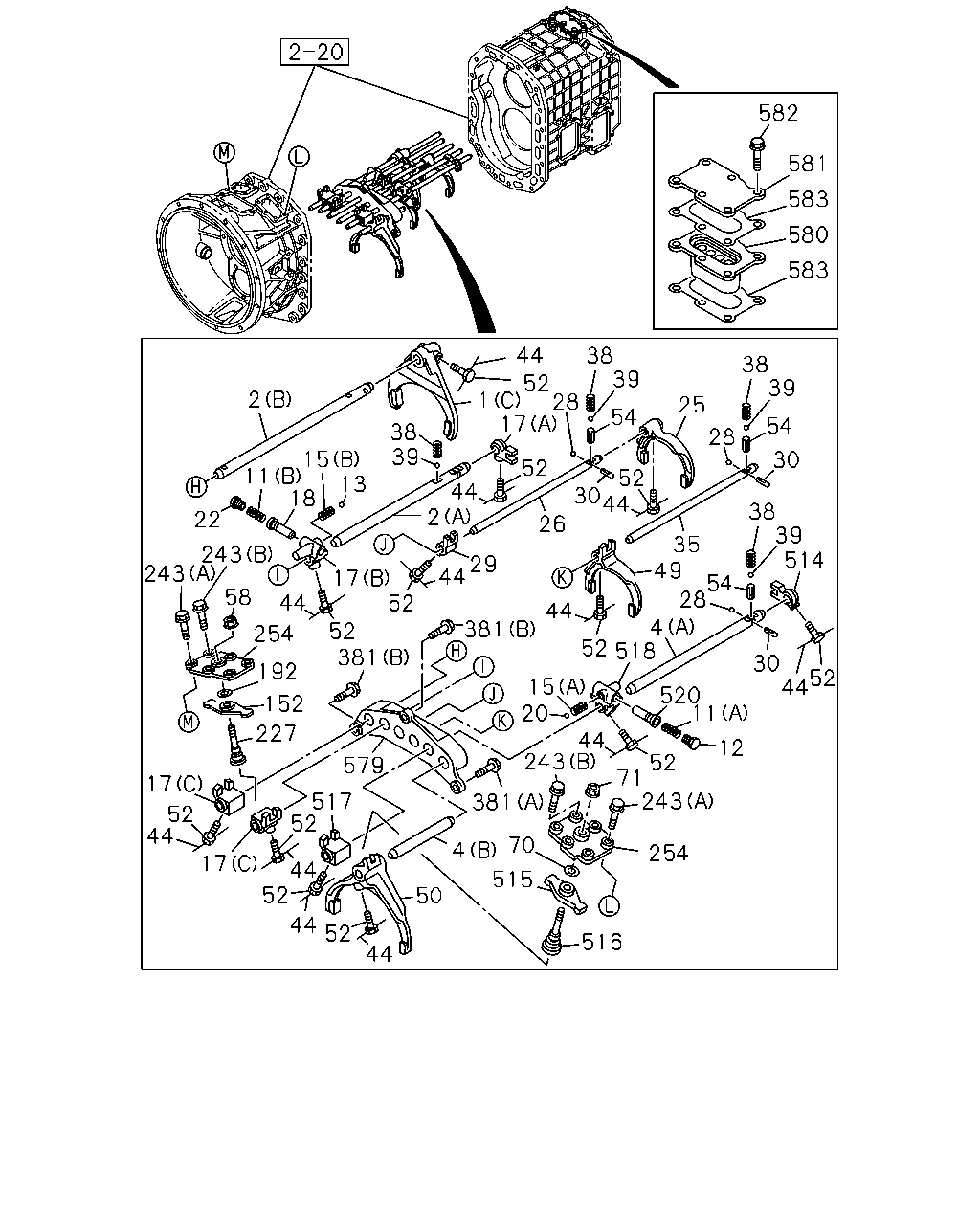

582 581 583 580 583 2 22 243 243 11 15 18 13 38 39 1 44 52 28 17 38 39 54 25 38 39 54 30 28 38 39 514 54 35 49 28 518 52 44 26 30 44 52 52 44 2 29 44 52 381 52 17 44 58 254 192 152 227 17 52 44 17 52 52 517 579 44 44 52 44 50 4 381 70 515 516 254 243 52 12 11 520 44 52 30 4 15 20 243 44 71 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (B) THA	1-33511-458-0	01	1	1410-	●
1	ARM; SHIFT,1ST & REV (A) THA	1-33511-541-0	01	1	1410-	●
1	ARM; SHIFT,1ST & REV (C) THA	1-33511-579-0	01	1	1410-		●
2	ROD; SHIFT,1ST & REV (A) THA	1-33531-400-1	01	1	1410-	●
2	ROD; SHIFT,1ST & REV (B) THA	1-33531-415-1	01	1	1410-	●
2	ROD; SHIFT,1ST & REV (A) THA	1-33531-438-0	01	1	1410-		●
2	ROD; SHIFT,1ST & REV (B) THA	1-33531-456-0	01	1	1410-		●
4	ROD; SHIFT,6TH (A) THA	1-33531-405-1	01	1	1410-	●
4	ROD; SHIFT,6TH (B) THA	1-33531-407-1	01	1	1410-	●
4	ROD; SHIFT,6TH (A) THA	1-33531-443-1	01	1	1410-		●
4	ROD; SHIFT,6TH (B) THA	1-33531-445-0	01	1	1410-		●
11	SPRING; RETURN,SHIFT SLEEVE (A) THA	9-09941-160-0	01	1	1410-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B) THA	1-09580-444-0	01	1	1410-		●
12	CAP; RETURN SPR,SHIFT BLOCK THA	1-33516-003-1	01	1	1410-	●
12	CAP; RETURN SPR,SHIFT BLOCK THA	1-33516-039-1	01	1	1410-		●
13	BALL; LK,SHIFT SLEEVE THA	9-00097-509-0	01	1	1410-	●	●
15	SPRING; LK,SHIFT SLEEVE (A) THA	9-09941-007-0	01	1	1410-	●	●
15	SPRING; LK,SHIFT SLEEVE (B) THA	1-09580-439-0	01	1	1410-		●
17	BLOCK; SHIFT,1ST & REV (B) THA	1-33511-298-4	01	1	1410-	●
17	BLOCK; SHIFT,1ST & REV (A) THA	1-33511-540-0	01	1	1410-	●
17	BLOCK; SHIFT,1ST & REV (A) THA	1-33511-202-3	01	1	1410-		●
17	BLOCK; SHIFT,1ST & REV (B) THA	1-33511-552-1	01	1	1410-		●
17	BLOCK; SHIFT,1ST & REV (C) THA	1-33511-557-0	02	1	1410-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK THA	1-33516-022-1	01	1	1410-	●	●
20	BALL; DETENT SLEEVE THA	9-00097-509-0	01	1	1410-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK THA	1-33516-003-1	01	1	1410-	●
22	CAP; RETURN SPR,SHIFT BLOCK THA	1-33516-039-1	01	1	1410-		●
25	ARM; SHIFT,2ND & 3RD THA	1-33511-440-0	01	1	1410-	●
25	ARM; SHIFT,2ND & 3RD THA	1-33511-435-0	01	1	1410-		●
26	ROD; SHIFT,2ND & 3RD THA	1-33531-401-1	01	1	1410-	●
26	ROD; SHIFT,2ND & 3RD THA	1-33531-440-1	01	1	1410-		●
28	BALL; INTER LK THA	9-00097-501-0	04	1	1410-	●	●
29	BLOCK; SHIFT,2ND & 3RD THA	1-33511-376-1	01	1	1410-	●	●
30	PIN; INTER LK THA	9-33534-003-0	03	1	1410-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK THA	1-33531-442-1	01	1	1410-		●
38	SPRING; DETENT THA	1-09580-379-0	04	1	1410-	●	●
39	BALL; DETENT THA	1-09843-012-0	04	1	1410-	●	●
44	WIRE; LK L=180 THA	1-09780-024-0	10	1	1410-		●
44	WIRE; LK L=200 THA	9-08351-020-0	02	1	1410-		●
49	ARM; SHIFT,4TH & 5TH THA	1-33511-461-0	01	1	1410-	●
49	ARM; SHIFT,4TH & 5TH THA	1-33511-466-1	01	1	1410-		●
50	ARM; SHIFT,6TH THA	1-33511-185-3	01	1	1410-	●
50	ARM; SHIFT,6TH THA	1-33511-550-0	01	1	1410-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE THA	1-09052-038-0	12	1	1410-		●
54	PIN; SPR,SHIFT BLOCK THA	1-09748-014-0	03	1	1410-	●	●
58	NUT M12 FLANGE THA	0-91180-212-0	01	1	1410-		●
70	WASHER; PL,SHIFT LEVER ID=16.5 THA	9-09857-042-0	01	1	1410-		●
71	NUT; SHIFT LEVER M12 FLANGE THA	0-91180-212-0	01	1	1410-		●
152	LEVER; RELAY,SELECT THA	1-33511-560-1	01	1	1410-		●
192	WASHER; PL ID=16.5 THA	9-09857-042-0	01	1	1410-		●
227	SPINDLE; 1ST & REV THA	1-33519-012-0	01	1	1410-	●
227	SPINDLE; 1ST & REV THA	1-33519-104-0	01	1	1410-		●
243	BOLT; COVER (A) M10X30 FLANGE THA	0-28151-030-0	08	1	1410-		●
243	BOLT; COVER (B) M10X28 FLANGE REAMER THA	8-97365-375-0	04	1	1410-		●
254	COVER; LEVER THA	1-33141-054-0	02	1	1410-		●
381	BOLT (A) M10X35 FLANGE THA	0-28751-035-0	01	1	1410-		●
381	BOLT (B) M10X34 FLANGE REAMER THA	1-09040-091-1	02	1	1410-		●
514	BLOCK; 6-7 SETTING THA	1-33511-605-0	01	1	1410-		●
515	LEVER; SHIFT,6TH & 7TH THA	1-33511-560-1	01	1	1410-		●
516	SPINDLE; 6TH & 7TH THA	1-33519-104-0	01	1	1410-		●
517	BLOCK; SHIFT,6TH & 7TH THA	1-33511-557-0	01	1	1410-		●
518	BLOCK ASM; SHIFT,6TH & 7TH THA	1-33511-558-1	01	1	1410-		●
520	SLEEVE; 6TH & 7TH THA	1-33516-022-1	01	1	1410-		●
579	BLOCK; SHIFT,ROD GUIDE THA	1-33539-065-1	01	1	1410-		●
580	BLOCK; INTERLOCK THA	1-33539-064-1	01	1	1410-		●
581	COVER; BLOCK THA	1-33141-056-0	01	1	1410-		●
582	BOLT; SPRING GUIDE M10X35 FLANGE THA	0-28151-035-0	06	1	1410-		●
583	GASKET; SPRING GUIDE THA	1-33142-047-0	02	1	1410-		●

306 306 298 271 289 296 292 295 292 188 296 293 187 167 181 289 292 157 285 142 142 324 319 433 317 315 292 317 433 335 321 323 163 130 271 274 272 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL THA	1-33521-124-0	01	1	1410-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER THA	8-97365-375-0	02	1	1410-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE THA	8-97365-449-0	02	1	1410-	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56 THA	8-98010-334-0	03	1	1410-	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75 THA	8-98010-335-0	01	1	1410-	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85 THA	8-98032-017-0	01	1	1410-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE THA	8-98044-944-0	11	1	1410-	●
157	BOX; QUAD,TRANS (B) THA	1-33541-345-2	01	1	1410-	●
157	BOX; QUAD,TRANS (A) THA	8-98231-390-0	01	1	1410-	●	●
163	LEVER; SELECT,INTERNAL THA	1-33522-162-1	01	1	1410-	●	●
167	LEVER; SELECT,EXTERNAL THA	1-33521-163-0	01	1	1410-	●	●
181	WASHER; PL,SELECT LEVER OD=40 THA	1-09532-008-0	01	1	1410-	●	●
187	BOLT; SELECT LEVER M8X42 THA	1-33659-045-0	01	1	1410-	●	●
188	NUT; SELECT LEVER M8 FLANGE THA	1-09440-062-1	01	1	1410-	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23 THA	1-33549-016-0	01	1	1410-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32 THA	1-33549-104-0	01	1	1410-	●	●
272	RING; SNAP,QUAD BOX THA	1-09588-175-0	01	1	1410-	●	●
274	COVER; SHAFT,QUAD BOX THA	9-33545-017-1	01	1	1410-	●	●
285	BREATHER; AIR,QUAD BOX THA	1-33149-008-0	01	1	1410-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 THA	1-09625-386-0	01	1	1410-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 THA	1-09625-647-0	01	1	1410-	●	●
292	NUT; LINK ROD (A) M8 THA	0-91111-508-0	02	1	1410-	●	●
292	NUT; LINK ROD (B) M8 FLANGE THA	1-09440-062-1	02	1	1410-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22 THA	0-91610-708-0	01	1	1410-	●	●
295	ROD; LINK,RELAY LEVER THA	9-08400-816-0	01	1	1410-	●	●
296	ROD END THA	1-09760-108-0	02	1	1410-	●	●
298	SHAFT; SHIFT LEVER THA	1-33522-180-0	01	1	1410-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE THA	0-28151-045-0	02	1	1410-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE THA	0-28151-080-0	04	1	1410-	●	●
315	LEVER; SELECT THA	8-98097-127-0	01	1	1410-	●	●
317	BUSHING; LEVER THA	1-09330-119-0	02	1	1410-	●	●
319	BRACKET; SELECT LEVER THA	1-33657-753-0	01	1	1410-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE THA	0-28181-022-0	02	1	1410-	●	●
323	NUT; LK,SELECT LEVER THA	1-33659-219-0	01	1	1410-	●	●
324	BOLT; SHAFT M10X60 FLANGE THA	0-28051-060-0	01	1	1410-	●	●
335	COLLAR; DIST,RELAY LEVER ASM THA	1-33659-220-0	01	1	1410-	●	●
433	GASKET; BUSHING THA	1-09623-636-0	02	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
