Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#150712) — 71 parça

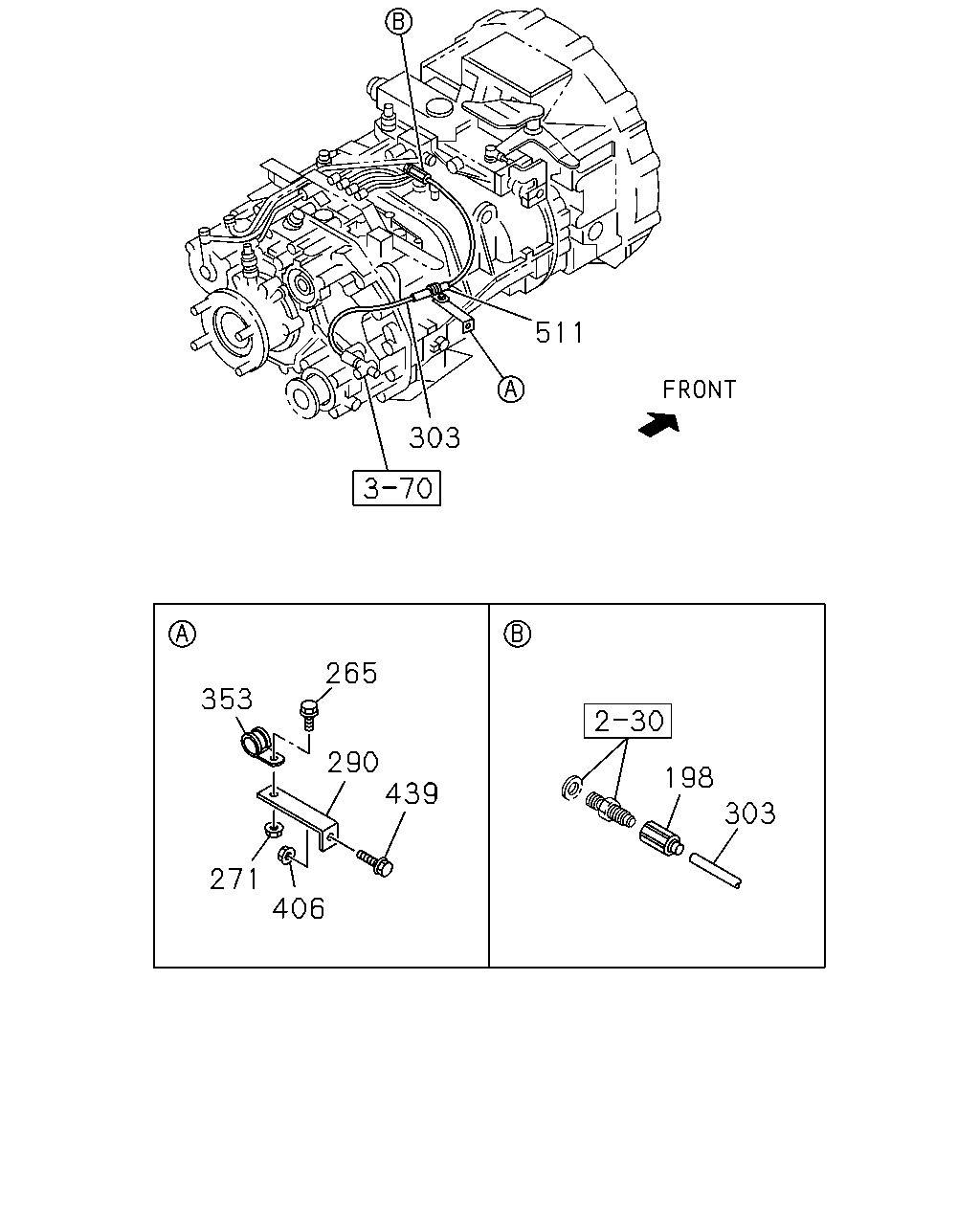

511 303 353 265 290 439 271 406 198 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
198	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1410-
265	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
271	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1410-
290	BRACKET; CLIP L=95 THA	1-82699-085-0	01	1	1410-
303	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	01	1	1410-
353	CLIP; NYLON TUBE ID=18 L=28 THA	1-09701-067-0	01	1	1410-
406	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1410-
439	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	01	1	1410-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

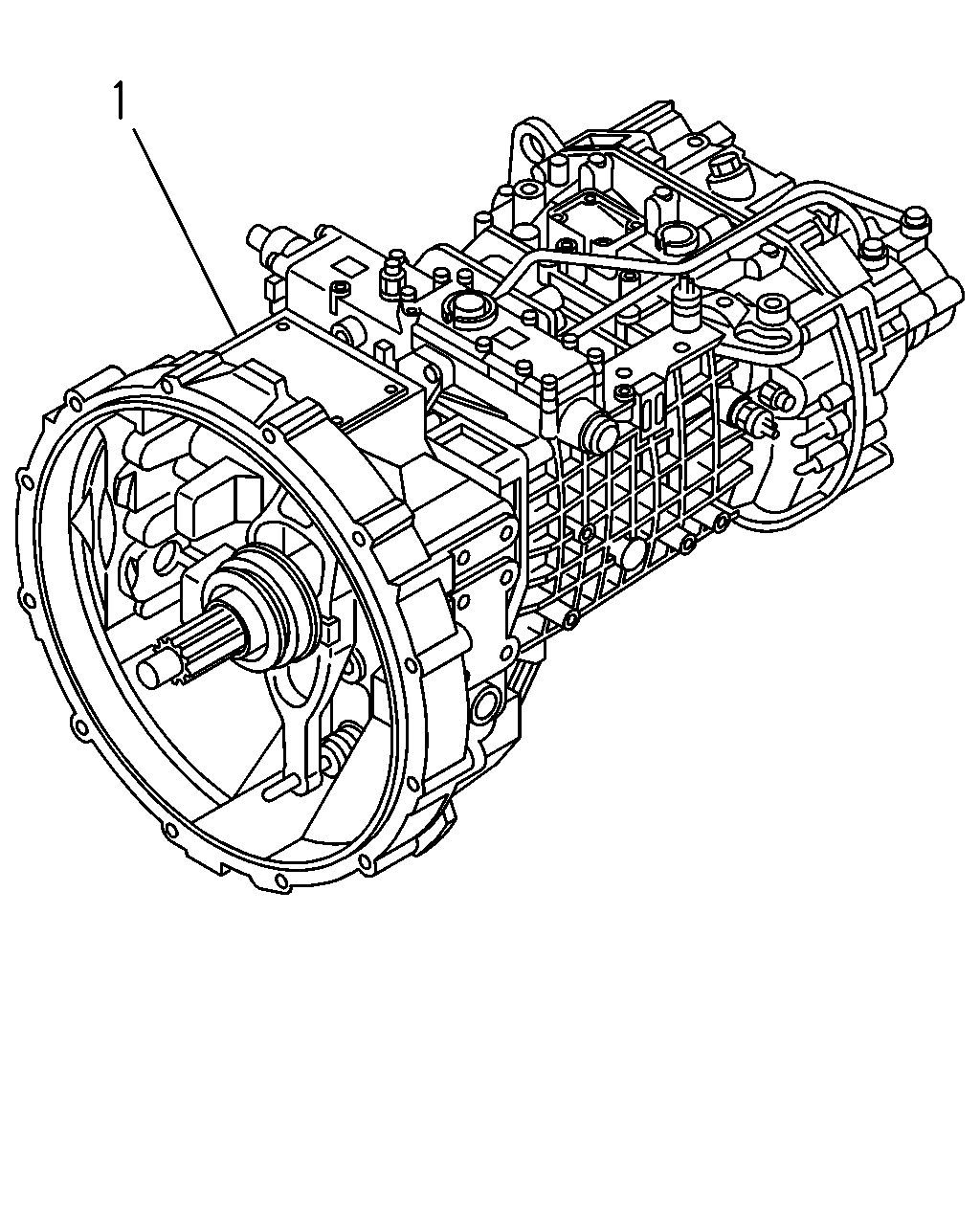

	1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR<BDM> THA	8-98167-318-1	01	1	1410-
	1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR<BDM> THA	8-98167-317-1	01	1	1410-

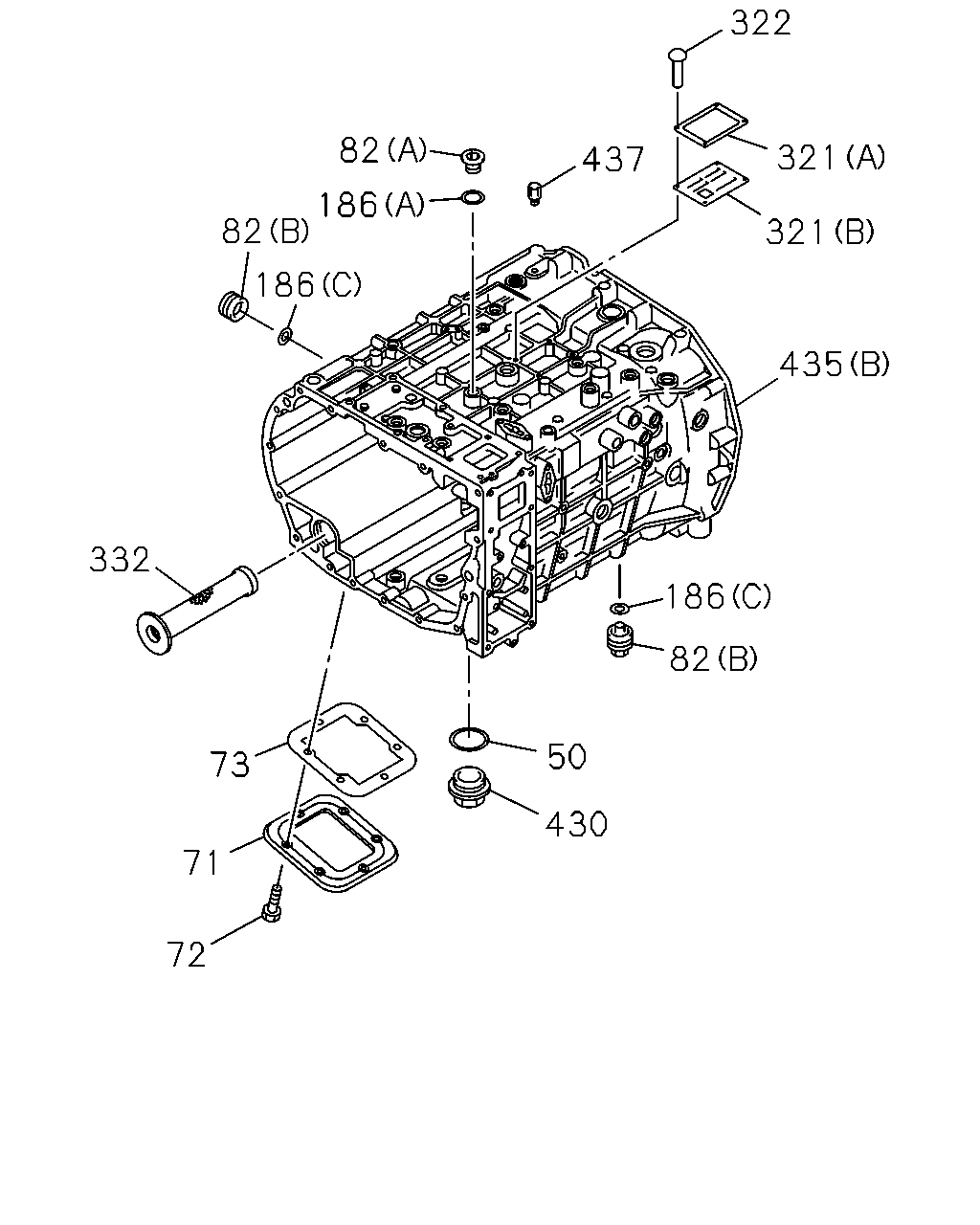

82 186 82 186 332 73 71 72 430 50 82 186 435 321 321 437 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). THA	1-33119-293-0	01	1	1410-
71	COVER; SIDE,TRANS CASE THA	1-33119-622-0	01	1	1410-
72	BOLT; SIDE COVER M10X22 THA	1-33119-592-0	06	1	1410-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). THA	1-33119-237-0	01	1	1410-
82	PLUG; SCREW,CASE (C) THA	1-33119-618-0	02	1	1410-
82	PLUG; SCREW,CASE (A) THA	1-33119-619-0	01	1	1410-
82	PLUG; SCREW,CASE (B) THA	1-33119-620-0	02	1	1410-
186	RING; SEAL (A) THA	1-33119-249-0	01	1	1410-
186	RING; SEAL (B) THA	1-33119-286-0	02	1	1410-
186	RING; SEAL (C) THA	1-33119-435-0	02	1	1410-
321	PLATE; NAME (A) THA	1-33119-519-0	01	1	1410-
321	PLATE; NAME (B) THA	1-33119-520-0	01	1	1410-
322	RIVET; NAME PLATE THA	1-33119-617-0	04	1	1410-
332	FILTER; OIL THA	1-33119-437-0	01	1	1410-
430	PLUG; OIL DRAIN THA	1-33119-621-0	01	1	1410-
435	CASE; TRANS (B) THA	1-33111-372-0	01	1	1410-
435	CASE; TRANS (A) THA	1-33111-380-0	01	1	1410-
437	BREATHER; TRANS THA	1-36122-006-0	01	1	1410-

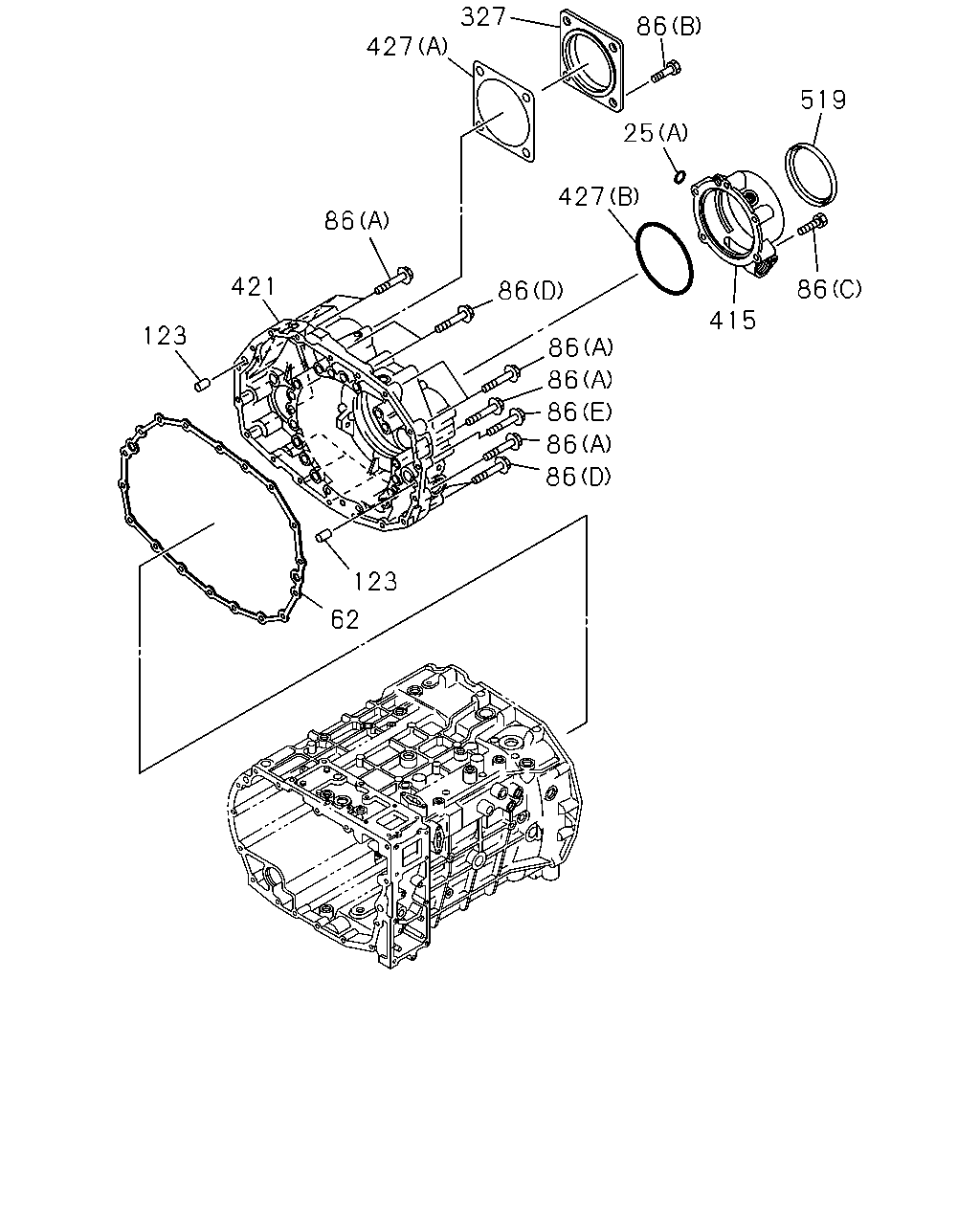

62 123 123 421 86 427 327 25 86 427 86 86 86 86 86 86 415 86 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (B) THA	8-98138-242-0	01	1	1410-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (A) THA	1-33139-060-0	01	1	1410-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). THA	1-33132-087-0	01	1	1410-
86	BOLT; RR COVER (A) M10X70 THA	1-33119-616-0	12	1	1410-
86	BOLT; RR COVER (D) M10X110 THA	1-33139-235-0	05	1	1410-
86	BOLT; RR COVER (E) M10X50 THA	1-33139-236-0	01	1	1410-
86	BOLT; RR COVER (C) M10X60 THA	1-33139-237-0	05	1	1410-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR<BDM> (B) M12X25 THA	1-33119-594-0	04	1	1410-
123	DOWEL; TRANS CASE THA	1-33119-292-0	04	1	1410-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR<BDM> THA	1-33131-273-0	01	1	1410-
415	COVER; BRG THA	1-33131-269-0	01	1	1410-
421	COVER; RR,TRANS THA	1-33131-275-0	01	1	1410-
427	GASKET; RR COVER (B) THA	1-33132-088-0	01	1	1410-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR<BDM> (A) THA	1-33132-054-0	01	1	1410-
519	GASKET; SHAFT THA	1-33139-059-0	01	1	1410-

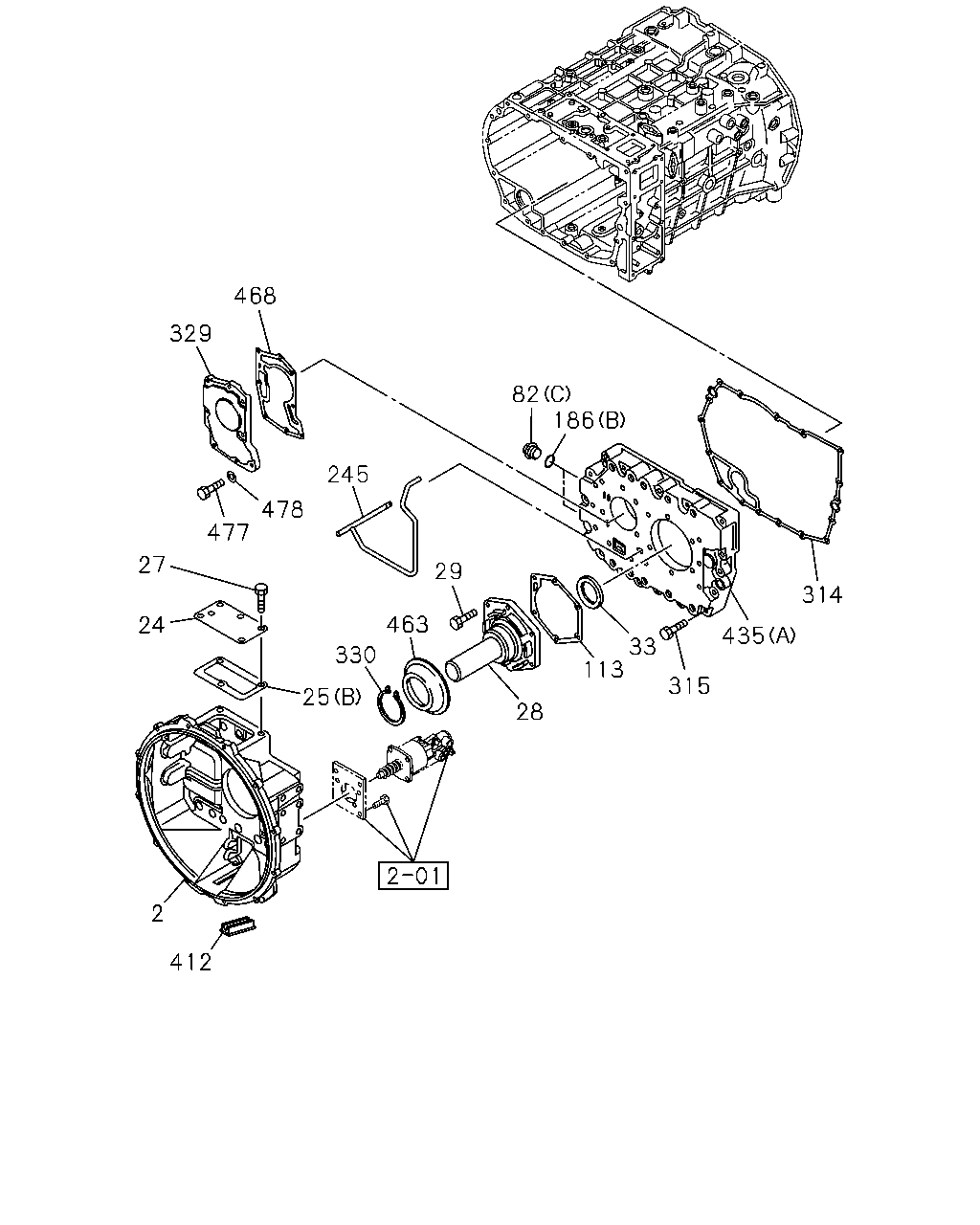

468 329 477 478 245 82 186 29 463 330 25 24 27 2 412 28 113 33 315 435 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU THA	1-31111-232-0	01	1	1410-
24	COVER; CHECK HOLE,DUST THA	1-31119-061-0	01	1	1410-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (B) THA	8-98138-242-0	01	1	1410-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (A) THA	1-33139-060-0	01	1	1410-
27	BOLT; COVER TO CLU HSG THA	1-31119-058-0	03	1	1410-
28	COVER; FRT,TRANS CASE THA	1-33121-167-0	01	1	1410-
29	BOLT; FRT COVER M8X30 THA	1-33549-581-0	06	1	1410-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	1-33219-321-0	01	1	1410-
82	PLUG; SCREW,CASE (C) THA	1-33119-618-0	02	1	1410-
82	PLUG; SCREW,CASE (A) THA	1-33119-619-0	01	1	1410-
82	PLUG; SCREW,CASE (B) THA	1-33119-620-0	02	1	1410-
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). THA	1-33122-024-0	01	1	1410-
186	RING; SEAL (A) THA	1-33119-249-0	01	1	1410-
186	RING; SEAL (B) THA	1-33119-286-0	02	1	1410-
186	RING; SEAL (C) THA	1-33119-435-0	02	1	1410-
245	PIPE; OIL THA	1-33119-517-0	01	1	1410-
314	GASKET; CASE THA	1-33112-052-0	01	1	1410-
315	BOLT; CASE M10X70 THA	1-33119-616-0	17	1	1410-
329	PUMP ASM; OIL THA	1-34150-123-0	01	1	1410-
330	RING; RET THA	1-33129-005-0	01	1	1410-
412	CAP; CLU HSG THA	1-31119-015-0	01	1	1410-
435	CASE; TRANS (B) THA	1-33111-372-0	01	1	1410-
435	CASE; TRANS (A) THA	1-33111-380-0	01	1	1410-
463	COVER; DUST,FRT COVER THA	1-33129-018-0	01	1	1410-
468	GASKET; OIL PUMP THA	1-34159-122-0	01	1	1410-
477	BOLT; OIL PUMP M8X30 THA	1-33549-581-0	08	1	1410-
478	WASHER; LK,OIL PUMP THA	1-33549-583-0	08	1	1410-
