2-20A — MANUAL TRANSMISSION ASM AND CASE (#150711) — 119 parça

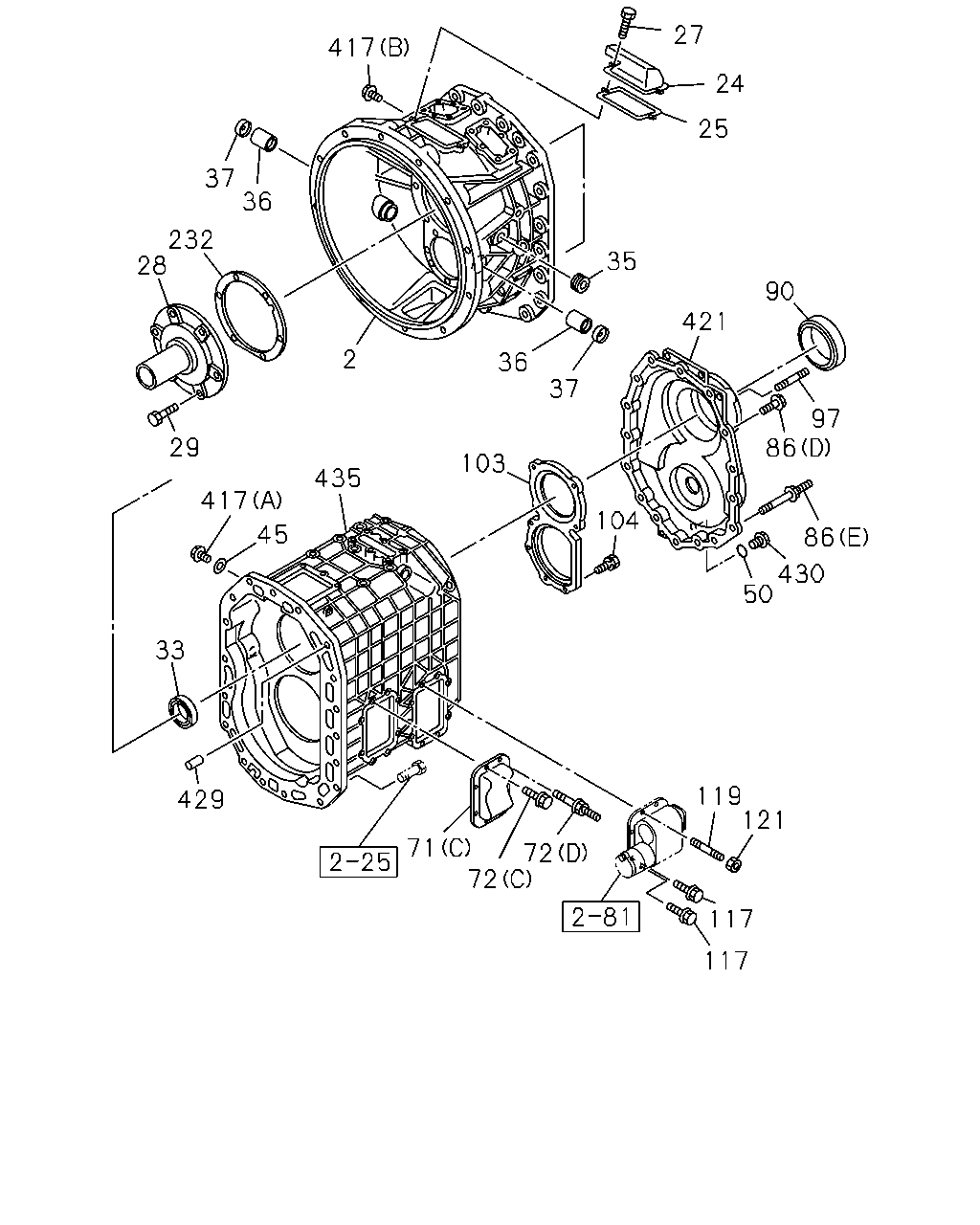

417 27 24 25 90 421 35 37 36 103 104 86 97 86 430 50 119 121 117 117 72 72 71 429 33 45 417 435 2 29 28 232 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU THA	8-98077-167-1	01	1	1410-	●
24	COVER; CHECK HOLE,DUST THA	1-31131-037-0	01	1	1410-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). THA	8-98283-291-0	01	1	1410-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	04	1	1410-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	04	1	1410-	●
28	COVER; FRT,TRANS CASE THA	1-33121-063-2	01	1	1410-		●
28	COVER; FRT,TRANS CASE THA	1-33121-159-2	01	1	1410-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER THA	8-97365-375-0	05	1	1410-		●
29	BOLT; FRT COVER M10X40 FLANGE THA	8-98230-249-0	06	1	1410-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	1-09625-562-0	01	1	1410-	●	●
35	GROMMET; CLU HSG THA	9-09575-796-0	01	1	1410-	●	●
36	BEARING; NEEDLE,CLU HSG THA	1-09811-087-0	02	1	1410-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T). THA	1-09625-003-0	02	1	1410-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 THA	1-09623-058-0	01	1	1410-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 THA	1-09623-058-0	01	1	1410-	●	●
71	COVER; SIDE,TRANS CASE (A) THA	1-33141-030-1	01	1	1410-		●
71	COVER; SIDE,TRANS CASE (C) THA	1-33141-057-1	01	1	1410-	●
71	COVER; SIDE,TRANS CASE (B) THA	1-33141-058-0	01	1	1410-	●
72	BOLT; SIDE COVER (A) M10X16 FLANGE THA	0-28151-016-0	08	1	1410-		●
72	BOLT; SIDE COVER (B) M10X30 FLANGE THA	0-28151-030-0	04	1	1410-	●
72	BOLT; SIDE COVER (C) M12X40 FLANGE THA	0-28151-240-0	07	1	1410-	●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7 THA	1-09029-082-0	01	1	1410-	●
86	BOLT; RR COVER (C) M17X35 THA	1-09044-076-0	08	1	1410-		●
86	BOLT; RR COVER (B) M12X65 FLANGE THA	1-09044-113-0	02	1	1410-		●
86	BOLT; RR COVER (A) M10X16,M12X30 L=57.7 THA	1-09049-018-0	03	1	1410-		●
86	BOLT; RR COVER (D) M12X40 FLANGE THA	0-28151-240-0	14	1	1410-	●
86	BOLT; RR COVER (E) M10X16,M12X40 L=67.7 THA	1-09029-082-0	02	1	1410-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). THA	1-09625-578-1	01	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). THA	1-09625-577-1	01	1	1410-	●
97	STUD; PARKING BRK M16X41 L=62 THA	1-09302-151-0	01	1	1410-	●	●
103	RETAINER; BRG THA	9-33151-014-0	01	1	1410-		●
103	RETAINER; BRG THA	1-33151-059-0	01	1	1410-	●
104	BOLT; BRG RET M10X25 THA	1-09049-006-1	08	1	1410-		●
104	BOLT; BRG RET M10X38 FLANGE THA	1-09049-029-1	08	1	1410-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12X35 FLANGE THA	0-28151-235-0	02	1	1410-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12X130 FLANGE THA	0-28166-213-0	02	1	1410-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12X25 L=43 THA	0-44011-225-0	04	1	1410-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 FLANGE THA	0-91180-212-0	04	1	1410-	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T). THA	1-33142-051-1	01	1	1410-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE THA	1-09604-022-0	01	1	1410-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12 THA	1-09604-035-0	01	1	1410-	●
421	COVER; RR,TRANS THA	1-33131-192-2	01	1	1410-		●
421	COVER; RR,TRANS THA	8-98191-936-1	01	1	1410-	●
429	PIN; STRAIGHT OD=8 L=16 THA	9-08150-816-0	02	1	1410-		●
429	PIN; STRAIGHT OD=10 L=18 THA	9-08151-018-0	06	1	1410-	●
430	PLUG; OIL DRAIN M24X17 FLANGE THA	1-09604-023-0	01	1	1410-	●	●
435	CASE; TRANS THA	1-33111-330-0	01	1	1410-		●
435	CASE; TRANS THA	8-98132-970-0	01	1	1410-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

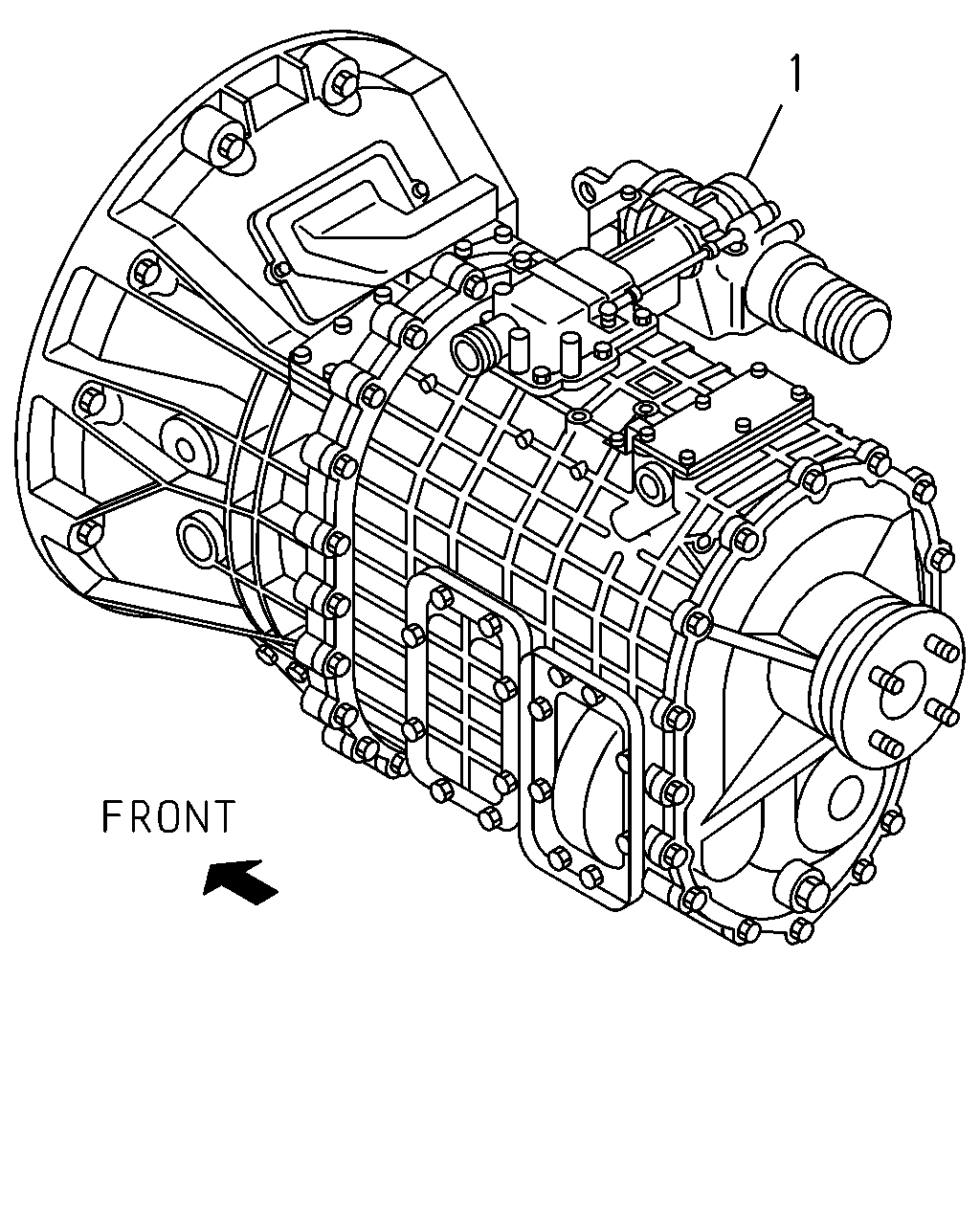

	1	TRANSMISSION ASM; MANUAL THA	1-33044-147-0	01	1	1410-		●
	1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	1-33044-472-0	01	1	1410-	●

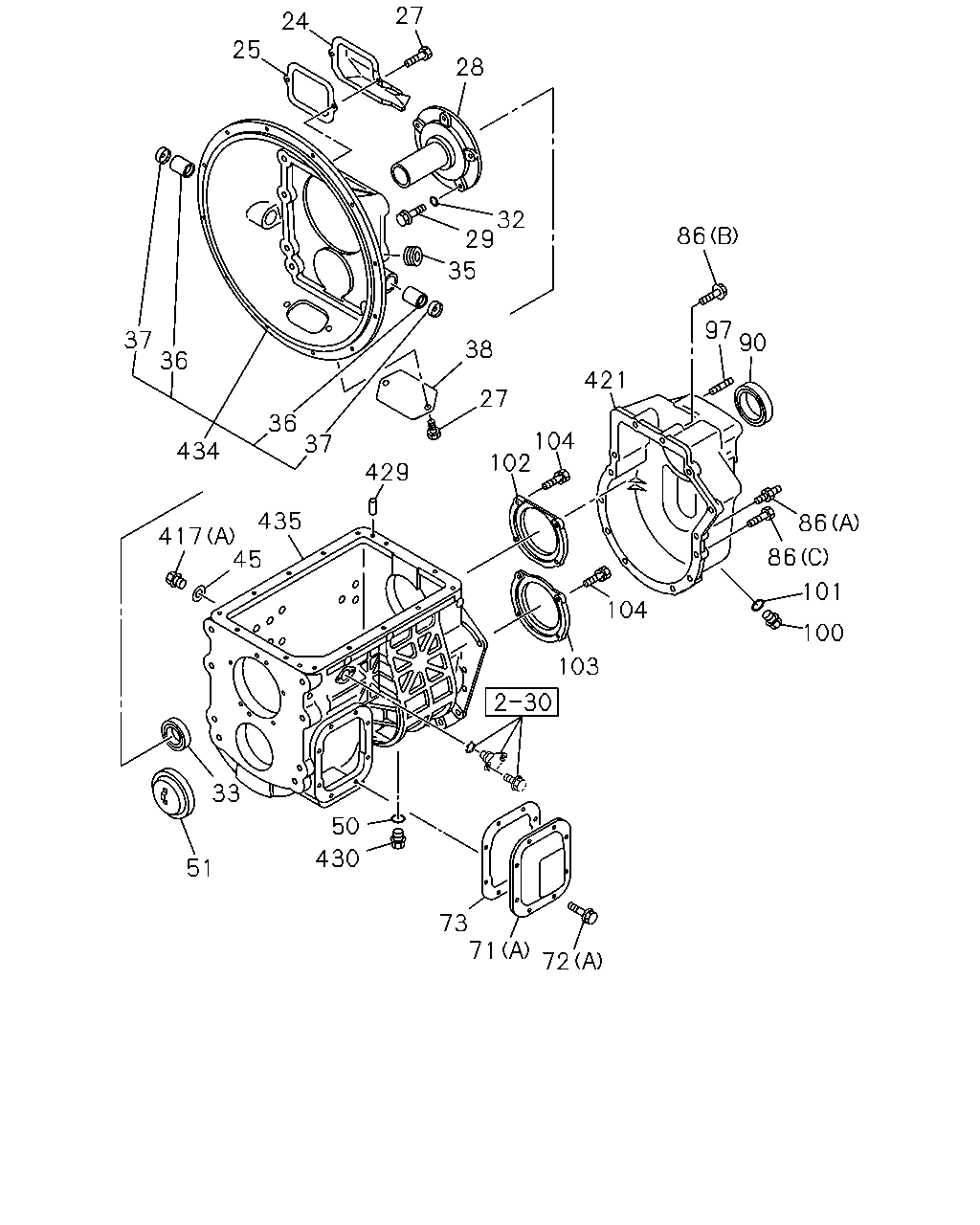

25 24 27 28 32 29 35 37 36 36 37 434 417 435 45 429 27 38 102 104 421 86 97 90 86 86 101 100 104 103 50 430 73 71 72 51 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST THA	1-31131-037-0	01	1	1410-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). THA	8-98283-291-0	01	1	1410-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	04	1	1410-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	04	1	1410-	●
28	COVER; FRT,TRANS CASE THA	1-33121-063-2	01	1	1410-		●
28	COVER; FRT,TRANS CASE THA	1-33121-159-2	01	1	1410-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER THA	8-97365-375-0	05	1	1410-		●
29	BOLT; FRT COVER M10X40 FLANGE THA	8-98230-249-0	06	1	1410-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10 THA	1-09623-369-0	05	1	1410-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	1-09625-562-0	01	1	1410-	●	●
35	GROMMET; CLU HSG THA	9-09575-796-0	01	1	1410-	●	●
36	BEARING; NEEDLE,CLU HSG THA	1-09811-087-0	02	1	1410-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T). THA	1-09625-003-0	02	1	1410-	●	●
38	COVER; CHECK HOLE,LWR THA	1-31131-003-0	01	1	1410-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 THA	1-09623-058-0	01	1	1410-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 THA	1-09623-058-0	01	1	1410-	●	●
51	COVER; SEAL,COUNTER,FRT THA	1-33319-195-1	01	1	1410-		●
71	COVER; SIDE,TRANS CASE (A) THA	1-33141-030-1	01	1	1410-		●
71	COVER; SIDE,TRANS CASE (C) THA	1-33141-057-1	01	1	1410-	●
71	COVER; SIDE,TRANS CASE (B) THA	1-33141-058-0	01	1	1410-	●
72	BOLT; SIDE COVER (A) M10X16 FLANGE THA	0-28151-016-0	08	1	1410-		●
72	BOLT; SIDE COVER (B) M10X30 FLANGE THA	0-28151-030-0	04	1	1410-	●
72	BOLT; SIDE COVER (C) M12X40 FLANGE THA	0-28151-240-0	07	1	1410-	●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7 THA	1-09029-082-0	01	1	1410-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). THA	1-33142-043-0	01	1	1410-		●
86	BOLT; RR COVER (C) M17X35 THA	1-09044-076-0	08	1	1410-		●
86	BOLT; RR COVER (B) M12X65 FLANGE THA	1-09044-113-0	02	1	1410-		●
86	BOLT; RR COVER (A) M10X16,M12X30 L=57.7 THA	1-09049-018-0	03	1	1410-		●
86	BOLT; RR COVER (D) M12X40 FLANGE THA	0-28151-240-0	14	1	1410-	●
86	BOLT; RR COVER (E) M10X16,M12X40 L=67.7 THA	1-09029-082-0	02	1	1410-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). THA	1-09625-578-1	01	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). THA	1-09625-577-1	01	1	1410-	●
97	STUD; PARKING BRK M16X41 L=62 THA	1-09302-151-0	01	1	1410-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE THA	1-09604-023-0	01	1	1410-		●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 THA	1-09623-058-0	01	1	1410-		●
102	RETAINER; BRG UPR,MAINSHAFT THA	1-33151-020-1	01	1	1410-		●
103	RETAINER; BRG THA	9-33151-014-0	01	1	1410-		●
103	RETAINER; BRG THA	1-33151-059-0	01	1	1410-	●
104	BOLT; BRG RET M10X25 THA	1-09049-006-1	08	1	1410-		●
104	BOLT; BRG RET M10X38 FLANGE THA	1-09049-029-1	08	1	1410-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE THA	1-09604-022-0	01	1	1410-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12 THA	1-09604-035-0	01	1	1410-	●
421	COVER; RR,TRANS THA	1-33131-192-2	01	1	1410-		●
421	COVER; RR,TRANS THA	8-98191-936-1	01	1	1410-	●
429	PIN; STRAIGHT OD=8 L=16 THA	9-08150-816-0	02	1	1410-		●
429	PIN; STRAIGHT OD=10 L=18 THA	9-08151-018-0	06	1	1410-	●
430	PLUG; OIL DRAIN M24X17 FLANGE THA	1-09604-023-0	01	1	1410-	●	●
434	HOUSING; CLU THA	1-31110-218-1	01	1	1410-		●
435	CASE; TRANS THA	1-33111-330-0	01	1	1410-		●
435	CASE; TRANS THA	8-98132-970-0	01	1	1410-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

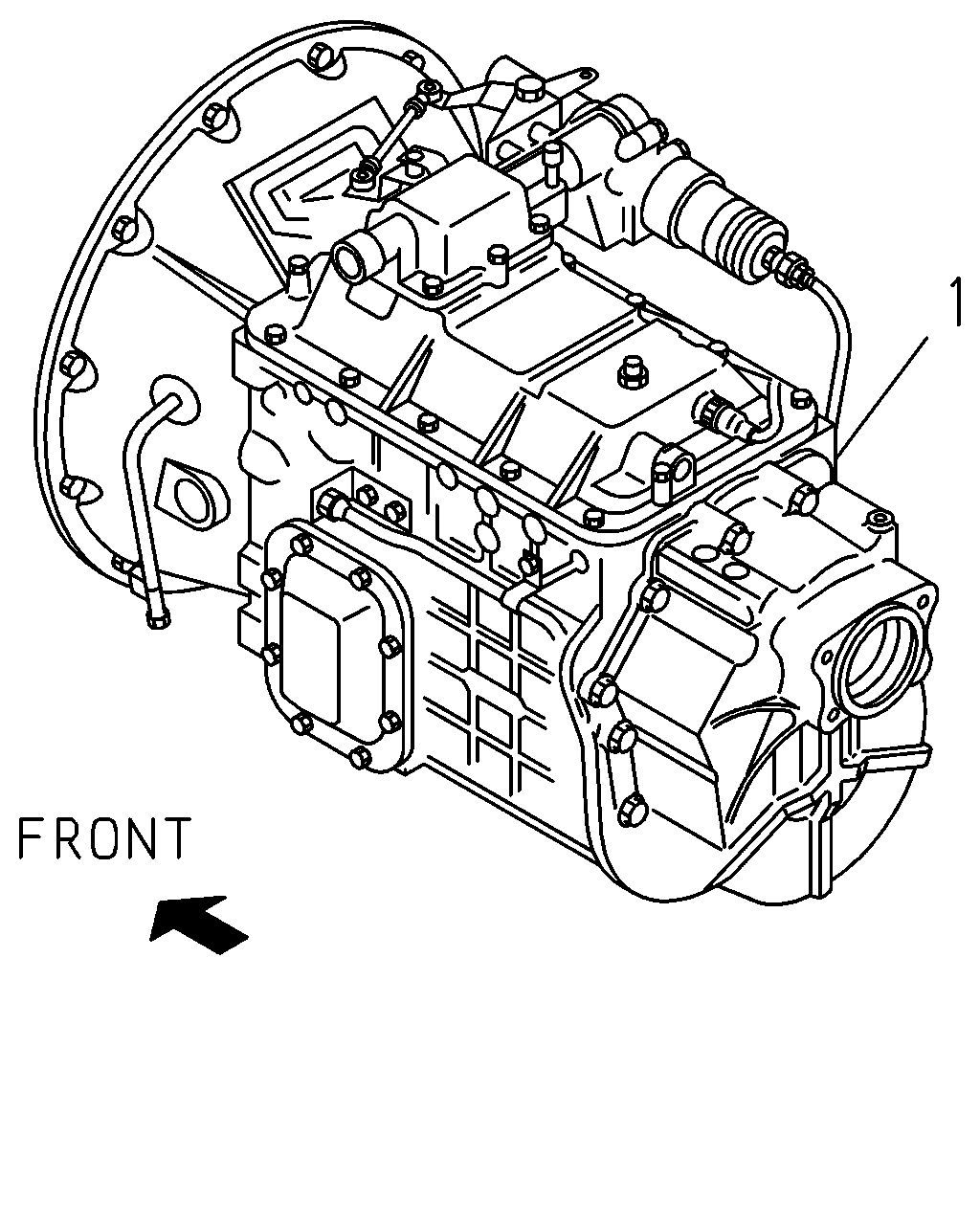

	1	TRANSMISSION ASM; MANUAL THA	1-33044-147-0	01	1	1410-		●
	1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	1-33044-472-0	01	1	1410-	●

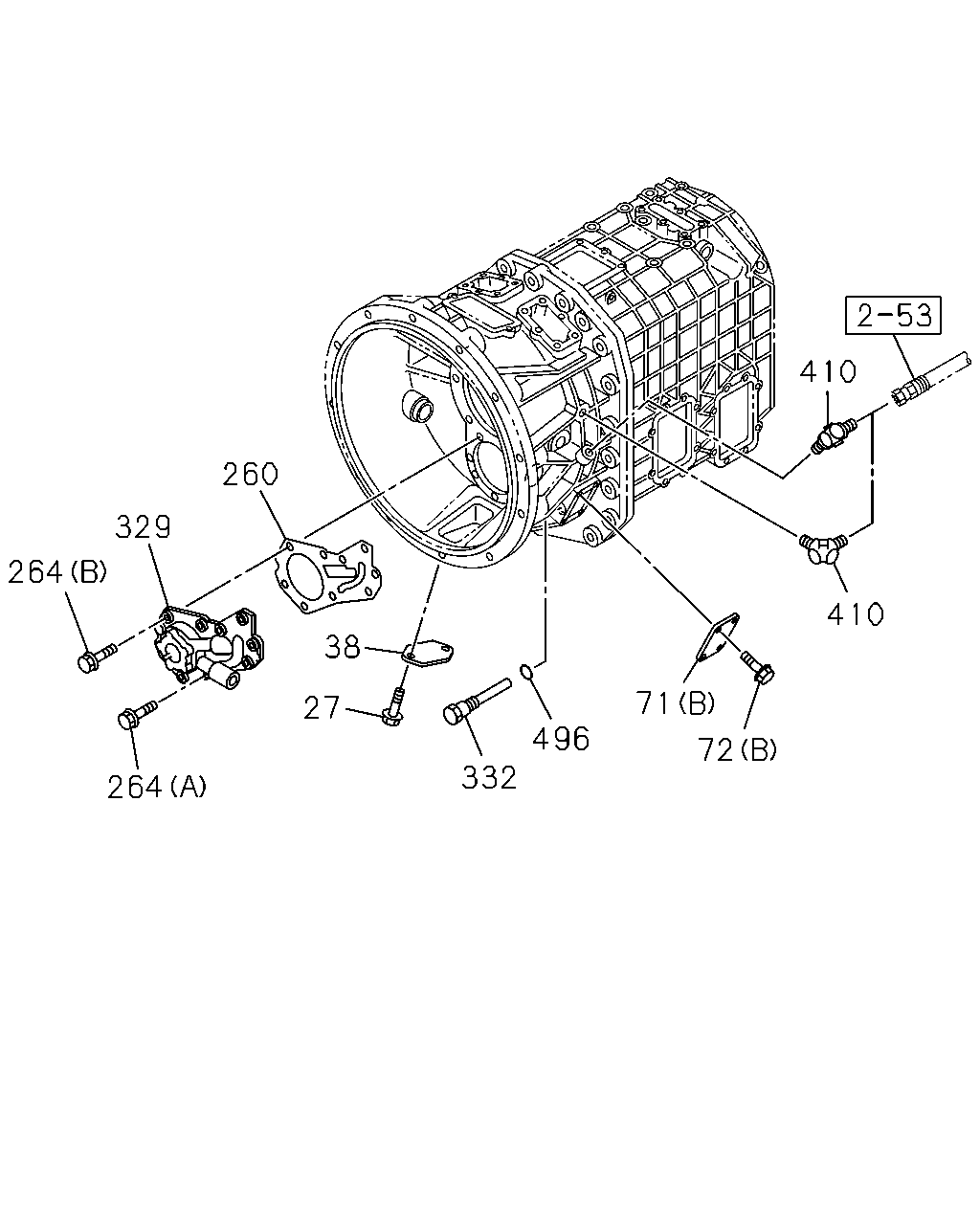

410 410 72 71 496 332 27 38 264 264 329 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	04	1	1410-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	04	1	1410-	●
38	COVER; CHECK HOLE,LWR THA	1-31131-003-0	01	1	1410-	●	●
71	COVER; SIDE,TRANS CASE (A) THA	1-33141-030-1	01	1	1410-		●
71	COVER; SIDE,TRANS CASE (C) THA	1-33141-057-1	01	1	1410-	●
71	COVER; SIDE,TRANS CASE (B) THA	1-33141-058-0	01	1	1410-	●
72	BOLT; SIDE COVER (A) M10X16 FLANGE THA	0-28151-016-0	08	1	1410-		●
72	BOLT; SIDE COVER (B) M10X30 FLANGE THA	0-28151-030-0	04	1	1410-	●
72	BOLT; SIDE COVER (C) M12X40 FLANGE THA	0-28151-240-0	07	1	1410-	●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7 THA	1-09029-082-0	01	1	1410-	●
260	GASKET; OIL PUMP THA	1-34142-031-0	01	1	1410-	●
264	BOLT; OIL PUMP (A) M10X70 FLANGE THA	0-28151-070-0	01	1	1410-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE THA	8-98230-249-0	09	1	1410-	●
329	PUMP ASM; OIL THA	1-34150-112-0	01	1	1410-	●
332	FILTER; OIL THA	1-34159-050-1	01	1	1410-	●
410	UNION; OIL PIPE R1/4 & M16 ELBOW THA	1-09660-800-1	02	1	1410-	●
496	GASKET; OIL FILTER THA	1-09630-090-0	01	1	1410-	●
