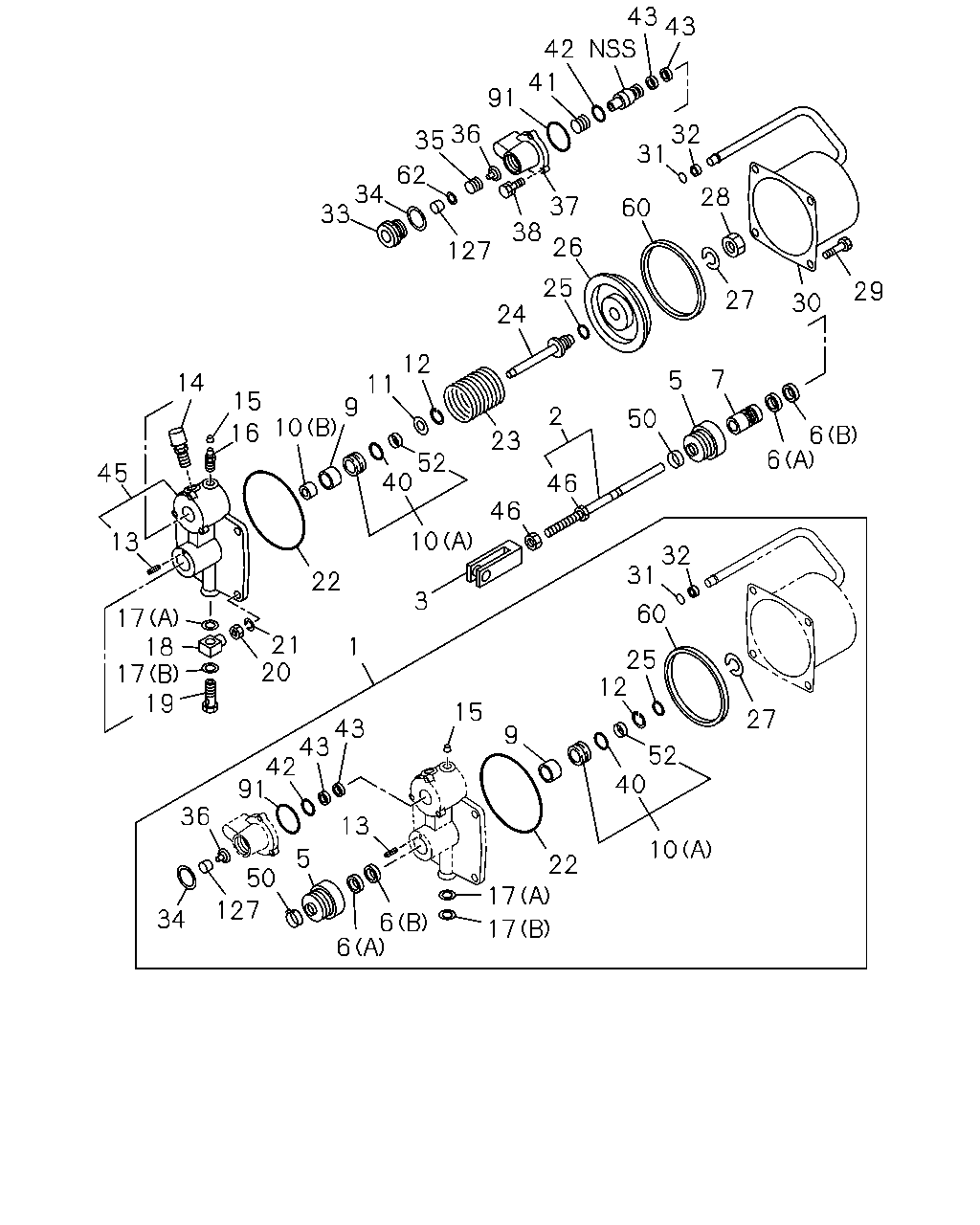

2-07A — CLUTCH BOOSTER; MINIPACK (#150708) — 54 parça

1 34 36 127 91 50 5 42 43 43 13 6 6 17 17 15 9 22 10 40 52 12 25 60 31 32 27 19 17 18 17 21 20 13 45 14 15 16 22 10 9 11 12 40 52 10 3 46 46 2 23 24 25 50 5 7 27 30 29 6 6 26 60 31 32 28 43 43 42 41 91 36 35 62 34 33 127 38 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER THA	1-31829-613-0	01	1	1410-	●
1	REPAIR KIT; CLU BOOSTER THA	1-31829-627-0	01	1	1410-		●
2	ROD; PUSH,CLU BOOSTER THA	1-31824-240-0	01	1	1410-	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER THA	1-31829-287-0	01	1	1410-	●	●
5	GUARD; PISTON,CLU BOOSTER THA	1-31829-503-0	01	1	1410-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B) THA	1-31829-498-0	01	1	1410-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A) THA	1-31829-499-0	01	1	1410-	●	●
7	PISTON; CLU BOOSTER THA	1-31821-047-0	01	1	1410-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER THA	1-31829-003-0	01	1	1410-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A) THA	1-31829-107-0	01	1	1410-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B) THA	1-31829-108-0	01	1	1410-	●	●
11	WASHER; PISTON,CLU BOOSTER THA	1-31829-105-0	01	1	1410-	●	●
12	RING; RET,CLU BOOSTER THA	1-31829-142-0	01	1	1410-	●	●
13	PIN; SPR THA	1-31829-109-0	01	1	1410-	●	●
14	COVER; EXH,CLU BOOSTER THA	1-31829-564-0	01	1	1410-	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER THA	9-83335-044-0	01	1	1410-	●	●
16	PLUG; END PLATE,CLU BOOSTER THA	9-83331-704-0	01	1	1410-	●	●
17	GASKET; CONN,CLU BOOSTER (A) THA	9-09920-267-0	01	1	1410-	●	●
17	GASKET; CONN,CLU BOOSTER (B) THA	9-09920-268-0	01	1	1410-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER THA	1-31829-248-0	01	1	1410-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER THA	9-83315-047-0	01	1	1410-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10 THA	9-09111-410-0	04	1	1410-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2 THA	9-09150-510-0	04	1	1410-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER THA	1-31829-281-0	01	1	1410-	●	●
23	SPRING; SHELL,CLU BOOSTER THA	1-31829-350-0	01	1	1410-	●	●
24	ROD; PUSH,CLU BOOSTER THA	1-31824-154-0	01	1	1410-	●	●
25	GASKET; PUSH ROD,CLU BOOSTER THA	1-31829-277-0	01	1	1410-	●	●
26	PISTON; SHELL,CLU BOOSTER THA	1-31821-072-0	01	1	1410-	●	●
27	SPRING; CLU BOOSTER THA	1-31829-291-0	01	1	1410-	●	●
28	NUT; PUSH ROD,CLU BOOSTER THA	1-31829-290-0	01	1	1410-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER THA	9-83315-099-0	04	1	1410-	●	●
30	SHELL; CYL,CLU BOOSTER THA	1-31811-117-0	01	1	1410-	●	●
31	GASKET; SHELL,CLU BOOSTER THA	1-31829-279-0	01	1	1410-	●	●
32	BUSHING; SHELL,CLU BOOSTER THA	1-31829-280-0	01	1	1410-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER THA	1-31829-214-0	01	1	1410-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER THA	1-31829-448-0	01	1	1410-		●
34	GASKET; CONN,CLU BOOSTER THA	1-31829-053-0	01	1	1410-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER THA	1-31829-537-0	01	1	1410-	●	●
36	VALVE; POPPET,CLU BOOSTER THA	1-31829-536-0	01	1	1410-	●	●
37	BODY; UPR,VLV,CLU BOOSTER THA	1-31811-085-0	01	1	1410-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE THA	9-83315-113-0	03	1	1410-	●	●
40	GASKET; PISTON,CLU BOOSTER THA	1-31829-037-0	01	1	1410-	●	●
41	SPRING; DIAPH,CLU BOOSTER THA	1-31829-458-0	01	1	1410-	●	●
42	GASKET; FITTING,CLU BOOSTER THA	1-31829-143-0	01	1	1410-	●	●
43	GASKET; UPR VLV,CLU BOOSTER THA	1-31829-060-0	02	1	1410-	●	●
45	PLATE; END,CLU BOOSTER THA	1-31829-614-0	01	1	1410-	●	●
46	NUT; PUSH ROD,CLU BOOSTER M10 THA	9-09111-410-0	02	1	1410-	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER THA	1-31829-504-0	01	1	1410-	●	●
52	SEAL; OIL,END PLATE,CLU BOOSTER THA	9-83315-118-0	01	1	1410-	●	●
60	GASKET; SHELL,CLU BOOSTER THA	1-31829-454-0	01	1	1410-	●	●
62	RETAINER; POPPET THA	1-31829-489-0	01	1	1410-	●	●
91	GASKET; CLU BOOSTER THA	1-31829-103-0	01	1	1410-	●	●
127	FILTER; POPPET THA	1-31829-495-0	01	1	1410-	●
127	FILTER; POPPET THA	1-31829-488-0	01	1	1410-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
