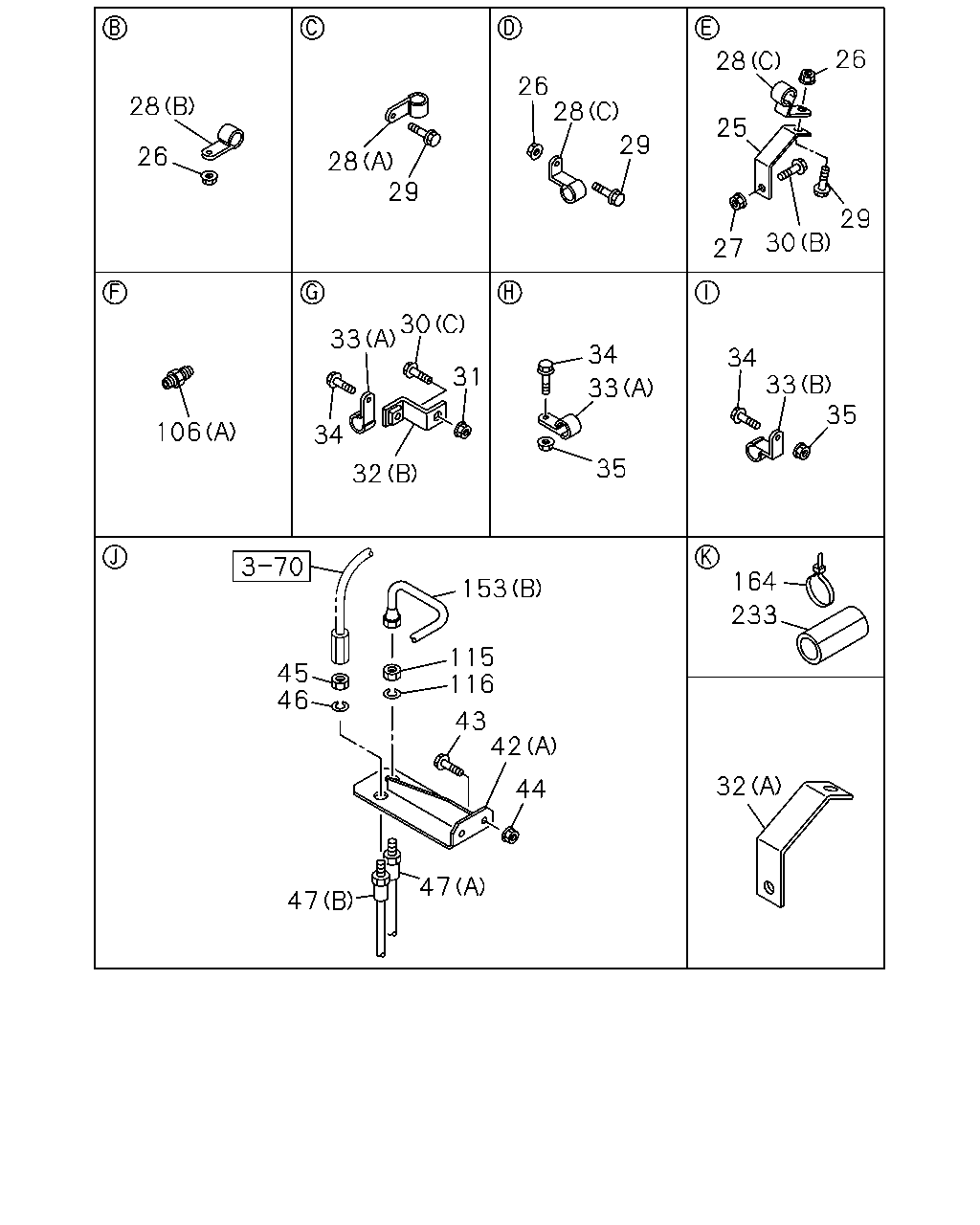

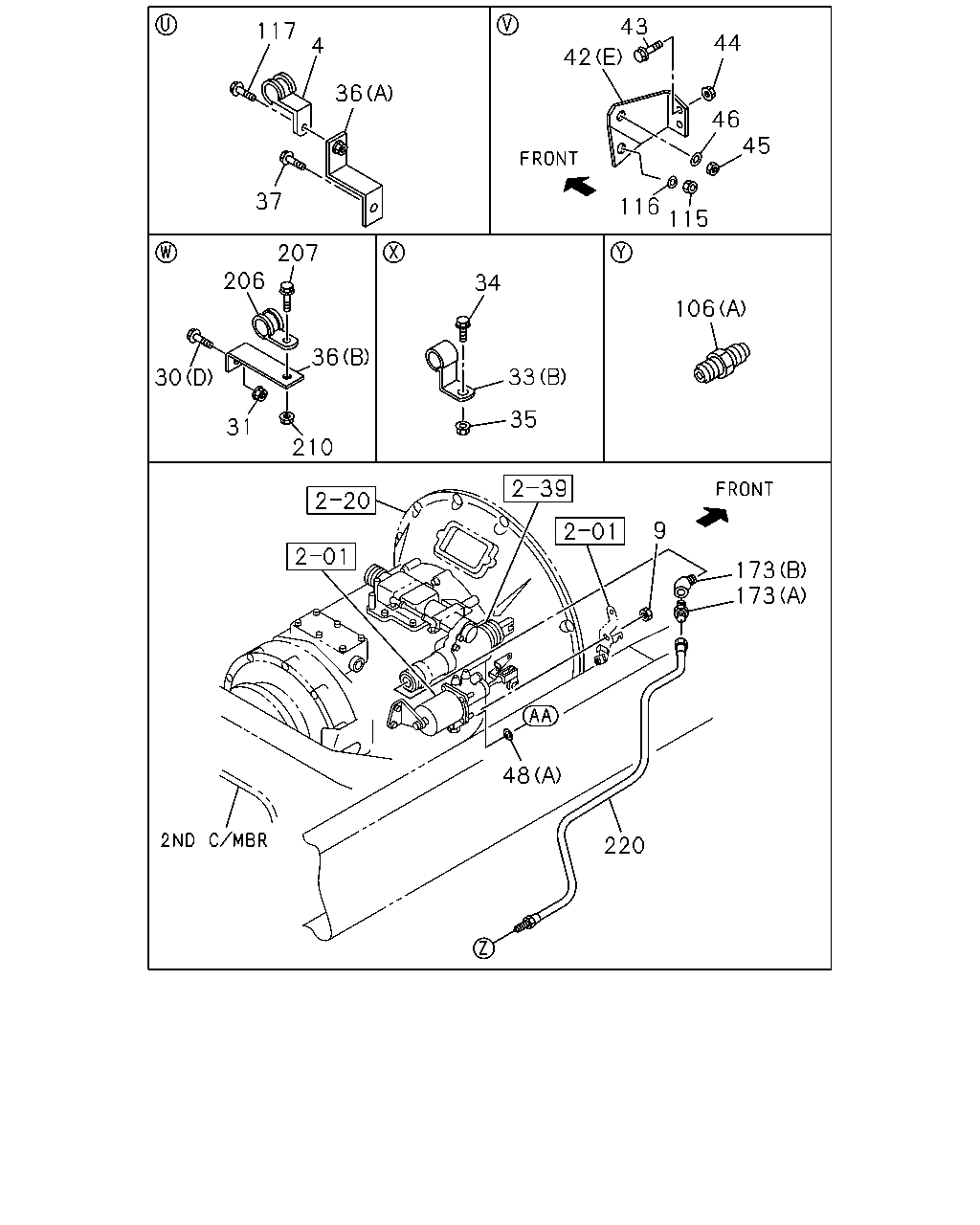

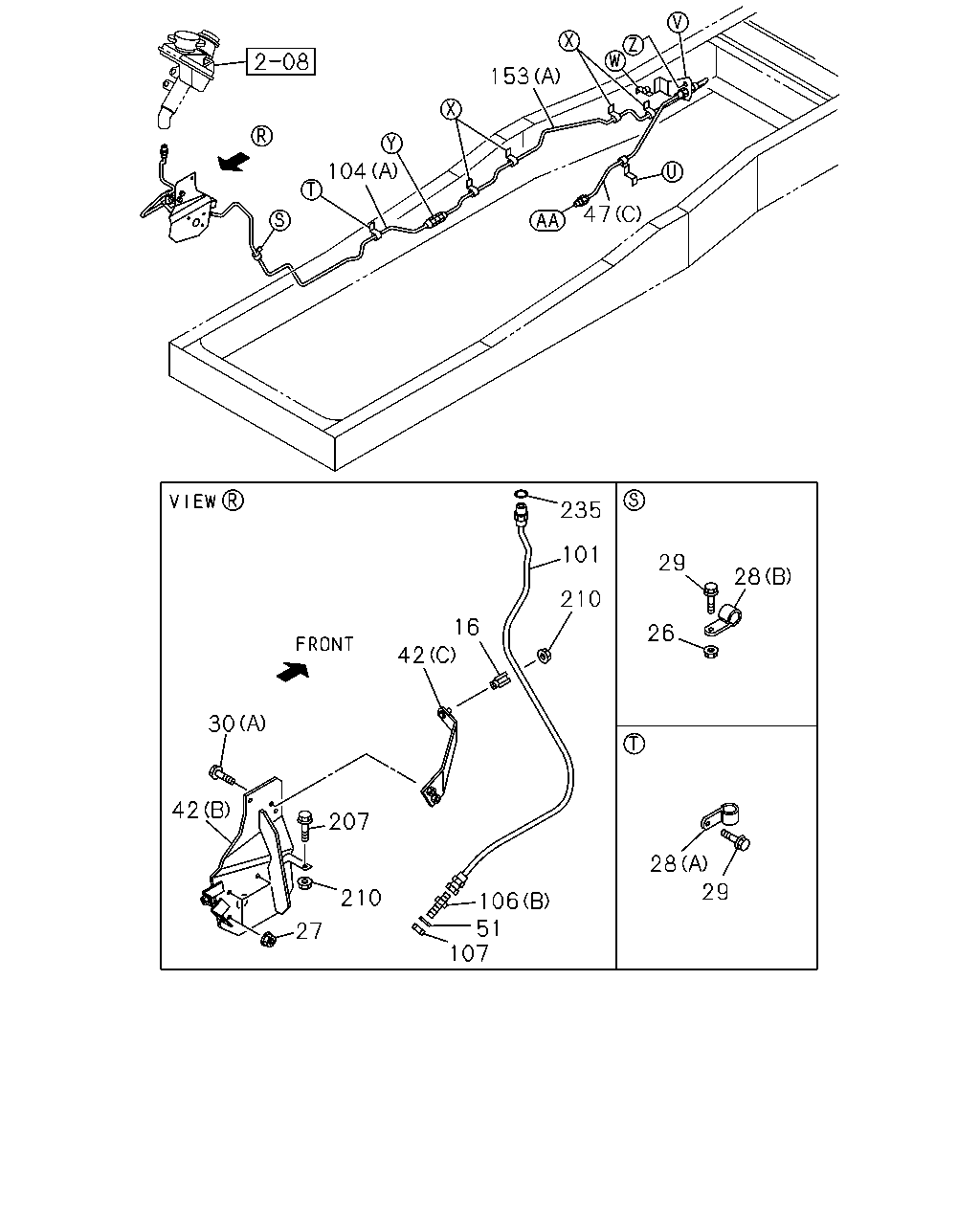

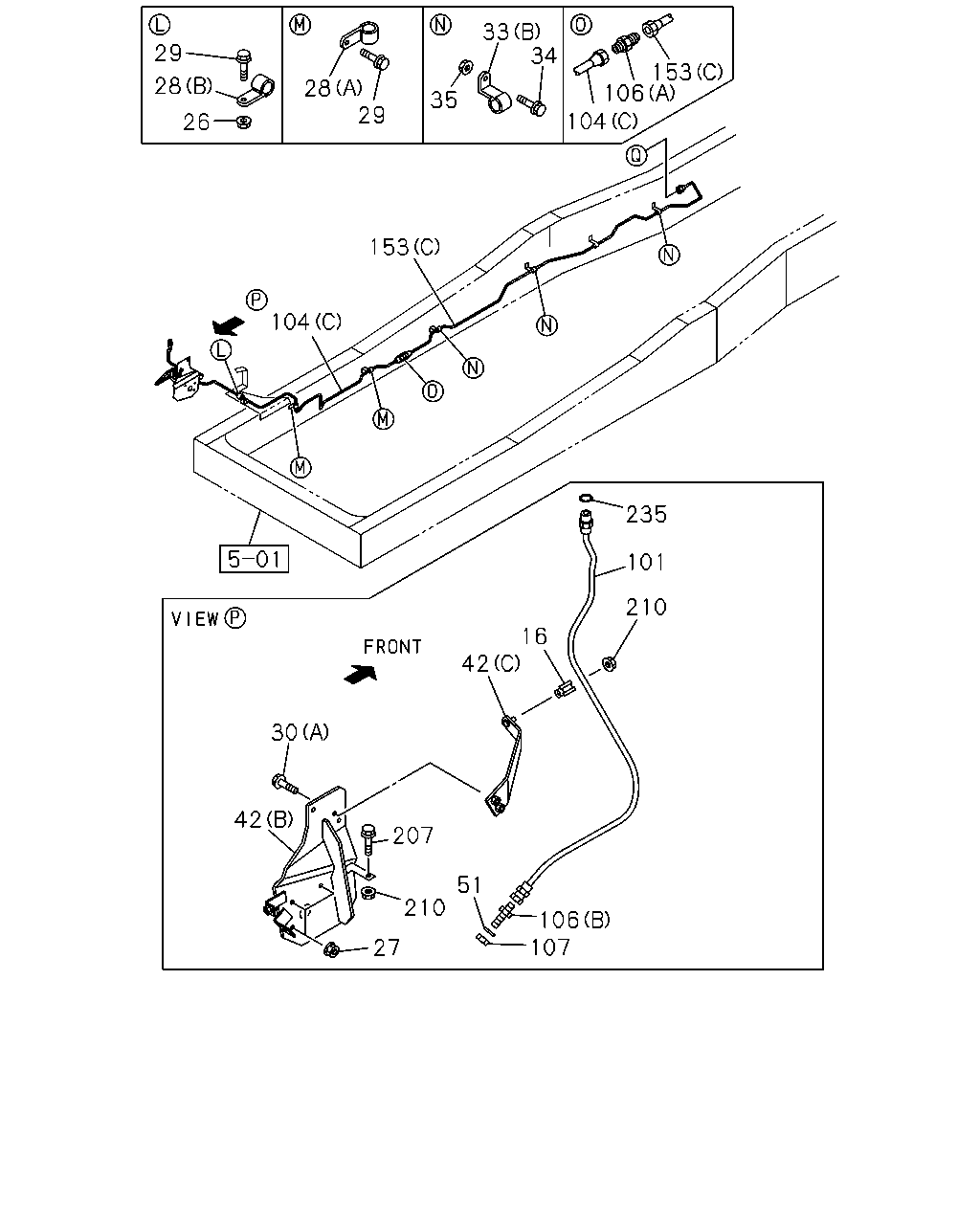

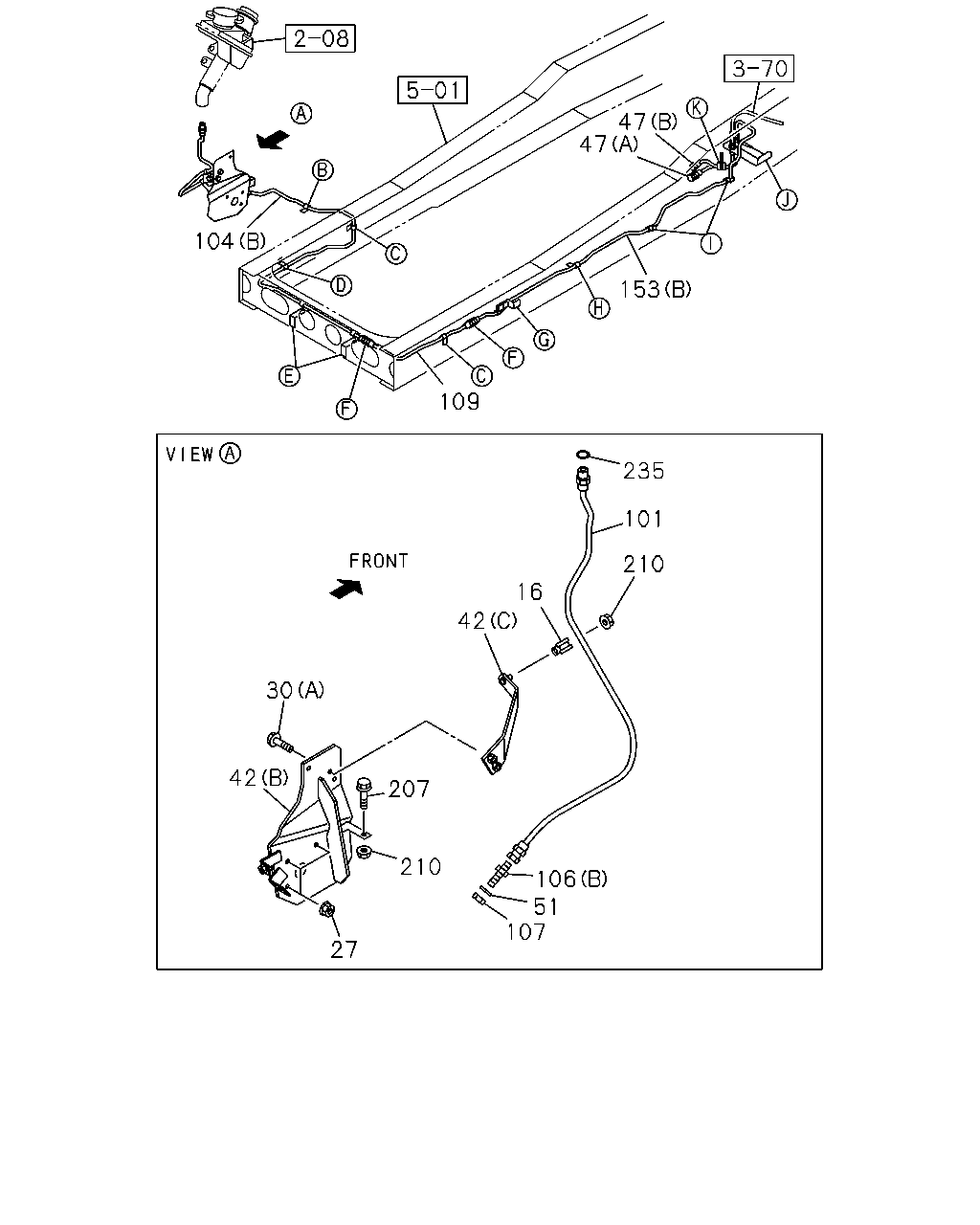

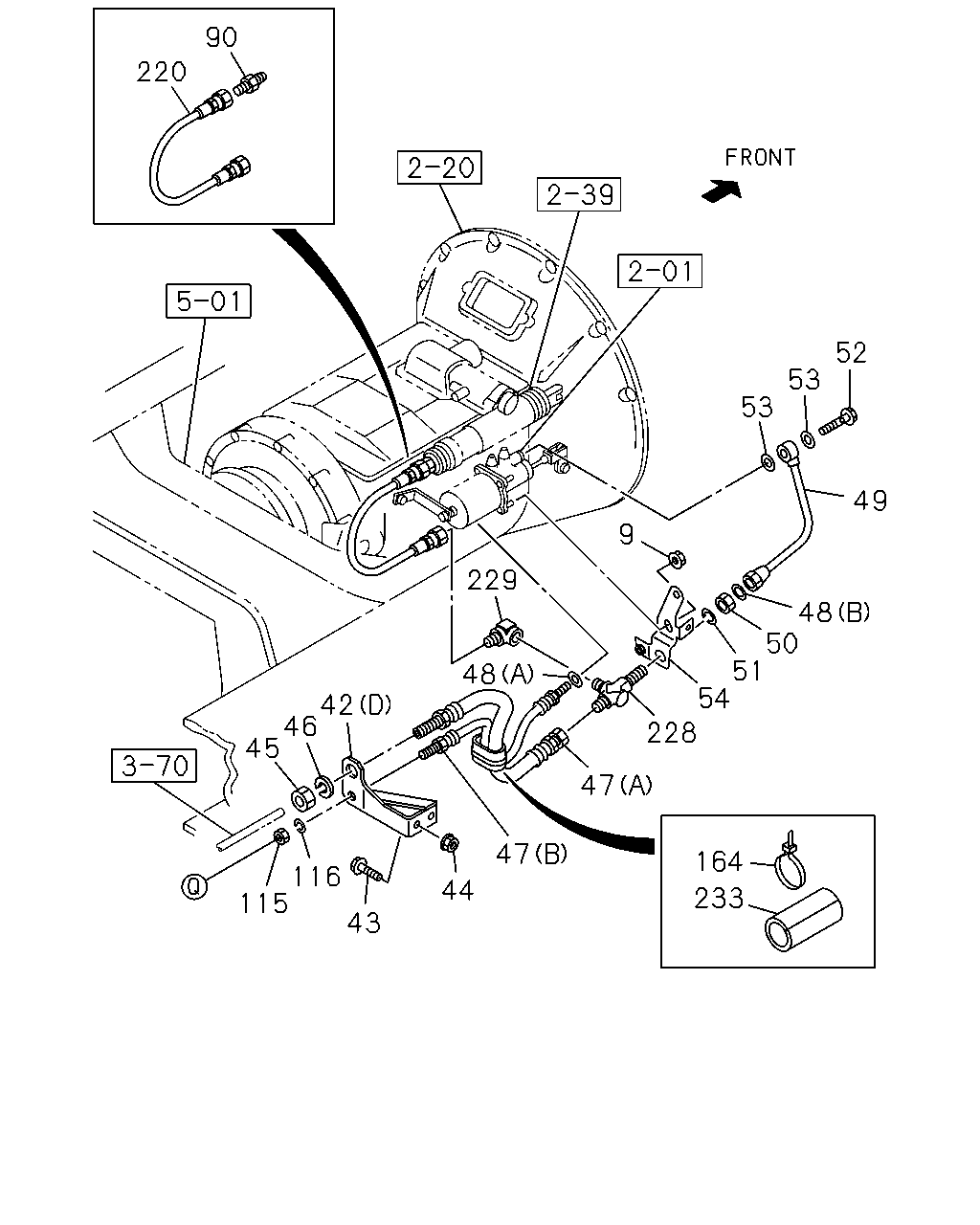

2-05 — CLUTCH PIPING (#150707) — 287 parça

28 26 28 29 26 28 29 28 26 25 27 30 29 106 33 30 31 32 34 34 33 35 34 33 35 45 46 153 115 116 43 42 44 47 47 164 233 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE ZF9S1310 M/T<Y5K> THA	8-98123-059-0	01	1	1410-	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	1410-	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1410-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1410-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20 THA	0-95234-835-0	01	1	1410-	●
28	CLIP; OIL PIPE (B) ID=9 L=40 THA	0-95234-875-0	01	1	1410-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40 THA	0-95234-875-0	01	1	1410-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20 THA	0-95234-835-0	02	1	1410-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20 THA	1-09700-604-0	01	1	1410-	●	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	1410-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1410-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1410-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
31	NUT; BRKT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1410-		●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1410-	●	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T<Y5K> (B) THA	1-47479-482-0	01	1	1410-	●	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T<Y5K> (A) THA	8-98123-059-0	01	1	1410-	●	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20 THA	1-09700-604-0	03	1	1410-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20 THA	0-95234-835-0	04	1	1410-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20 THA	1-09700-604-0	02	1	1410-	●	●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1410-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	1410-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1410-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D) THA	1-47477-546-1	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E) THA	1-47479-812-0	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A) THA	1-47476-912-1	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1410-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20 THA	0-91111-520-0	01	1	1410-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12 THA	9-09840-280-0	01	1	1410-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> M12 THA	9-09840-280-0	01	1	1410-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2 THA	0-91510-520-0	01	1	1410-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2 THA	0-91510-512-0	01	1	1410-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> ID=12.2 THA	0-91510-512-0	01	1	1410-		●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480 THA	0-07806-480-1	01	1	1410-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470 THA	1-09364-692-0	01	1	1410-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650 THA	1-09364-694-0	01	1	1410-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350 THA	1-09363-624-0	01	1	1410-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370 THA	8-98072-331-0	01	1	1410-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE (B) THA	1-09654-191-1	01	1	1410-	●	●
115	NUT; FLEX HOSE,CLU CONT M14 THA	0-91111-514-0	01	1	1410-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2 THA	0-91510-514-0	01	1	1410-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	1410-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1410-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1410-	●
164	CLIP; BAND,FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350 THA	1-09707-183-0	01	1	1410-	●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T<Y5K> L=350 THA	1-09707-183-0	01	1	1410-		●
233	BAND; FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=175 THA	1-09707-178-0	01	1	1410-	●
233	BAND; FLEX HOSE ZF9S1310 M/T<Y5K> L=175 THA	1-09707-178-0	01	1	1410-		●

29 28 26 28 29 33 35 34 153 106 104 153 104 30 42 27 207 42 16 235 101 210 106 107 51 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28 THA	1-09700-872-0	03	1	1410-	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	1410-	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1410-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1410-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20 THA	0-95234-835-0	01	1	1410-	●
28	CLIP; OIL PIPE (B) ID=9 L=40 THA	0-95234-875-0	01	1	1410-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40 THA	0-95234-875-0	01	1	1410-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20 THA	0-95234-835-0	02	1	1410-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20 THA	1-09700-604-0	01	1	1410-	●	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	1410-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1410-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1410-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20 THA	1-09700-604-0	03	1	1410-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20 THA	0-95234-835-0	04	1	1410-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20 THA	1-09700-604-0	02	1	1410-	●	●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1410-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	1410-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1410-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D) THA	1-47477-546-1	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E) THA	1-47479-812-0	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A) THA	1-47476-912-1	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1410-	●	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2 THA	0-91510-620-0	01	1	1410-	●
51	WASHER; LK ID=14.2 THA	0-91510-514-0	01	1	1410-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE THA	8-97948-689-0	01	1	1410-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250 THA	1-47428-764-0	01	1	1410-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1410-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (A) L=1196 THA	8-98211-460-0	01	1	1410-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE (B) THA	1-09654-191-1	01	1	1410-	●	●
107	NUT; UNION,OIL PIPE M14 THA	0-91111-514-0	01	1	1410-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	1410-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1410-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1410-	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1410-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1410-	●	●

220 90 52 53 53 49 48 50 51 54 9 229 48 228 47 47 44 43 116 115 42 46 45 164 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M10 FLANGE THA	0-91180-210-0	02	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D) THA	1-47477-546-1	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E) THA	1-47479-812-0	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A) THA	1-47476-912-1	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1410-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20 THA	0-91111-520-0	01	1	1410-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12 THA	9-09840-280-0	01	1	1410-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> M12 THA	9-09840-280-0	01	1	1410-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2 THA	0-91510-520-0	01	1	1410-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2 THA	0-91510-512-0	01	1	1410-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> ID=12.2 THA	0-91510-512-0	01	1	1410-		●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480 THA	0-07806-480-1	01	1	1410-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470 THA	1-09364-692-0	01	1	1410-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650 THA	1-09364-694-0	01	1	1410-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350 THA	1-09363-624-0	01	1	1410-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370 THA	8-98072-331-0	01	1	1410-	●	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (B) ID=11 OD=18 THA	9-09572-510-0	01	1	1410-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1410-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL6R M/T<Y2J> L=245 THA	1-49117-733-0	01	1	1410-	●
50	NUT; UNION MAL6R M/T<Y2J> M20 THA	0-91111-520-0	01	1	1410-	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2 THA	0-91510-620-0	01	1	1410-	●
51	WASHER; LK ID=14.2 THA	0-91510-514-0	01	1	1410-	●	●
52	BOLT; EYE,AIR PIPE MAL6R M/T<Y2J> M14X27 FLANGE THA	1-09675-086-0	01	1	1410-	●
53	GASKET; JOINT BOLT MAL6R M/T<Y2J> ID=14.2 OD=19.2 THA	8-98251-345-0	02	1	1410-	●
54	BRACKET; AIR,FLEX HOSE MAL6R M/T<Y2J> THA	1-47477-284-1	01	1	1410-	●
90	NIPPLE; OIL PIPE MAL6R M/T<Y2J> M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1410-	●
115	NUT; FLEX HOSE,CLU CONT M14 THA	0-91111-514-0	01	1	1410-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2 THA	0-91510-514-0	01	1	1410-	●	●
164	CLIP; BAND,FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350 THA	1-09707-183-0	01	1	1410-	●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T<Y5K> L=350 THA	1-09707-183-0	01	1	1410-		●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T<Y2J> L=480 THA	1-09363-659-0	01	1	1410-	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T<Y4X> L=320 THA	1-09363-656-0	01	1	1410-	●
228	UNION; 3 WAY MAL6R M/T<Y2J> THA	1-09656-640-0	01	1	1410-	●
229	CONNECTOR; ELOBOW MAL6R M/T<Y2J> M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	1410-	●
233	BAND; FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=175 THA	1-09707-178-0	01	1	1410-	●
233	BAND; FLEX HOSE ZF9S1310 M/T<Y5K> L=175 THA	1-09707-178-0	01	1	1410-		●

104 153 47 30 42 42 16 235 101 210 106 207 210 27 51 107 29 26 28 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28 THA	1-09700-872-0	03	1	1410-	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	1410-	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1410-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1410-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20 THA	0-95234-835-0	01	1	1410-	●
28	CLIP; OIL PIPE (B) ID=9 L=40 THA	0-95234-875-0	01	1	1410-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40 THA	0-95234-875-0	01	1	1410-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20 THA	0-95234-835-0	02	1	1410-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20 THA	1-09700-604-0	01	1	1410-	●	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	1410-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1410-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1410-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D) THA	1-47477-546-1	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E) THA	1-47479-812-0	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A) THA	1-47476-912-1	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1410-	●	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480 THA	0-07806-480-1	01	1	1410-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470 THA	1-09364-692-0	01	1	1410-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650 THA	1-09364-694-0	01	1	1410-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350 THA	1-09363-624-0	01	1	1410-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370 THA	8-98072-331-0	01	1	1410-	●	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2 THA	0-91510-620-0	01	1	1410-	●
51	WASHER; LK ID=14.2 THA	0-91510-514-0	01	1	1410-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE THA	8-97948-689-0	01	1	1410-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250 THA	1-47428-764-0	01	1	1410-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1410-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (A) L=1196 THA	8-98211-460-0	01	1	1410-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE (B) THA	1-09654-191-1	01	1	1410-	●	●
107	NUT; UNION,OIL PIPE M14 THA	0-91111-514-0	01	1	1410-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	1410-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1410-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1410-	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1410-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1410-	●	●

117 4 36 37 43 42 44 46 45 115 116 106 34 33 35 207 206 36 30 31 210 9 173 173 48 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> ID=16 H=25 L=25 THA	1-09701-162-0	01	1	1410-	●
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M10 FLANGE THA	0-91180-210-0	02	1	1410-	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1410-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1410-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
31	NUT; BRKT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1410-		●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1410-	●	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20 THA	1-09700-604-0	03	1	1410-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20 THA	0-95234-835-0	04	1	1410-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20 THA	1-09700-604-0	02	1	1410-	●	●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1410-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	1410-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1410-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
36	BRACKET; CLIP MJT7U M/T<Y4X> (A) THA	1-47475-689-0	01	1	1410-	●
36	BRACKET; CLIP MJT7U M/T<Y4X> (B) L=95 THA	1-82699-085-0	01	1	1410-	●
37	BOLT; CLIP BRKT MJT7U M/T<Y4X> M10X16 FLANGE THA	0-28151-016-0	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D) THA	1-47477-546-1	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E) THA	1-47479-812-0	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A) THA	1-47476-912-1	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1410-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20 THA	0-91111-520-0	01	1	1410-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12 THA	9-09840-280-0	01	1	1410-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> M12 THA	9-09840-280-0	01	1	1410-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2 THA	0-91510-520-0	01	1	1410-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2 THA	0-91510-512-0	01	1	1410-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> ID=12.2 THA	0-91510-512-0	01	1	1410-		●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (B) ID=11 OD=18 THA	9-09572-510-0	01	1	1410-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1410-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE (B) THA	1-09654-191-1	01	1	1410-	●	●
115	NUT; FLEX HOSE,CLU CONT M14 THA	0-91111-514-0	01	1	1410-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2 THA	0-91510-514-0	01	1	1410-	●	●
117	BOLT; CLIP,FLEX HOSE MJT7U M/T<Y4X> M8X16 FLANGE THA	0-28050-816-0	01	1	1410-	●
173	CONNECTOR MJT7U M/T<Y4X> (A) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1410-	●
173	CONNECTOR MJT7U M/T<Y4X> (B) R1/4 & RC1/4 THA	1-09664-211-0	01	1	1410-	●
206	CLIP; TUBE MJT7U M/T<Y4X> ID=16 L=28 THA	1-09700-872-0	01	1	1410-	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1410-	●	●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T<Y2J> L=480 THA	1-09363-659-0	01	1	1410-	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T<Y4X> L=320 THA	1-09363-656-0	01	1	1410-	●

47 47 153 109 104 235 101 210 16 42 30 42 207 210 27 106 51 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28 THA	1-09700-872-0	03	1	1410-	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1410-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1410-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1410-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1410-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D) THA	1-47477-546-1	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E) THA	1-47479-812-0	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A) THA	1-47476-912-1	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1410-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1410-	●	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480 THA	0-07806-480-1	01	1	1410-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470 THA	1-09364-692-0	01	1	1410-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650 THA	1-09364-694-0	01	1	1410-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350 THA	1-09363-624-0	01	1	1410-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370 THA	8-98072-331-0	01	1	1410-	●	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2 THA	0-91510-620-0	01	1	1410-	●
51	WASHER; LK ID=14.2 THA	0-91510-514-0	01	1	1410-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE THA	8-97948-689-0	01	1	1410-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250 THA	1-47428-764-0	01	1	1410-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1410-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (A) L=1196 THA	8-98211-460-0	01	1	1410-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT THA	0-92113-008-0	01	1	1410-	●	●
106	UNION; OIL PIPE (B) THA	1-09654-191-1	01	1	1410-	●	●
107	NUT; UNION,OIL PIPE M14 THA	0-91111-514-0	01	1	1410-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T<Y5K> L=1680 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1410-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	1410-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1410-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1410-	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1410-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
