2-03 — CLUTCH PEDAL AND CONTROL (#150706) — 16 parça

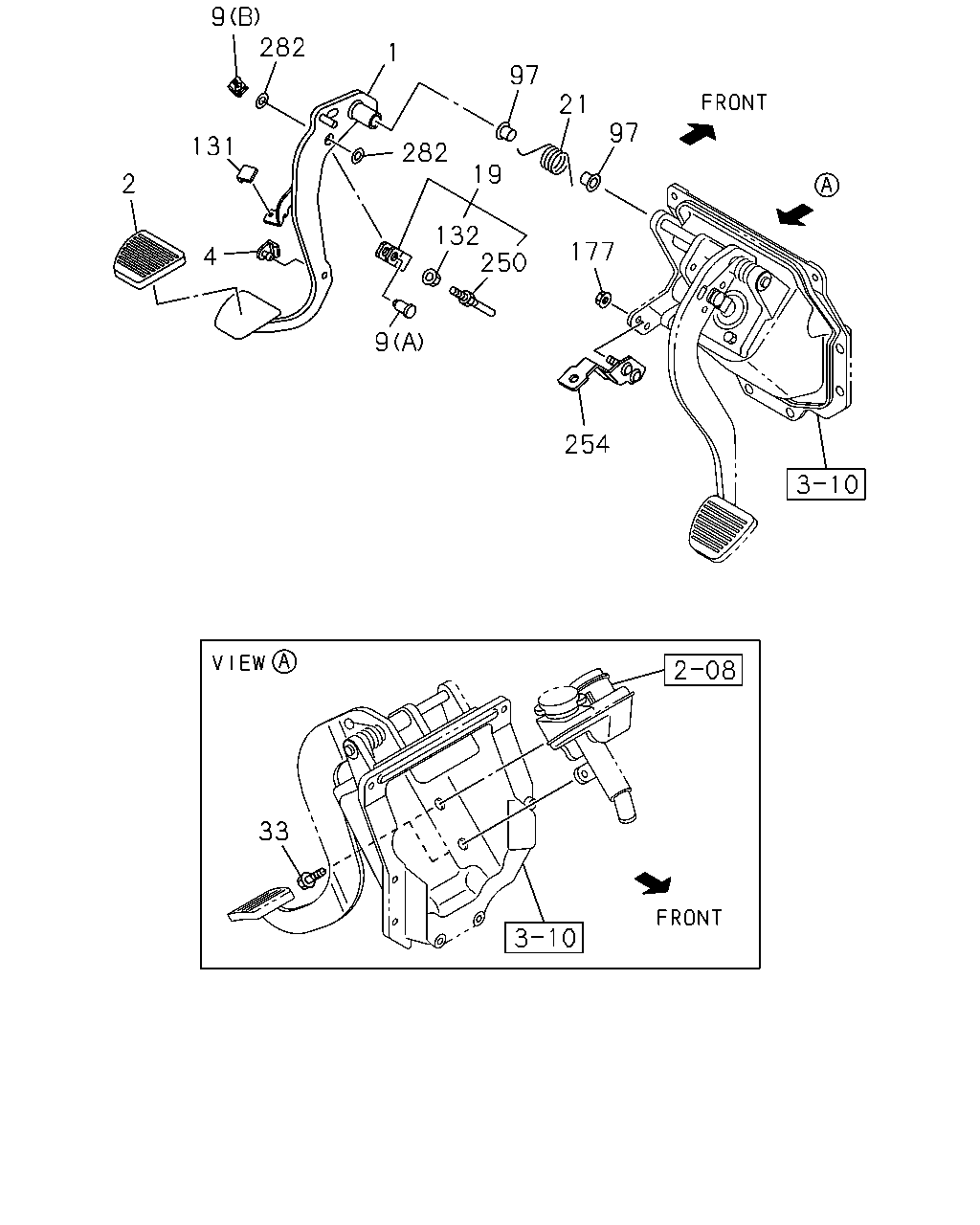

çizim 449958
9 282 1 97 97 131 282 132 177 254 9 4 2 21 33 19 250
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> THA 		8-97613-941-1 01 1 1410- ●
1 PEDAL; CLU
ZF9S1310 M/T<Y5K> THA 		8-98099-809-0 01 1 1410- ● ●
2 COVER; CLU PEDAL
THA 		8-98056-865-0 01 1 1410- ● ●
4 STOPPER; CLU PEDAL
THA 		8-98079-251-0 01 1 1410- ● ●
9 PIN; CLU PEDAL
(B) THA 		8-98007-161-0 01 1 1410- ● ●
9 PIN; CLU PEDAL
(A) THA 		8-98147-657-0 01 1 1410- ● ●
19 ROD ASM; PUSH,CLU
THA 		8-98021-406-1 01 1 1410- ● ●
21 SPRING; RETURN,CLU PEDAL
THA 		8-98021-560-0 01 1 1410- ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE THA 		0-28051-220-0 02 1 1410- ● ●
97 BUSHING; CLU PEDAL SHAFT
THA 		8-94238-596-0 02 1 1410- ● ●
131 STOPPER; CLU SW
THA 		8-97302-305-0 01 1 1410- ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
177 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
250 ROD; PUSH,CLU
THA 		8-97615-589-0 01 1 1410- ● ●
254 BRACKET; CLU SENSOR
THA 		8-98021-377-1 01 1 1410- ● ●
282 SPACER; CLU PEDAL
THA 		8-98070-329-0 02 1 1410- ● ●
