0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#15070) — 94 parça

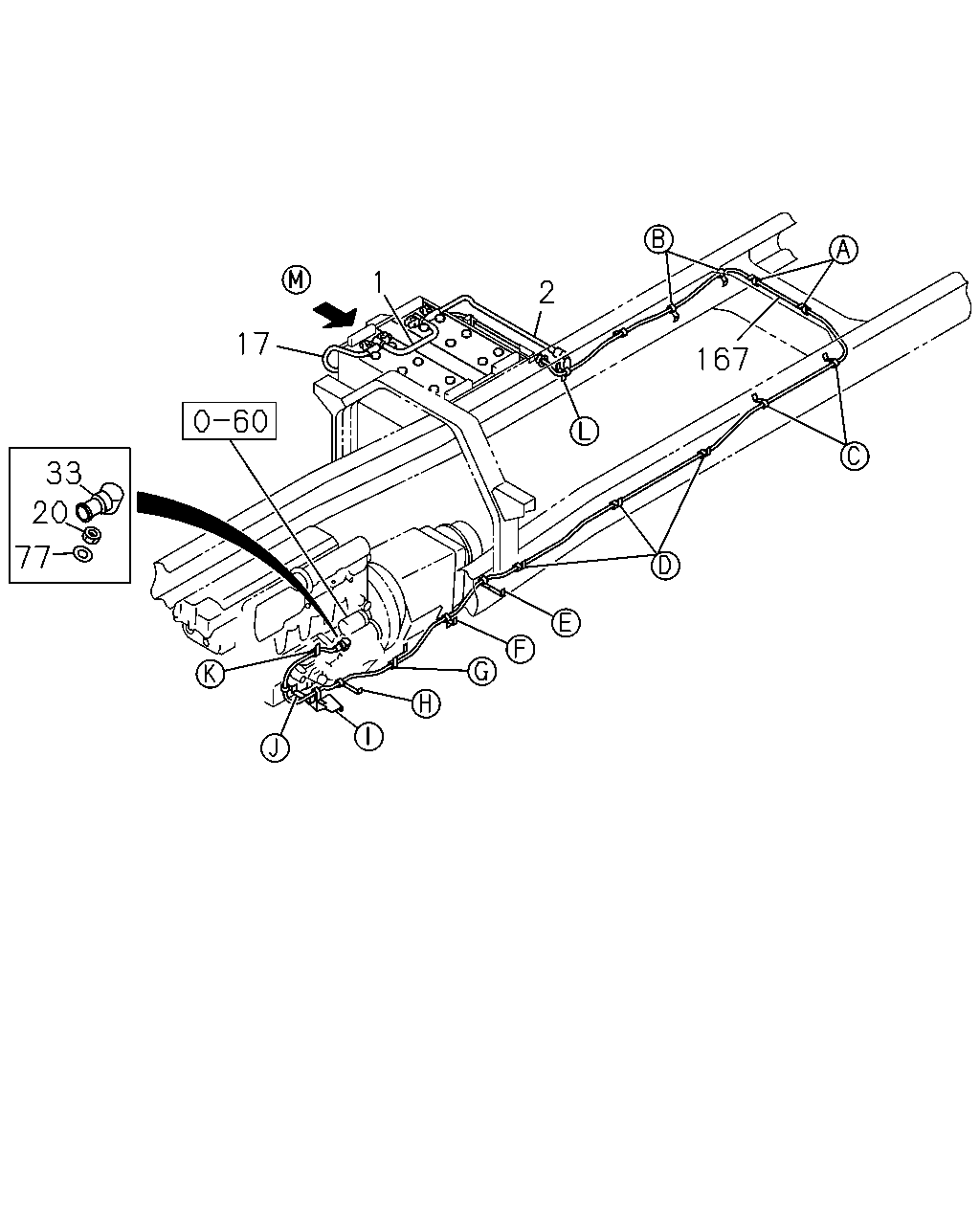

çizim 61247
1 2 167 17 33 20 77
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=265 		1-82650-390-1 01 1 0804-
2 CABLE; BATTERY
L=720 		1-82650-386-1 01 1 0804-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-762-3 01 1 0804-
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 0804-
33 CAP; INSULATOR 8-97181-965-0 01 1 0804-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 0804-
167 CABLE; BATTERY RELAY TO STARTER 8-97618-844-2 01 1 0804-

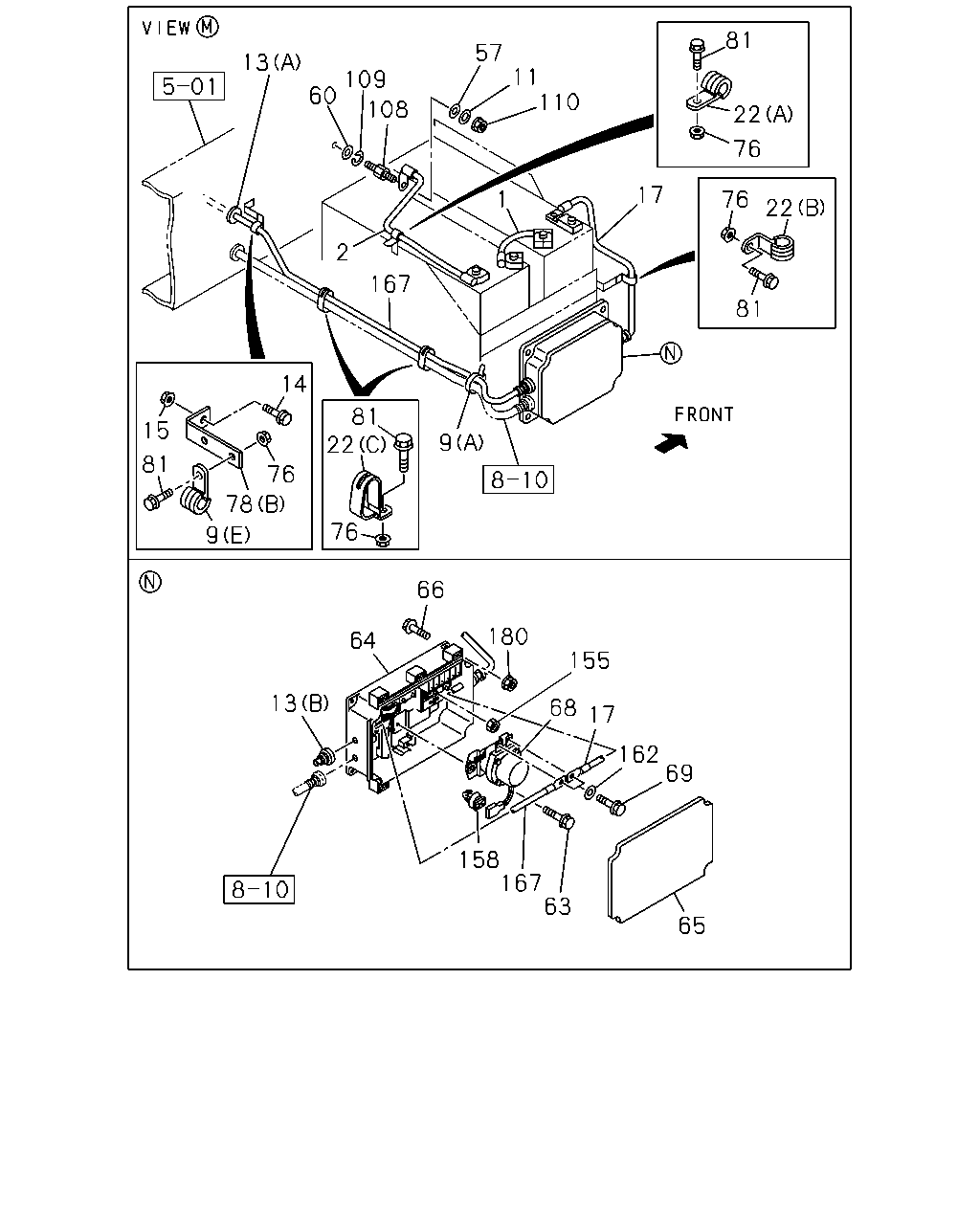

çizim 101795
81 57 13 11 110 109 60 108 22 76 17 76 1 22 2 167 81 14 81 22 15 9 81 76 78 76 9 66 180 64 155 13 68 17 162 69 158 167 63 65
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=265 		1-82650-390-1 01 1 0804-
2 CABLE; BATTERY
L=720 		1-82650-386-1 01 1 0804-
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 0804-
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 0804-
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 0804-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 		1-09701-067-0 02 1 0804-
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 H=30 		1-09701-110-0 03 1 0804-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 0804-
9 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-94176-807-1 01 1 0804-
9 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-94176-807-1 02 1 0804-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0804-
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0804-
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 0804-
14 BOLT; BRKT CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0804-0808
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 02 1 0804-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-762-3 01 1 0804-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 0804-
22 CLIP; BATTERY CABLE
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 0804-
22 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-94176-807-1 01 1 0804-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0804-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0804-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0804-
64 BOX; BATTERY RELAY
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82510-652-0 01 1 0804-
64 BOX; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82510-650-0 01 1 0804-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 0804-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0804-
68 RELAY; BATTERY 1-82550-313-0 01 1 0804-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0804-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 05 1 0804-
78 BRACKET; CLIP BATTERY
(A) 		1-47478-113-0 01 1 0804-
78 BRACKET; CLIP BATTERY
(B) L=82 B=20 		1-47478-420-0 01 1 0804-1404
78 BRACKET; CLIP BATTERY
(C) L=82 B=20 		8-98259-390-0 01 1 1405-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 05 1 0804-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0804-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0804-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0804-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0804-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0804-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0804-
167 CABLE; BATTERY RELAY TO STARTER 8-97618-844-2 01 1 0804-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0804-

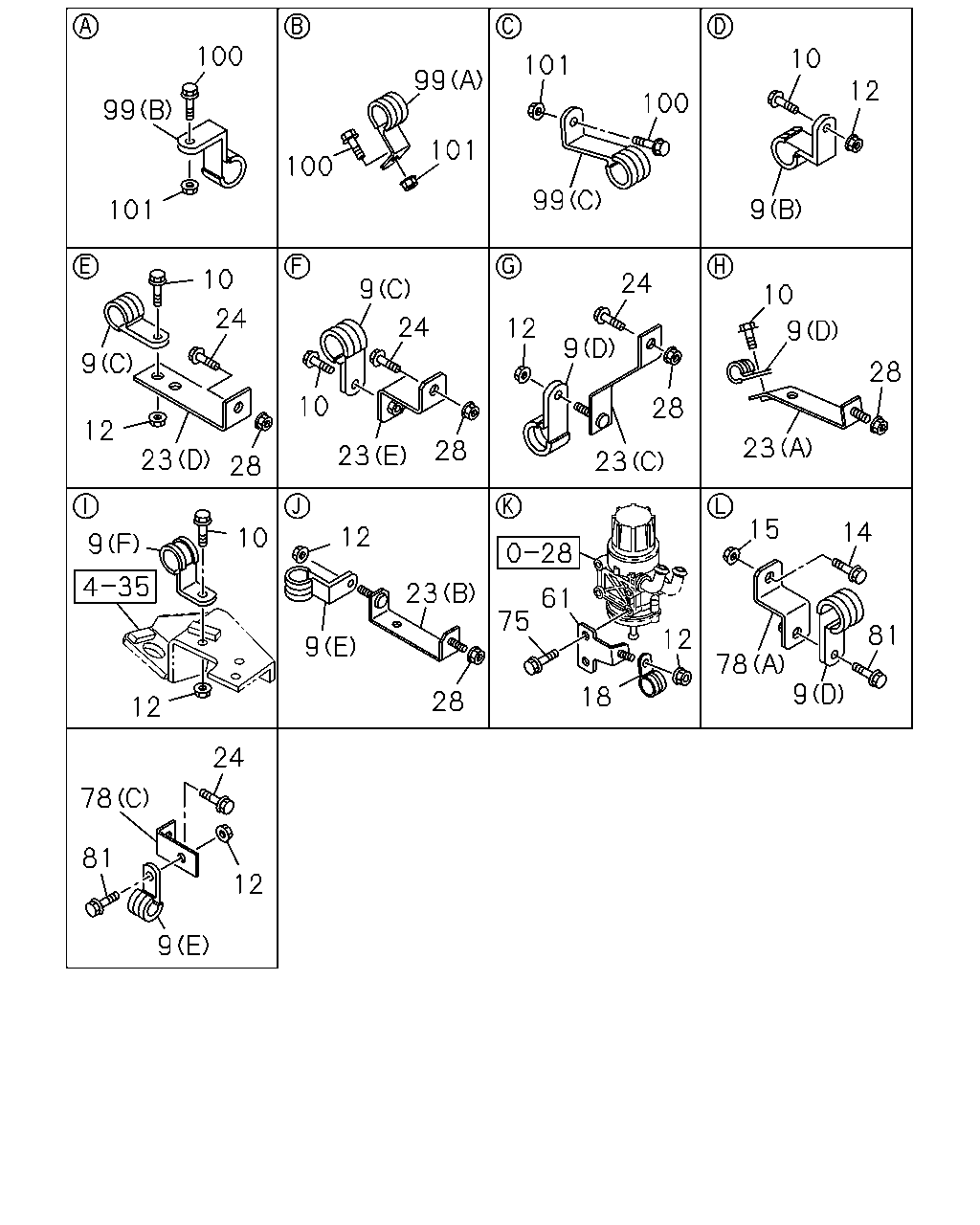

çizim 101796
100 99 101 100 101 99 101 99 100 10 12 9 10 9 12 23 28 24 9 10 23 24 28 12 9 23 28 24 23 9 10 28 9 10 12 12 9 23 28 75 61 18 12 15 14 81 78 9 78 24 12 9 81
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 0804-
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 0804-
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 0804-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 		1-09701-067-0 02 1 0804-
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 H=30 		1-09701-110-0 03 1 0804-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 0804-
9 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-94176-807-1 01 1 0804-
9 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-94176-807-1 02 1 0804-
10 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0804-0808
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0809-
10 BOLT; BATTERY CABLE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 0804-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 10 1 0804-
14 BOLT; BRKT CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0804-0808
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 02 1 0804-
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 0804-
23 BRACKET; CABLE CLIP TO FRAME
(E) 		1-47478-113-0 01 1 0804-
23 BRACKET; CABLE CLIP TO FRAME
(D) L=95 		1-82698-557-0 01 1 0804-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		1-82698-574-0 01 1 0804-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-82698-589-0 01 1 0804-
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98095-080-1 01 1 0804-
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0804-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 0804-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0804-
61 BRACKET; BATTERY CABLE 1-82698-587-0 01 1 0804-
75 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0804-
78 BRACKET; CLIP BATTERY
(A) 		1-47478-113-0 01 1 0804-
78 BRACKET; CLIP BATTERY
(B) L=82 B=20 		1-47478-420-0 01 1 0804-1404
78 BRACKET; CLIP BATTERY
(C) L=82 B=20 		8-98259-390-0 01 1 1405-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 05 1 0804-
99 CLIP; BATTERY CABLE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0804-
99 CLIP; BATTERY CABLE
(B) ID=18 H=23 L=28 		1-09701-070-0 02 1 0804-
99 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 02 1 0804-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 0804-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 06 1 0804-

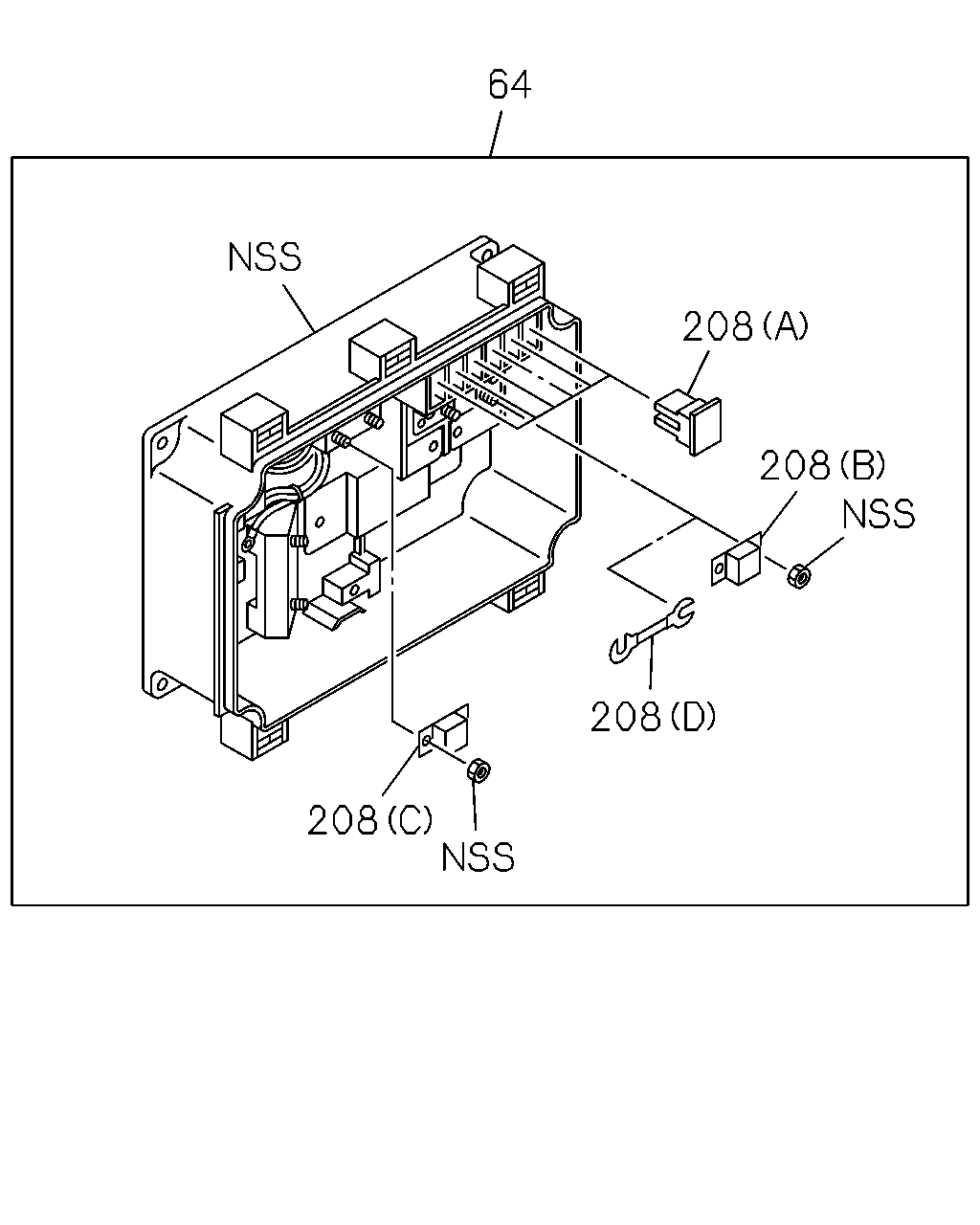

çizim 101797
64 208 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
64 BOX; BATTERY RELAY
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82510-652-0 01 1 0804-
64 BOX; BATTERY RELAY
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82510-650-0 01 1 0804-
208 FUSE
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (D) 125A 		9-82941-130-1 01 1 0804-
208 FUSE
(C) 80A 		1-82516-031-0 01 1 0804-
208 FUSE
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 100A 		1-82516-032-0 01 1 0804-
208 FUSE
(A) 40A GREEN 		8-94468-662-0 06 1 0804-
