0-66 — GENERATOR (#150690) — 31 parça

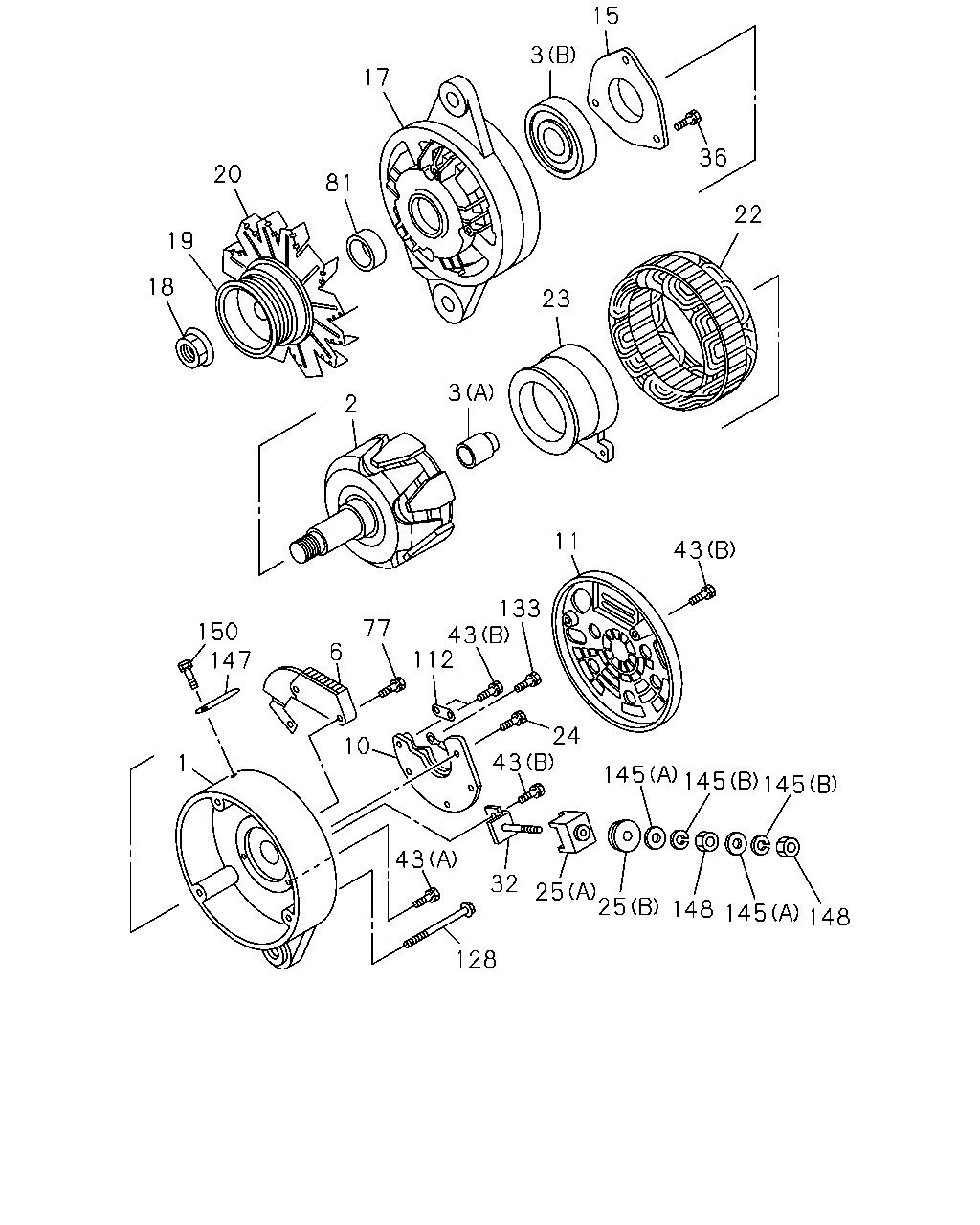

çizim 449225
18 19 20 81 17 3 15 36 22 23 3 2 150 147 6 77 112 43 133 11 43 24 43 10 1 145 145 145 148 145 148 25 25 32 43 128
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-688-0 01 1 -
2 ROTOR; GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-657-0 01 1 -
3 BEARING; ROTOR,GEN
(A), THA ASM PART: A = 8-97948-373-2 		8-98238-676-0 01 1 -
3 BEARING; ROTOR,GEN
(B), THA ASM PART: A = 8-97948-373-2 		8-98238-679-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-662-0 01 1 -
10 RECTIFIER; GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-660-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-687-0 01 1 -
15 RETAINER; ROTOR,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-680-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-677-0 01 1 -
18 NUT; PULLEY,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-685-0 01 1 -
19 PULLEY; GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-690-0 01 1 -
20 FAN; GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-683-0 01 1 -
22 STATOR; GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-659-0 01 1 -
23 COIL; ROTOR GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-665-0 01 1 -
24 SCREW; RECTIFIER,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-661-0 04 1 -
25 BUSHING; INSULATION TERMINAL
(A), THA ASM PART: A = 8-97948-373-2 		8-98238-669-0 01 1 -
25 BUSHING; INSULATION TERMINAL
(B), THA ASM PART: A = 8-97948-373-2 		8-98238-670-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-668-0 01 1 -
36 SCREW; FRT COVER
THA ASM PART: A = 8-97948-373-2 		8-98238-681-0 03 1 -
43 SCREW; RR END COVER
(A), THA ASM PART: A = 8-97948-373-2 		8-98238-666-0 03 1 -
43 SCREW; RR END COVER
(B), THA ASM PART: A = 8-97948-373-2 		8-98238-675-0 06 1 -
77 SCREW; REG
THA ASM PART: A = 8-97948-373-2 		8-98238-663-0 02 1 -
81 SPACER; ROTOR,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-682-0 01 1 -
112 PLATE ASM; GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-674-0 01 1 -
128 BOLT; GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-686-0 03 1 -
133 SCREW; TERMINAL,GENERATOR
THA ASM PART: A = 8-97948-373-2 		8-98238-664-0 03 1 -
145 WASHER; TERMINAL,GEN
(A), THA ASM PART: A = 8-97948-373-2 		8-98238-671-0 02 1 -
145 WASHER; TERMINAL,GEN
(B), THA ASM PART: A = 8-97948-373-2 		8-98238-672-0 02 1 -
147 CLIP; GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-699-0 01 1 -
148 NUT; TERMINAL,GEN
THA ASM PART: A = 8-97948-373-2 		8-98238-673-0 02 1 -
150 BOLT; CLIP
THA ASM PART: A = 8-97948-373-2 		8-98238-700-0 01 1 -
