Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#15069) — 98 parça
◀

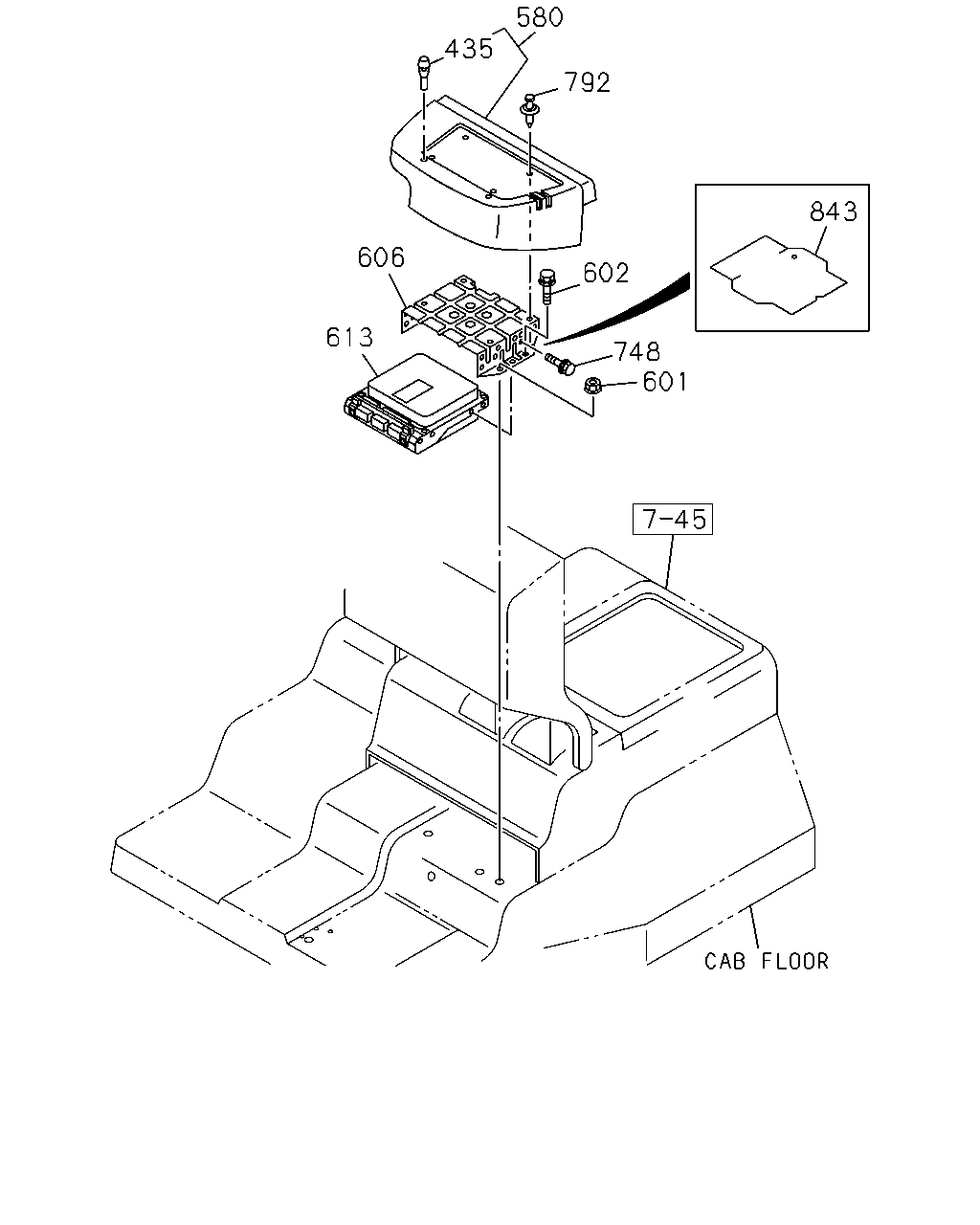

[060A] FIXING;BRKT,ENG CONT UNIT AND COVER (23 parça)

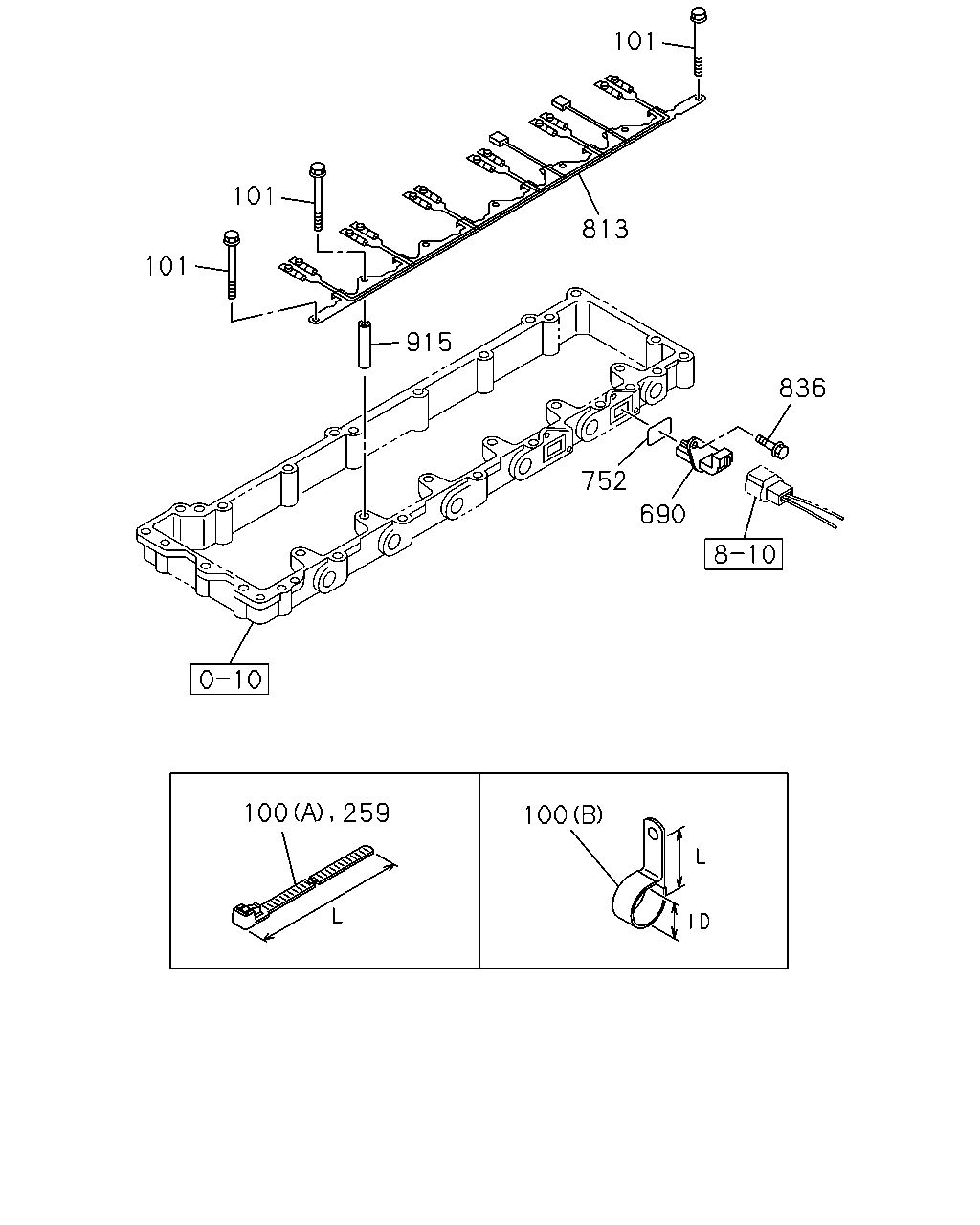

[060A] CYLINDER HEAD SIDE (13 parça)

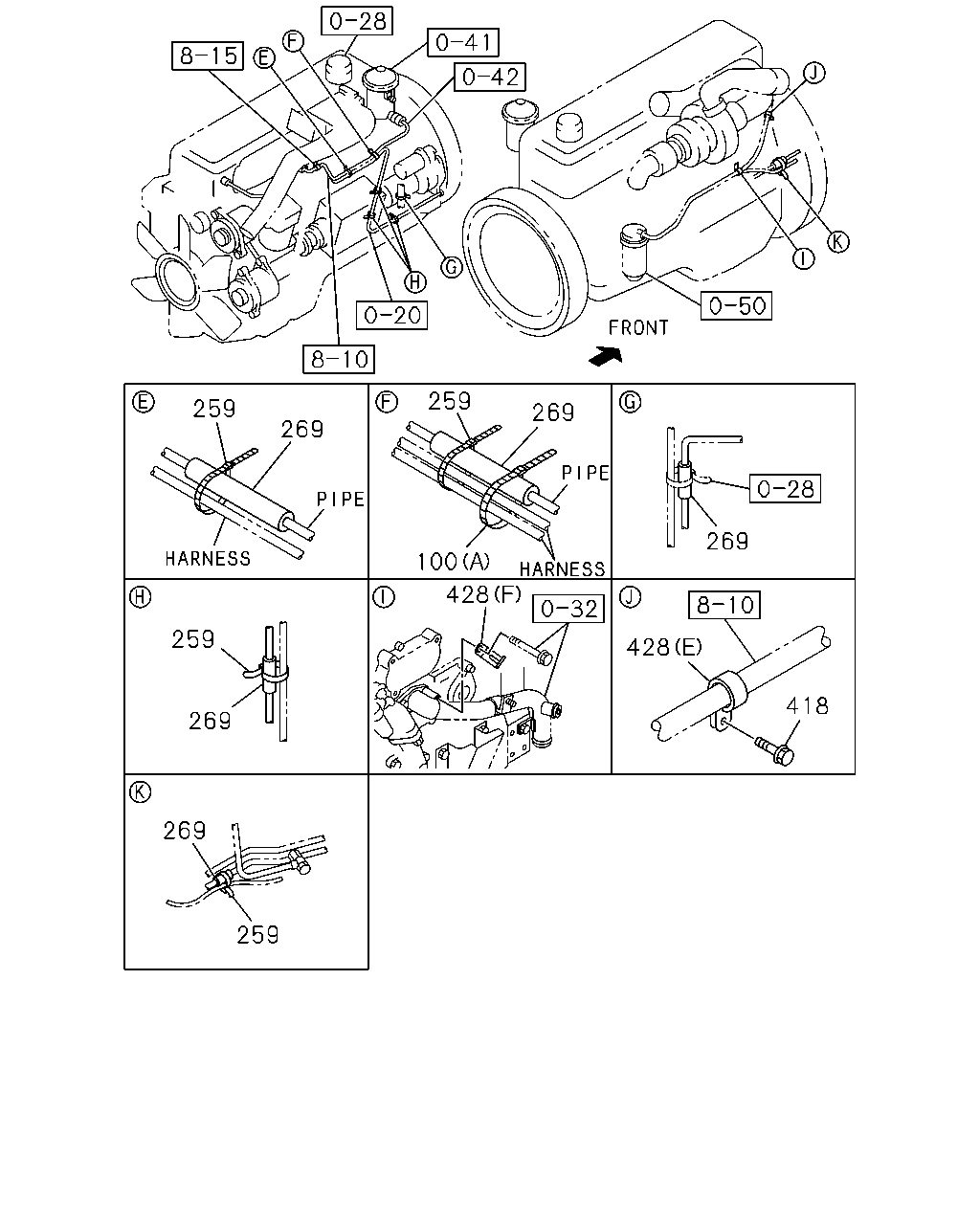

[060A] FIXING;ENG HARNESS (17 parça)
[060A] STARTER RELAY AND FIXING PARTS (3 parça)

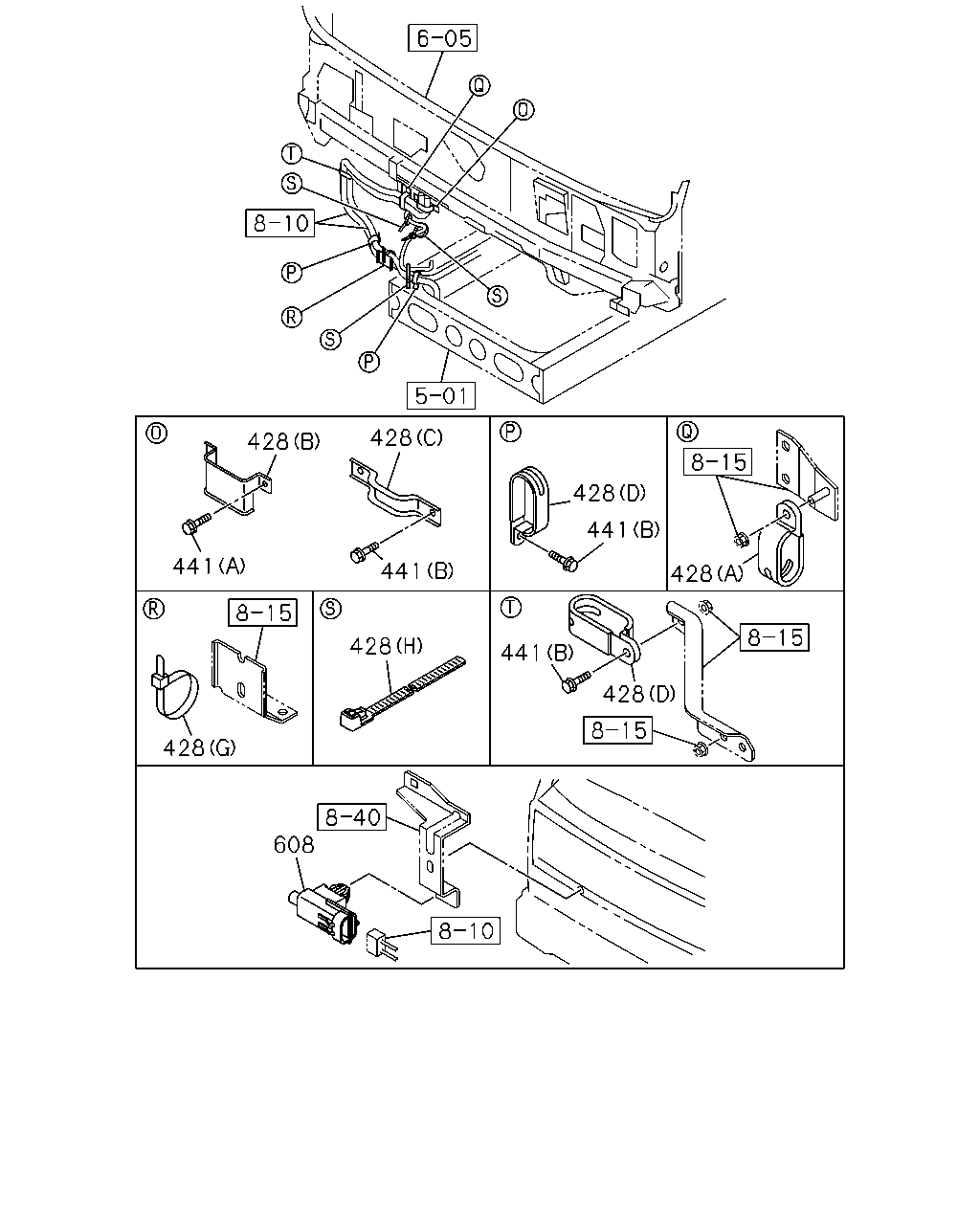

[060A] CAB FRONT SIDE (14 parça)

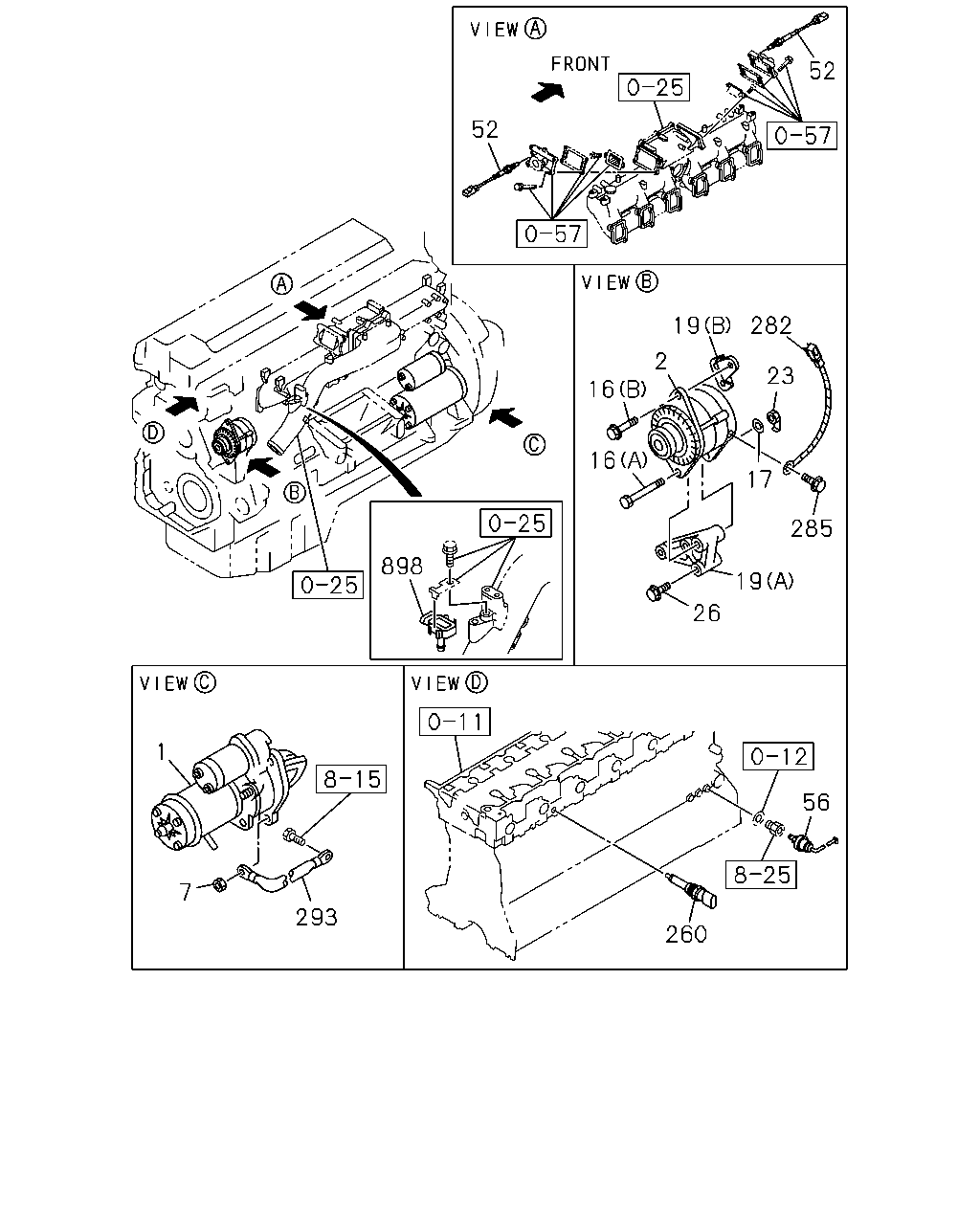

[060A] STARTER,GENERATOR AND SENSOR (22 parça)

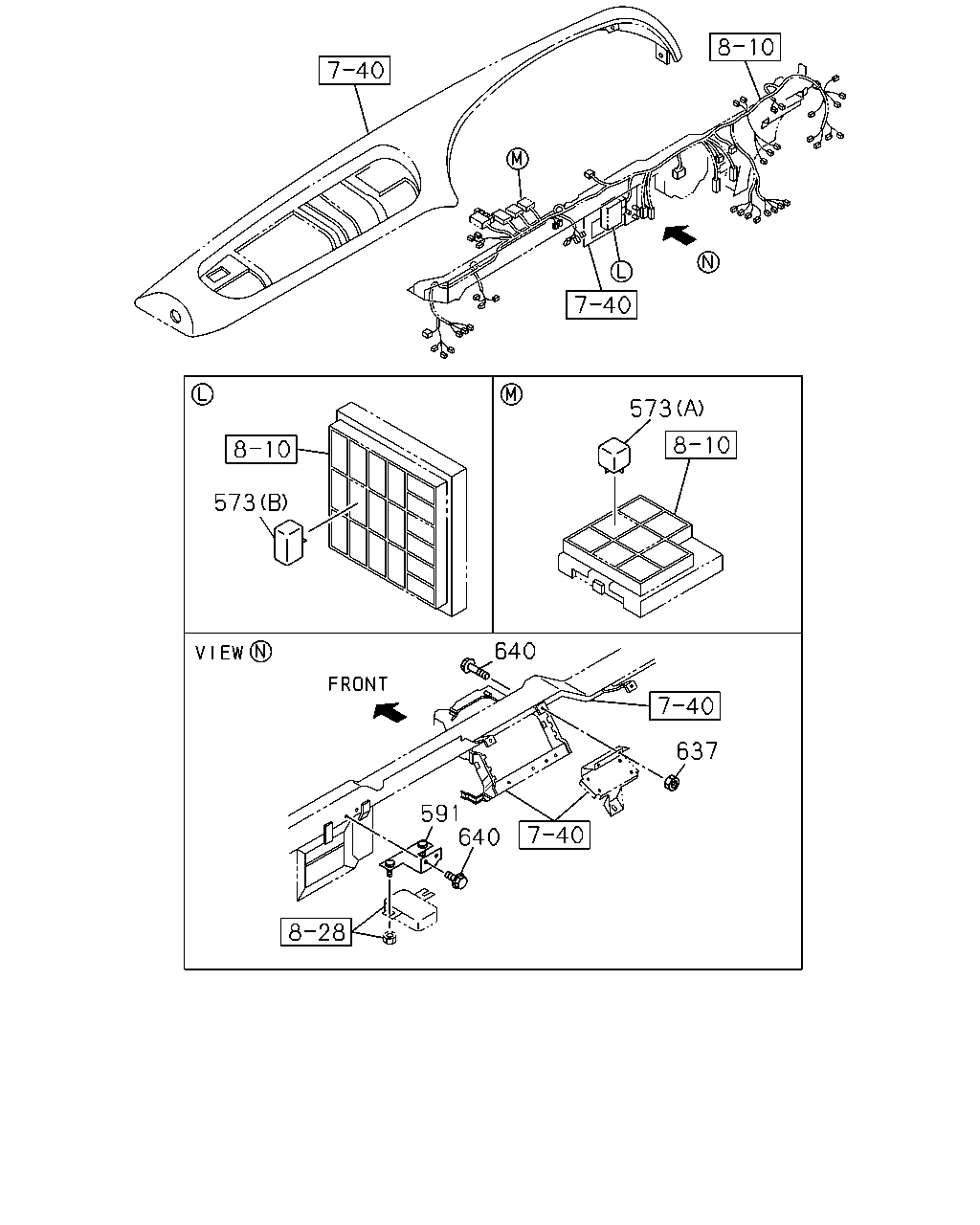

[060A] FACIA HARNESS RELAY AND BRACKET (6 parça)
▶
580
435
792
843
606
602
613
748
601
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
435
RUBBER; CUSHION
1-72537-138-0
02
1
0804-
580
COVER; CONT UNIT
1-72537-279-2
01
1
0804-
601
NUT; UNIT
M6 FLANGE
0-91180-106-0
04
1
0804-
602
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0804-
602
BOLT; BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0804-
606
BRACKET; CONT UNIT
1-72537-333-0
01
1
0804-
613
CONTROL UNIT; ENG
SPEED LIMITTER 95KM(NNT) EXC. KD ENGINE<KDA>
8-98151-112-0
01
1
0908-1103
613
CONTROL UNIT; ENG
KD ENGINE<KDA> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) SPEED LIMITTER 95KM(NNT) GENERATOR NIKKO 24V-90A 2.5KW(SD2),GENERATOR NIKKO 24V-50A 1.2KW(SLX)
8-98151-112-0
01
1
0908-1103
613
CONTROL UNIT; ENG
SPEED LIMITTER 95KM(NNT) EXC. KD ENGINE<KDA>
8-98171-991-1
01
1
1104-
613
CONTROL UNIT; ENG
KD ENGINE<KDA> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) SPEED LIMITTER 95KM(NNT) GENERATOR NIKKO 24V-90A 2.5KW(SD2),GENERATOR NIKKO 24V-50A 1.2KW(SLX)
8-98171-991-1
01
1
1104-
613
CONTROL UNIT; ENG
SPEED LIMITER 105KM(EEQ)
8-98116-710-0
01
1
0804-1103
613
CONTROL UNIT; ENG
SPEED LIMITER 105KM(EEQ)
8-98171-990-1
01
1
1104-
613
CONTROL UNIT; ENG
EXC. SPEED LIMITER 105KM(EEQ)
8-98090-698-0
01
1
0804-0907
613
CONTROL UNIT; ENG
EXC. SPEED LIMITER 105KM(EEQ),KD ENGINE<KDA>,SPEED LIMITTER 95KM(NNT)
8-98090-698-0
01
1
0908-0910
613
CONTROL UNIT; ENG
KD ENGINE<KDA> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) GENERATOR NIKKO 24V-90A 2.5KW(SD2),GENERATOR NIKKO 24V-50A 1.2KW(SLX) EXC. SPEED LIMITER 105KM(EEQ)
8-98090-698-0
01
1
0908-0910
613
CONTROL UNIT; ENG
EXC. SPEED LIMITER 105KM(EEQ),KD ENGINE<KDA>,SPEED LIMITTER 95KM(NNT)
8-98090-698-0
01
1
0911-1103
613
CONTROL UNIT; ENG
KD ENGINE<KDA> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) GENERATOR NIKKO 24V-90A 2.5KW(SD2),GENERATOR NIKKO 24V-50A 1.2KW(SLX) EXC. SPEED LIMITER 105KM(EEQ),SPEED LIMITTER 95KM(NNT)
8-98090-698-0
01
1
0911-1103
613
CONTROL UNIT; ENG
EXC. SPEED LIMITER 105KM(EEQ),KD ENGINE<KDA>,SPEED LIMITTER 95KM(NNT)
8-98171-989-1
01
1
1104-
613
CONTROL UNIT; ENG
KD ENGINE<KDA> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) GENERATOR NIKKO 24V-90A 2.5KW(SD2),GENERATOR NIKKO 24V-50A 1.2KW(SLX) EXC. SPEED LIMITER 105KM(EEQ),SPEED LIMITTER 95KM(NNT)
8-98171-989-1
01
1
1104-
748
BOLT; CONT UNIT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0804-
792
FASTENER
D8X13.5
1-09987-270-0
04
1
0804-
843
SEAL; BRKT
1-76770-009-2
01
1
0804-1101
843
SEAL; BRKT
8-98119-974-0
01
1
1102-
101
101
813
101
915
836
752
690
100
259
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(B) ID=11 L=20
0-95235-035-0
01
1
0804-
100
CLIP; HARNESS
(A) L=140
5-09707-031-1
02
1
0804-1205
100
CLIP; HARNESS
(A) L=140
8-98216-431-0
02
1
1206-
101
BOLT; HARNESS
M8X70 FLANGE
0-28050-870-0
07
1
0804-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
5-09707-030-1
07
1
0804-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
07
1
1206-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
5-09707-031-1
01
1
0804-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
8-98216-431-0
01
1
1206-
690
CONNECTOR
8-94390-858-1
02
1
0804-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
0804-
813
HARNESS; INJECTOR
1-82641-338-1
01
1
0804-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
04
1
0804-
915
SPACER; HARNESS
L=51
1-11369-157-0
05
1
0804-
259
259
269
269
269
100
428
259
428
418
269
269
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(B) ID=11 L=20
0-95235-035-0
01
1
0804-
100
CLIP; HARNESS
(A) L=140
5-09707-031-1
02
1
0804-1205
100
CLIP; HARNESS
(A) L=140
8-98216-431-0
02
1
1206-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
5-09707-030-1
07
1
0804-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
07
1
1206-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
5-09707-031-1
01
1
0804-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
8-98216-431-0
01
1
1206-
269
SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30
9-09956-682-0
03
1
0804-
418
BOLT; CLIP
M10X16 FLANGE
0-28151-016-0
01
1
0804-
428
CLIP; HARNESS
(F) L=36
8-94224-891-1
01
1
0804-
428
CLIP; HARNESS
(E) ID=11 L=28
9-09917-544-0
01
1
0804-
428
CLIP; HARNESS
(A) ID=30X2 L=28
1-09701-266-0
01
1
0804-
428
CLIP; HARNESS
(D) ID=35X2 L=32
1-09701-314-0
03
1
0804-
428
CLIP; HARNESS
(G) L=350
1-09707-183-0
01
1
0804-
428
CLIP; HARNESS
(C)
1-82699-911-0
01
1
0804-
428
CLIP; HARNESS
(B)
1-82699-993-1
01
1
0804-
428
CLIP; HARNESS
(H) L=250
5-09707-030-1
03
1
0804-
10
296
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
1-81171-100-1
01
1
0804-
296
NUT; RELAY,STARTER
(A) M8 FLANGE
0-91180-108-0
02
1
0804-
296
NUT; RELAY,STARTER
(B) M6 FLANGE
0-91180-206-0
02
1
0804-
428
428
428
441
441
441
428
428
441
428
428
608
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
428
CLIP; HARNESS
(F) L=36
8-94224-891-1
01
1
0804-
428
CLIP; HARNESS
(E) ID=11 L=28
9-09917-544-0
01
1
0804-
428
CLIP; HARNESS
(A) ID=30X2 L=28
1-09701-266-0
01
1
0804-
428
CLIP; HARNESS
(D) ID=35X2 L=32
1-09701-314-0
03
1
0804-
428
CLIP; HARNESS
(G) L=350
1-09707-183-0
01
1
0804-
428
CLIP; HARNESS
(C)
1-82699-911-0
01
1
0804-
428
CLIP; HARNESS
(B)
1-82699-993-1
01
1
0804-
428
CLIP; HARNESS
(H) L=250
5-09707-030-1
03
1
0804-
441
BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE
0-28650-820-0
02
1
0804-
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
05
1
0804-0809
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0810-0904
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
608
SENSOR; AIR TEMP
8-97177-549-0
01
1
0804-1204
608
SENSOR; AIR TEMP
8-98214-375-0
01
1
1205-
52
52
898
19
282
16
2
23
16
17
285
19
26
56
260
293
7
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
8-97380-508-4
01
1
0804-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A MITSUBISHI
8-98013-614-3
01
1
0804-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI
8-98013-612-3
01
1
0804-1112
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI
8-98200-162-0
01
1
1201-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
0804-
16
BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) M14X157
1-09040-106-0
01
1
0804-
16
BOLT; GEN
(B) M12X40 FLANGE
0-28051-240-0
01
1
0804-
16
BOLT; GEN
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (A) M14X123
1-09040-105-0
01
1
0804-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0804-
19
BRACKET; GEN
(B)
8-97606-317-0
01
1
0804-
19
BRACKET; GEN
(A)
8-97607-133-0
01
1
0804-
23
NUT; GEN
M14 W/BRKT
1-19711-029-0
01
1
0804-0910
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
0911-
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28151-060-0
02
1
0804-
52
SENSOR; EGR GAS
1-81510-758-0
02
1
0804-
56
SWITCH; OIL PRESSURE WARNING
1-82410-163-1
01
1
0804-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0804-
282
HARNESS; EXT,GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2)
1-82640-682-2
01
1
0804-
285
BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) M8X12 FLANGE
0-28050-812-0
01
1
0804-
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
0804-
898
SENSOR; BOOST
8-09373-269-1
01
1
0804-0809
898
SENSOR; BOOST
8-28139-775-0
01
1
0810-
573
573
640
637
591
640
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
573
RELAY; ELEC GOV
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
0804-
573
RELAY; ELEC GOV
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0804-
591
BRACKET ASM; QOS UNIT
1-73908-161-0
01
1
0804-
637
NUT; FLANGE
M6 FLANGE
0-91180-106-0
02
1
0804-
640
BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0804-
640
BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0804-
