0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#150688) — 43 parça

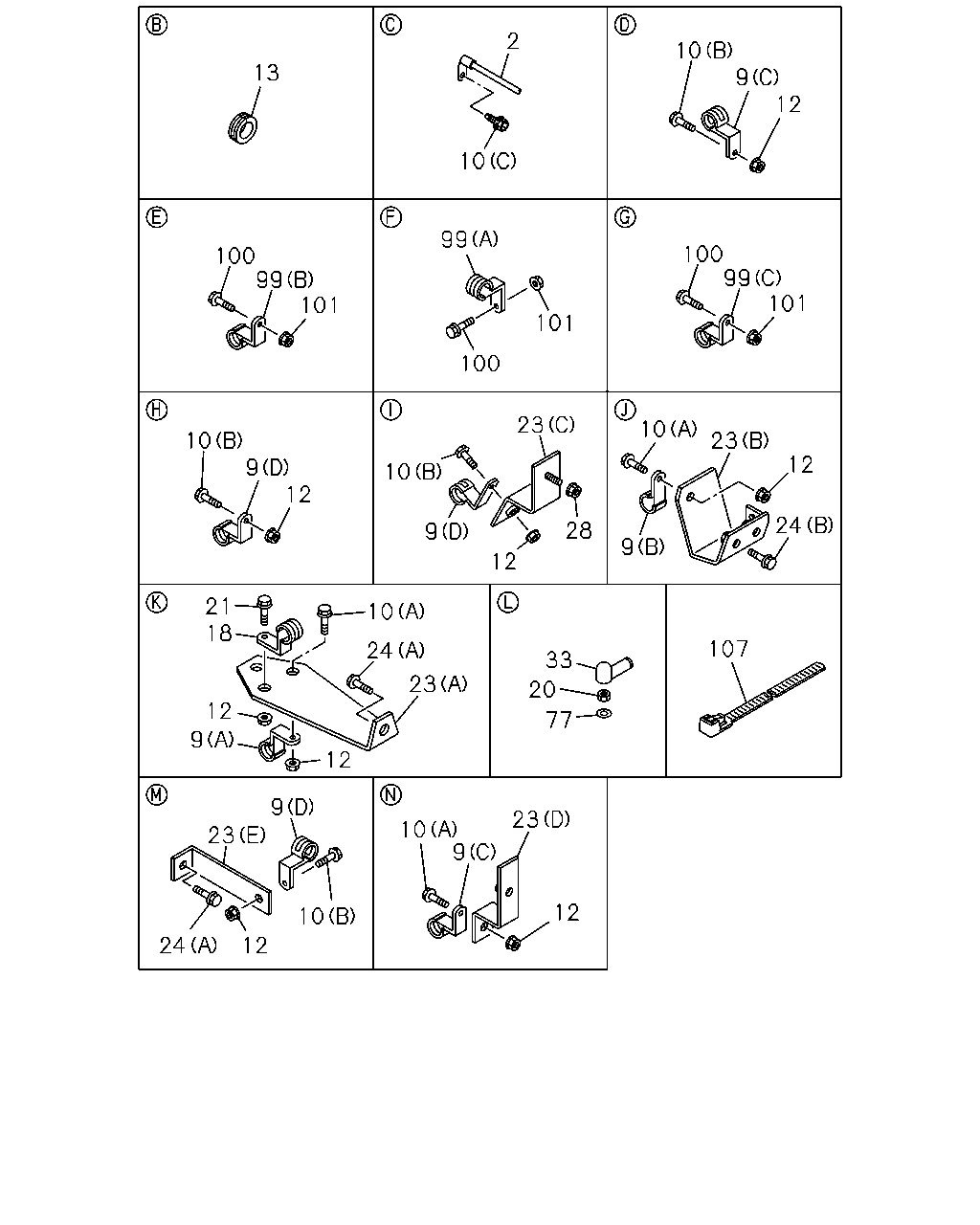

çizim 448866
13 2 10 10 9 12 99 100 101 101 100 100 99 101 10 9 12 10 23 9 28 12 10 9 23 24 12 21 18 12 9 10 24 23 12 33 20 77 107 9 23 24 12 10 10 9 23 12 99
BalonParca AdiParca NoAdetTipApplied Date A B
2 CABLE; BATTERY
L=250 THA 		8-98105-795-0 01 1 1410- ● ●
9 CLIP; BATTERY CABLE
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (D) ID=18 L=28 H=30 THA 		1-09701-110-0 04 1 1410- ●
9 CLIP; BATTERY CABLE
ZF9S1310 M/T<Y5K> (D) ID=18 L=28 H=30 THA 		1-09701-110-0 04 1 1410- ●
9 CLIP; BATTERY CABLE
MJT7U M/T<Y4X> (C) ID=18 L=25 H=50 THA 		1-09701-096-0 01 1 1410- ●
9 CLIP; BATTERY CABLE
MJT7U M/T<Y4X> (D) ID=18 L=28 H=30 THA 		1-09701-110-0 03 1 1410- ●
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 THA 		1-09701-067-0 01 1 1410- ● ●
9 CLIP; BATTERY CABLE
(C) ID=18 H=23 L=28 THA 		1-09701-070-0 01 1 1410- ● ●
9 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 THA 		1-09701-096-0 02 1 1410- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 THA 		1-09701-110-0 01 1 1410- ● ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X14 W/PL WASHER THA 		8-98164-837-0 01 1 1410- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 04 1 1410- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 1410- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 1410- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1410- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1410- ● ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 THA 		1-09332-112-0 01 1 1410- ● ●
18 CLIP; BATTERY CABLE
ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
20 NUT; STARTER CABLE
THA 		8-98011-328-0 01 1 1410- ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) THA 		1-47476-676-0 01 1 1410- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 THA 		1-82699-085-0 01 1 1410- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) THA 		1-47471-215-1 01 1 1410- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) THA 		1-47479-779-0 01 1 1410- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) THA 		1-82698-614-0 01 1 1410- ● ●
24 BOLT; BRKT TO FRAME
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
24 BOLT; BRKT TO FRAME
(A) M8X35 FLANGE THA 		0-28650-835-0 02 1 1410- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
33 CAP; INSULATOR
THA 		1-82699-431-0 01 1 1410- ● ●
77 WASHER; LK,STARTER CABLE
ID=10.2 THA 		0-91510-810-0 01 1 1410- ● ●
99 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 THA 		1-09700-861-0 02 1 1410- ● ●
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 THA 		1-09701-096-0 01 1 1410- ● ●
99 CLIP; BATTERY CABLE
(C) ID=18 L=28 H=30 THA 		1-09701-110-0 01 1 1410- ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE THA 		0-28650-825-0 04 1 1410- ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1410- ● ●
107 CLIP; BAND
L=350 THA 		1-09707-183-0 01 1 1410- ● ●

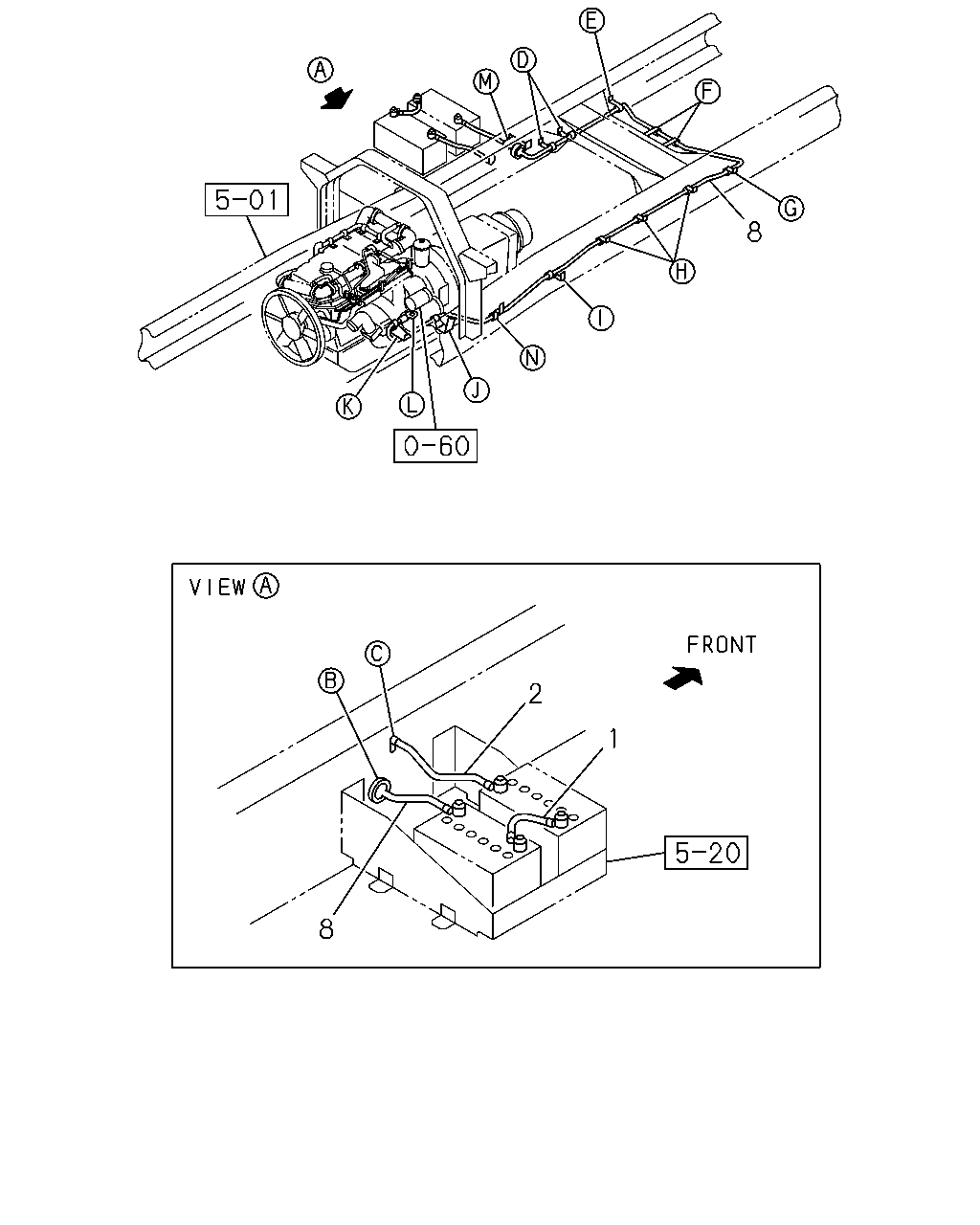

çizim 449734
2 1 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=265 THA 		8-98168-288-0 01 1 1410- ● ●
2 CABLE; BATTERY
L=250 THA 		8-98105-795-0 01 1 1410- ● ●
8 CABLE; BATTERY,STARTER
ENGINE REAR PTO<SV1> L=4720 THA 		8-98112-963-1 01 1 1410- ●
8 CABLE; BATTERY,STARTER
EXC. ENGINE REAR PTO<SV1> L=4610 THA 		8-98112-961-1 01 1 1410- ●
8 CABLE; BATTERY,STARTER
L=4610 THA 		8-98112-961-1 01 1 1410- ●
