11652 - FXZ/GXZ THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶
0-52 — OIL AND VACUUM PIPING; ENGINE
(#150685) — 69 parça
◀

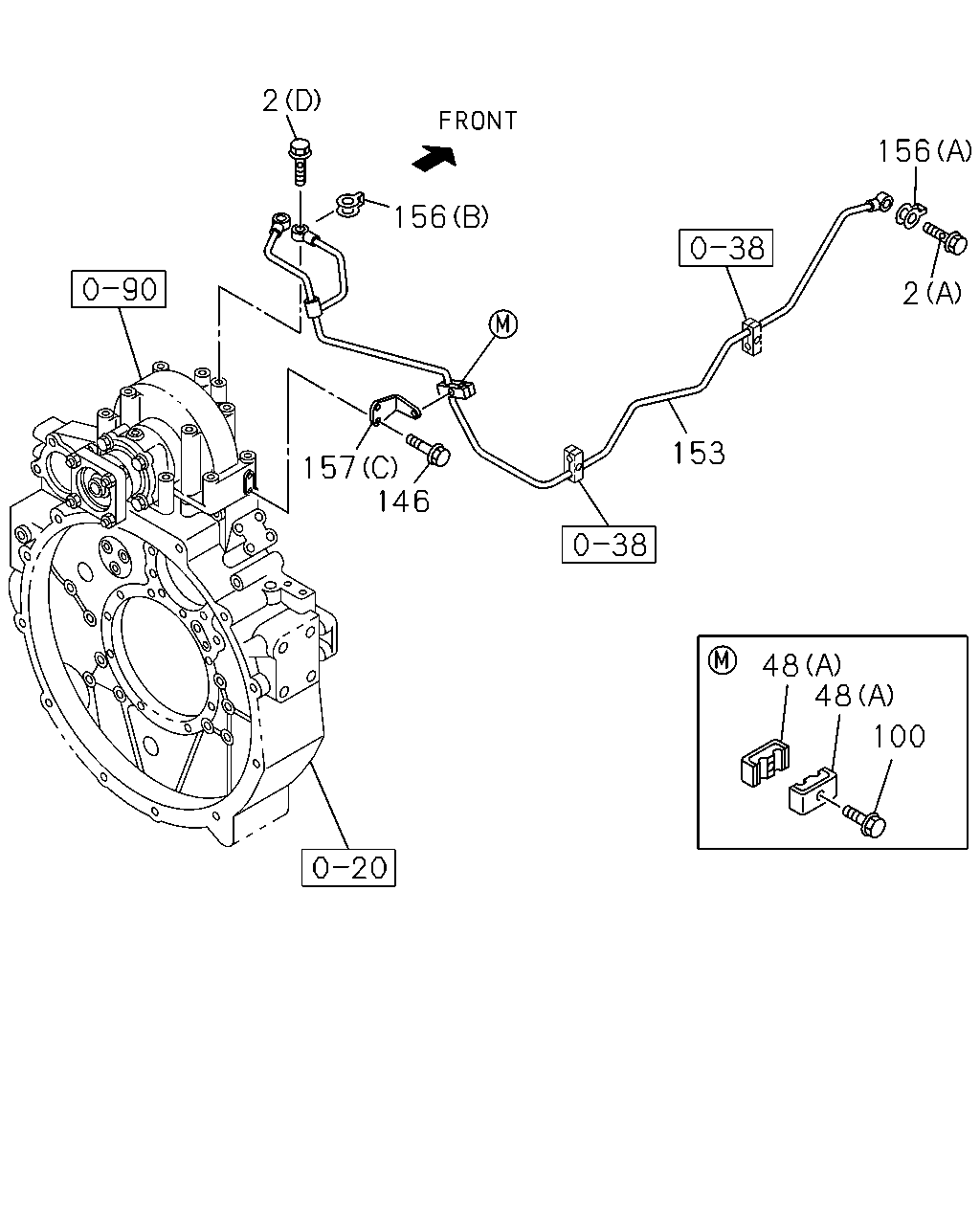

[052A] ENGINE REAR PTO (17 parça)

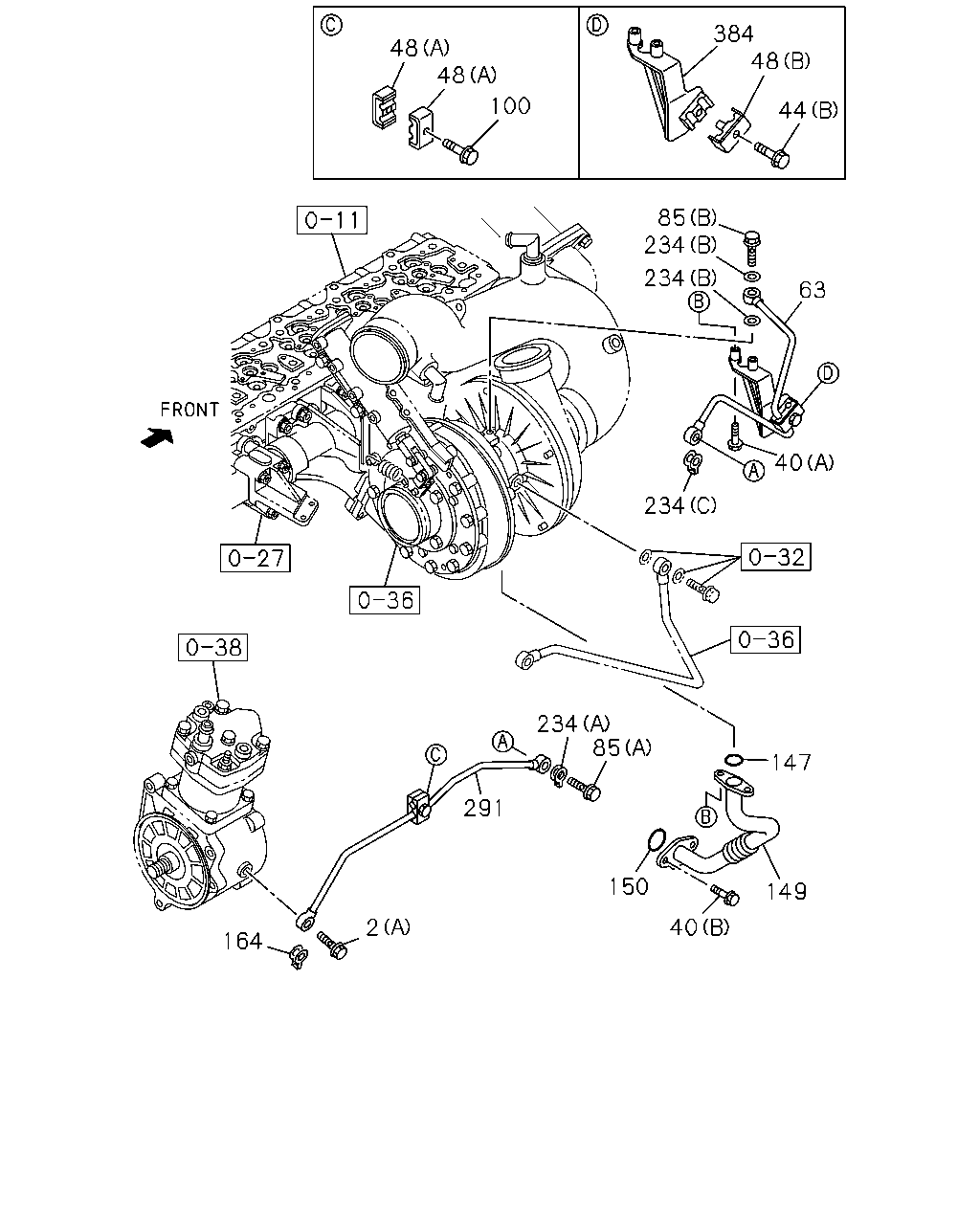

[052A] TURBOCHARGER,AIR COMPRESSOR SIDE (26 parça)

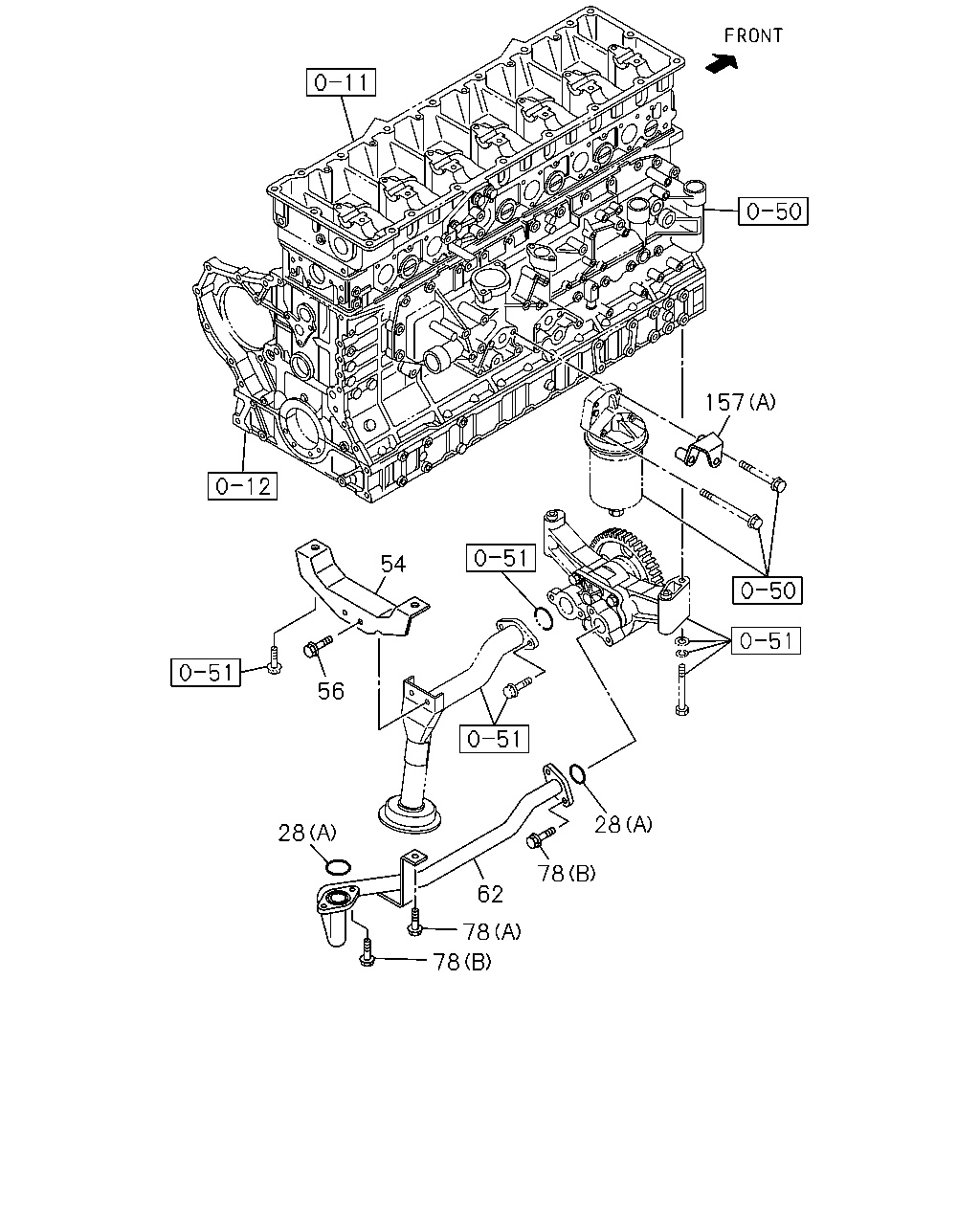

[052A] OIL PUMP PIPING AND BRACKET (10 parça)

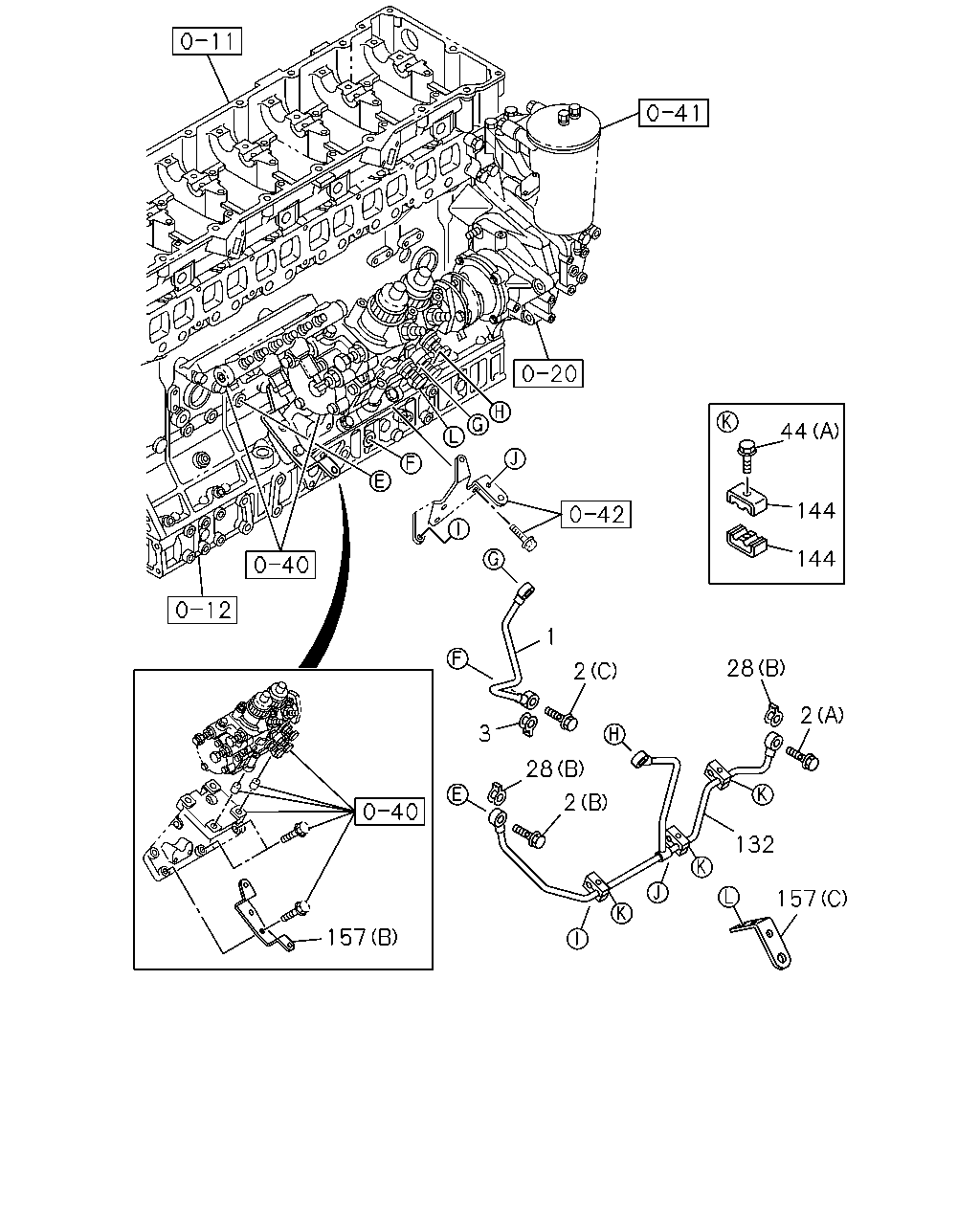

[052A] INJECTION PUMP SIDE (16 parça)
▶
2
156
157
153
2
156
48
48
100
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO<SV1> (D) M12X27 EYE-BOLT W/FLANGE THA
8-98037-826-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
(C) M14X33 FLANGE THA
1-09675-088-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE THA
8-94396-711-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE THA
8-97372-238-0
02
1
1410-
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO<SV1> (A) M10X21 FLANGE THA
8-97372-238-0
02
1
1410-
48
CLIP; OIL PIPE
(B) THA
1-09701-265-1
01
1
1410-
48
CLIP; OIL PIPE
(A) THA
8-98148-996-2
02
1
1410-
48
CLIP; OIL PIPE
ENGINE REAR PTO<SV1> (A) THA
8-98148-996-2
02
1
1410-
100
BOLT; CLIP
M6X30 FLANGE THA
0-28050-630-0
01
1
1410-
100
BOLT; CLIP
ENGINE REAR PTO<SV1> M6X30 FLANGE THA
0-28050-630-0
01
1
1410-
146
BOLT; BRKT
ENGINE REAR PTO<SV1> M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
153
PIPE; OIL,C/BL TO PTO
ENGINE REAR PTO<SV1> THA
8-98149-196-0
01
1
1410-
156
GASKET; EYE JOINT,OIL PIPE
ENGINE REAR PTO<SV1> (B) ID=10.6 THA
8-98231-393-0
03
1
1410-
156
GASKET; EYE JOINT,OIL PIPE
ENGINE REAR PTO<SV1> (A) ID=12.2 THA
8-98251-344-0
04
1
1410-
157
BRACKET; OIL PIPE
(A) THA
8-97610-356-1
01
1
1410-
157
BRACKET; OIL PIPE
(B) THA
8-97620-045-0
01
1
1410-
157
BRACKET; OIL PIPE
ENGINE REAR PTO<SV1> (C) THA
8-97607-498-0
01
1
1410-
48
48
100
384
48
44
85
234
234
63
40
234
234
291
147
150
149
40
2
164
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO<SV1> (D) M12X27 EYE-BOLT W/FLANGE THA
8-98037-826-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
(C) M14X33 FLANGE THA
1-09675-088-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE THA
8-94396-711-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE THA
8-97372-238-0
02
1
1410-
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO<SV1> (A) M10X21 FLANGE THA
8-97372-238-0
02
1
1410-
40
BOLT; OIL PIPE
(A) M8X40 FLANGE THA
0-28050-840-0
02
1
1410-
40
BOLT; OIL PIPE
(B) M10X25 FLANGE THA
0-28751-025-0
02
1
1410-
44
BOLT; CLIP,OIL PIPE
(A) M6X30 FLANGE THA
0-28050-630-0
03
1
1410-
44
BOLT; CLIP,OIL PIPE
(B) M6X35 FLANGE THA
0-28650-635-0
01
1
1410-
48
CLIP; OIL PIPE
(B) THA
1-09701-265-1
01
1
1410-
48
CLIP; OIL PIPE
(A) THA
8-98148-996-2
02
1
1410-
48
CLIP; OIL PIPE
ENGINE REAR PTO<SV1> (A) THA
8-98148-996-2
02
1
1410-
63
PIPE; OIL,TURBOCHARGER FEED
THA
8-97604-871-0
01
1
1410-
85
BOLT; EYE,OIL PIPE FIX
(A) M12X41 THA
1-09675-140-0
01
1
1410-
85
BOLT; EYE,OIL PIPE FIX
(B) M12X27 EYE-BOLT W/FLANGE THA
8-98037-826-0
01
1
1410-
100
BOLT; CLIP
M6X30 FLANGE THA
0-28050-630-0
01
1
1410-
100
BOLT; CLIP
ENGINE REAR PTO<SV1> M6X30 FLANGE THA
0-28050-630-0
01
1
1410-
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 THA
8-94399-399-0
01
1
1410-
149
PIPE; OIL RETURN,TURBOCHARGER
THA
8-97603-712-2
01
1
1410-
150
GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 THA
1-09623-450-0
01
1
1410-
164
GASKET; EYE BOLT,OIL PIPE,FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.6 THA
8-98231-393-0
01
1
1410-
234
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 THA
8-97256-733-0
01
1
1410-
234
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 THA
8-98251-344-0
01
1
1410-
234
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 THA
9-09571-412-0
02
1
1410-
291
PIPE; OIL
THA
8-98145-554-0
01
1
1410-
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
THA
1-13345-216-0
01
1
1410-
157
56
54
28
78
62
78
78
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6 THA
8-98231-393-0
02
1
1410-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2 THA
9-09566-226-0
02
1
1410-
54
STAY; OIL STRAINER
THA
1-13345-182-0
01
1
1410-
56
BOLT; STAY TO BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
62
PIPE; OIL,PUMP TO C/BL
THA
8-97603-066-1
01
1
1410-
78
BOLT; OIL PIPE,PUMP TO BODY
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
1410-
78
BOLT; OIL PIPE,PUMP TO BODY
(B) M8X25 FLANGE THA
0-28650-825-0
04
1
1410-
157
BRACKET; OIL PIPE
(A) THA
8-97610-356-1
01
1
1410-
157
BRACKET; OIL PIPE
(B) THA
8-97620-045-0
01
1
1410-
157
BRACKET; OIL PIPE
ENGINE REAR PTO<SV1> (C) THA
8-97607-498-0
01
1
1410-
44
144
144
28
2
132
157
2
28
2
1
3
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; OIL,INJ PUMP TO C/BL
THA
8-97603-876-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO<SV1> (D) M12X27 EYE-BOLT W/FLANGE THA
8-98037-826-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
(C) M14X33 FLANGE THA
1-09675-088-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE THA
8-94396-711-0
01
1
1410-
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE THA
8-97372-238-0
02
1
1410-
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO<SV1> (A) M10X21 FLANGE THA
8-97372-238-0
02
1
1410-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=21 THA
8-97251-047-0
01
1
1410-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6 THA
8-98231-393-0
02
1
1410-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2 THA
9-09566-226-0
02
1
1410-
44
BOLT; CLIP,OIL PIPE
(A) M6X30 FLANGE THA
0-28050-630-0
03
1
1410-
44
BOLT; CLIP,OIL PIPE
(B) M6X35 FLANGE THA
0-28650-635-0
01
1
1410-
132
PIPE ASM; OIL,INJ PUMP FEED
THA
8-98174-716-0
01
1
1410-
144
CLIP; OIL PIPE,INJ PUMP
THA
8-98148-996-2
06
1
1410-
157
BRACKET; OIL PIPE
(A) THA
8-97610-356-1
01
1
1410-
157
BRACKET; OIL PIPE
(B) THA
8-97620-045-0
01
1
1410-
157
BRACKET; OIL PIPE
ENGINE REAR PTO<SV1> (C) THA
8-97607-498-0
01
1
1410-
