11652 - FXZ/GXZ THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

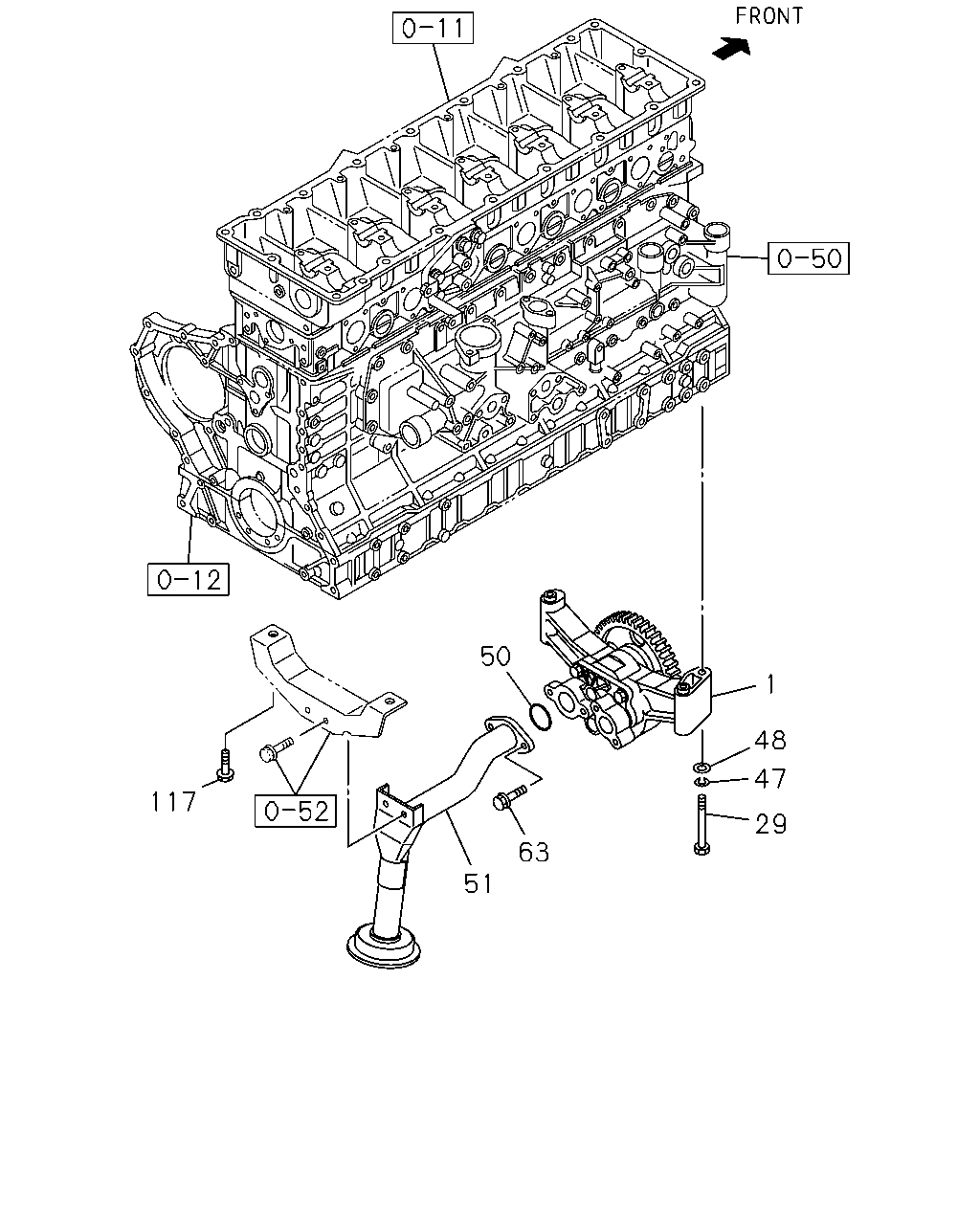

0-51 — OIL PUMP AND OIL STRAINER
(#150684) — 8 parça
50
63
51
48
1
47
29
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
THA
8-97607-586-1
01
1
1410-
29
BOLT; OIL PUMP
M10X80 THA
0-16856-080-0
03
1
1410-
47
WASHER; LK,OIL PUMP
ID=10.2 THA
0-91510-810-0
03
1
1410-
48
WASHER; PL,OIL PUMP
ID=10.5 OD=22 THA
0-91614-610-0
03
1
1410-
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 THA
1-09623-479-0
01
1
1410-
51
STRAINER & PIPE ASM; OIL
THA
1-13313-273-0
01
1
1410-
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X25 FLANGE THA
0-28650-825-0
02
1
1410-
117
BOLT; STAY TO CRANKCASE
M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
