0-42 — FUEL PUMP AND PIPE
(#150682) — 24 parça
◀

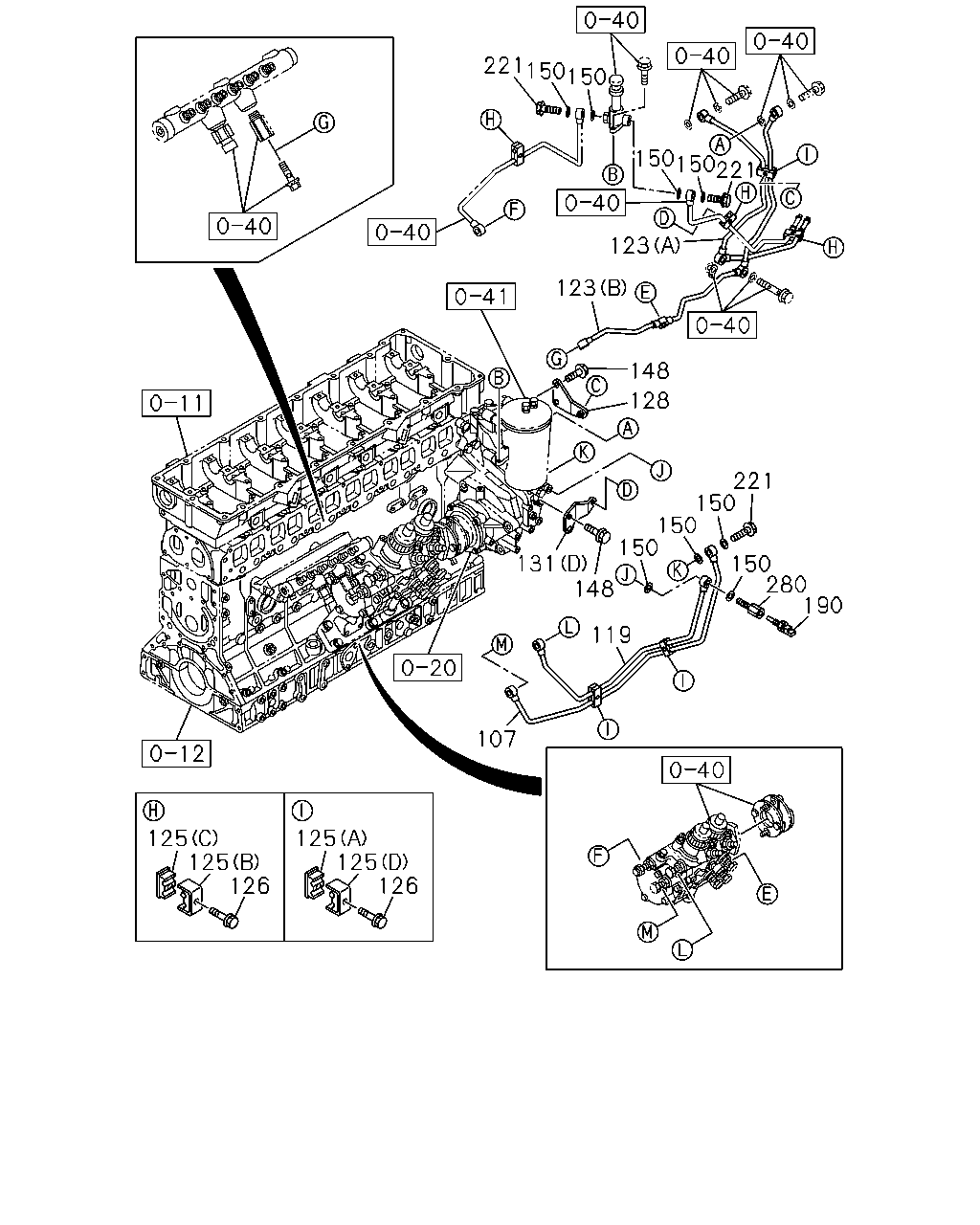

[042A] PIPING (19 parça)

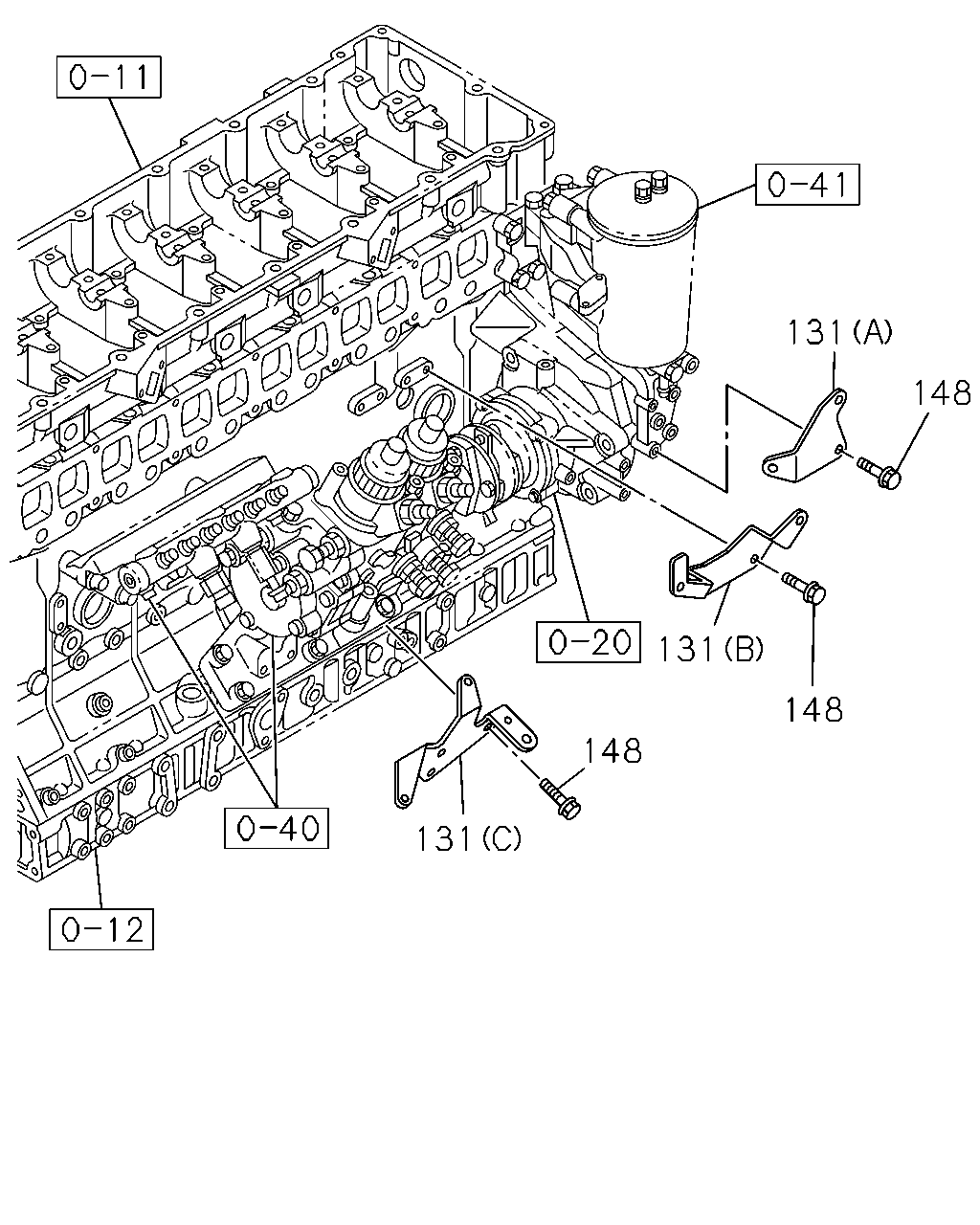

[042A] BRACKET (5 parça)
▶
221
150
150
150
150
221
123
123
148
128
221
150
150
150
148
131
119
150
280
190
107
125
125
126
125
126
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
THA
8-97606-621-1
01
1
1410-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
THA
8-97603-752-0
01
1
1410-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A) THA
8-97606-623-0
01
1
1410-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B) THA
8-98170-939-0
01
1
1410-
125
CLIP; FUEL PIPE
(A) THA
1-09701-180-0
03
1
1410-
125
CLIP; FUEL PIPE
(B) THA
1-09701-193-1
03
1
1410-
125
CLIP; FUEL PIPE
(C) THA
1-09701-194-1
03
1
1410-
125
CLIP; FUEL PIPE
(D) ID=10 & 10 L=25 THA
8-94393-280-3
03
1
1410-
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE THA
0-28650-635-0
06
1
1410-
128
BRACKET; FUEL RETURN CLIP
THA
8-97606-626-0
01
1
1410-
131
BRACKET; FUEL PIPE CLIP
(A) THA
8-97603-874-0
01
1
1410-
131
BRACKET; FUEL PIPE CLIP
(B) THA
8-97605-982-1
01
1
1410-
131
BRACKET; FUEL PIPE CLIP
(D) THA
8-97606-625-0
01
1
1410-
131
BRACKET; FUEL PIPE CLIP
(C) THA
8-97610-280-0
01
1
1410-
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
11
1
1410-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 THA
1-09630-141-0
08
1
1410-
190
SENSOR; FUEL TEMP
THA
8-97224-993-0
01
1
1410-
221
BOLT; FUEL PIPE
M14X27 FLANGE THA
1-09675-086-0
03
1
1410-
280
ADAPTER; FUEL TEMP SEN
THA
1-15419-716-1
01
1
1410-
131
148
131
148
148
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
131
BRACKET; FUEL PIPE CLIP
(A) THA
8-97603-874-0
01
1
1410-
131
BRACKET; FUEL PIPE CLIP
(B) THA
8-97605-982-1
01
1
1410-
131
BRACKET; FUEL PIPE CLIP
(D) THA
8-97606-625-0
01
1
1410-
131
BRACKET; FUEL PIPE CLIP
(C) THA
8-97610-280-0
01
1
1410-
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
11
1
1410-
