Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11652 - FXZ/GXZ THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#150677) — 29 parça
◀

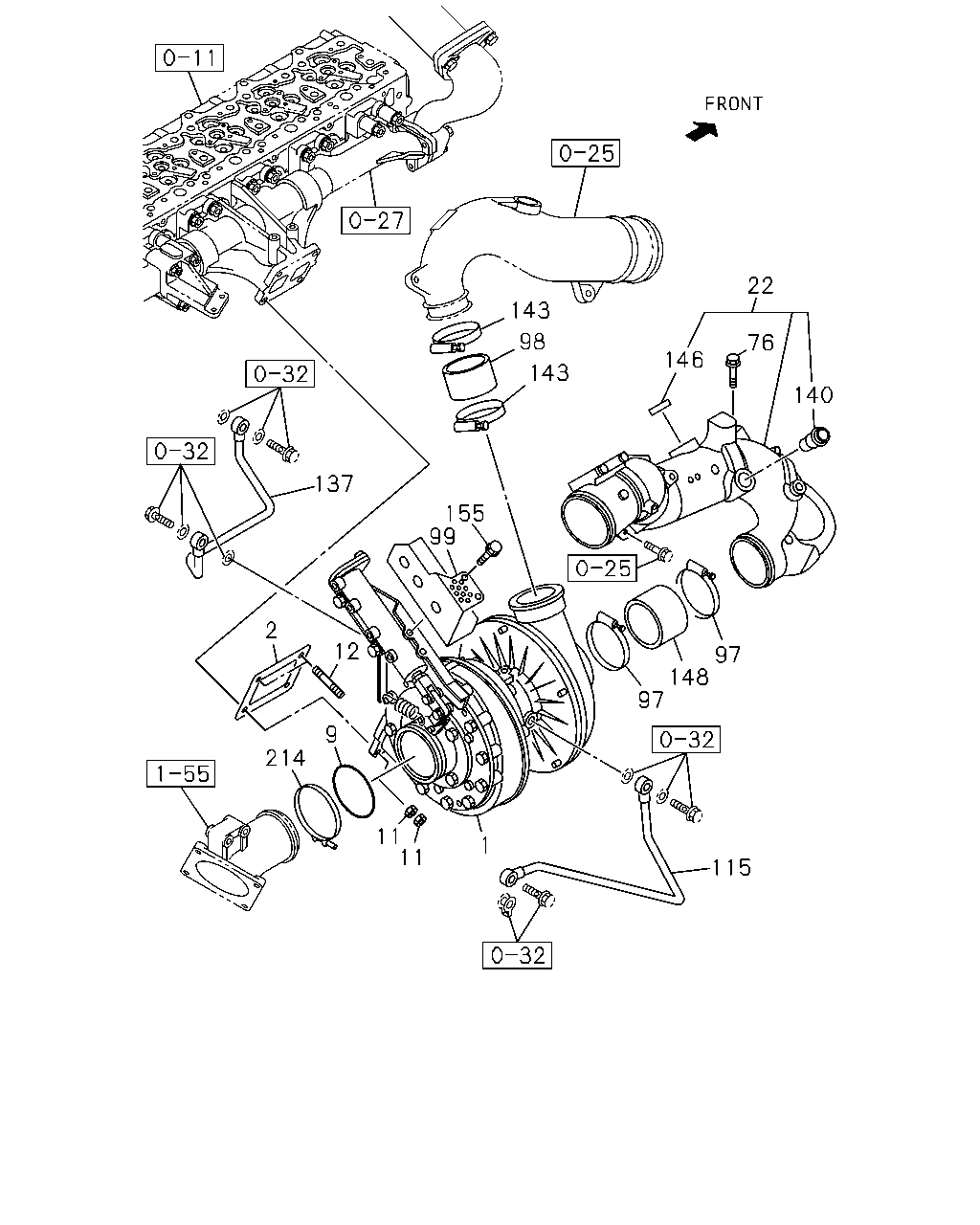

[036A] TURBOCHARGER FIXING (18 parça)
[036A] FLEX HOSE AND PIPE (11 parça)
▶
143
98
143
146
22
76
140
97
148
97
115
1
11
11
9
214
2
12
137
155
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
THA
1-14400-429-5
01
1
1410-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-98162-161-0
01
1
1410-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97618-761-1
01
1
1410-
11
NUT; TURBOCHARGER
M10 THA
1-09420-005-0
08
1
1410-
12
STUD; TURBOCHARGER
M10X25 L=47 THA
8-97378-071-0
02
1
1410-
22
DUCT; INL,ACL TO TURBOCHARGER
THA
8-97614-187-1
01
1
1410-
76
BOLT; AIR DUCT
M10X45 FLANGE THA
0-28151-045-0
03
1
1410-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 THA
1-09707-138-0
02
1
1410-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
THA
8-98169-677-0
01
1
1410-
99
PROTECTOR; HEAT
THA
1-14181-350-0
01
1
1410-
115
PIPE; WATER,TURBOCHARGER OUT
THA
8-97605-217-0
01
1
1410-
137
PIPE; WATER,TURBOCHARGER IN
THA
8-97607-435-0
01
1
1410-
140
PIPE; AIR PIPE
THA
8-97603-427-1
01
1
1410-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85 THA
8-98096-592-0
02
1
1410-
146
PLUG; INL PIPE
OD=40 THA
8-94241-637-0
01
1
1410-
148
HOSE; TURBOCHARGER,INL
THA
1-09360-913-0
01
1
1410-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE THA
0-28050-610-0
04
1
1410-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
THA
8-98006-007-1
01
1
1410-
523
523
276
479
272
268
268
514
272
268
514
514
392
515
217
479
276
523
272
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
217
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
268
NUT; FLEX TUBE
M12 THA
0-91110-512-0
03
1
1410-
272
WASHER; LK,FLEX HOSE
ID=12.2 THA
0-91510-512-0
03
1
1410-
276
CLIP; PIPE
ID=6.35 & 6.35 THA
1-09709-273-1
02
1
1410-
392
CLIP; FLEX HOSE
ID=10 & 10 THA
1-09709-277-1
01
1
1410-
479
UNION; FLEX TUBE
M12 2WAY THA
1-09654-059-2
03
1
1410-
514
HOSE; FLEX
L=240 THA
1-09363-671-0
03
1
1410-
515
BRACKET; UNION
THA
8-97608-912-1
01
1
1410-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=512 SERVICED BY L=550 THA
1-47428-808-0
01
1
1410-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=439 THA
8-97618-499-0
01
1
1410-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=379 THA
8-97618-500-0
01
1
1410-
