Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11652 - FXZ/GXZ THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#150672) — 26 parça
◀

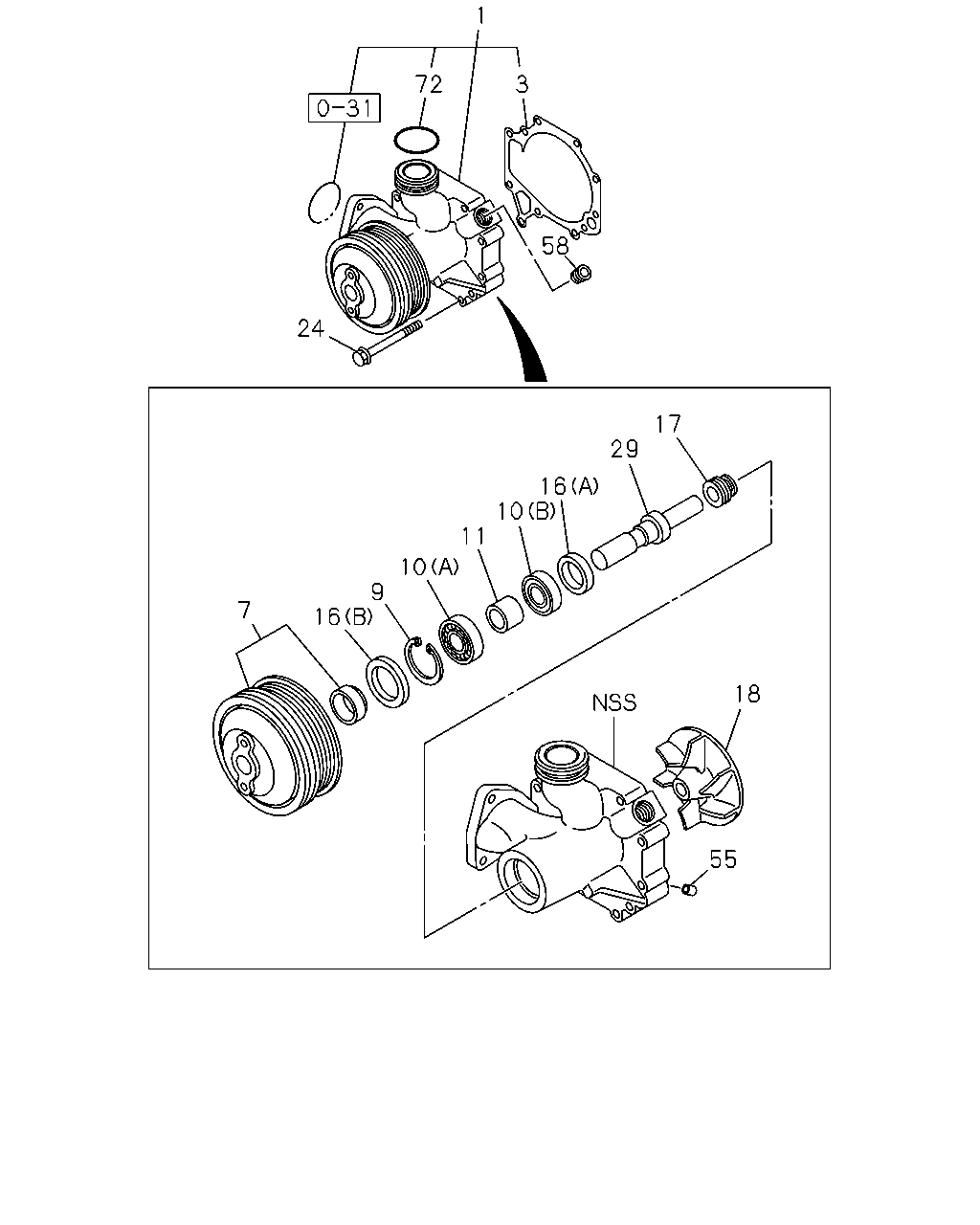

[030A] COMPONENT (16 parça)

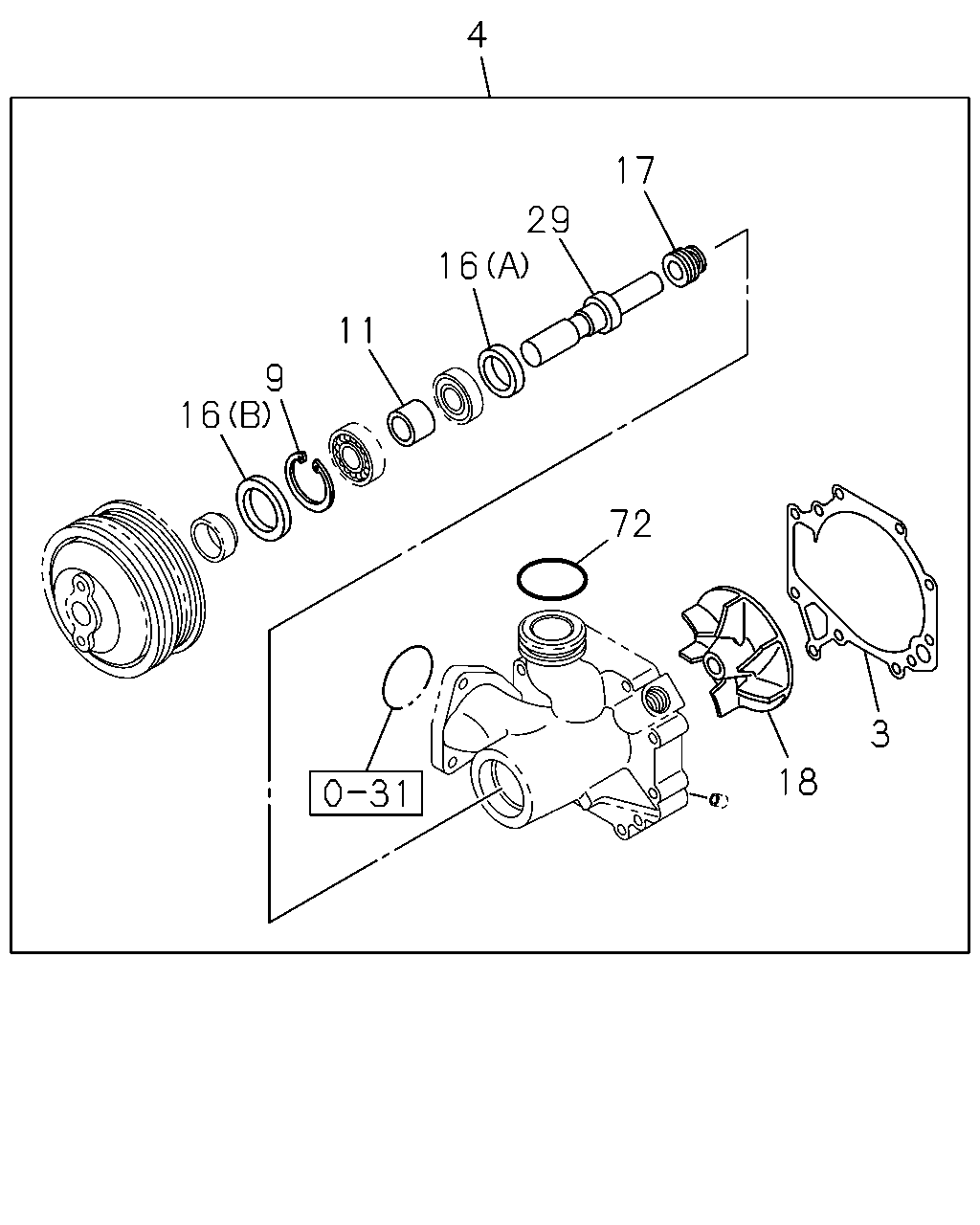

[030A] REPAIR KIT (10 parça)
▶
1
72
3
58
24
17
29
16
10
11
10
9
16
7
18
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
THA
1-87310-991-0
01
1
1410-
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). THA
1-13614-027-0
01
1
1410-
7
PULLEY; WATER PUMP
THA
8-97606-580-0
01
1
1410-
9
RING; SNAP,WATER PUMP
ID=57.9 THA
9-09180-162-0
01
1
1410-
10
BEARING; WATER PUMP
(A) THA
1-09800-252-0
02
1
1410-
10
BEARING; WATER PUMP
(B) THA
8-97605-268-0
01
1
1410-
11
SPACER; BRG,WATER PUMP
THA
1-13634-035-0
01
1
1410-
16
SEAL; OIL,WATER PUMP
(A) THA
1-09625-388-0
01
1
1410-
16
SEAL; OIL,WATER PUMP
(B) THA
1-09625-389-0
01
1
1410-
17
SEAL UNIT; WATER PUMP
THA
8-98272-791-0
01
1
1410-
18
IMPELLER; WATER PUMP
THA
8-97605-265-0
01
1
1410-
24
BOLT; WATER PUMP
M10X45 FLANGE THA
0-28151-045-0
11
1
1410-
29
SHAFT; WATER PUMP
THA
1-13631-081-0
01
1
1410-
55
NOZZLE; OIL FEED,WATER PUMP
THA
1-13619-046-0
01
1
1410-
58
PLUG; HTR
PT3/4 THA
1-09605-020-0
01
1
1410-
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). THA
8-98236-254-0
01
1
1410-
4
17
29
16
11
9
16
72
3
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). THA
1-13614-027-0
01
1
1410-
4
REPAIR KIT; WATER PUMP
THA
1-87814-616-0
01
1
1410-
9
RING; SNAP,WATER PUMP
ID=57.9 THA
9-09180-162-0
01
1
1410-
11
SPACER; BRG,WATER PUMP
THA
1-13634-035-0
01
1
1410-
16
SEAL; OIL,WATER PUMP
(A) THA
1-09625-388-0
01
1
1410-
16
SEAL; OIL,WATER PUMP
(B) THA
1-09625-389-0
01
1
1410-
17
SEAL UNIT; WATER PUMP
THA
8-98272-791-0
01
1
1410-
18
IMPELLER; WATER PUMP
THA
8-97605-265-0
01
1
1410-
29
SHAFT; WATER PUMP
THA
1-13631-081-0
01
1
1410-
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). THA
8-98236-254-0
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
