Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11652 - FXZ/GXZ THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

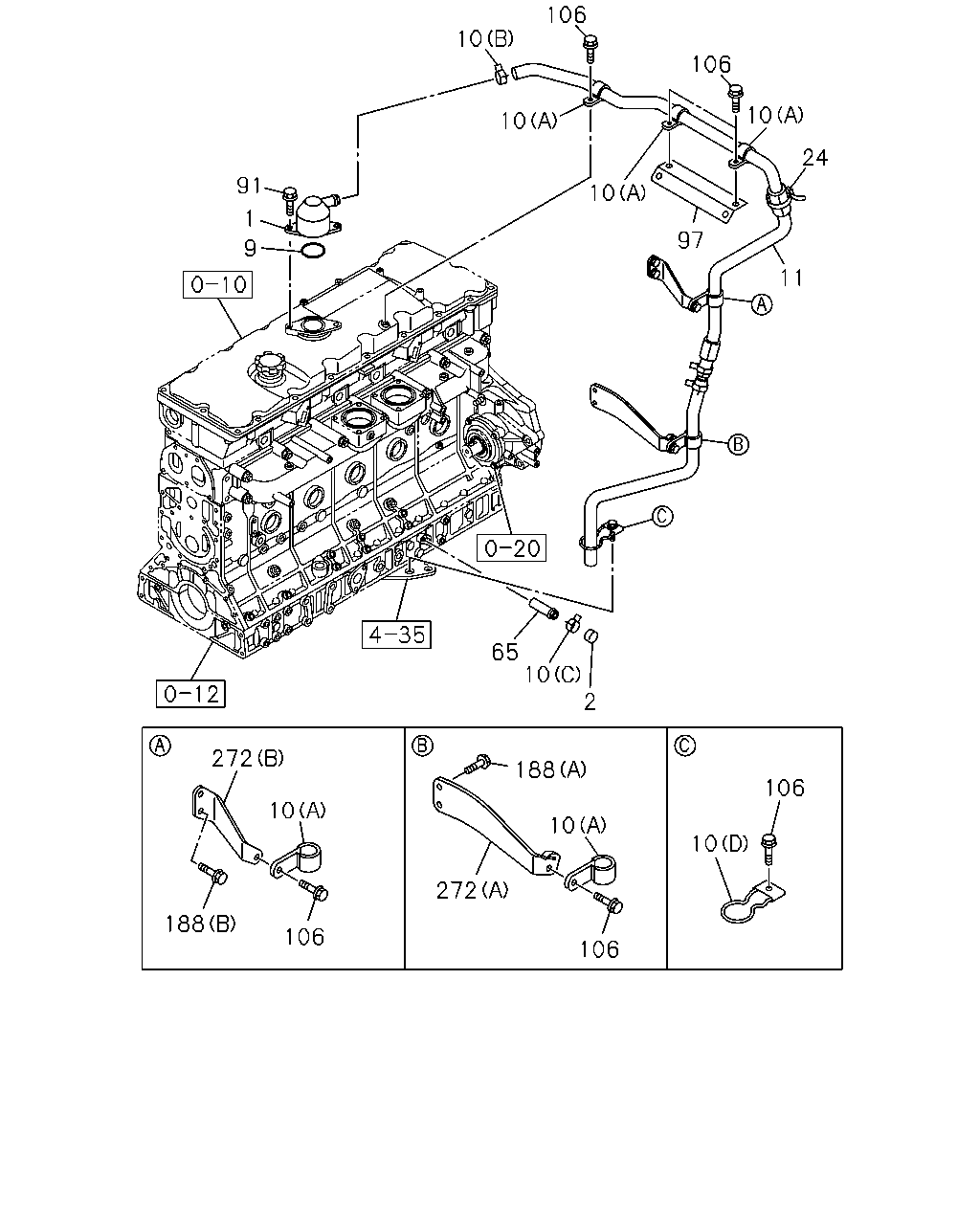

0-28 — VENTILATION SYSTEM
(#150671) — 17 parça
91
1
9
10
106
10
106
10
24
11
10
97
65
10
2
106
10
188
10
106
272
272
10
106
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
THA
1-11740-181-1
01
1
1410-
2
CAP; AIR BREATHER BODY
ID=9.0 THA
8-94207-303-0
01
1
1410-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 THA
1-09623-565-0
01
1
1410-
10
CLIP; AIR BREATHER
(C) ID=14 THA
1-09704-102-0
01
1
1410-
10
CLIP; AIR BREATHER
(B) ID=28.5 THA
1-09707-150-0
01
1
1410-
10
CLIP; AIR BREATHER
(D) THA
1-11369-115-0
01
1
1410-
10
CLIP; AIR BREATHER
(A) ID=29 L=30 THA
8-98225-679-0
05
1
1410-
11
HOSE; RUBBER,AIR
THA
8-98086-986-0
01
1
1410-
24
CLIP; RUBBER HOSE,VENTILATOR
L=250 THA
8-98216-430-0
01
1
1410-
65
PIPE; BREATHER
THA
8-94176-713-0
01
1
1410-
91
BOLT; AIR BREATHER
M10X20 FLANGE THA
0-28151-020-0
02
1
1410-
97
BRACKET; HOSE
THA
8-97615-917-0
01
1
1410-
106
BOLT; DRAIN PIPE
M8X16 FLANGE THA
0-28050-816-0
06
1
1410-
188
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
188
BOLT; BRKT
(B) M10X20 FLANGE THA
0-28151-020-0
02
1
1410-
272
BRACKET; PIPE
(B) THA
8-97620-047-0
01
1
1410-
272
BRACKET; PIPE
(A) THA
8-98090-631-1
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
