Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11652 - FXZ/GXZ THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#150670) — 18 parça
◀

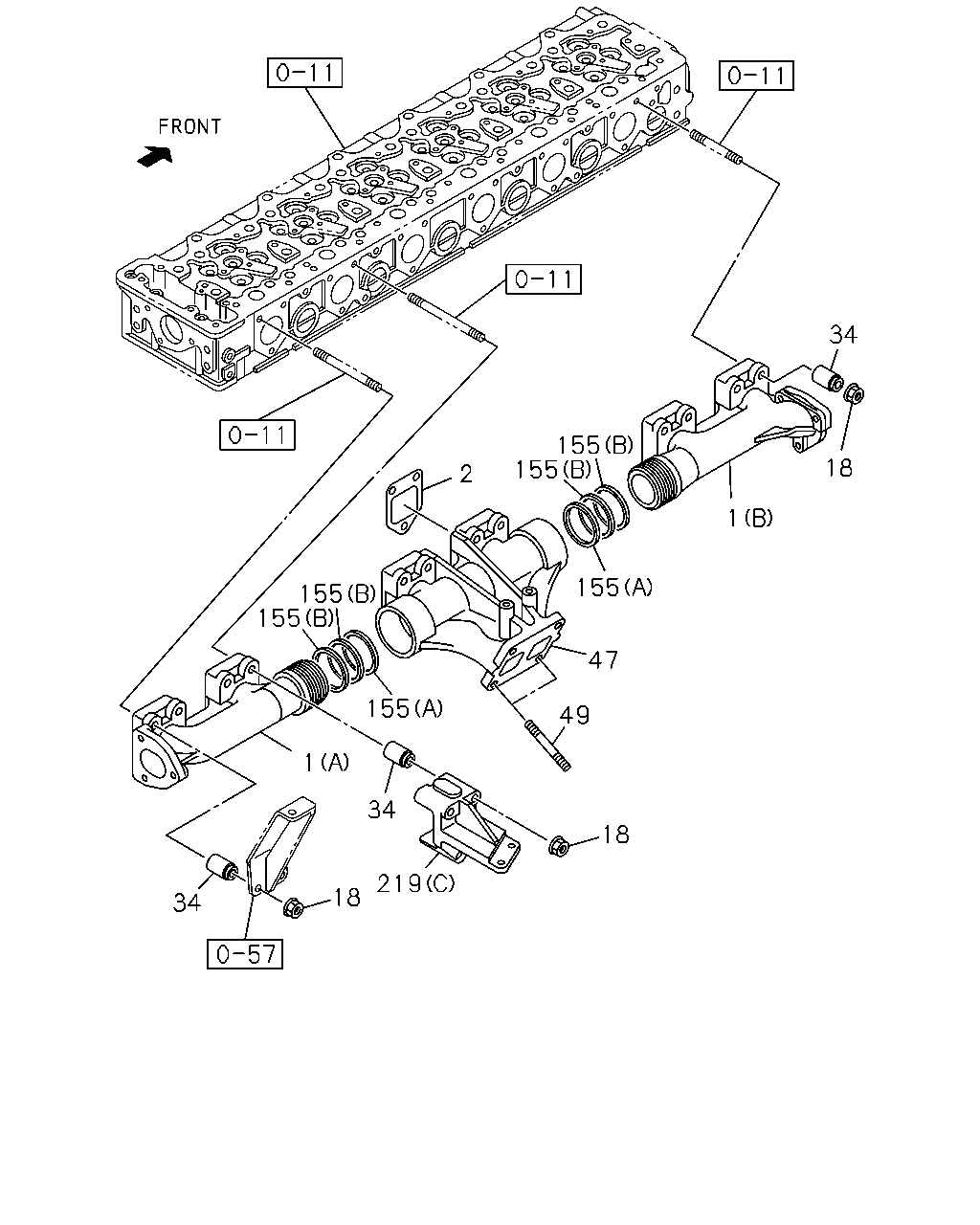

[027A] EXHAUST MANIFOLD (12 parça)

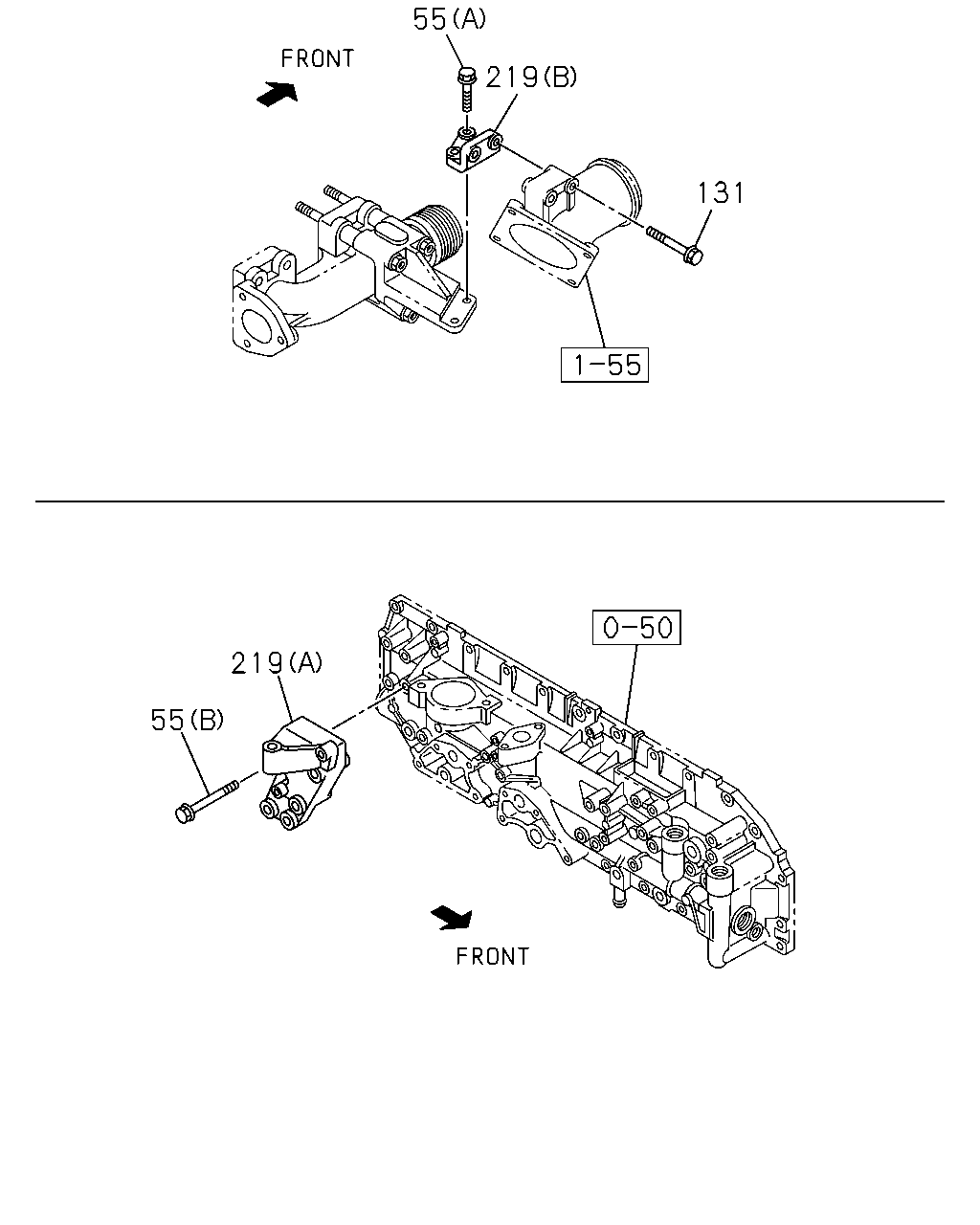

[027A] DUCT BRACKET (6 parça)
▶
155
155
1
18
34
2
47
155
49
18
34
219
18
1
155
155
155
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MANIFOLD; EXHAUST
(A) THA
8-97604-163-2
01
1
1410-
1
MANIFOLD; EXHAUST
(B) THA
8-97604-518-3
01
1
1410-
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
1-14145-205-2
06
1
1410-
18
NUT; EXH MANIF
M10 FLANGE THA
8-97096-192-1
18
1
1410-
34
COLLAR; DIST,EXH MANIF
L=28 THA
8-97250-073-1
18
1
1410-
47
MANIFOLD; EXH,CENTER
THA
8-97603-684-3
01
1
1410-
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47 THA
8-97378-071-0
02
1
1410-
155
RING; SEAL,EXH MANIF
(A) THA
1-14149-151-0
02
1
1410-
155
RING; SEAL,EXH MANIF
(B) THA
1-14149-184-0
04
1
1410-
219
BRACKET; DUCT
(A) THA
8-97606-627-0
01
1
1410-
219
BRACKET; DUCT
(B) THA
8-97606-628-0
01
1
1410-
219
BRACKET; DUCT
(C) THA
8-98147-019-0
01
1
1410-
55
219
131
219
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
BOLT; BRKT
(B) M10X60 FLANGE THA
0-28151-060-0
03
1
1410-
55
BOLT; BRKT
(A) M10X30 FLANGE THA
0-28751-030-0
02
1
1410-
131
BOLT; MTG
M10X60 FLANGE THA
0-28151-060-0
03
1
1410-
219
BRACKET; DUCT
(A) THA
8-97606-627-0
01
1
1410-
219
BRACKET; DUCT
(B) THA
8-97606-628-0
01
1
1410-
219
BRACKET; DUCT
(C) THA
8-98147-019-0
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
